Isuzu WW
▶
SUV
▶
UCR
▶
51578 - UCR/UCS RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-10 - ENGINE HOOD AND LOCK
▶
6-10 — ENGINE HOOD AND LOCK
(#148162) — 26 parça
Tümü
A - UCB5VC
B - UCS5VC
◀

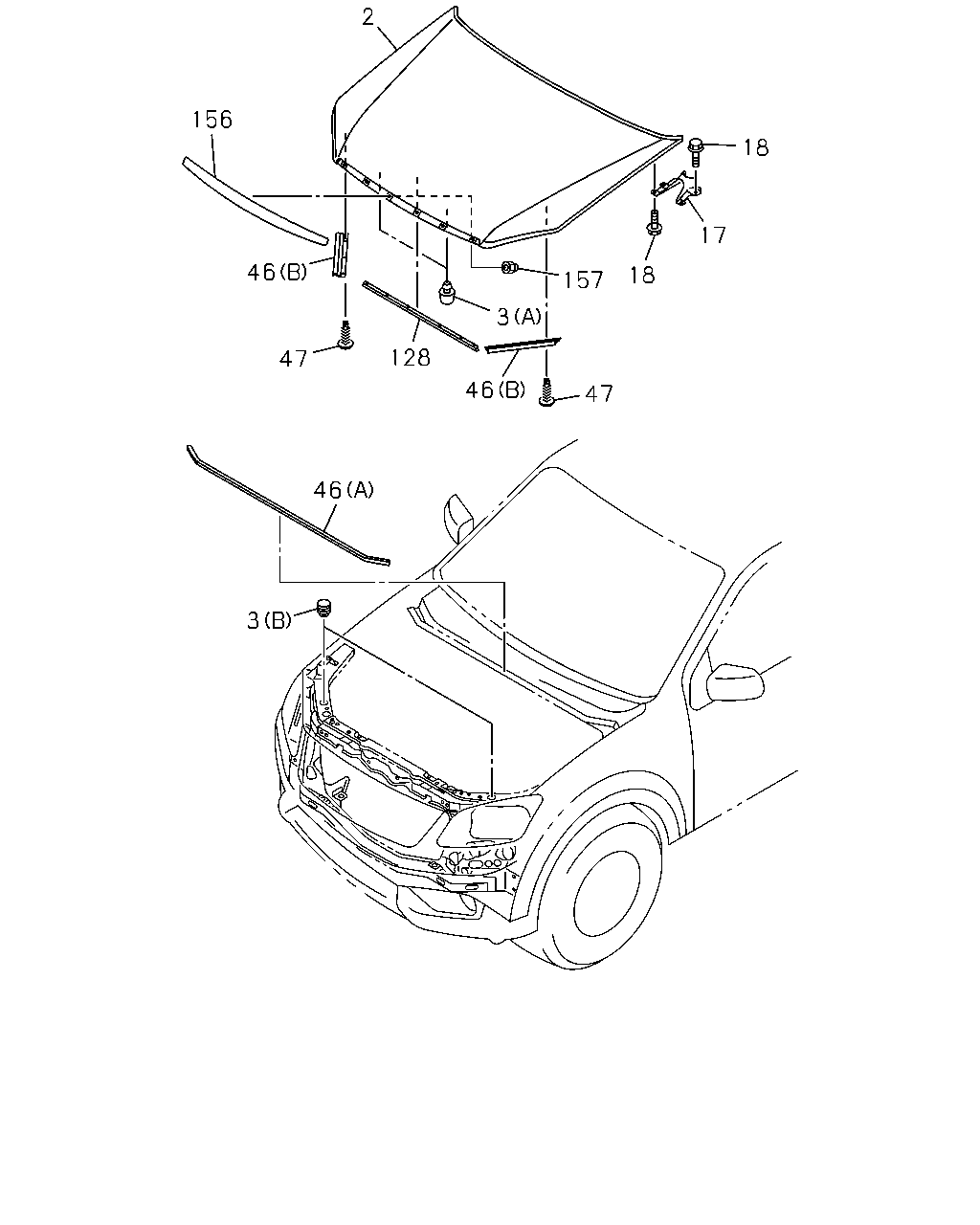

[610A] ENG HOOD (14 parça)

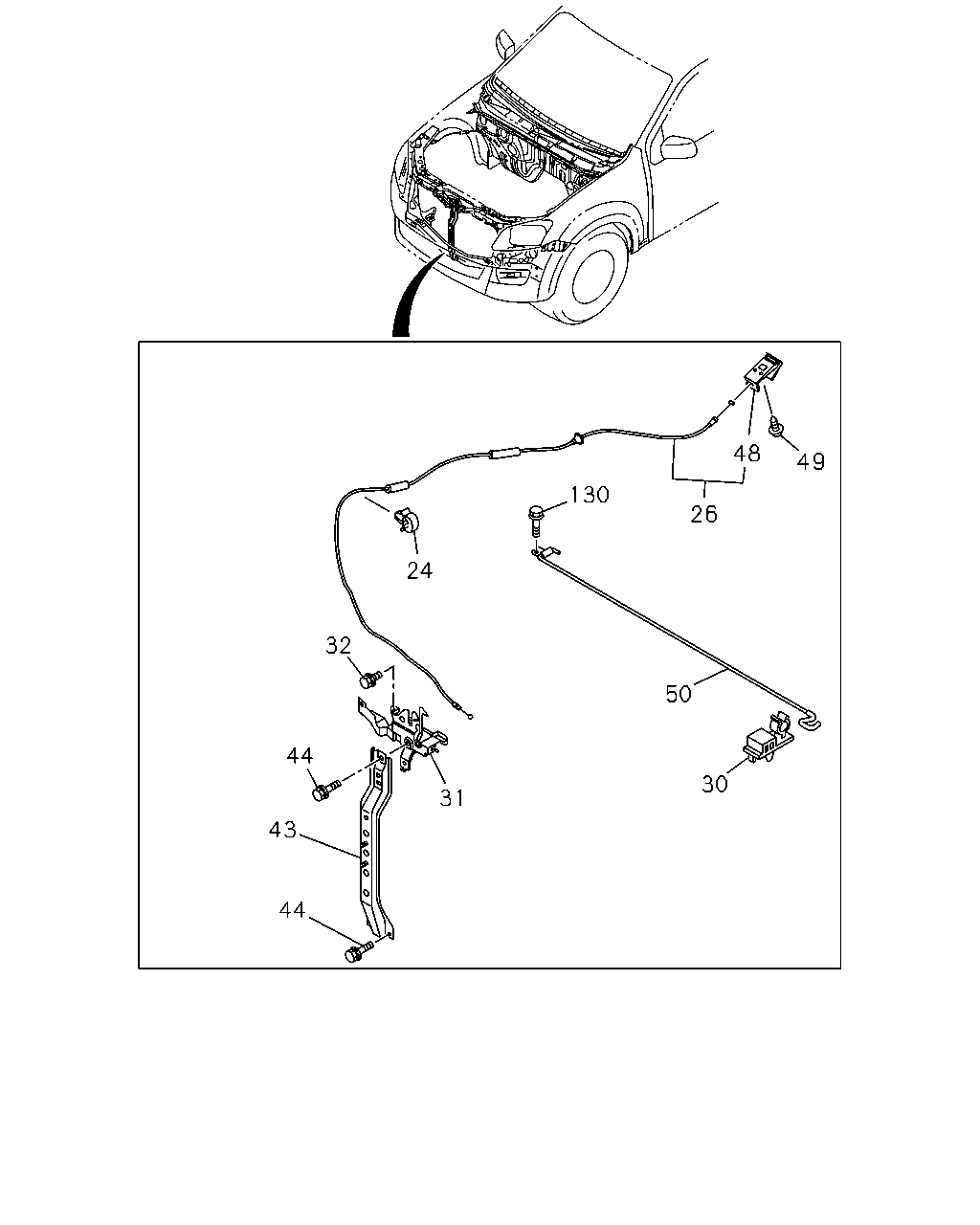

[610A] CABLE;ENG HOOD (12 parça)
▶
18
17
157
18
3
46
47
128
47
46
156
2
46
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
08.000 PANEL; ENG HOOD
8-98193-817-0
01
1
1409-
●
●
3
08.077 BUFFER; ENG HOOD,FRT
(A)
8-97948-266-0
02
1
1409-
●
●
3
08.077 BUFFER; ENG HOOD,FRT
(B)
8-98195-454-0
02
1
1409-
●
●
17
08.015 HINGE; ENG HOOD
8-98104-099-2
01
1
1409-
●
●
17
08.015 HINGE; ENG HOOD
8-98104-100-2
01
1
1409-
●
●
18
08.015 BOLT; HINGE
M8X16
8-98056-122-0
08
1
1409-
●
●
46
01.272 SEAL; ENG HOOD
(A)
8-98065-805-1
01
1
1409-
●
●
46
01.272 SEAL; ENG HOOD
(B)
8-98160-815-1
01
1
1409-
●
●
46
01.272 SEAL; ENG HOOD
(B)
8-98165-802-1
01
1
1409-
●
●
47
08.095 CLIP; HOOD SEAL
16.069 OD=12 L=14.8
8-94279-921-0
06
1
1409-
●
●
128
08.010 SEAL; PLATFORM
8-98102-230-0
01
1
1409-
●
●
156
08.010 MOLDING; HOOD
BODY COLOR KEYED RAD GRILLE<TL1>,BRIGHT RAD GRILLE<V22> PLATED
8-98269-566-0
01
1
1409-
●
●
156
08.010 MOLDING; HOOD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22>
8-98181-163-3
01
1
1409-
●
●
157
08.010 NUT; MOLDING
08.155 M6 CAP NUT
8-98049-850-0
06
1
1409-
●
●
49
48
26
50
30
130
24
32
31
44
43
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
24
08.077 CLIP; CONT CABLE
8-97182-405-0
03
1
1409-
●
●
26
08.075 CABLE; ENG HOOD CONT
8-98071-759-1
01
1
1409-
●
●
30
08.077 CLIP; SUPPORT ROD,HOOD
8-97301-356-0
01
1
1409-
●
●
31
08.083 LOCK; ENG HOOD
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>
8-98074-562-4
01
1
1409-
●
●
31
08.083 LOCK; ENG HOOD
EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>
8-98074-561-4
01
1
1409-
●
●
32
08.077 BOLT; HOOD LK
M6X20 W/PL WASHER
8-97370-668-0
02
1
1409-
●
●
43
08.077 STAY; ENG HOOD,FRT END
8-98165-341-0
01
1
1409-
●
●
44
08.077 BOLT; STAY,HOOD
M6X20 W/PL WASHER
8-97370-668-0
04
1
1409-
●
●
48
08.083 LEVER; ENG HOOD
8-98204-979-0
01
1
1409-
●
●
49
08.083 SCREW; LEVER,ENG HOOD OPENER
M5X16 TAPPING
8-98167-449-0
02
1
1409-
●
●
50
08.015 ROD; SUPPORT,ENG HOOD
8-98101-948-1
01
1
1409-
●
●
130
08.077 BOLT; SUPPORT ROD,HOOD
00.685 M6X25 FLANGE
0-28650-625-0
01
1
1409-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
