6-03 — RADIATOR GRILLE (#148159) — 22 parça

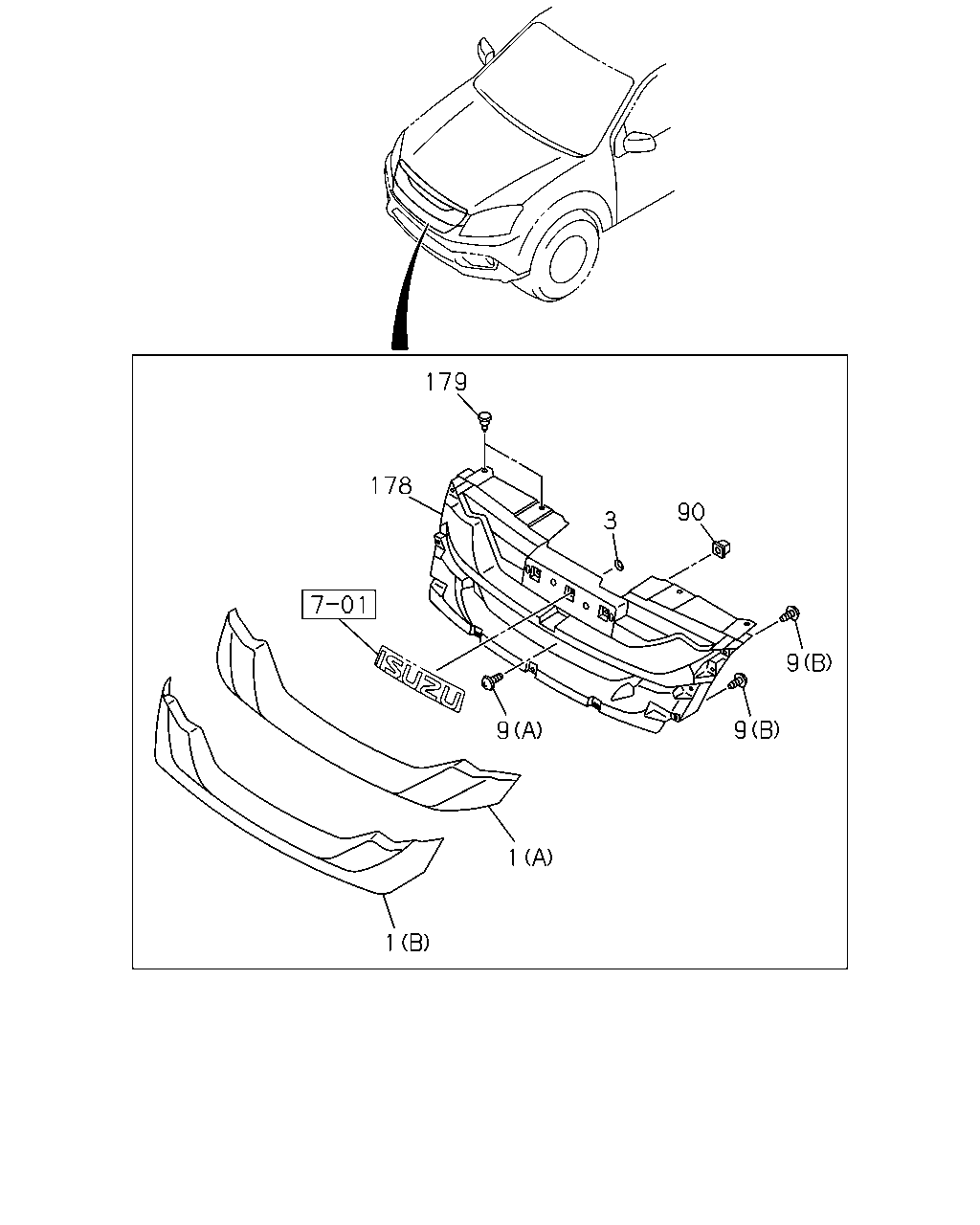

çizim 443377
179 178 3 9 90 9 1 1 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.266 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1> (A) PLEASE PAINT TO MATCH BODY COLOR 		8-98250-257-0 01 1 1409- ● ●
1 01.266 GRILLE; RAD
BODY COLOR KEYED RAD GRILLE<TL1> (B) PLEASE PAINT TO MATCH BODY COLOR 		8-98250-258-0 01 1 1409- ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (A) PLATED 		8-98249-946-0 01 1 1409- ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (B) PLATED 		8-98249-949-0 01 1 1409- ● ●
1 01.266 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> (A) 		8-98249-944-0 01 1 1409- ● ●
1 01.266 GRILLE; RAD
EXC. BODY COLOR KEYED RAD GRILLE<TL1>, BRIGHT RAD GRILLE<V22> (B) 		8-98249-947-0 01 1 1409- ● ●
3 01.269 CLIP; GRILLE 8-98211-687-0 03 1 1409- ● ●
9 01.269 SCREW; RAD GRILLE
(A) M5X16 		8-98167-352-0 01 1 1409- ● ●
9 01.269 SCREW; RAD GRILLE
(B) M5X16 TAPPING W/PL WASHER 		8-98193-872-0 11 1 1409- ● ●
90 01.269 NUT; RAD GRILLE
02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 1409- ● ●
178 01.269 GRILLE; INNER,RAD 8-98249-943-1 01 1 1409- ● ●
179 01.269 RETAINER; GRILLE,RAD
07.832 		8-97301-188-0 04 1 1409- ● ●

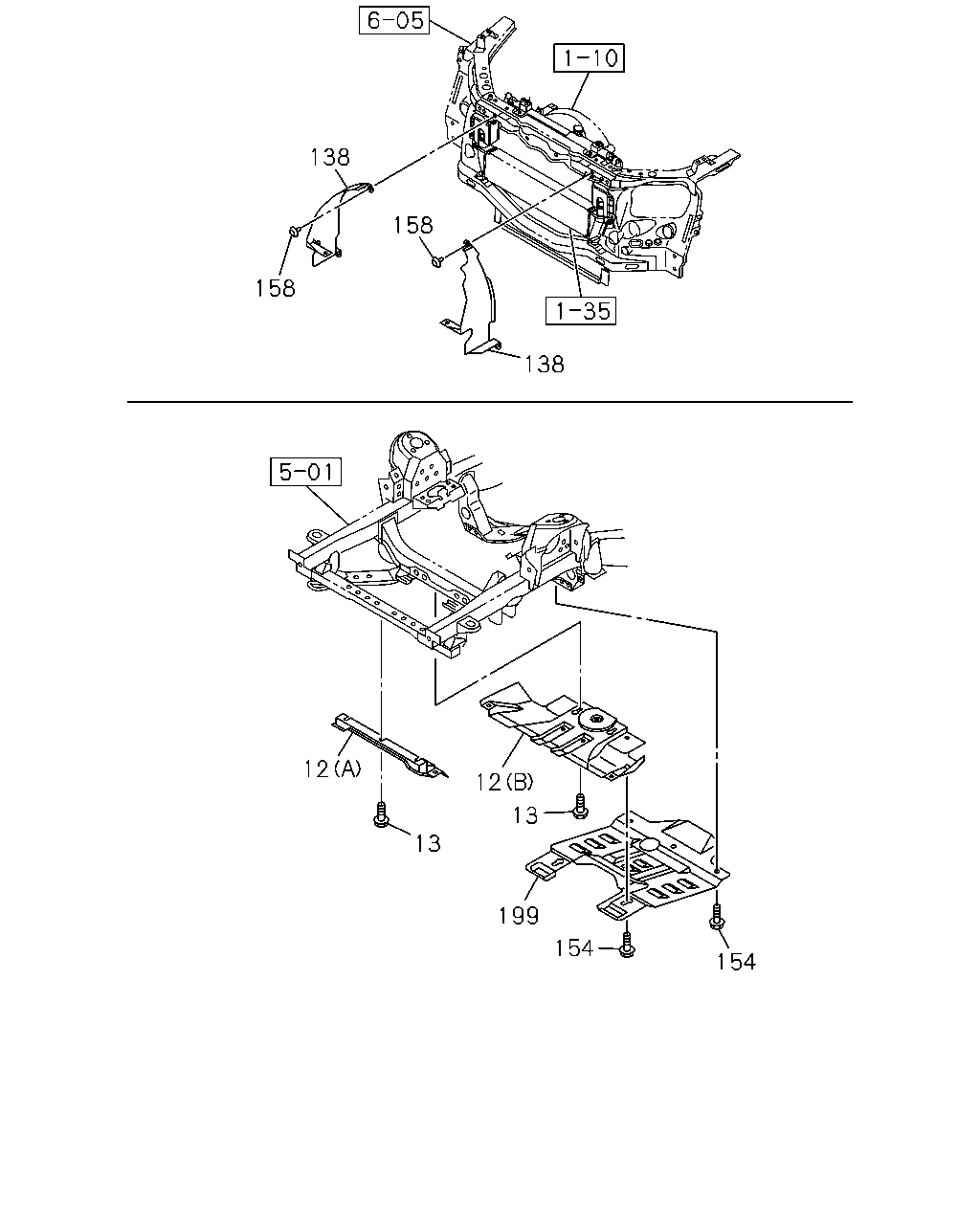

çizim 443670
138 158 138 158 12 13 12 13 199 154 154
BalonParca AdiParca NoAdetTipApplied Date A B
12 01.274 PLATE; SKID,RAD
(A) 		8-98102-129-1 01 1 1409- ● ●
12 01.274 PLATE; SKID,RAD
(B) 		8-98229-406-0 01 1 1409- ● ●
13 01.267 BOLT; RAD SKID PLATE
M10X28 W/LK&PL WASHER 		8-97945-706-0 09 1 1409- ● ●
138 01.266 GUIDE; AIR 8-98137-586-1 01 1 1409- ● ●
138 01.266 GUIDE; AIR 8-98137-587-1 01 1 1409- ● ●
154 01.267 BOLT; COVER
A/T 5 SPEED-AISIN(MA1) 01.428 M12X25 FLANGE 		8-98230-015-0 04 1 1409- ●
154 01.267 BOLT; COVER
01.428 M12X25 FLANGE 		8-98230-015-0 04 1 1409- ●
158 01.269 CLIP; PROTECTOR
08.154 OD=22 L=10.7 		8-94215-211-0 06 1 1409- ● ●
199 01.274 PLATE; OIL PAN
A/T 5 SPEED-AISIN(MA1) 01.426 		8-98211-052-1 01 1 1409- ● ●
199 01.274 PLATE; OIL PAN
M/T MUX 5 SPEED 5S(MZJ) 01.426 		8-98229-404-0 01 1 1409- ●
