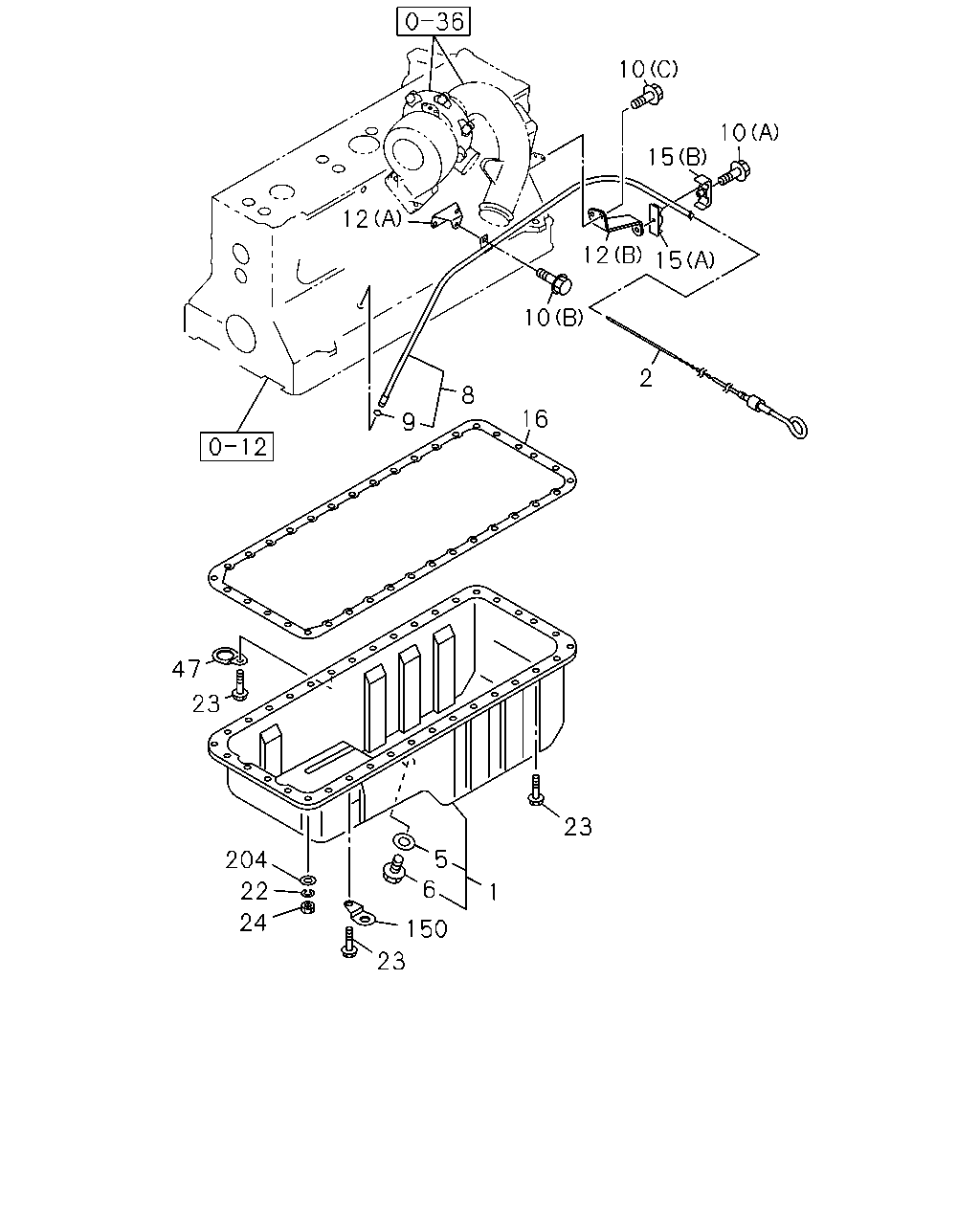

0-13 — OIL PAN AND LEVEL GAUGE
(#14815) — 22 parça
10
10
15
12
12
15
10
2
8
16
9
47
23
23
5
204
6
22
1
24
150
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
1-11360-708-3
01
1
0711-
2
GAUGE; OIL LEVEL
1-11760-395-0
01
1
0711-
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8
1-09623-058-0
01
1
0711-
6
PLUG; OIL DRAIN
M24X17 FLANGE
1-09604-022-0
01
1
0711-
8
TUBE; GUIDE,OIL LEVEL GAUGE
1-11766-483-0
01
1
0711-
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
01
1
0711-
10
BOLT; GUIDE TUBE
(A) M6X40 FLANGE
0-28050-640-0
01
1
0711-
10
BOLT; GUIDE TUBE
(C) M8X12 FLANGE
0-28050-812-0
02
1
0711-
10
BOLT; GUIDE TUBE
(B) M8X20 FLANGE
0-28050-820-0
01
1
0711-
12
BRACKET; TUBE,OIL LEVEL GAUGE
(A)
1-11769-167-0
01
1
0711-
12
BRACKET; TUBE,OIL LEVEL GAUGE
(B)
1-11769-169-0
01
1
0711-
15
CLIP; GUIDE TUBE
(B)
1-09701-193-1
01
1
0711-
15
CLIP; GUIDE TUBE
(A)
1-09701-194-1
01
1
0711-
16
GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
1-11367-129-1
01
1
0711-1103
16
GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-98187-258-0
01
1
1104-
22
WASHER; LK,OIL PAN
ID=8.2
0-91510-508-0
06
1
0711-
23
BOLT; OIL PAN
M8X22 W/LK&PL WASHER
0-50140-822-0
30
1
0711-0906
23
BOLT; OIL PAN
M8X22 W/LK&PL WASHER
0-50640-822-0
30
1
0907-
24
NUT; OIL PAN
M8 IDN
0-91110-508-0
06
1
0711-
47
CLIP; HOSE,AIR BREATHER
1-11229-014-0
01
1
0711-
150
CLIP; WATER,OIL DRAIN
9-11229-070-0
02
1
0711-
204
WASHER; PL,OIL PAN
ID=8.4 OD=16
0-91610-508-0
06
1
0711-
