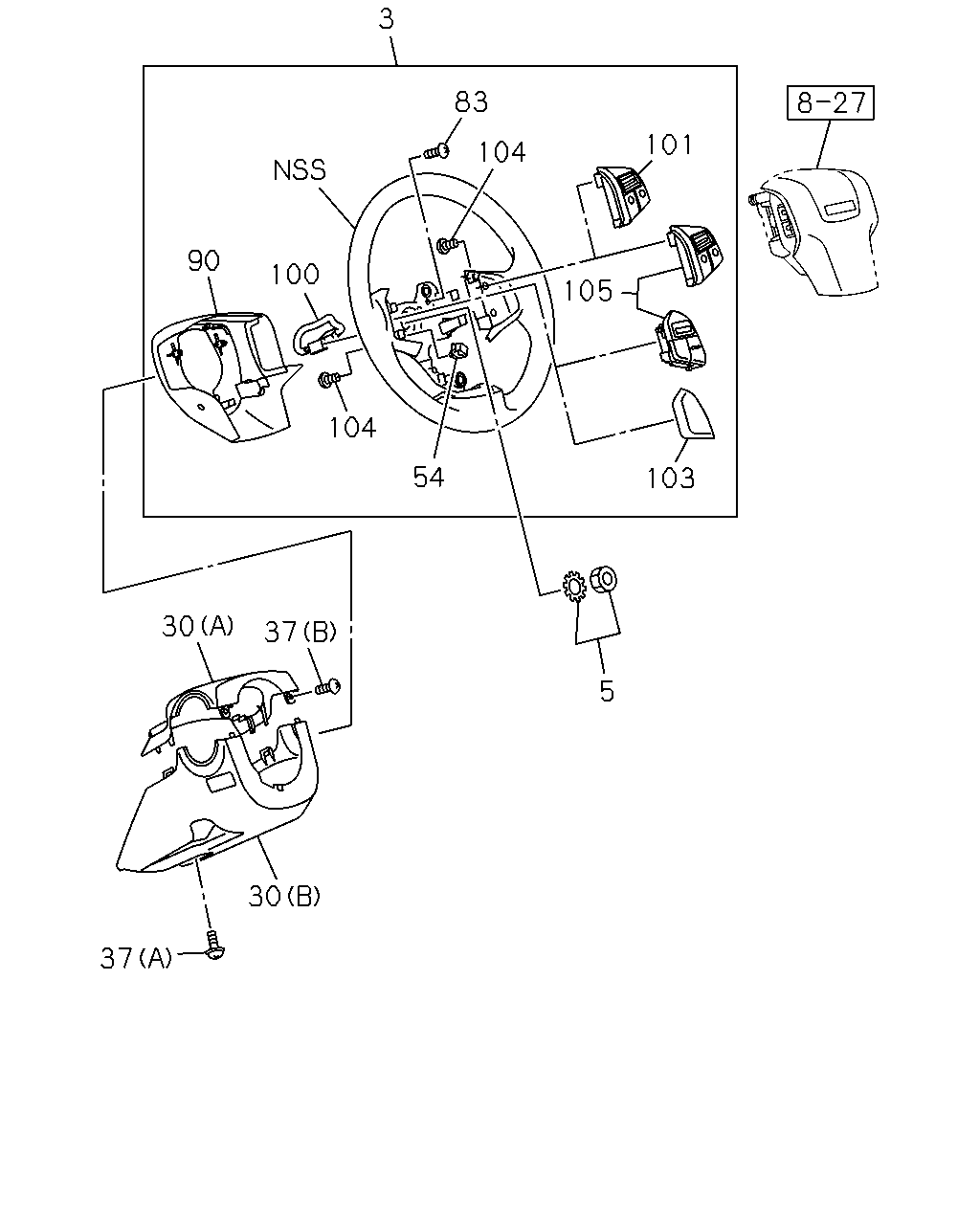

4-30 — STEERING WHEEL AND COWL (#148141) — 17 parça

5 30 37 37 30 54 104 100 90 3 83 104 105 101 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	06.513 WHEEL; STRG STRG WHL AUDIO CONTROL SW<8NE> BLACK	8-97424-482-0	01	1	1409-	●	●
3	06.513 WHEEL; STRG EXC. STRG WHL AUDIO CONTROL SW<8NE> BLACK	8-97424-480-0	01	1	1409-	●	●
5	06.515 NUT; STRG WHEEL TO SHAFT M12 W/TOOTH WASHER	8-94455-487-1	01	1	1409-	●	●
30	06.518 COWL; STEERING PASSIVE ENTRY AND START SYSTEM<AP3> (B) BLACK	8-97427-833-0	01	1	1409-	●	●
30	06.518 COWL; STEERING (A) BLACK	8-97416-863-4	01	1	1409-	●	●
30	06.518 COWL; STEERING EXC. PASSIVE ENTRY AND START SYSTEM<AP3> (B) BLACK	8-97416-794-6	01	1	1409-	●	●
37	06.518 SCREW; STRG COWL UPR (A) M4X12 W/PL WASHER	0-36210-412-0	01	1	1409-	●	●
37	06.518 SCREW; STRG COWL UPR 08.083 (B) M5X16 TAPPING	8-98167-449-0	02	1	1409-	●	●
54	02.559 CLIP; HARNESS	8-98165-703-0	01	1	1409-	●	●
83	06.514 SCREW; LWR COVER TO WHEEL 09.242 M4X10 TAPPING	0-71240-410-0	02	1	1409-	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR 06.514 BLACK	8-97416-856-1	01	1	1409-	●	●
100	06.513 HARNESS; STRG WHEEL STRG WHL AUDIO CONTROL SW<8NE>	8-98108-694-0	01	1	1409-	●	●
100	06.513 HARNESS; STRG WHEEL EXC. STRG WHL AUDIO CONTROL SW<8NE>	8-98108-693-0	01	1	1409-	●	●
101	06.514 SWITCH ASM; CRUISE CONT,STRG WHE EXC. STRG WHL AUDIO CONTROL SW<8NE>	8-98196-491-0	01	1	1409-	●	●
103	06.514 BEZEL; COVER,SWITCH HOLE EXC. STRG WHL AUDIO CONTROL SW<8NE>	8-98196-496-0	01	1	1409-	●	●
104	06.514 SCREW; SWITCH AND BEZEL 09.242 M4X10 TAPPING	0-71240-410-0	04	1	1409-	●	●
105	06.514 SWITCH ASM; AUDIO & AUTO CRUISE STRG WHL AUDIO CONTROL SW<8NE>	8-98196-492-0	01	1	1409-	●	●
