Isuzu WW
▶
SUV
▶
UCR
▶
51578 - UCR/UCS RHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-11 - FRONT HUB AND DRUM OR ROTOR
▶

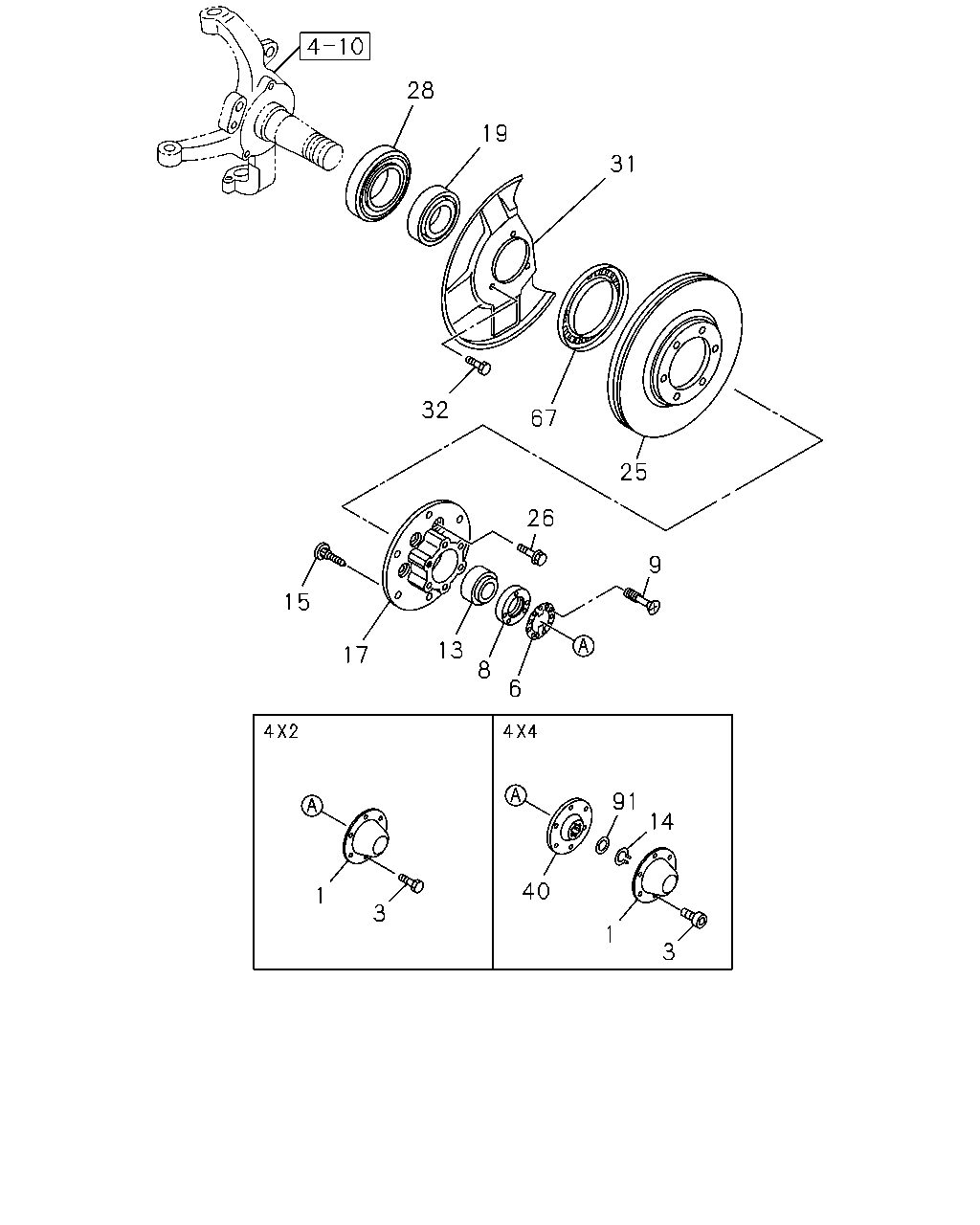

4-11 — FRONT HUB AND DRUM OR ROTOR
(#148136) — 23 parça
Tümü
A - UCB5VC
B - UCS5VC
28
19
31
32
67
25
9
26
13
8
6
17
15
1
3
40
91
14
1
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
06.330 CAP; HUB,FRT AXLE
8-97944-565-0
02
1
1409-
●
●
3
06.330 BOLT; HUB CAP,FRT WHEEL
06.174 M10X20
0-20951-020-0
12
1
1409-
●
3
06.330 BOLT; HUB CAP,FRT WHEEL
M10X33
8-98117-920-0
12
1
1409-
●
6
05.812 WASHER; LK,FRT HUB
T=1.8 OD=65
8-94442-398-0
02
1
1409-
●
●
8
05.812 NUT; ADJ,FRT HUB
ID=40 OD=65 T=8
8-94442-399-1
02
1
1409-
●
●
9
05.812 SCREW; ADJ,NUT
M4X8 CK-HEAD
8-98008-301-0
06
1
1409-
●
●
13
06.313 BEARING; HUB OUTER,FRT AXLE
06.311 NSK
8-94227-041-0
02
1
1409-
●
●
14
05.813 RING; SPR,FRT WHEEL
08.934 ID=25.9
9-09180-028-0
02
1
1409-
●
15
05.812 PIN; WHEEL,FRT AXLE
M12X37.5
8-97944-564-1
12
1
1409-
●
●
17
06.307 HUB; FRT AXLE
8-98054-665-0
02
1
1409-
●
●
19
06.311 BEARING; HUB INNER,FRT AXLE
06.314 NSK
8-94258-819-0
02
1
1409-
●
●
25
05.809 ROTOR; DISC BRK,FRT
8-98124-663-4
02
1
1409-
●
●
26
05.812 BOLT; BRK,DISC TO HUB
M12X31.5 FLANGE
8-98006-065-0
12
1
1409-
●
●
28
06.326 SEAL; OIL,FRT HUB
8-98036-594-0
02
1
1409-
●
●
31
04.665 COVER; DUST,FRT BRAKE
8-98062-190-0
01
1
1409-
●
●
31
04.665 COVER; DUST,FRT BRAKE
8-98062-191-0
01
1
1409-
●
●
32
04.665 BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER
8-98006-352-0
06
1
1409-
●
●
40
06.308 FLANGE; FRT WHEEL HUB
8-98197-869-0
02
1
1409-
●
67
05.811 ROTOR; SENSOR
8-97238-280-0
02
1
1409-
●
●
91
06.056 SPACER; HUB BRG
06.323 T=0.20
8-94178-929-0
AR
1
1409-
●
91
06.056 SPACER; HUB BRG
06.323 T=0.30
8-94178-930-0
AR
1
1409-
●
91
06.056 SPACER; HUB BRG
06.323 T=0.50
8-94178-931-0
AR
1
1409-
●
91
06.056 SPACER; HUB BRG
06.323 T=1.00
8-94178-932-0
AR
1
1409-
●
