4-01 — PROPELLER SHAFT (#148134) — 61 parça

300 9 17 125 103 9 17 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	05.544 YOKE; FLANGE,PROP SHAFT (A)	8-97948-771-0	01	1	1409-	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT (B)	8-97948-772-0	02	1	1409-		●
9	05.548 JOURNAL ASM; PROP SHAFT A/T 5 SPEED-AISIN(MA1) (C)	8-97947-643-0	03	1	1409-	●
9	05.548 JOURNAL ASM; PROP SHAFT (B)	8-97947-582-0	02	1	1409-		●
9	05.548 JOURNAL ASM; PROP SHAFT (A)	8-97947-645-0	02	1	1409-		●
17	05.601 NIPPLE; GREASE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	02	1	1409-		●
17	05.601 NIPPLE; GREASE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	02	1	1409-		●
103	05.544 BOOT; PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97947-639-0	01	1	1409-	●
103	05.544 BOOT; PROP SHAFT 05.560 (A)	8-97940-114-0	01	1	1409-		●
103	05.544 BOOT; PROP SHAFT (B)	8-97943-053-0	01	1	1409-		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97947-632-0	01	1	1409-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT A/T 5 SPEED-AISIN(MA1) (B)	8-97947-664-0	01	1	1409-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT (A)	8-97947-630-0	01	1	1409-		●
300	05.544 SHAFT ASM; PROP,RR A/T 5 SPEED-AISIN(MA1) (A) L=1480.5	8-97948-791-0	01	1	1409-	●
300	05.544 SHAFT ASM; PROP,RR A/T 5 SPEED-AISIN(MA1) (B) L=1142	8-97948-765-0	01	1	1409-		●
300	05.544 SHAFT ASM; PROP,RR M/T MUX 5 SPEED 5S(MZJ) (B) L=1220	8-97948-767-0	01	1	1409-		●

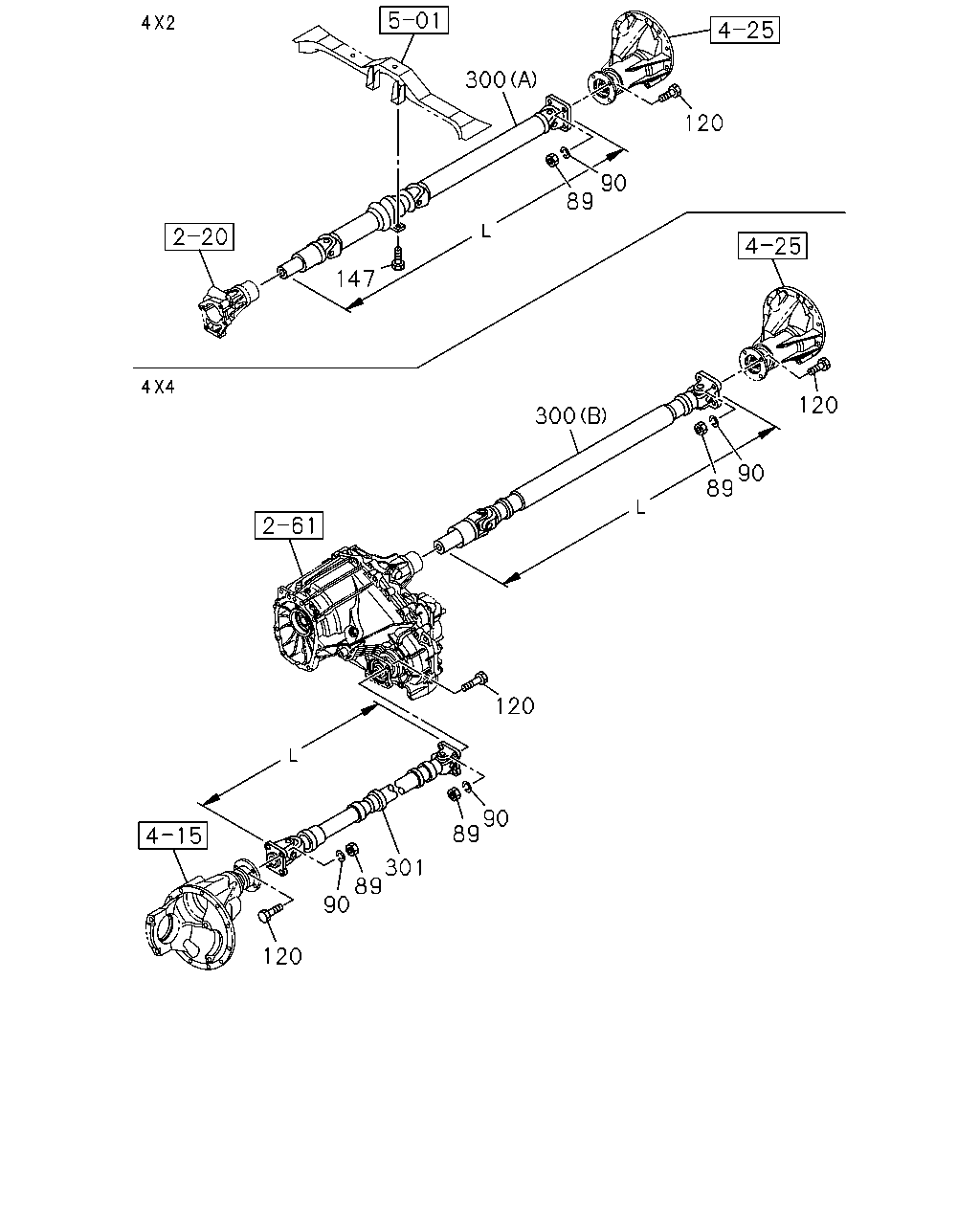

300 120 90 89 147 300 120 90 89 120 90 89 301 89 90 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
89	05.586 NUT; YOKE TO RR AXLE M10 FLANGE	8-97246-900-0	04	1	1409-	●	●
89	05.586 NUT; YOKE TO RR AXLE M10 FLANGE	8-97246-900-0	08	1	1409-		●
90	05.586 WASHER; LK,YOKE TO RR AXLE ID=10.1	8-97246-901-0	04	1	1409-	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE ID=10.1	8-97246-901-0	08	1	1409-		●
120	05.586 BOLT; YOKE TO RR AXLE M10X29	8-97246-859-0	04	1	1409-	●	●
120	05.586 BOLT; YOKE TO RR AXLE M10X29	8-97246-859-0	08	1	1409-		●
147	05.586 BOLT; CENTER BRG MTG A/T 5 SPEED-AISIN(MA1) 17.447 M12X25 FLANGE	0-28661-225-0	02	1	1409-	●
300	05.544 SHAFT ASM; PROP,RR A/T 5 SPEED-AISIN(MA1) (A) L=1480.5	8-97948-791-0	01	1	1409-	●
300	05.544 SHAFT ASM; PROP,RR A/T 5 SPEED-AISIN(MA1) (B) L=1142	8-97948-765-0	01	1	1409-		●
300	05.544 SHAFT ASM; PROP,RR M/T MUX 5 SPEED 5S(MZJ) (B) L=1220	8-97948-767-0	01	1	1409-		●
301	05.544 SHAFT ASM; PROP,FRT A/T 5 SPEED-AISIN(MA1) L=789	8-97948-762-0	01	1	1409-		●
301	05.544 SHAFT ASM; PROP,FRT M/T MUX 5 SPEED 5S(MZJ) L=710	8-97948-761-0	01	1	1409-		●

301 220 9 8 103 17 106 8 9 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	05.544 YOKE; FLANGE,PROP SHAFT (A)	8-97948-771-0	01	1	1409-	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT (B)	8-97948-772-0	02	1	1409-		●
9	05.548 JOURNAL ASM; PROP SHAFT A/T 5 SPEED-AISIN(MA1) (C)	8-97947-643-0	03	1	1409-	●
9	05.548 JOURNAL ASM; PROP SHAFT (B)	8-97947-582-0	02	1	1409-		●
9	05.548 JOURNAL ASM; PROP SHAFT (A)	8-97947-645-0	02	1	1409-		●
17	05.601 NIPPLE; GREASE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	02	1	1409-		●
17	05.601 NIPPLE; GREASE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	02	1	1409-		●
103	05.544 BOOT; PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97947-639-0	01	1	1409-	●
103	05.544 BOOT; PROP SHAFT 05.560 (A)	8-97940-114-0	01	1	1409-		●
103	05.544 BOOT; PROP SHAFT (B)	8-97943-053-0	01	1	1409-		●
106	05.586 NIPPLE; GREASE,YOKE,PROP SHAFT 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1409-		●
220	05.544 YOKE; SPLINED A/T 5 SPEED-AISIN(MA1)	8-97945-105-0	01	1	1409-		●
220	05.544 YOKE; SPLINED M/T MUX 5 SPEED 5S(MZJ)	8-97943-050-0	01	1	1409-		●
301	05.544 SHAFT ASM; PROP,FRT A/T 5 SPEED-AISIN(MA1) L=789	8-97948-762-0	01	1	1409-		●
301	05.544 SHAFT ASM; PROP,FRT M/T MUX 5 SPEED 5S(MZJ) L=710	8-97948-761-0	01	1	1409-		●

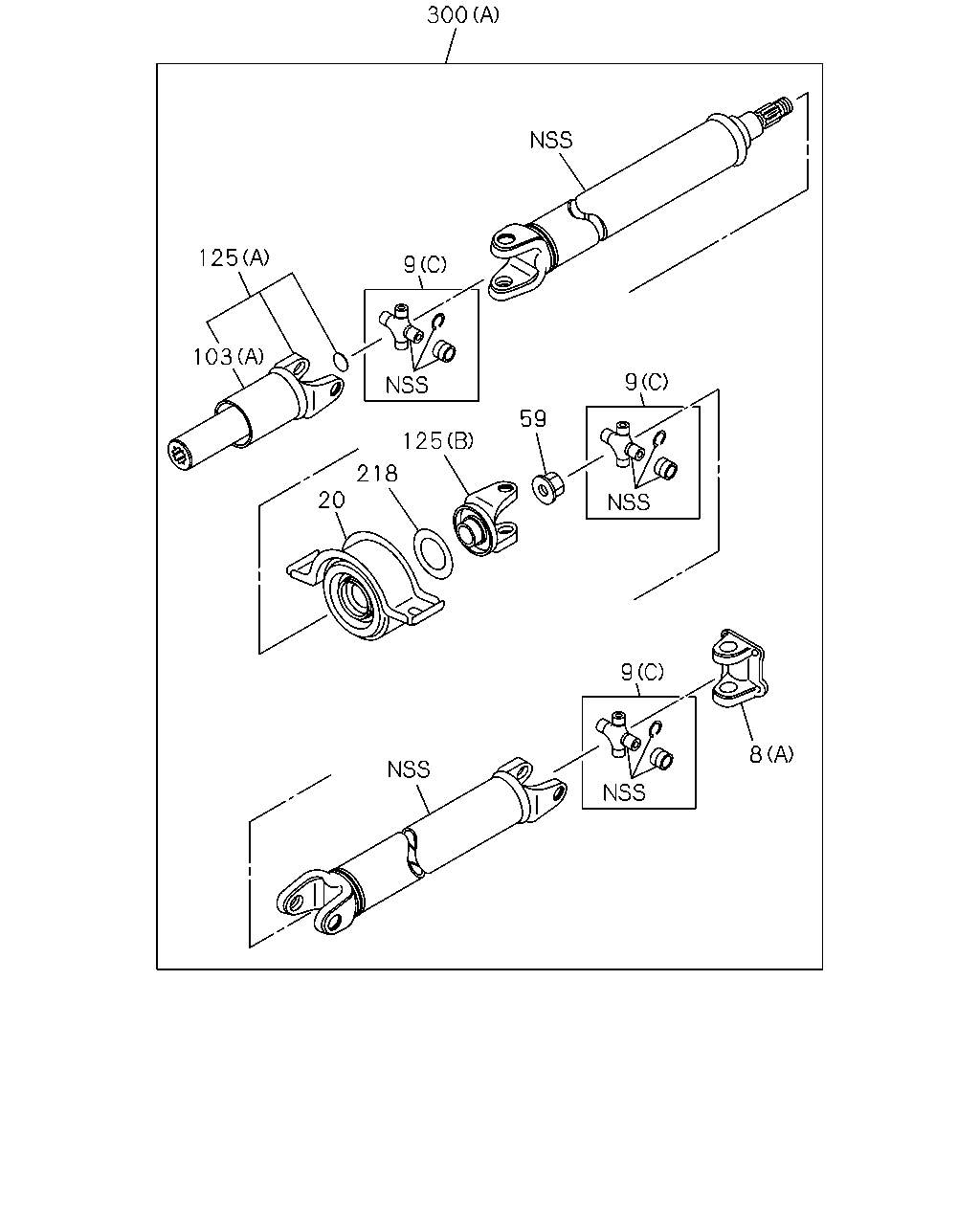

300 9 125 103 20 218 125 59 9 9 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	05.544 YOKE; FLANGE,PROP SHAFT (A)	8-97948-771-0	01	1	1409-	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT (B)	8-97948-772-0	02	1	1409-		●
9	05.548 JOURNAL ASM; PROP SHAFT A/T 5 SPEED-AISIN(MA1) (C)	8-97947-643-0	03	1	1409-	●
9	05.548 JOURNAL ASM; PROP SHAFT (B)	8-97947-582-0	02	1	1409-		●
9	05.548 JOURNAL ASM; PROP SHAFT (A)	8-97947-645-0	02	1	1409-		●
20	05.600 BEARING ASM; CTR,PROP SHAFT A/T 5 SPEED-AISIN(MA1) NSK	8-97947-657-0	01	1	1409-	●
20	05.600 BEARING ASM; CTR,PROP SHAFT A/T 5 SPEED-AISIN(MA1) NTN	8-97947-658-0	01	1	1409-	●
59	05.586 NUT; RET TO SUPPORT A/T 5 SPEED-AISIN(MA1)	8-97947-557-0	01	1	1409-	●
103	05.544 BOOT; PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97947-639-0	01	1	1409-	●
103	05.544 BOOT; PROP SHAFT 05.560 (A)	8-97940-114-0	01	1	1409-		●
103	05.544 BOOT; PROP SHAFT (B)	8-97943-053-0	01	1	1409-		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97947-632-0	01	1	1409-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT A/T 5 SPEED-AISIN(MA1) (B)	8-97947-664-0	01	1	1409-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT (A)	8-97947-630-0	01	1	1409-		●
218	05.586 WASHER; PL,PROP SHAFT A/T 5 SPEED-AISIN(MA1) ID=30 H=40 L=35	8-97192-641-0	01	1	1409-	●
300	05.544 SHAFT ASM; PROP,RR A/T 5 SPEED-AISIN(MA1) (A) L=1480.5	8-97948-791-0	01	1	1409-	●
300	05.544 SHAFT ASM; PROP,RR A/T 5 SPEED-AISIN(MA1) (B) L=1142	8-97948-765-0	01	1	1409-		●
300	05.544 SHAFT ASM; PROP,RR M/T MUX 5 SPEED 5S(MZJ) (B) L=1220	8-97948-767-0	01	1	1409-		●
