Isuzu WW
▶
SUV
▶
UCR
▶
51578 - UCR/UCS RHD
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶
3-58 — FIXING PARTS; OIL PIPING
(#148132) — 27 parça
Tümü
A - UCB5VC
B - UCS5VC
◀

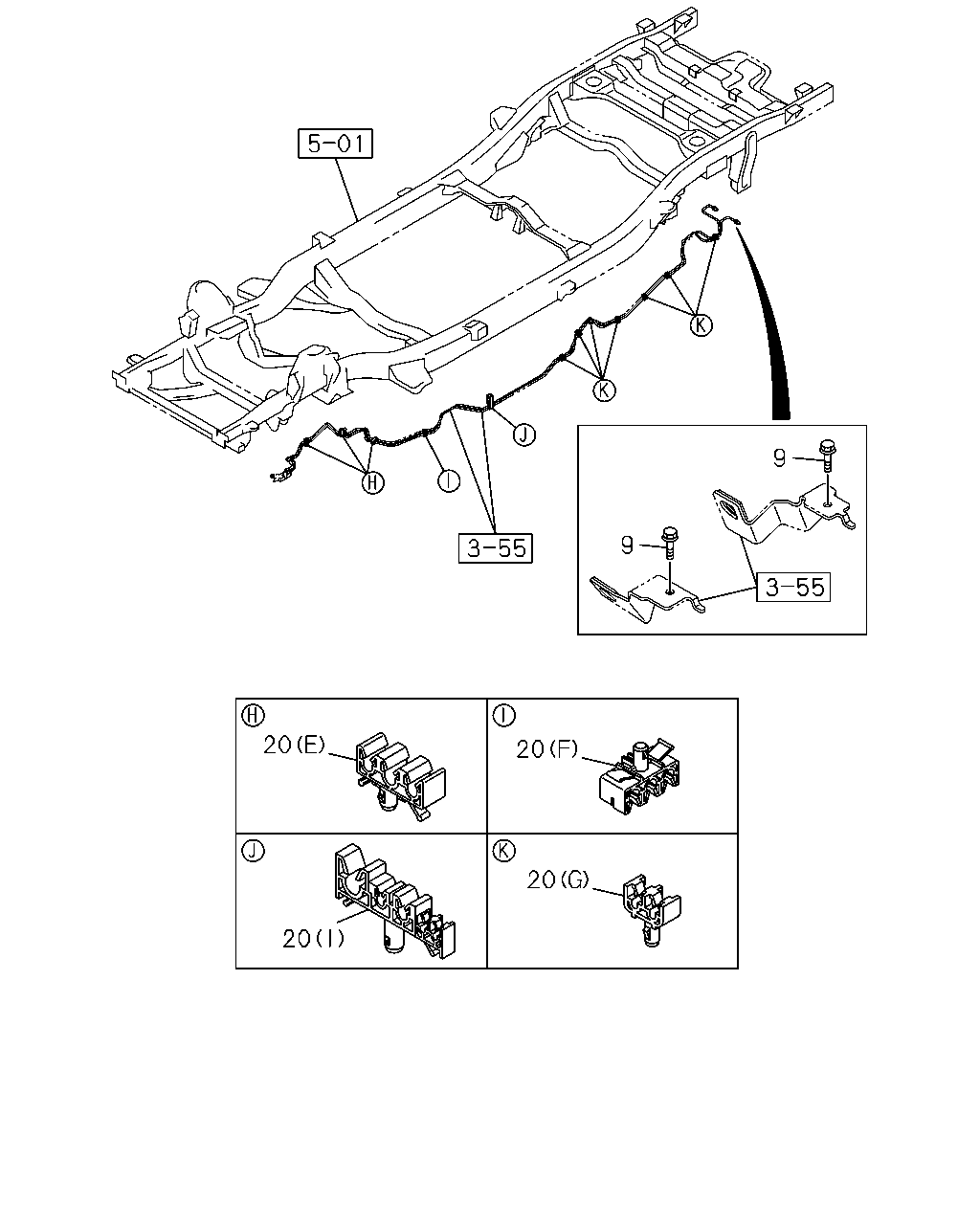

[358A] REAR (12 parça)

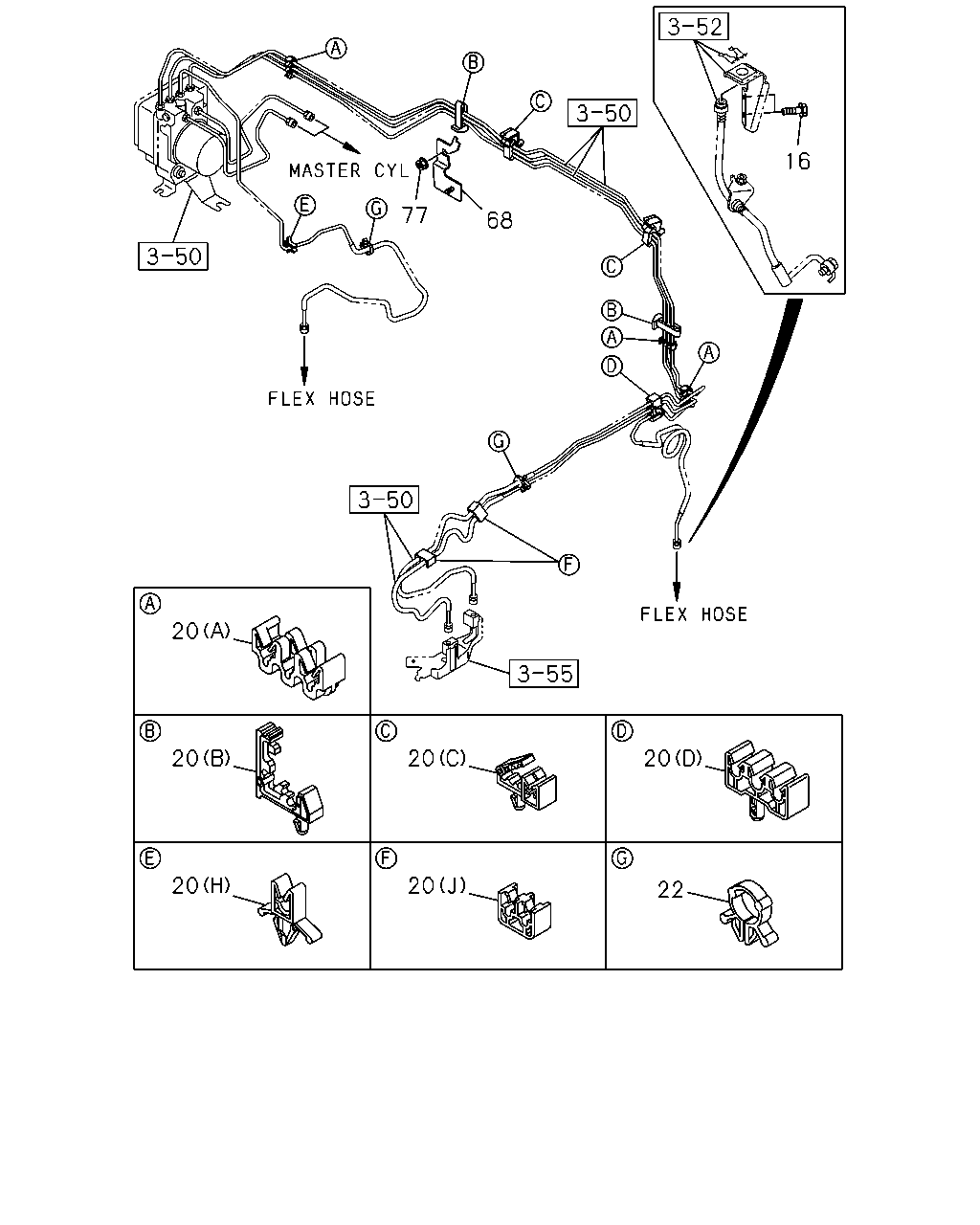

[358A] FRONT (15 parça)
▶
9
9
20
20
20
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
9
04.686 BOLT; BRKT
01.531 M8X20 FLANGE
0-28650-820-0
02
1
1409-
●
●
20
04.686 CLIP; BRK PIPE
REAR COOLER WO/HEATER<C69> (A) ID=4.8X3
8-94487-369-0
01
1
1410-
●
●
20
04.686 CLIP; BRK PIPE
(A) ID=4.8X3
8-94487-369-0
02
1
1409-
●
●
20
04.686 CLIP; BRK PIPE
04.685 (E) ID=4.76X3
8-97216-721-1
03
1
1409-
●
●
20
04.686 CLIP; BRK PIPE
03.162 (F) ID=10 & 6.8X2 OR 8.4X3
8-97249-906-1
01
1
1409-
●
●
20
04.686 CLIP; BRK PIPE
(J) ID=6.8X2
8-97251-122-0
02
1
1409-
●
●
20
04.686 CLIP; BRK PIPE
(G) ID=6.8X2
8-97251-124-0
07
1
1409-
●
●
20
04.686 CLIP; BRK PIPE
(H) ID=4.76
8-97300-443-0
01
1
1409-
●
●
20
04.686 CLIP; BRK PIPE
(B) ID=4.76X3
8-98113-388-0
02
1
1409-
●
●
20
04.686 CLIP; BRK PIPE
(C) ID=4.76X3 & 6.35X1 OR 10X1
8-98113-389-0
02
1
1409-
●
●
20
04.686 CLIP; BRK PIPE
(I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1
8-98113-394-0
01
1
1409-
●
●
20
04.686 CLIP; BRK PIPE
(D) ID=4.76 OR 6.8X3
8-98113-396-0
01
1
1409-
●
●
77
68
16
20
20
20
20
20
22
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
16
04.686 BOLT; BRKT TO FRAME
01.531 M8X20 FLANGE
0-28650-820-0
04
1
1409-
●
●
20
04.686 CLIP; BRK PIPE
REAR COOLER WO/HEATER<C69> (A) ID=4.8X3
8-94487-369-0
01
1
1410-
●
●
20
04.686 CLIP; BRK PIPE
(A) ID=4.8X3
8-94487-369-0
02
1
1409-
●
●
20
04.686 CLIP; BRK PIPE
04.685 (E) ID=4.76X3
8-97216-721-1
03
1
1409-
●
●
20
04.686 CLIP; BRK PIPE
03.162 (F) ID=10 & 6.8X2 OR 8.4X3
8-97249-906-1
01
1
1409-
●
●
20
04.686 CLIP; BRK PIPE
(J) ID=6.8X2
8-97251-122-0
02
1
1409-
●
●
20
04.686 CLIP; BRK PIPE
(G) ID=6.8X2
8-97251-124-0
07
1
1409-
●
●
20
04.686 CLIP; BRK PIPE
(H) ID=4.76
8-97300-443-0
01
1
1409-
●
●
20
04.686 CLIP; BRK PIPE
(B) ID=4.76X3
8-98113-388-0
02
1
1409-
●
●
20
04.686 CLIP; BRK PIPE
(C) ID=4.76X3 & 6.35X1 OR 10X1
8-98113-389-0
02
1
1409-
●
●
20
04.686 CLIP; BRK PIPE
(I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1
8-98113-394-0
01
1
1409-
●
●
20
04.686 CLIP; BRK PIPE
(D) ID=4.76 OR 6.8X3
8-98113-396-0
01
1
1409-
●
●
22
04.686 CLIP; PIPE TO FRAME
16.065 ID=9
5-09707-027-0
02
1
1409-
●
●
68
04.686 BRACKET; CLIP
REAR COOLER WO/HEATER<C69> 09.242
8-98211-446-0
01
1
1409-
●
●
77
04.686 NUT; BRKT,OIL PIPE
REAR COOLER WO/HEATER<C69> 01.062 M6 FLANGE
0-91180-106-0
01
1
1409-
●
●
