◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51578 - UCR/UCS RHD ▶ 3 - Brakes, Brake System ▶ 3-10 - BRAKE PEDAL AND CONTROL ▶
3-10 — BRAKE PEDAL AND CONTROL (#148125) — 12 parça

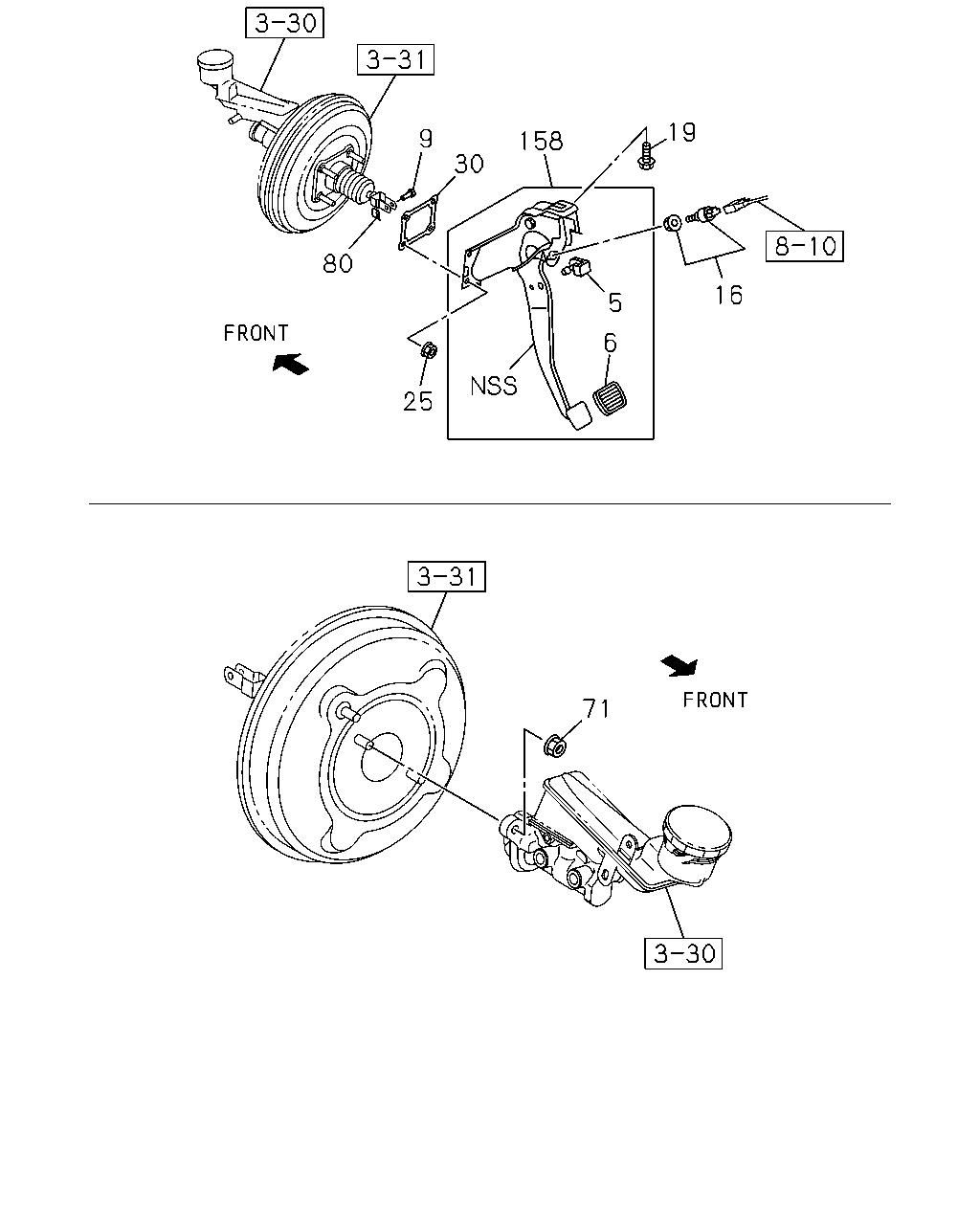

çizim 443961
71 5 6 16 19 158 30 9 80 25
BalonParca AdiParca NoAdetTipApplied Date A B
5 04.634 STOPPER; BRK PEDAL 1-73996-231-1 01 1 1409- ● ●
6 04.630 COVER; BRK PEDAL
A/T 5 SPEED-AISIN(MA1) 		8-97263-035-0 01 1 1409- ● ●
6 04.630 COVER; BRK PEDAL
M/T MUX 5 SPEED 5S(MZJ) 		8-97318-799-0 01 1 1409- ●
9 04.634 PIN; JAW JOINT 8-97311-602-0 01 1 1409- ● ●
16 02.447 SWITCH; STOP LAMP 8-98140-487-0 01 1 1409- ● ●
19 04.634 BOLT; BRKT
M8X22.5 W/PL WASHER 		8-97947-104-1 01 1 1409- ● ●
25 04.634 NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE 		8-97581-233-0 04 1 1409- ● ●
30 04.910 GASKET; M/VAC TO BODY 8-97943-457-0 01 1 1409- ● ●
71 04.650 NUT; BRK M/CYL 8-98031-675-0 02 1 1409- ● ●
80 04.634 PIN; SNAP,BRK PEDAL
00.833 		8-98007-161-0 01 1 1409- ● ●
158 04.625 PEDAL ASM; BRK
A/T 5 SPEED-AISIN(MA1) 		8-98061-818-1 01 1 1409- ● ●
158 04.625 PEDAL ASM; BRK
M/T MUX 5 SPEED 5S(MZJ) 		8-98061-817-1 01 1 1409- ●
