2-56 — AUTO TRANS CONTROL LINK (#148116) — 12 parça

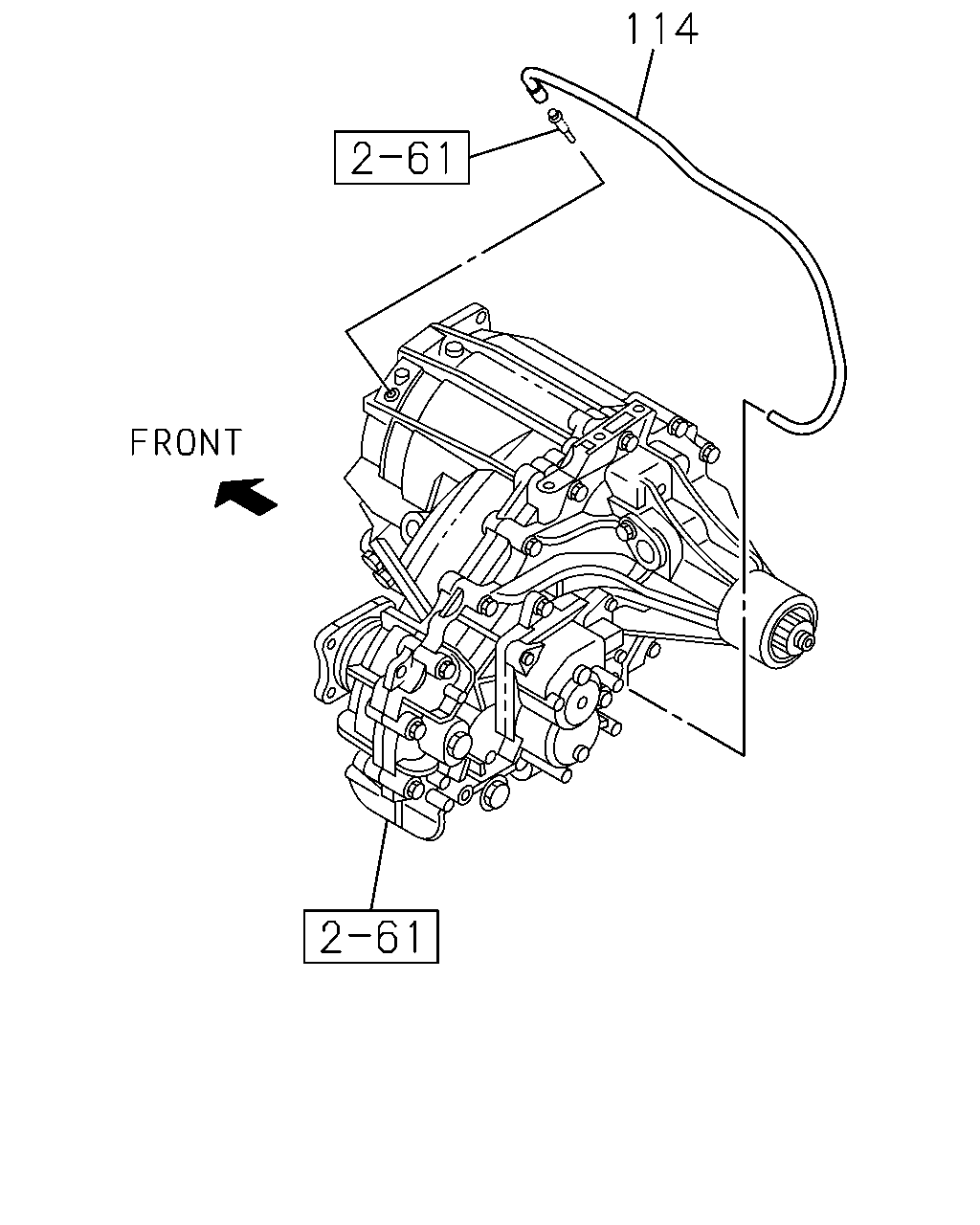

çizim 443003
114
BalonParca AdiParca NoAdetTipApplied Date A B
114 08.962 HOSE; BREATHER
L=527 		8-98183-634-0 01 1 1409- ●
114 08.962 HOSE; BREATHER
4X4(UCS***) L=527 		8-98183-634-0 01 1 1409- ●

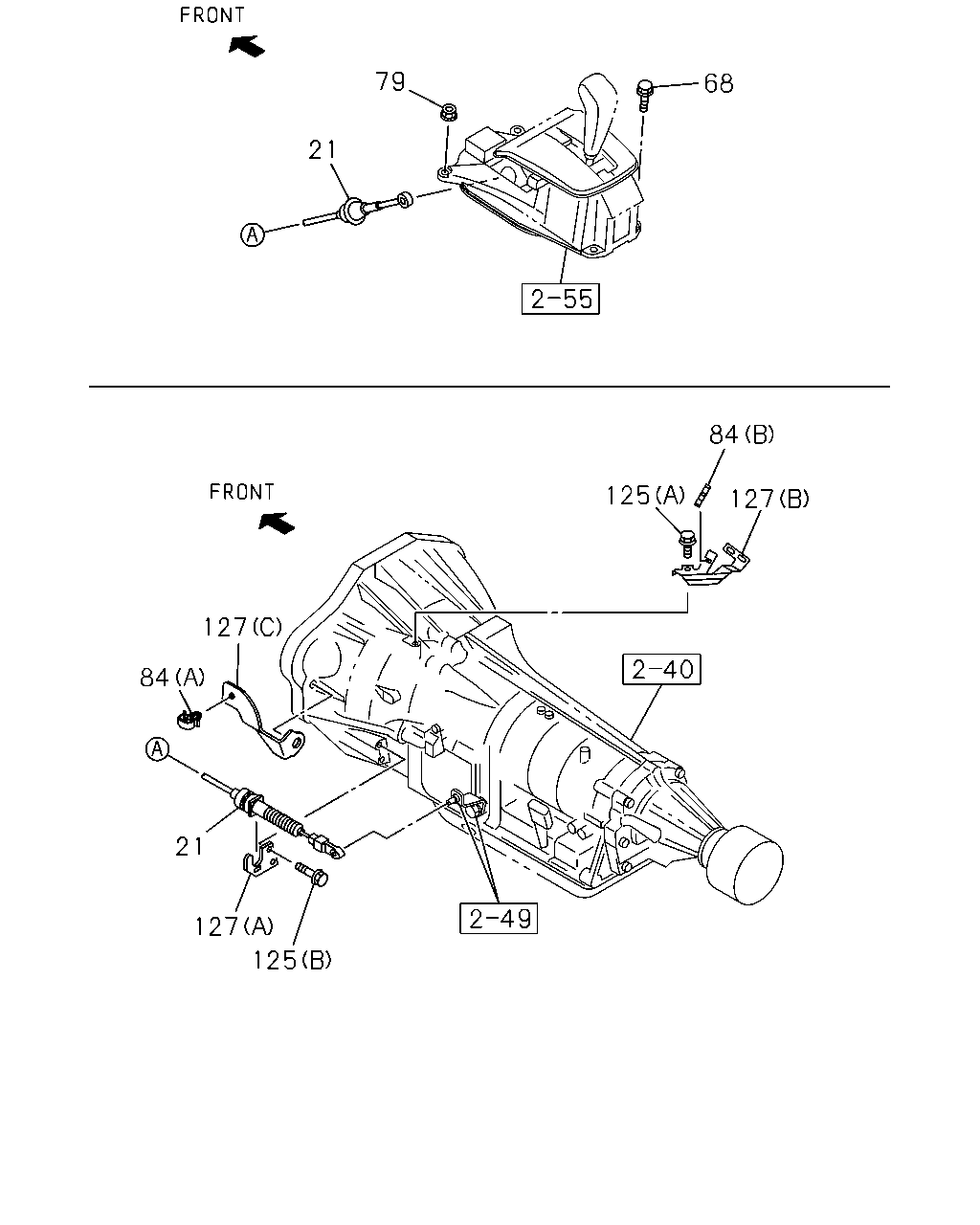

çizim 443435
79 21 68 84 127 125 125 127 21 84 127
BalonParca AdiParca NoAdetTipApplied Date A B
21 04.047 CABLE; A/T 8-98072-710-1 01 1 1409- ●
68 04.047 BOLT; A/T CONT CABLE
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 1409- ●
79 04.047 NUT; CONT CABLE
08.915 M6 FLANGE 		8-98055-704-0 02 1 1409- ●
84 04.047 CLIP; A/T CONT CABLE
02.559 (A) ID=10 		8-94450-392-0 01 1 1409- ●
84 04.047 CLIP; A/T CONT CABLE
03.682 (B) ID=7 L=7.5 		8-97369-561-0 01 1 1409- ●
125 04.047 BOLT; BRKT
03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 1409- ●
125 04.047 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 02 1 1409- ●
127 04.047 BRACKET; A/T CONT CABLE
(A) 		8-98098-409-0 01 1 1409- ●
127 04.047 BRACKET; A/T CONT CABLE
(C) 		8-98098-410-1 01 1 1409- ●
127 04.047 BRACKET; A/T CONT CABLE
(B) 		8-98098-411-1 01 1 1409- ●
