Isuzu WW
▶
SUV
▶
UCR
▶
51578 - UCR/UCS RHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶

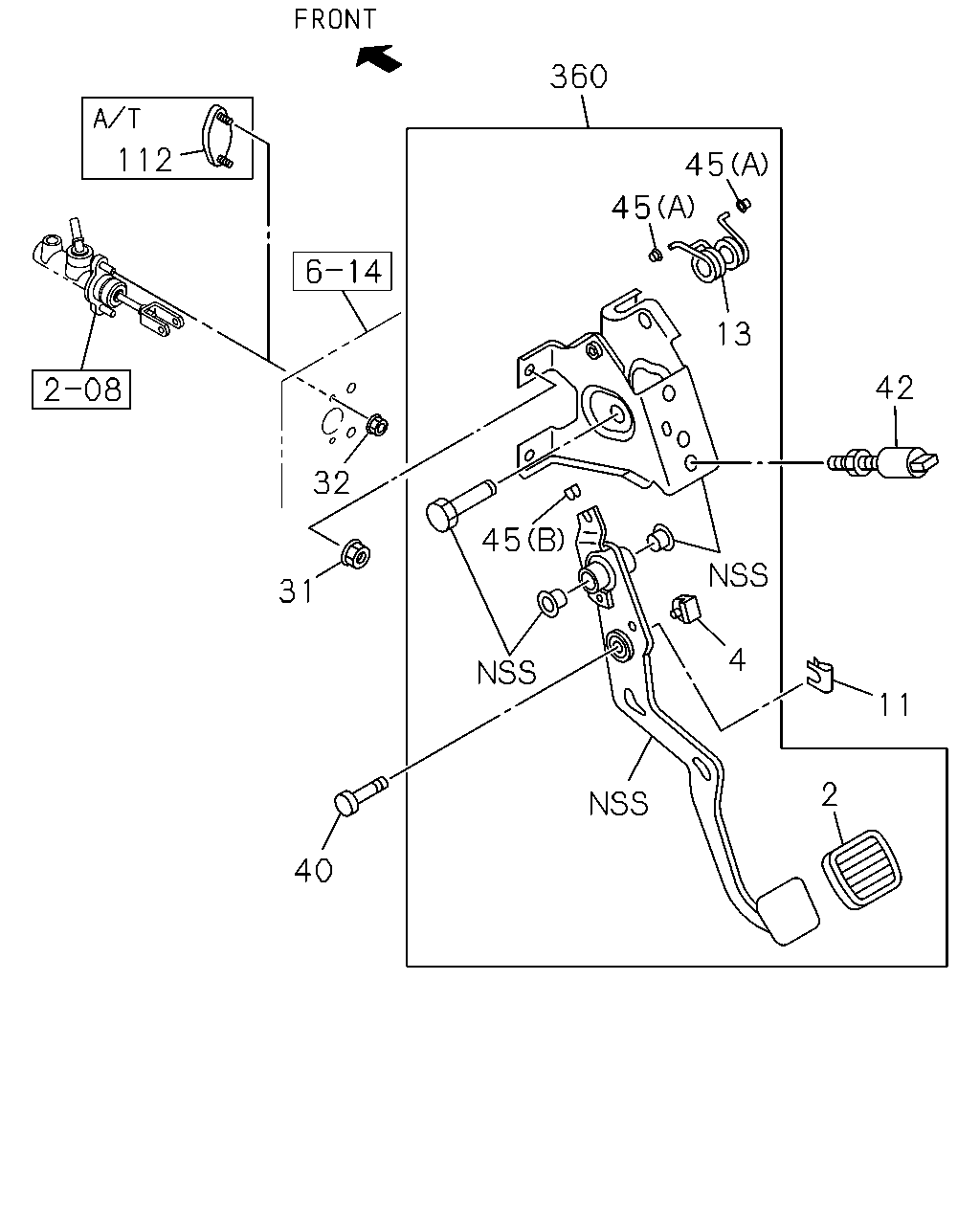

2-03 — CLUTCH PEDAL AND CONTROL
(#148096) — 13 parça
Tümü
A - UCS5VC
B - UCB5VC
112
32
31
40
45
4
360
45
45
13
42
11
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
04.630 COVER; CLU PEDAL
M/T MUX 5 SPEED 5S(MZJ)
8-97318-799-0
01
1
1409-
●
4
00.829 STOPPER; CLU PEDAL
M/T MUX 5 SPEED 5S(MZJ)
8-97947-783-0
01
1
1409-
●
11
00.833 PIN; SNAP,PUSH ROD TO PEDAL
M/T MUX 5 SPEED 5S(MZJ)
8-98007-161-0
01
1
1409-
●
13
00.844 SPRING; ASSIST,CLU PEDAL
M/T MUX 5 SPEED 5S(MZJ)
8-97942-312-0
01
1
1409-
●
31
01.153 NUT; MTG BRKT TO BODY
M/T MUX 5 SPEED 5S(MZJ) 01.062 M8 FLANGE
0-91180-108-0
04
1
1409-
●
32
00.777 NUT; BRKT TO CLU M/CYL
01.062 M8 FLANGE
0-91180-108-0
02
1
1409-
●
●
40
00.833 PIN; JOINT,CLU DAMPER
M/T MUX 5 SPEED 5S(MZJ) OD=7.9 L=27.5
8-97312-338-0
01
1
1409-
●
42
04.054 SWITCH; CLU
M/T MUX 5 SPEED 5S(MZJ)
8-98154-210-0
01
1
1409-
●
45
00.831 BUSHING; ASSIST SPRING,CLU PEDAL
M/T MUX 5 SPEED 5S(MZJ) (A)
8-97942-313-0
02
1
1409-
●
45
00.831 BUSHING; ASSIST SPRING,CLU PEDAL
M/T MUX 5 SPEED 5S(MZJ) (B)
8-97942-314-0
01
1
1409-
●
112
00.785 PLUG; METAL,M/CYL
A/T 5 SPEED-AISIN(MA1)
8-97945-168-0
01
1
1409-
●
●
360
00.830 PEDAL ASM; CLUTCH
M/T MUX 5 SPEED 5S(MZJ)
8-98219-800-0
01
1
1409-1601
●
360
00.830 PEDAL ASM; CLUTCH
M/T MUX 5 SPEED 5S(MZJ)
8-98317-389-0
01
1
1602-
●
