Isuzu WW
▶
SUV
▶
UCR
▶
51578 - UCR/UCS RHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶

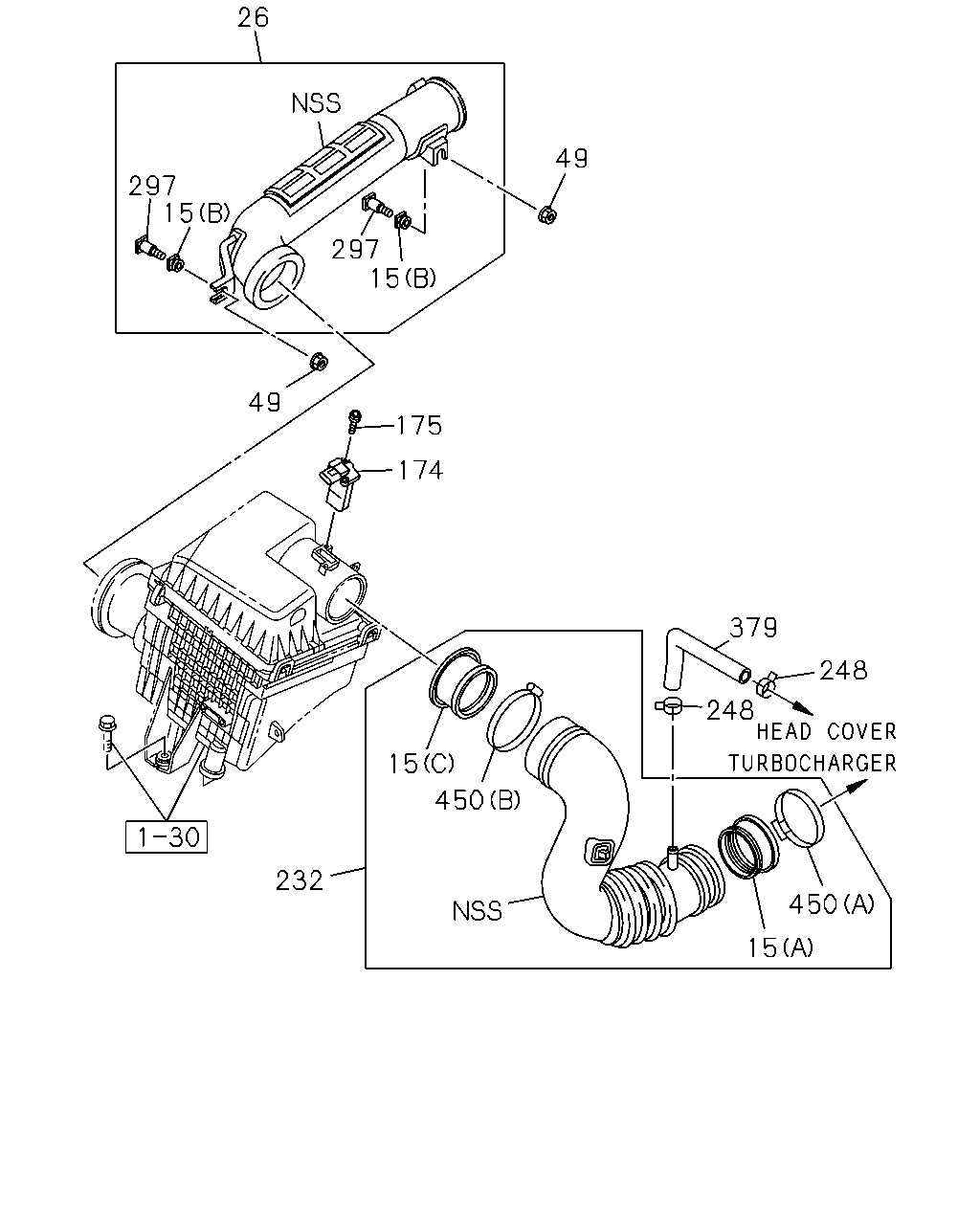

1-31 — AIR DUCT
(#148090) — 13 parça
26
297
15
297
15
49
175
174
49
232
15
450
15
450
248
248
379
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
03.417 INSULATOR
(A)
8-98137-140-0
01
1
1409-
15
03.417 INSULATOR
(B)
8-98203-901-0
02
1
1409-
15
03.417 INSULATOR
(C)
8-98214-036-0
01
1
1409-
26
03.417 DUCT; AIR INT
8-98104-472-1
01
1
1409-
49
03.417 NUT; AIR DUCT
01.062 M6 FLANGE
0-91180-106-0
02
1
1409-
174
03.682 SENSOR; AIR FLOW CONT
8-97601-967-0
01
1
1409-
175
03.682 BOLT; AIR FLOW CONT SENSOR
02.559 SCREW M4X10 W/LK&PL WASHER
0-36230-410-0
02
1
1409-
232
03.417 HOSE; CONN
8-98212-086-0
01
1
1409-
248
03.417 CLIP; RUBBER HOSE
03.265 ID=20.4
8-94121-113-0
02
1
1409-
297
03.417 BOLT; DUCT
8-98203-900-0
02
1
1409-
379
03.675 HOSE; RUBBER
8-98065-694-1
01
1
1409-
450
03.417 CLAMP; HOSE
(B)
8-98136-623-0
01
1
1409-
450
03.417 CLAMP; HOSE
(A)
8-98136-624-0
01
1
1409-
