Isuzu WW
▶
SUV
▶
UCR
▶
51578 - UCR/UCS RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-57 - EMISSION PIPING
▶
0-57 — EMISSION PIPING
(#148081) — 28 parça
◀
[057A] EGR (14 parça)

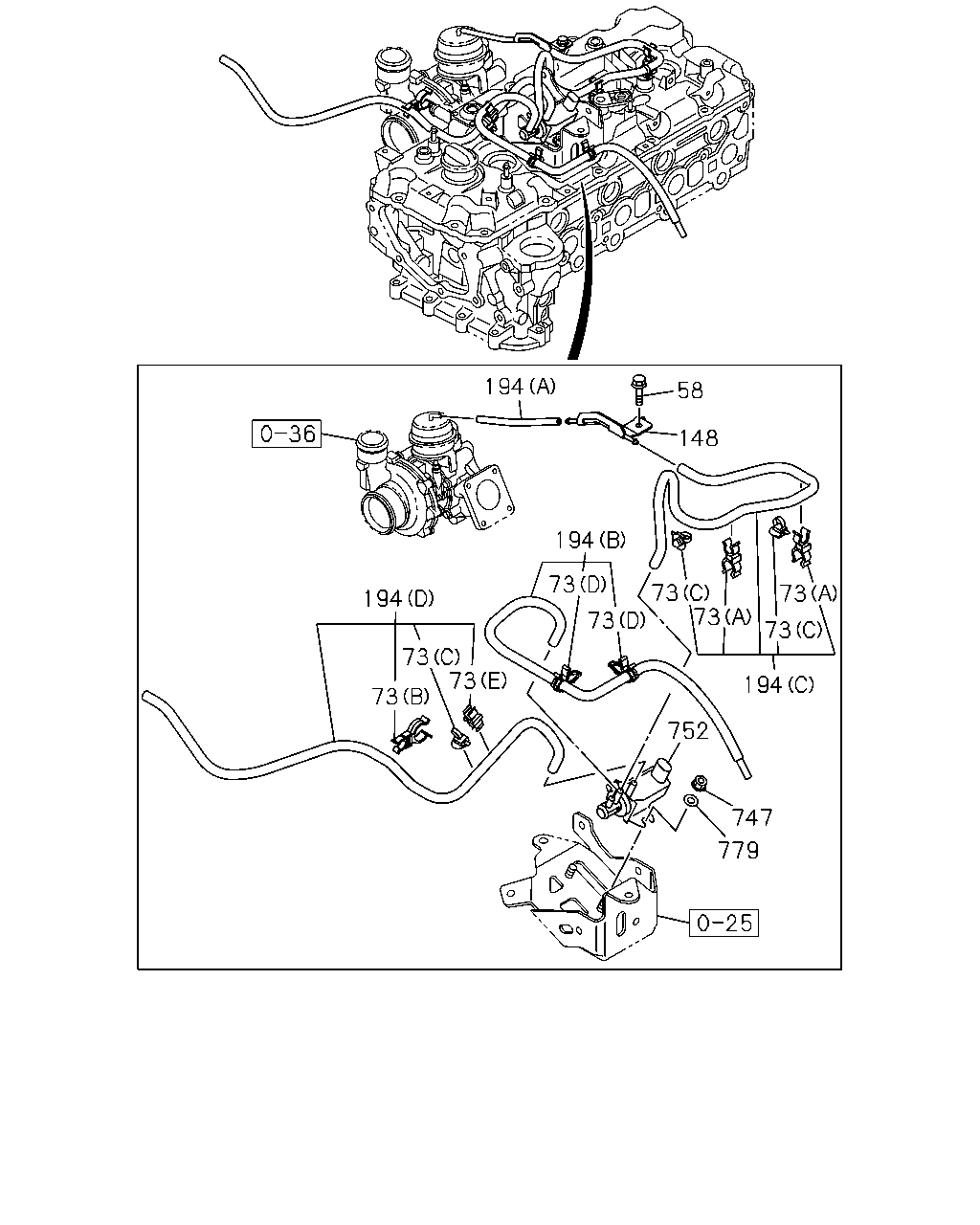

[057A] EVRV AND VACUUM HOSE (14 parça)
▶
12
8
709
720
719
17
16
718
17
709
709
719
720
1
16
12
2
12
16
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.670 VALVE; EGR
8-98133-202-3
01
1
1409-
2
03.670 BOLT; EGR VLV
06.216 M8X25 FLANGE
0-28650-825-0
02
1
1409-
4
03.671 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97356-711-3
01
1
1409-
8
03.670 BOLT; EGR ADAPTER
04.686 M8X60 FLANGE
0-28050-860-0
01
1
1409-
12
03.671 NUT; EGR VLV
01.540 M8 FLANGE
0-91180-208-0
03
1
1409-
16
03.275 STUD; EGR VLV
(B) L=60
0-40210-860-0
01
1
1409-
16
03.275 STUD; EGR VLV
01.073 (A) M8X22 L=40
0-49140-822-0
02
1
1409-
17
03.665 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97357-684-3
02
1
1409-
709
03.670 BOLT; EGR COOLER
03.417 M8X23 FLANGE
8-97378-077-0
07
1
1409-
718
03.337 COOLER; EGR
8-98205-852-0
01
1
1409-
719
03.675 PIPE; EGR
(A)
8-98228-255-0
01
1
1409-
719
03.675 PIPE; EGR
(B)
8-98228-257-0
01
1
1409-
720
03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). 03.665 (A)
8-98017-551-0
01
1
1409-
720
03.680 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-98228-303-0
01
1
1409-
194
58
148
194
73
194
73
73
73
752
747
779
194
73
73
73
73
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
58
03.417 BOLT; PIPE
02.343 M8X16 FLANGE
0-28050-816-0
01
1
1409-
73
03.680 CLIP; VAC HOSE
01.240 (A) ID=8.3 & 12
8-94155-469-0
02
1
1506-
73
03.680 CLIP; VAC HOSE
02.559 (D) ID=6.5
8-94257-639-0
02
1
1506-
73
03.680 CLIP; VAC HOSE
(E) ID=7.5 & 7.5
8-97019-084-0
01
1
1506-
73
03.680 CLIP; VAC HOSE
04.027 (B) ID=21 & 9.8
8-97309-945-0
01
1
1506-
73
03.680 CLIP; VAC HOSE
(C)
8-98324-179-0
03
1
1506-
148
03.675 PIPE; VAC
8-98132-082-0
01
1
1409-
194
03.675 HOSE; VAC
(A)
0-14040-110-0
01
1
1409-
194
03.675 HOSE; VAC
(B)
8-98239-331-0
01
1
1409-
194
03.675 HOSE; VAC
(C)
8-98239-332-1
01
1
1409-
194
03.675 HOSE; VAC
(D)
8-98239-333-0
01
1
1409-
747
03.671 NUT; VAC REG VALVE
01.062 M8 FLANGE
0-91180-108-0
02
1
1409-
752
03.670 VALVE; EVRV
8-98116-260-0
01
1
1409-
779
03.671 WASHER; VALVE
06.168 ID=8.4 OD=18
0-91610-608-0
02
1
1409-
