Isuzu WW
▶
SUV
▶
UCR
▶
51578 - UCR/UCS RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶
0-36 — TURBOCHARGER SYSTEM
(#148075) — 35 parça
◀

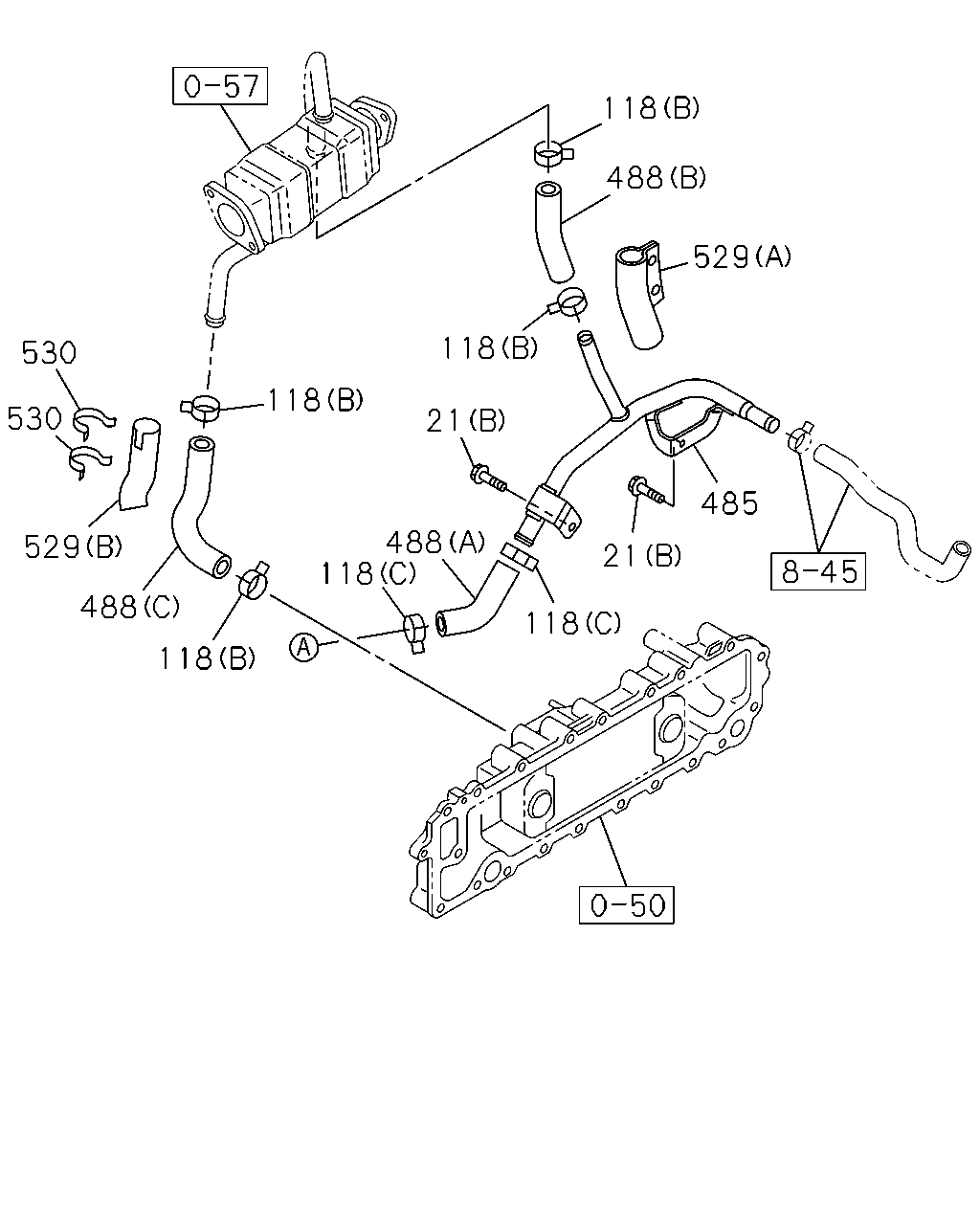

[036A] WATER PIPE (12 parça)

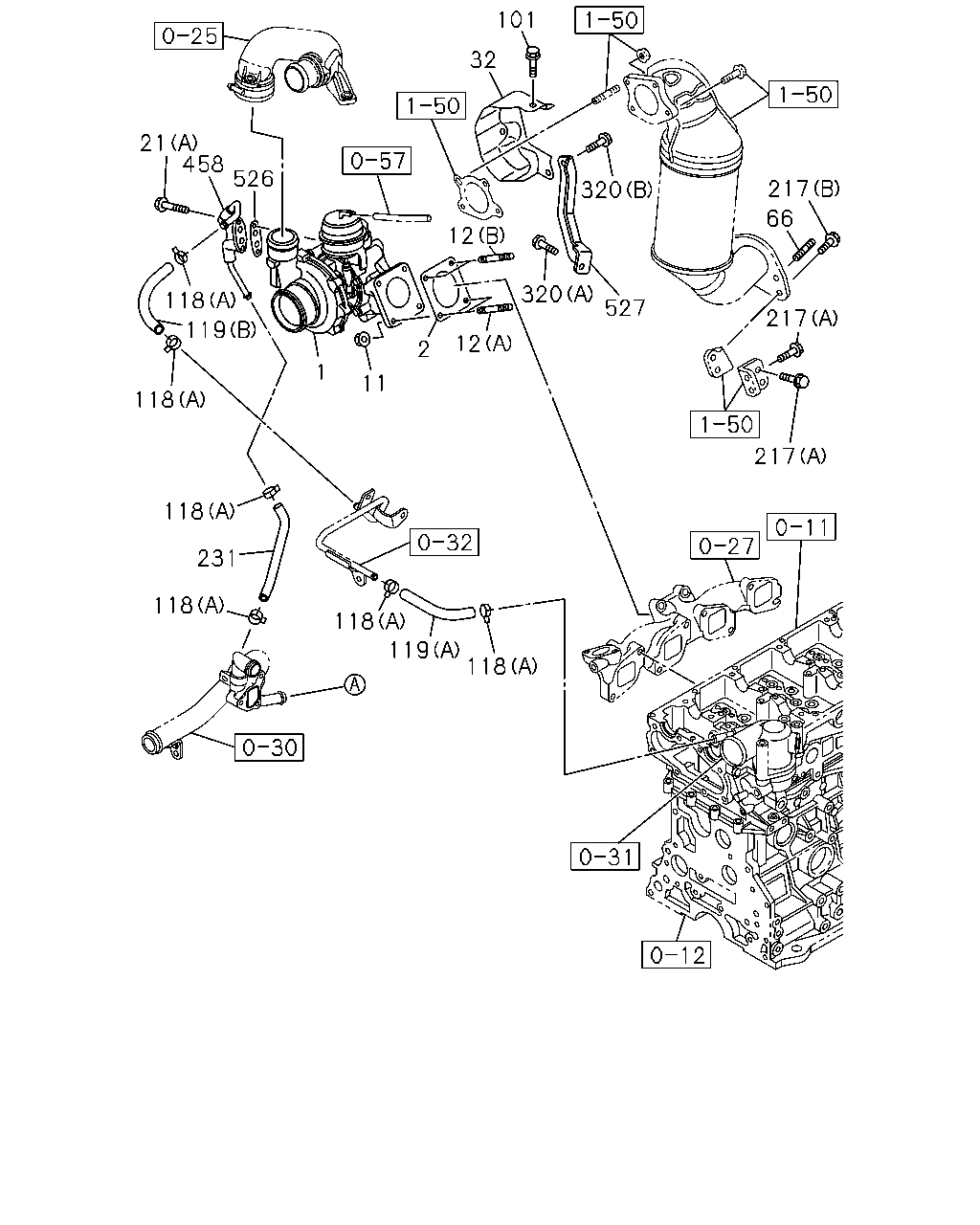

[036A] TURBOCHARGER (23 parça)
▶
530
530
529
488
118
118
118
118
118
118
485
21
488
21
529
488
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
21
03.358 BOLT; PIPE
01.652 (A) M6X45 FLANGE
0-28050-645-0
02
1
1409-
21
03.358 BOLT; PIPE
02.343 (B) M8X16 FLANGE
0-28050-816-0
02
1
1409-
118
03.342 CLIP; WATER HOSE
08.846 (B) ID=20.8
8-97944-127-0
04
1
1409-
118
03.342 CLIP; WATER HOSE
(A) ID=15.1
8-98179-581-0
06
1
1409-
118
03.342 CLIP; WATER HOSE
(C) ID=26.2
8-98202-540-0
02
1
1409-
485
01.097 PIPE; WATER EGR
8-98241-644-0
01
1
1409-
488
03.163 HOSE; RUBBER
(A)
8-98132-446-0
01
1
1409-
488
03.163 HOSE; RUBBER
(C)
8-98215-481-0
01
1
1409-
488
03.163 HOSE; RUBBER
(B)
8-98239-031-0
01
1
1409-
529
03.374 INSULATOR; HOSE
(B)
8-98031-883-0
01
1
1409-
529
03.374 INSULATOR; HOSE
(A)
8-98228-426-0
01
1
1409-
530
03.374 CLIP; INSULATOR
01.540
8-97101-337-0
02
1
1409-
21
458
118
119
118
118
231
118
118
119
118
11
1
2
12
12
320
320
527
217
66
217
217
32
101
526
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.342 TURBOCHARGER ASM
8-98235-627-1
01
1
1409-
2
03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98132-073-0
01
1
1409-
11
03.342 NUT; TURBOCHARGER
M8 FLANGE
8-97379-384-0
04
1
1409-
12
03.342 STUD; TURBOCHARGER
03.601 (A) M8X25 L=36
8-97378-062-0
02
1
1409-
12
03.342 STUD; TURBOCHARGER
03.604 (B) M8X30 L=41
8-97378-064-0
02
1
1409-
21
03.358 BOLT; PIPE
01.652 (A) M6X45 FLANGE
0-28050-645-0
02
1
1409-
21
03.358 BOLT; PIPE
02.343 (B) M8X16 FLANGE
0-28050-816-0
02
1
1409-
32
03.342 PROTECTOR; HEAT,TURBOCHARGER
8-98156-389-0
01
1
1409-
66
03.342 STUD; EXH PIPE
M10X25 L=40
0-44011-025-0
02
1
1409-
101
03.602 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE
0-28050-812-0
02
1
1409-
118
03.342 CLIP; WATER HOSE
08.846 (B) ID=20.8
8-97944-127-0
04
1
1409-
118
03.342 CLIP; WATER HOSE
(A) ID=15.1
8-98179-581-0
06
1
1409-
118
03.342 CLIP; WATER HOSE
(C) ID=26.2
8-98202-540-0
02
1
1409-
119
03.342 HOSE; WATER,TURBOCHARGER
(B)
8-98179-580-0
01
1
1409-
119
03.342 HOSE; WATER,TURBOCHARGER
(A)
8-98239-061-0
01
1
1409-
217
03.417 BOLT; BRKT
06.509 (A) M12X30 FLANGE
0-28661-230-0
03
1
1409-
217
03.417 BOLT; BRKT
00.004 (B) M12X35 FLANGE
0-28661-235-0
02
1
1409-
231
03.342 HOSE; RUBBER,TURBOCHARGER OUT
8-98228-462-0
01
1
1409-
320
03.342 BOLT; BRKT,TURBOCHARGER
01.531 (A) M8X20 FLANGE
0-28650-820-0
01
1
1409-
320
03.342 BOLT; BRKT,TURBOCHARGER
03.670 (B) M8X18 FLANGE
8-97378-076-0
01
1
1409-
458
03.373 PIPE; WATER,TURBOCHARGER
8-98184-505-0
01
1
1409-
526
03.342 GASKET; PLATE
01.519
8-97352-985-0
01
1
1409-
527
03.373 BRACKET; TURBOCHARGER
8-98156-388-0
01
1
1409-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
