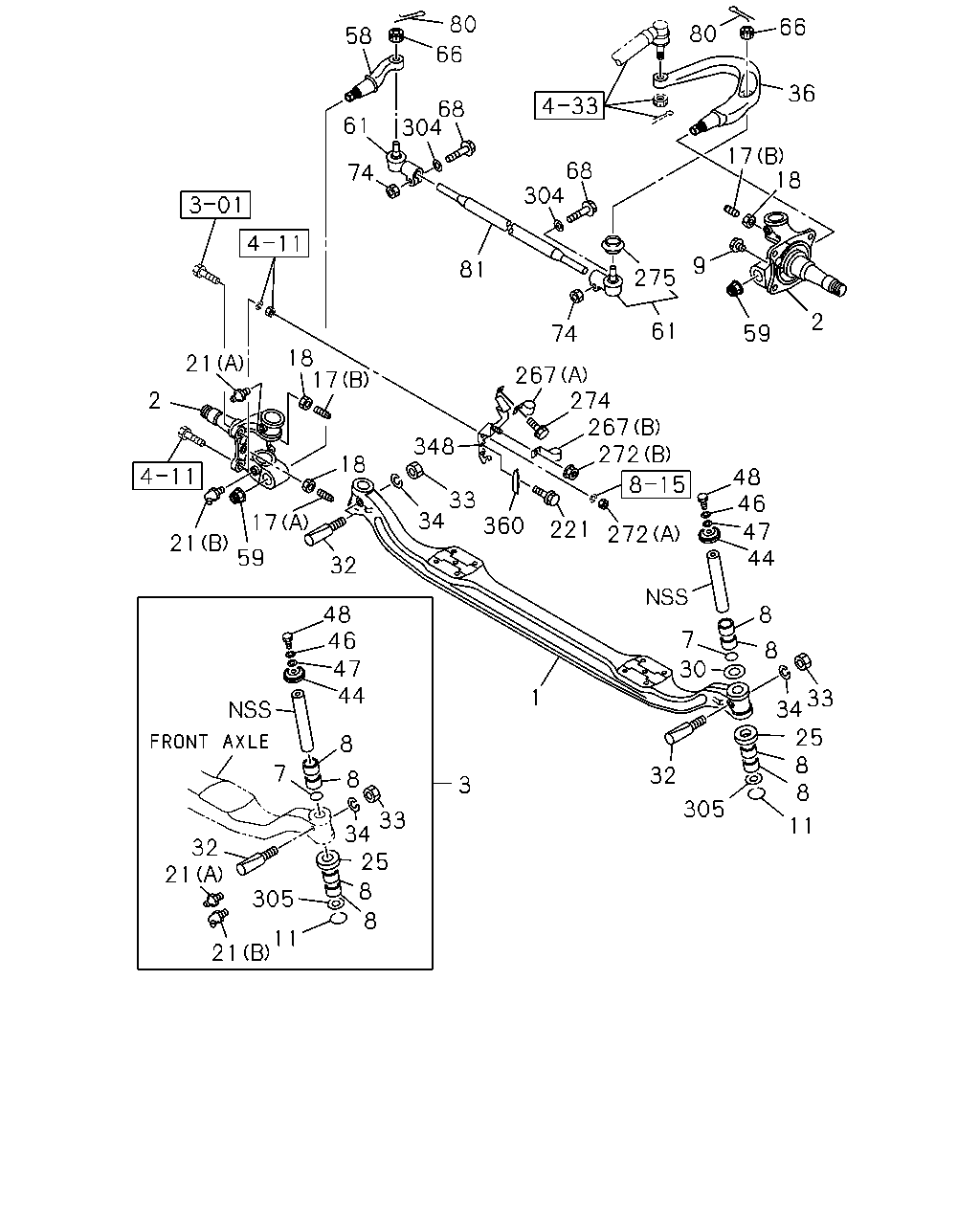

4-10 — FRONT AXLE (#14807) — 100 parça

105

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	105	BOLT; BRKT FIX M8X12 FLANGE	0-28050-812-0	04	1	0803-

80 66 80 58 66 36 68 304 61 17 18 68 304 74 9 81 275 2 61 59 74 18 17 21 267 274 267 272 2 348 18 48 46 47 44 33 34 360 17 221 272 21 59 32 48 46 47 44 8 7 8 1 33 34 25 8 8 8 7 32 8 33 34 25 3 305 11 32 21 8 305 8 11 21 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	8-98057-479-2	01	1	0803-
2	KNUCKLE; FRT AXLE	1-43131-127-1	01	1	0803-
2	KNUCKLE; FRT AXLE	1-43132-127-1	01	1	0803-
3	KING PIN SET	1-87831-295-2	01	1	0803-
3	KING PIN SET	1-87831-296-2	01	1	0803-
7	SEAL; OIL,KING PIN	1-09625-005-1	02	1	0803-
8	BEARING; NEEDLE,KING PIN NSK	1-09811-339-0	08	1	0803-
9	PLUG; KNUCKLE M14X14	8-97329-621-0	01	1	0803-
11	RING; SNAP,KNUCKLE PLUG	1-09589-017-1	02	1	0803-
17	BOLT; STOPPER KNUCKLE (B) M14X53	8-98065-261-0	02	1	0803-
17	BOLT; STOPPER KNUCKLE (A) M14X47	1-09009-058-0	01	1	0803-0805
17	BOLT; STOPPER KNUCKLE (A) M14X47	1-09009-191-0	01	1	0806-
18	NUT; STOPPER BOLT,KNUCKLE M14	0-91112-814-0	03	1	0803-
21	NIPPLE; GREASE,KING PIN (A) PT1/8 STRAIGHT	0-90301-410-0	02	1	0803-
21	NIPPLE; GREASE,KING PIN (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0803-
25	BEARING; THRUST,KING PIN NSK	1-09829-031-0	01	1	0803-
25	BEARING; THRUST,KING PIN NSK	1-09829-033-1	01	1	0803-
30	WASHER; THRUST,KING PIN T=3.900	1-43171-261-1	AR	1	0803-
30	WASHER; THRUST,KING PIN T=3.912	1-43171-262-1	AR	1	0803-
30	WASHER; THRUST,KING PIN T=3.925	1-43171-263-1	AR	1	0803-
30	WASHER; THRUST,KING PIN T=3.937	1-43171-264-1	AR	1	0803-
30	WASHER; THRUST,KING PIN T=3.950	1-43171-265-1	AR	1	0803-
30	WASHER; THRUST,KING PIN T=3.962	1-43171-266-1	AR	1	0803-
30	WASHER; THRUST,KING PIN T=3.975	1-43171-267-1	AR	1	0803-
30	WASHER; THRUST,KING PIN T=3.987	1-43171-268-1	AR	1	0803-
30	WASHER; THRUST,KING PIN T=4.000	1-43171-269-1	AR	1	0803-
30	WASHER; THRUST,KING PIN T=4.012	1-43171-270-1	AR	1	0803-
30	WASHER; THRUST,KING PIN T=4.025	1-43171-271-1	AR	1	0803-
30	WASHER; THRUST,KING PIN T=4.037	1-43171-272-1	AR	1	0803-
30	WASHER; THRUST,KING PIN T=4.050	1-43171-273-1	AR	1	0803-
30	WASHER; THRUST,KING PIN T=4.062	1-43171-274-1	AR	1	0803-
30	WASHER; THRUST,KING PIN T=4.075	1-43171-275-1	AR	1	0803-
30	WASHER; THRUST,KING PIN T=4.087	1-43171-276-1	AR	1	0803-
30	WASHER; THRUST,KING PIN T=4.100	1-43171-277-1	AR	1	0803-
30	WASHER; THRUST,KING PIN T=4.112	1-43171-278-1	AR	1	0803-
30	WASHER; THRUST,KING PIN T=4.125	1-43171-279-1	AR	1	0803-
30	WASHER; THRUST,KING PIN T=4.137	1-43171-280-1	AR	1	0803-
30	WASHER; THRUST,KING PIN T=4.150	1-43171-281-1	AR	1	0803-
30	WASHER; THRUST,KING PIN T=4.162	1-43171-311-0	AR	1	0803-
30	WASHER; THRUST,KING PIN T=4.175	1-43171-312-0	AR	1	0803-
30	WASHER; THRUST,KING PIN T=4.187	1-43171-313-0	AR	1	0803-
30	WASHER; THRUST,KING PIN T=4.200	1-43171-314-0	AR	1	0803-
30	WASHER; THRUST,KING PIN T=4.212	1-43171-315-0	AR	1	0803-
30	WASHER; THRUST,KING PIN T=4.225	1-43171-316-0	AR	1	0803-
30	WASHER; THRUST,KING PIN T=4.237	1-43171-317-0	AR	1	0803-
30	WASHER; THRUST,KING PIN T=4.250	1-43171-318-0	AR	1	0803-
30	WASHER; THRUST,KING PIN T=4.262	1-43171-319-0	AR	1	0803-
30	WASHER; THRUST,KING PIN T=4.275	1-43171-320-0	AR	1	0803-
30	WASHER; THRUST,KING PIN T=4.287	1-43171-321-0	AR	1	0803-
30	WASHER; THRUST,KING PIN T=4.300	1-43171-322-0	AR	1	0803-
30	WASHER; THRUST,KING PIN T=4.312	1-43171-323-0	AR	1	0803-
30	WASHER; THRUST,KING PIN T=4.325	1-43171-324-0	AR	1	0803-
30	WASHER; THRUST,KING PIN T=4.337	1-43171-325-0	AR	1	0803-
30	WASHER; THRUST,KING PIN T=4.350	1-43171-326-0	AR	1	0803-
32	BOLT; KEY,KING PIN	1-43116-013-1	02	1	0803-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0803-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0803-
36	ARM; KNUCKLE	8-98057-563-0	01	1	0803-
44	COVER; KING PIN	1-43175-031-0	02	1	0803-
46	WASHER; LK,COVER ID=12.2	0-91510-812-0	02	1	0803-
47	WASHER; PL,COVER,KING PIN ID=12.5 OD=32	0-91614-712-0	02	1	0803-
48	BOLT; COVER M12X25	1-09009-081-0	02	1	0803-
58	ARM; TIE ROD	8-98057-564-2	01	1	0803-
59	NUT; TIE ROD ARM M27 FLANGE	1-09449-082-0	02	1	0803-
61	ROD END; TIE ROD	1-43150-748-1	01	1	0803-
61	ROD END; TIE ROD	1-43150-749-1	01	1	0803-
66	NUT; TIE ROD END M16 SLOTTED	1-09442-021-1	02	1	0803-0805
66	NUT; TIE ROD END M16 SLOTTED	1-09442-031-0	02	1	0806-
68	BOLT; TIE ROD END M12X45 FLANGE	0-28061-245-0	02	1	0803-
74	NUT; TIE ROD END M12	0-91110-512-0	02	1	0803-
80	PIN; SPLIT,ROD END OD=3.7 L=22	0-81124-022-0	02	1	0803-
81	ROD; TIE	8-98038-703-1	01	1	0803-
221	BOLT; BRKT,SENSOR M8X16 FLANGE	0-28050-816-0	04	1	0803-
267	CLIP; HARNESS (A) ID=11 L=16	0-95235-025-0	02	1	0803-
267	CLIP; HARNESS (B) ID=11 H=20 L=20	8-98033-780-0	02	1	0803-
272	NUT; CLIP (A) M14	0-91110-514-0	02	1	0803-
272	NUT; CLIP (B) M8 FLANGE	0-91180-108-0	02	1	0803-
274	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	0803-
275	BOOT; ROD END,TIE	1-85574-046-0	02	1	0803-
304	WASHER; PL ID=12.5	0-91614-512-0	02	1	0803-
305	COVER; KNUCKLE	1-43175-030-0	02	1	0803-
348	BRACKET; CLIP	8-98055-137-1	01	1	0803-
348	BRACKET; CLIP	8-98055-138-1	01	1	0803-
360	COVER; SENSOR	8-98018-400-0	01	1	0803-
360	COVER; SENSOR	8-98018-401-0	01	1	0803-

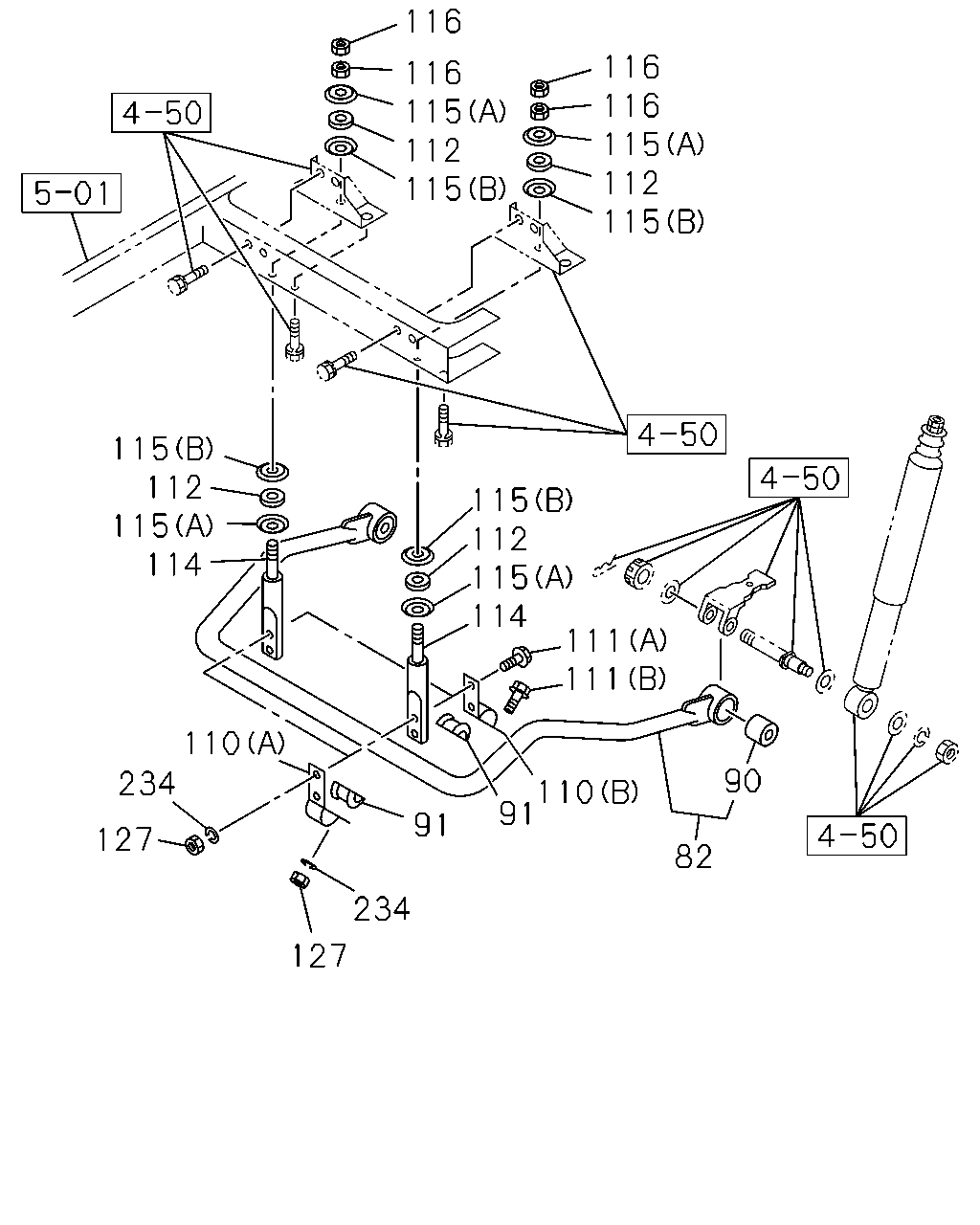

116 116 116 115 112 115 116 115 112 115 115 112 115 114 115 112 115 114 111 111 110 90 234 110 91 91 127 82 234 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51770-114-0	01	1	0803-
90	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-066-0	02	1	0803-
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-079-1	04	1	0803-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	0803-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	0803-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X30 FLANGE	0-28051-230-0	02	1	0803-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X50 FLANGE	0-28051-250-0	04	1	0803-
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-050-0	04	1	0803-
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-082-0	02	1	0803-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=16.8	1-51631-022-0	04	1	0803-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=14.5	9-51631-051-0	04	1	0803-
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	0803-
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	0-91110-512-0	06	1	0803-
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	0803-
