0-22 — ENGINE MOUNTING (#148068) — 34 parça
çizim 443054
20 52 10 20 78 52 20 10 52 10 20 20
BalonParca AdiParca NoAdetTipApplied Date
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 04 1 1409-
10 04.085 NUT; MTG RUBBER
05.816 (B) M12 FLANGE 		0-91180-212-0 02 1 1409-
20 00.029 BOLT; ENG FOOT
4X2(UCB***) A/T 5 SPEED-AISIN(MA1) (H) M10X25 FLANGE 		0-28651-025-0 04 1 1409-
20 00.029 BOLT; ENG FOOT
4X2(UCB***) A/T 5 SPEED-AISIN(MA1) 04.317 (G) M10X55 FLANGE 		8-98035-672-0 02 1 1409-
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28051-020-0 06 1 1409-
20 00.029 BOLT; ENG FOOT
09.171 (C) M14X20 FLANGE 		0-28851-420-0 01 1 1409-
20 00.029 BOLT; ENG FOOT
(D) M10X35 W/LK WASHER 		0-50741-035-0 01 1 1409-
20 00.029 BOLT; ENG FOOT
(B) M10X30 FLANGE 		8-98013-800-0 04 1 1409-
20 00.029 BOLT; ENG FOOT
4X4(UCS***) A/T 5 SPEED-AISIN(MA1) (E) M10X35 FLANGE 		0-28751-035-0 02 1 1409-
20 00.029 BOLT; ENG FOOT
M/T MUX 5 SPEED 5S(MZJ) 01.060 (F) M8X35 FLANGE 		0-28650-835-0 04 1 1409-
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(UCB***) A/T 5 SPEED-AISIN(MA1) (A) 		8-98238-914-0 01 1 1409-
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(UCS***) A/T 5 SPEED-AISIN(MA1) (B) 		8-98238-913-0 01 1 1409-
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MUX 5 SPEED 5S(MZJ) (C) 		8-98238-912-0 01 1 1409-
78 00.029 BRACKET; ENG MTG,RR
4X2(UCB***) A/T 5 SPEED-AISIN(MA1) 		8-98164-580-2 01 1 1409-

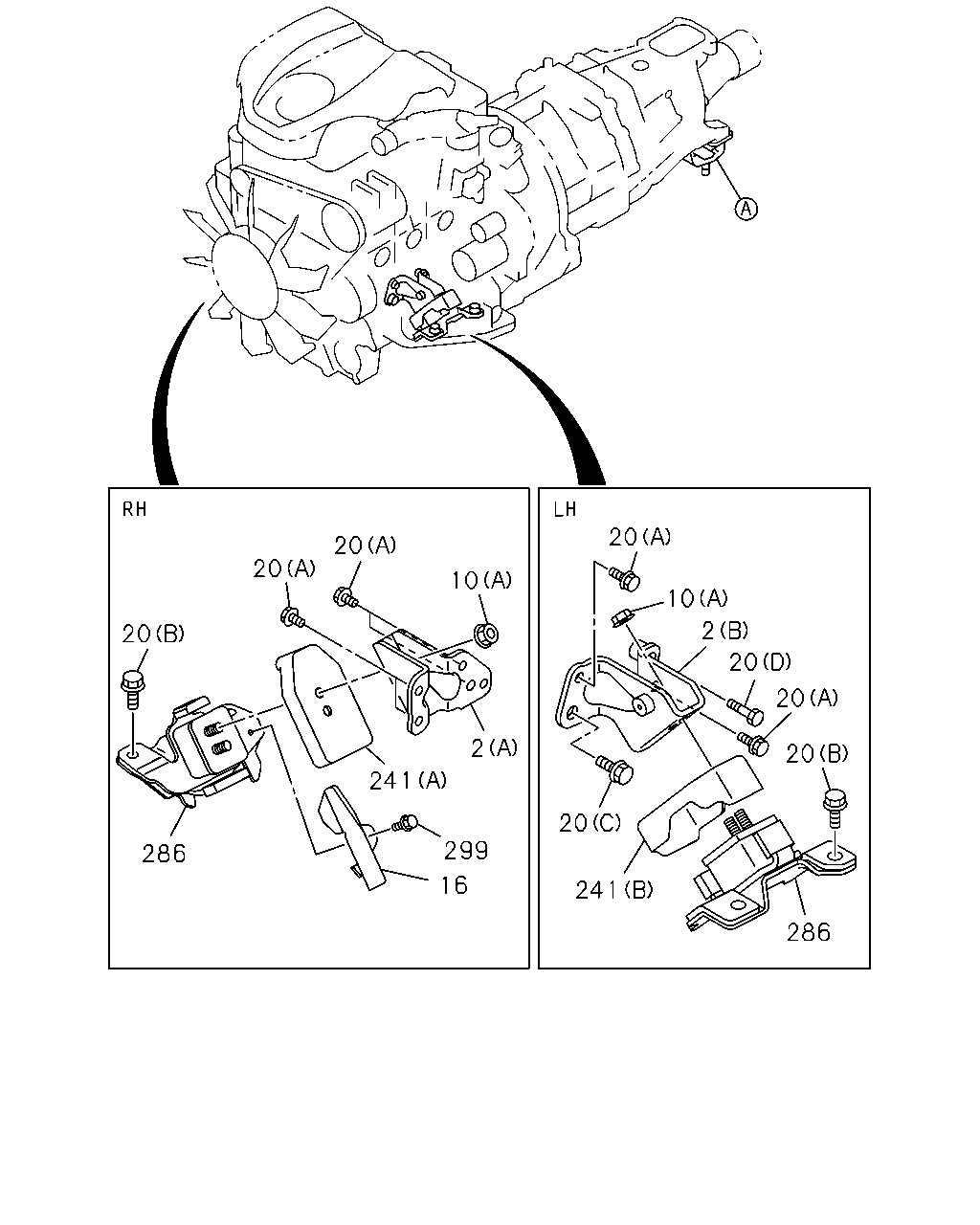

çizim 443067
20 20 20 286 16 241 299 2 10 20 10 2 20 20 20 286 241 20
BalonParca AdiParca NoAdetTipApplied Date
2 00.029 FOOT; ENG
(A) 		8-98132-100-0 01 1 1409-
2 00.029 FOOT; ENG
(B) 		8-98132-101-0 01 1 1409-
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 04 1 1409-
10 04.085 NUT; MTG RUBBER
05.816 (B) M12 FLANGE 		0-91180-212-0 02 1 1409-
16 07.039 PROTECTOR; HEAT,ENG MTG,FRT 8-98182-916-1 01 1 1409-
20 00.029 BOLT; ENG FOOT
4X2(UCB***) A/T 5 SPEED-AISIN(MA1) (H) M10X25 FLANGE 		0-28651-025-0 04 1 1409-
20 00.029 BOLT; ENG FOOT
4X2(UCB***) A/T 5 SPEED-AISIN(MA1) 04.317 (G) M10X55 FLANGE 		8-98035-672-0 02 1 1409-
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28051-020-0 06 1 1409-
20 00.029 BOLT; ENG FOOT
09.171 (C) M14X20 FLANGE 		0-28851-420-0 01 1 1409-
20 00.029 BOLT; ENG FOOT
(D) M10X35 W/LK WASHER 		0-50741-035-0 01 1 1409-
20 00.029 BOLT; ENG FOOT
(B) M10X30 FLANGE 		8-98013-800-0 04 1 1409-
20 00.029 BOLT; ENG FOOT
4X4(UCS***) A/T 5 SPEED-AISIN(MA1) (E) M10X35 FLANGE 		0-28751-035-0 02 1 1409-
20 00.029 BOLT; ENG FOOT
M/T MUX 5 SPEED 5S(MZJ) 01.060 (F) M8X35 FLANGE 		0-28650-835-0 04 1 1409-
241 00.027 COVER; ENG MTG
A/T 5 SPEED-AISIN(MA1) (A) 		8-98194-507-1 01 1 1409-
241 00.027 COVER; ENG MTG
A/T 5 SPEED-AISIN(MA1) (B) 		8-98194-508-1 01 1 1409-
241 00.027 COVER; ENG MTG
M/T MUX 5 SPEED 5S(MZJ) (A) 		8-98101-956-2 01 1 1409-
241 00.027 COVER; ENG MTG
M/T MUX 5 SPEED 5S(MZJ) (B) 		8-98101-957-1 01 1 1409-
286 00.027 MOUNTING ASM; ENGINE 8-98075-376-2 01 1 1409-
286 00.027 MOUNTING ASM; ENGINE 8-98250-592-0 01 1 1409-
299 00.029 BOLT
03.671 M6X10 FLANGE 		0-28050-610-0 01 1 1409-
