Isuzu WW
▶
SUV
▶
UCR
▶
51578 - UCR/UCS RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶

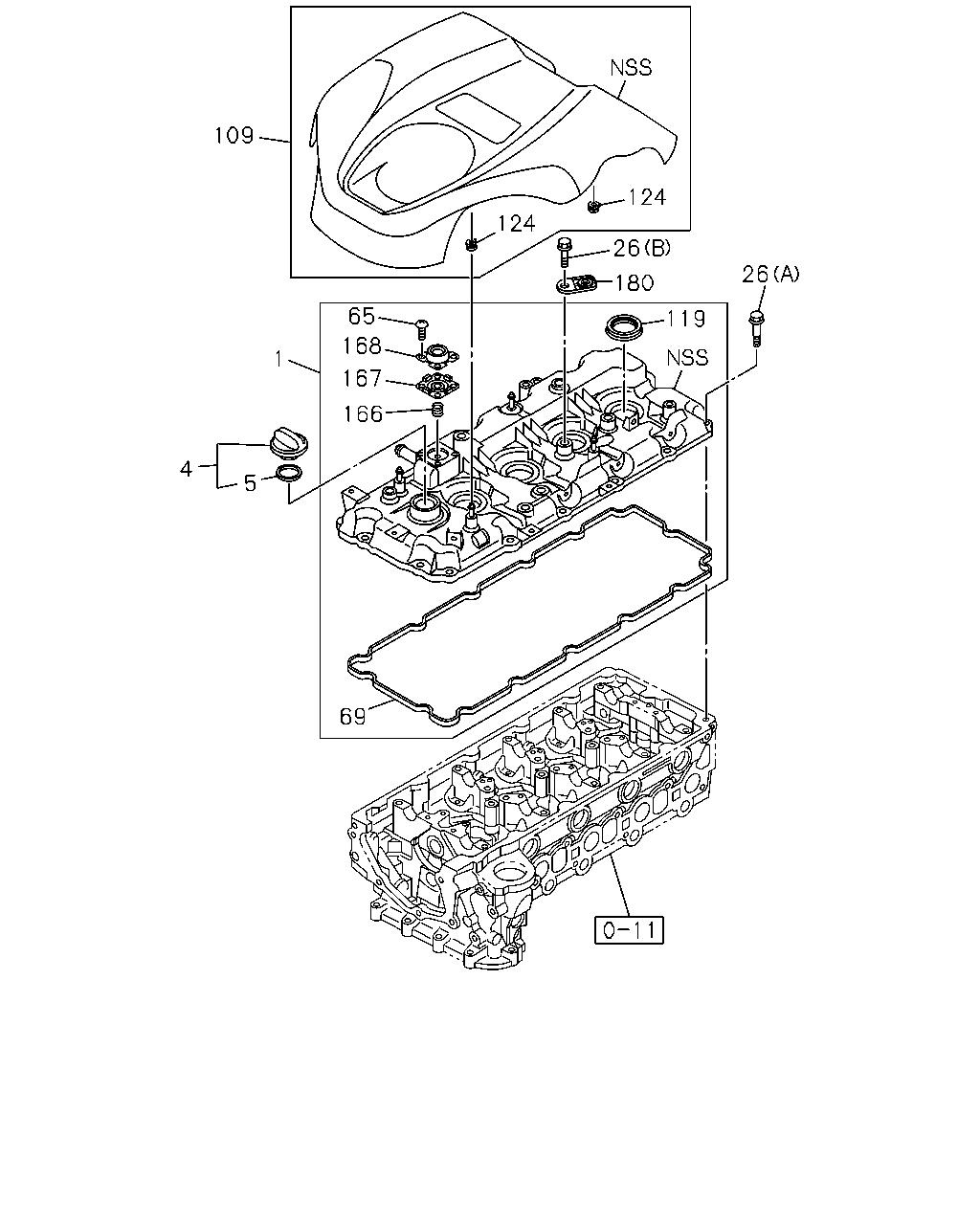

0-10 — CYLINDER HEAD COVER
(#148061) — 14 parça
109
166
167
168
65
1
5
4
69
119
26
180
26
124
124
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.386 COVER; CYL HD
8-98228-367-4
01
1
1409-
4
01.758 CAP; OIL FILLER
8-98026-084-0
01
1
1409-
5
01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40
8-97918-298-0
01
1
1409-
26
08.900 BOLT; CYL HD COVER
04.338 (B) M8X20 FLANGE
0-28050-820-0
01
1
1409-
26
08.900 BOLT; CYL HD COVER
(A) M6X25.7 FLANGE
8-98228-370-0
15
1
1409-
65
00.413 SCREW; ADAPTER
M4X10
8-98209-387-0
04
1
1409-
69
00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98228-369-0
01
1
1409-
109
00.386 COVER; ENG
8-98147-402-0
01
1
1409-
119
00.386 COVER; SEAL,NOZZLE
8-98228-371-0
04
1
1409-
124
00.413 RUBBER; MTG,COVER
8-98269-869-0
04
1
1509-
166
00.283 SPRING; VENTILATOR
00.423
8-97088-445-0
01
1
1409-
167
00.283 DIAPHRAGM; VENTILATOR
8-98003-164-0
01
1
1409-
168
00.283 COVER; VENTILATOR
8-98234-092-0
01
1
1409-
180
00.413 DAMPENER; CYL HEAD
8-98244-154-0
01
1
1409-
