9-33 — REAR BODY; GATE AND SIDE GUARD (#148058) — 123 parça

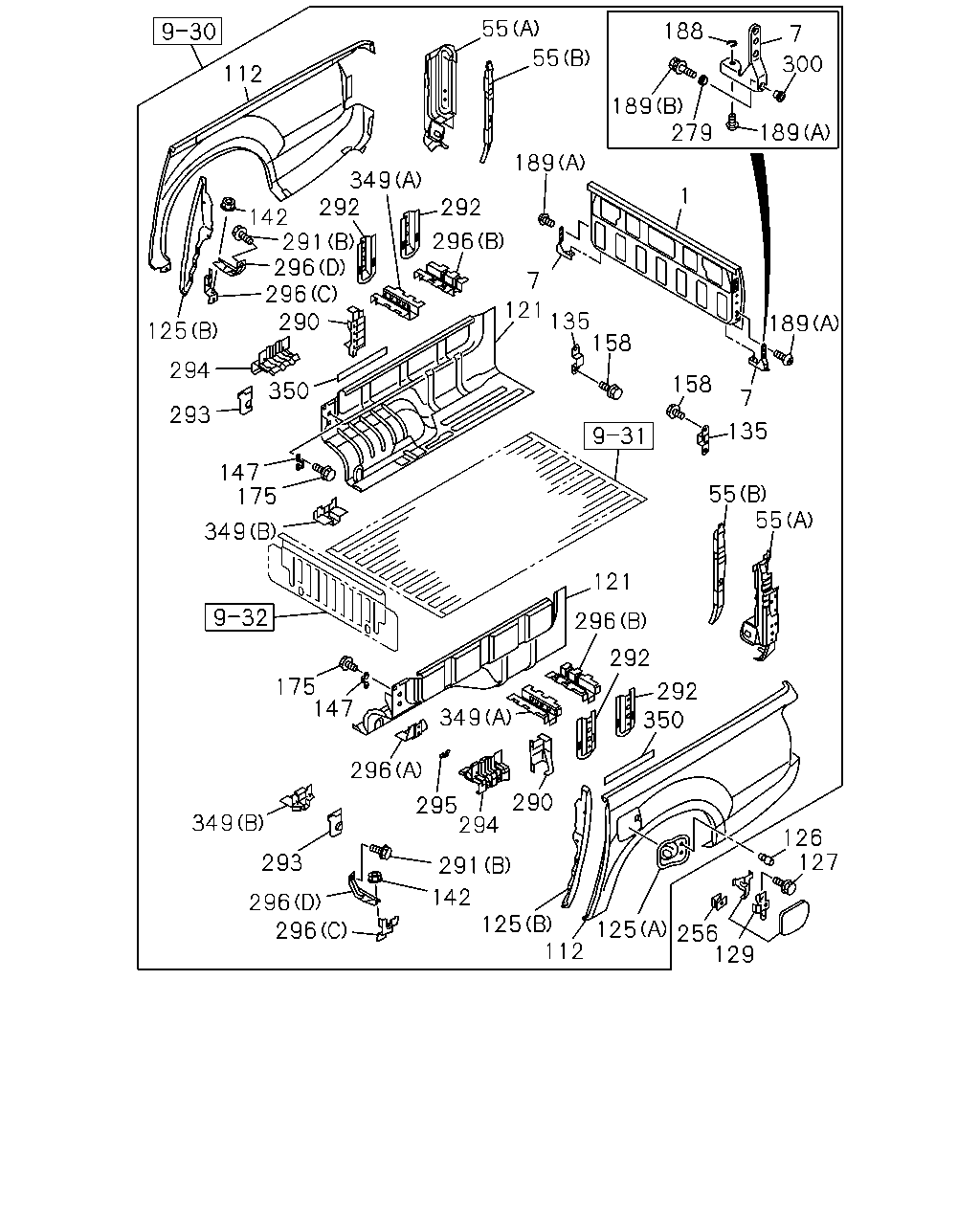

çizim 443642
112 55 188 55 142 349 292 292 189 296 291 296 296 125 290 350 294 293 147 349 175 7 121 158 135 158 135 55 189 55 189 189 300 7 279 121 296 292 292 350 349 175 147 296 290 295 294 349 293 296 296 142 125 291 112 126 127 125 256 129 1 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 GATE ASM; RR 8-98104-362-9 01 1 1410- ● ●
7 HINGE ASM; RR GATE 8-98180-948-0 01 1 1410- ● ●
7 HINGE ASM; RR GATE 8-98180-949-0 01 1 1410- ● ●
55 PANEL; RR CORNER
(A) 		8-98104-259-6 01 1 1410- ● ●
55 PANEL; RR CORNER
(A) 		8-98104-261-6 01 1 1410- ● ●
55 PANEL; RR CORNER
(B) 		8-98104-378-7 01 1 1410- ● ●
55 PANEL; RR CORNER
(B) 		8-98104-379-7 01 1 1410- ● ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION(7YC) 		8-98104-560-9 01 1 1410- ●
112 PANEL; SIDE GATE 8-98104-560-9 01 1 1410- ●
112 PANEL; SIDE GATE
HIGH RIDE SUSPENSION(7YC) 		8-98104-561-7 01 1 1410- ●
112 PANEL; SIDE GATE 8-98104-561-7 01 1 1410- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-551-8 01 1 1410- ●
112 PANEL; SIDE GATE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-552-6 01 1 1410- ●
121 PANEL; SIDE INNER,RR BODY 8-98104-294-7 01 1 1410- ● ●
121 PANEL; SIDE INNER,RR BODY 8-98104-296-7 01 1 1410- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-234-7 01 1 1410- ●
125 RECESS; FUEL FILLER NECK,RR BODY
(A) 		8-98104-234-7 01 1 1410- ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) 		8-98104-189-4 01 1 1410- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
(B) 		8-98104-192-4 01 1 1410- ● ●
125 RECESS; FUEL FILLER NECK,RR BODY
EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-233-7 01 1 1410- ●
126 RUBBER; STOPPER,FUEL FILLER LID 8-98144-635-1 03 1 1410- ● ●
127 BOLT; FUEL FILLER LID
M6X16 		8-98056-287-0 02 1 1410- ● ●
129 LID ASM; FUEL FILLER,RR BODY
HIGH RIDE SUSPENSION(7YC) 		8-98103-298-7 01 1 1410- ●
129 LID ASM; FUEL FILLER,RR BODY 8-98103-298-7 01 1 1410- ●
129 LID ASM; FUEL FILLER,RR BODY
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98103-297-6 01 1 1410- ●
135 STRIKER; TAIL GATE,RR BODY
EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-333-0 01 1 1410- ●
135 STRIKER; TAIL GATE,RR BODY 8-98050-333-0 01 1 1410- ●
135 STRIKER; TAIL GATE,RR BODY
EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-334-0 01 1 1410- ●
135 STRIKER; TAIL GATE,RR BODY 8-98050-334-0 01 1 1410- ●
142 NUT
M8 FLANGE 		0-91180-108-0 02 1 1410- ● ●
147 HOOK ASM; ROPE,FRT
EXC. OUTER ROPE HOOKS<7MZ> 		8-97264-487-0 04 1 1410- ●
147 HOOK ASM; ROPE,FRT 8-97264-487-0 04 1 1410- ●
158 SCREW; STRIKER,TAIL GATE
EXC. OUTER ROPE HOOKS<7MZ> M8X20 FLANGE 		0-28650-820-0 04 1 1410- ●
158 SCREW; STRIKER,TAIL GATE
M8X20 FLANGE 		0-28650-820-0 04 1 1410- ●
175 BOLT; SET,RR GATE HOOK
EXC. OUTER ROPE HOOKS<7MZ> M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1410- ●
175 BOLT; SET,RR GATE HOOK
M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1410- ●
188 PLATE; HINGE UPR,RR GATE 8-97329-277-1 AR 1 1410- ● ●
189 BOLT; HINGE,RR GATE
(B) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 1410- ● ●
189 BOLT; HINGE,RR GATE
(A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1410- ● ●
256 SPRING; LID,FUEL FILLER 8-98141-610-3 01 1 1410- ● ●
279 SPACER 8-97357-403-0 02 1 1410- ● ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION(7YC) 		8-98113-244-2 01 1 1410- ●
290 BRACE; RR BODY 8-98113-244-2 01 1 1410- ●
290 BRACE; RR BODY
HIGH RIDE SUSPENSION(7YC) 		8-98113-245-2 01 1 1410- ●
290 BRACE; RR BODY 8-98113-245-2 01 1 1410- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-062-2 01 1 1410- ●
290 BRACE; RR BODY
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-063-2 01 1 1410- ●
291 BOLT; RR BODY
(B) M8X32.5 W/PL WASHER 		8-98136-077-0 02 1 1410- ● ●
291 BOLT; RR BODY
(A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1410-1506 ● ●
291 BOLT; RR BODY
(A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1507- ● ●
292 EXTENSION; RR BODY 8-98104-156-0 04 1 1410- ● ●
293 REINFORCEMENT; RR BODY 8-98104-611-2 01 1 1410- ● ●
293 REINFORCEMENT; RR BODY 8-98104-612-2 01 1 1410- ● ●
294 PANEL; OUTER,RR BODY
HIGH RIDE SUSPENSION(7YC) 		8-98104-405-3 01 1 1410- ●
294 PANEL; OUTER,RR BODY 8-98104-405-3 01 1 1410- ●
294 PANEL; OUTER,RR BODY
HIGH RIDE SUSPENSION(7YC) 		8-98104-406-3 01 1 1410- ●
294 PANEL; OUTER,RR BODY 8-98104-406-3 01 1 1410- ●
294 PANEL; OUTER,RR BODY
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-392-2 01 1 1410- ●
294 PANEL; OUTER,RR BODY
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-393-2 01 1 1410- ●
295 BRACKET; FILLER 8-98104-666-1 01 1 1410- ● ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-642-3 01 1 1410- ●
296 BRACKET; RR BODY
(C) 		8-98138-642-3 01 1 1410- ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-643-3 01 1 1410- ●
296 BRACKET; RR BODY
(C) 		8-98138-643-3 01 1 1410- ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-648-3 01 1 1410- ●
296 BRACKET; RR BODY
(D) 		8-98138-648-3 01 1 1410- ●
296 BRACKET; RR BODY
HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-649-3 01 1 1410- ●
296 BRACKET; RR BODY
(D) 		8-98138-649-3 01 1 1410- ●
296 BRACKET; RR BODY
(A) 		8-98104-649-0 02 1 1410- ● ●
296 BRACKET; RR BODY
(B) 		8-98104-665-1 02 1 1410- ● ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-640-5 01 1 1410- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-641-5 01 1 1410- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-646-2 01 1 1410- ●
296 BRACKET; RR BODY
EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-647-2 01 1 1410- ●
300 COLLAR; GATE HINGE 8-98057-114-0 02 1 1410- ● ●
349 REINFORCEMENT; RR BODY,SILL
(A) 		8-98104-614-2 02 1 1410- ● ●
349 REINFORCEMENT; RR BODY,SILL
(B) 		8-98139-650-1 01 1 1410- ● ●
349 REINFORCEMENT; RR BODY,SILL
(B) 		8-98139-651-1 01 1 1410- ● ●
350 SEAL; TAPE
UPPER 		8-98192-937-0 02 1 1410- ● ●
350 SEAL; TAPE
LOWER 		8-98192-940-0 02 1 1410- ● ●
çizim 443753
215 53
BalonParca AdiParca NoAdetTipApplied Date A B
53 HANDLE ASM; OUTSIDE,TAIL GATE
HANDLE O/S DOOR BODY COLOR<D75> RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) KD-PAINT LESS SUPPLY<7TV> EXC. OUTER ROPE HOOKS<7MZ> 		8-98200-680-1 01 1 1410- ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
HANDLE O/S DOOR BODY COLOR<D75> RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) KD-PAINT LESS SUPPLY<7TV> 		8-98200-680-1 01 1 1410- ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
HANDLE O/S DOOR BODY COLOR<D75> RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) EXC. OUTER ROPE HOOKS<7MZ>,KD-PAINT LESS SUPPLY<7TV> WHITE 		8-97416-521-3 01 1 1410- ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
HANDLE O/S DOOR BODY COLOR<D75> RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) EXC. KD-PAINT LESS SUPPLY<7TV> WHITE 		8-97416-521-3 01 1 1410- ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
HANDLE O/S DOOR BODY COLOR<D75>,HANDLE O/S DOOR CHROME<E20> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) EXC. OUTER ROPE HOOKS<7MZ> 		8-98202-618-1 01 1 1410- ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
HANDLE O/S DOOR BODY COLOR<D75>,HANDLE O/S DOOR CHROME<E20> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) 		8-98202-618-1 01 1 1410- ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
HANDLE O/S DOOR CHROME<E20> RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) EXC. OUTER ROPE HOOKS<7MZ> 		8-98102-968-3 01 1 1410- ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
HANDLE O/S DOOR CHROME<E20> RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) 		8-98102-968-3 01 1 1410- ●
215 BOLT; HANDLE TO GUARD FRAME
HANDLE O/S DOOR BODY COLOR<D75>,HANDLE O/S DOOR CHROME<E20> EXC. OUTER ROPE HOOKS<7MZ> M6X8 FLANGE 		8-98048-996-0 02 1 1410- ●
215 BOLT; HANDLE TO GUARD FRAME
HANDLE O/S DOOR BODY COLOR<D75>,HANDLE O/S DOOR CHROME<E20> M6X8 FLANGE 		8-98048-996-0 02 1 1410- ●

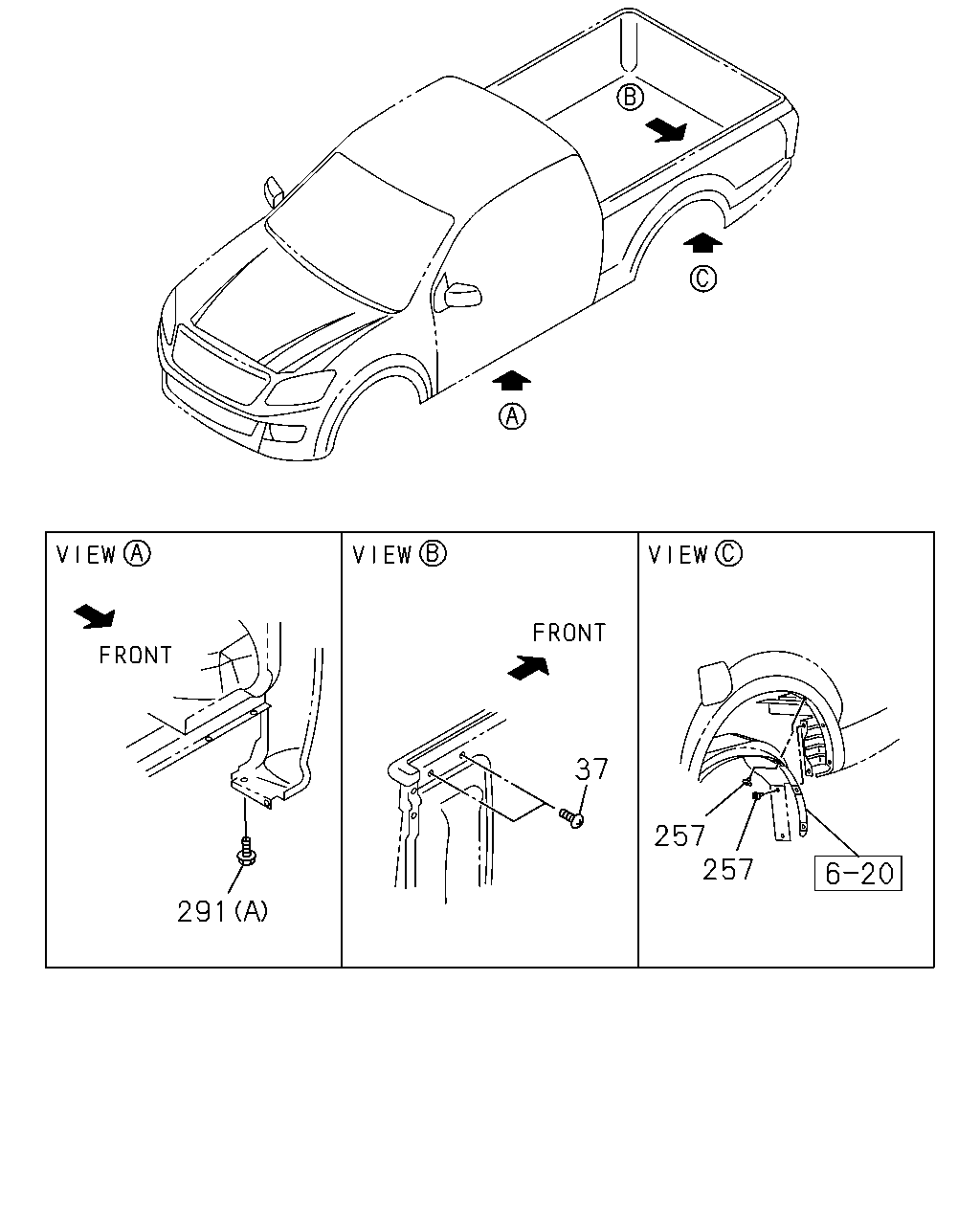

çizim 444059
291 37 257 257
BalonParca AdiParca NoAdetTipApplied Date A B
37 SCREW
M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 04 1 1410- ● ●
257 RIVET
HIGH RIDE SUSPENSION(7YC) 		8-98057-864-0 04 1 1410- ●
257 RIVET 8-98057-864-0 04 1 1410- ●
291 BOLT; RR BODY
(B) M8X32.5 W/PL WASHER 		8-98136-077-0 02 1 1410- ● ●
291 BOLT; RR BODY
(A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1410-1506 ● ●
291 BOLT; RR BODY
(A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1507- ● ●

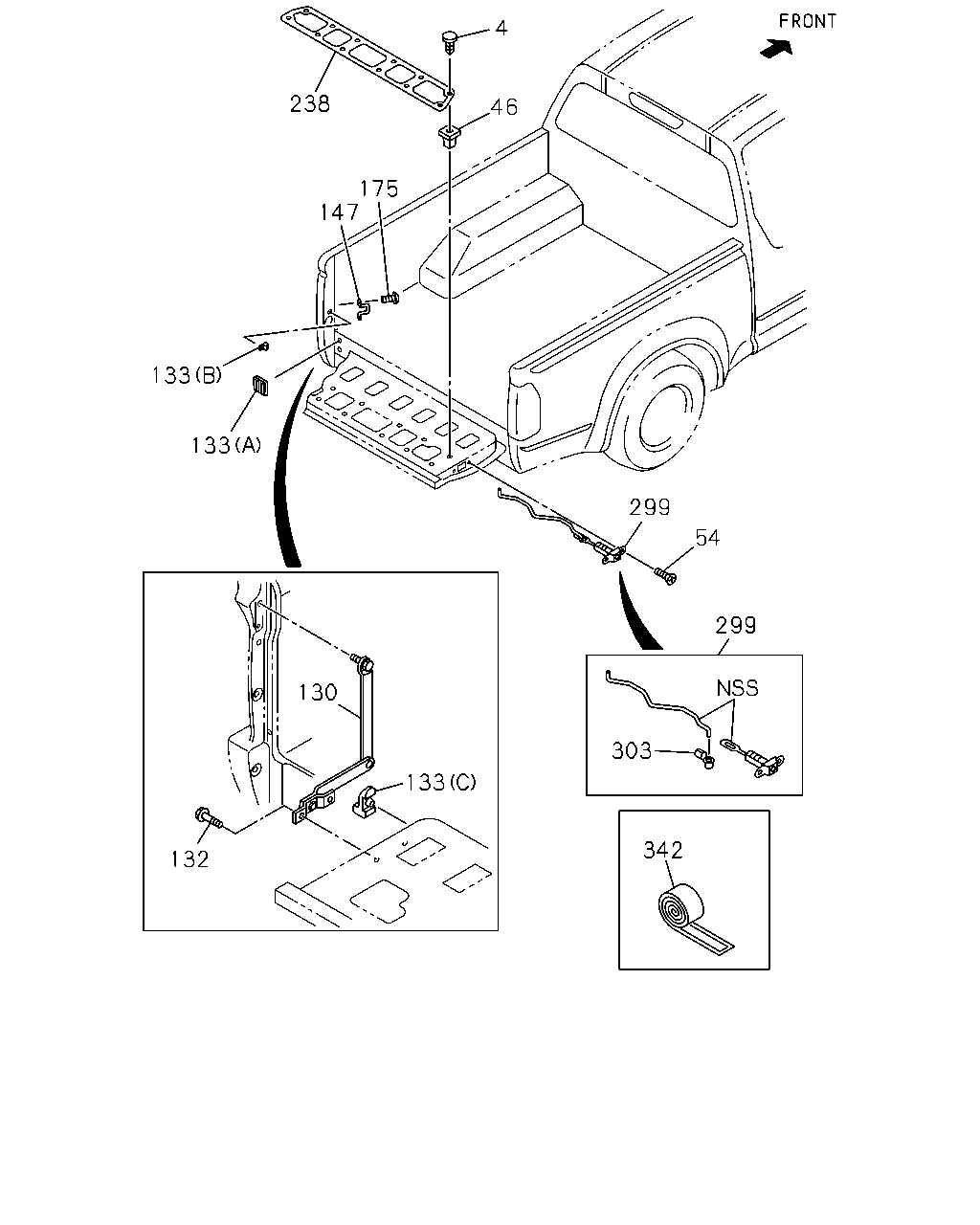

çizim 444323
4 46 238 175 147 133 133 299 54 299 303 342 133 130 132
BalonParca AdiParca NoAdetTipApplied Date A B
4 SCREW; PANEL,RR GATE
M4X10 		8-97043-528-0 12 1 1410- ● ●
46 GROMMET; SCREW,TAIL GATE HOLE COVER 8-98165-002-2 12 1 1410- ● ●
54 SCREW; TAIL GATE LOCK,RR BODY
EXC. OUTER ROPE HOOKS<7MZ> M8X20 		8-97247-699-0 04 1 1410- ●
54 SCREW; TAIL GATE LOCK,RR BODY
M8X20 		8-97247-699-0 04 1 1410- ●
130 LINK ASM; TAIL GATE,RR BODY 8-98180-461-1 01 1 1410- ● ●
130 LINK ASM; TAIL GATE,RR BODY 8-98180-462-1 01 1 1410- ● ●
132 BOLT; TAIL GATE LINK,RR BODY
M8X20 FLANGE 		0-28650-820-0 04 1 1410- ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
(C) 		8-97302-185-2 02 1 1410- ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
(B) 		8-98110-231-2 02 1 1410- ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-98134-726-1 01 1 1410- ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-98134-727-1 01 1 1410- ● ●
147 HOOK ASM; ROPE,FRT
EXC. OUTER ROPE HOOKS<7MZ> 		8-97264-487-0 04 1 1410- ●
147 HOOK ASM; ROPE,FRT 8-97264-487-0 04 1 1410- ●
175 BOLT; SET,RR GATE HOOK
EXC. OUTER ROPE HOOKS<7MZ> M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1410- ●
175 BOLT; SET,RR GATE HOOK
M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1410- ●
238 COVER; RR GATE 8-98181-076-2 01 1 1410- ● ●
299 LATCH; END GATE
EXC. OUTER ROPE HOOKS<7MZ> 		8-98102-971-3 01 1 1410- ●
299 LATCH; END GATE 8-98102-971-3 01 1 1410- ●
299 LATCH; END GATE
EXC. OUTER ROPE HOOKS<7MZ> 		8-98102-972-3 01 1 1410- ●
299 LATCH; END GATE 8-98102-972-3 01 1 1410- ●
303 SNAP; LATCH,END GATE
EXC. OUTER ROPE HOOKS<7MZ> 		8-97381-276-0 01 1 1410- ●
303 SNAP; LATCH,END GATE 8-97381-276-0 01 1 1410- ●
303 SNAP; LATCH,END GATE
EXC. OUTER ROPE HOOKS<7MZ> 		8-97381-277-0 01 1 1410- ●
303 SNAP; LATCH,END GATE 8-97381-277-0 01 1 1410- ●
342 TAPE
HIGH RIDE SUSPENSION(7YC) 		8-98139-776-4 01 1 1410- ●
342 TAPE 8-98139-776-4 01 1 1410- ●
342 TAPE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98139-775-4 01 1 1410- ●
