9-32 — REAR BODY; GUARD FRAME (#148057) — 21 parça

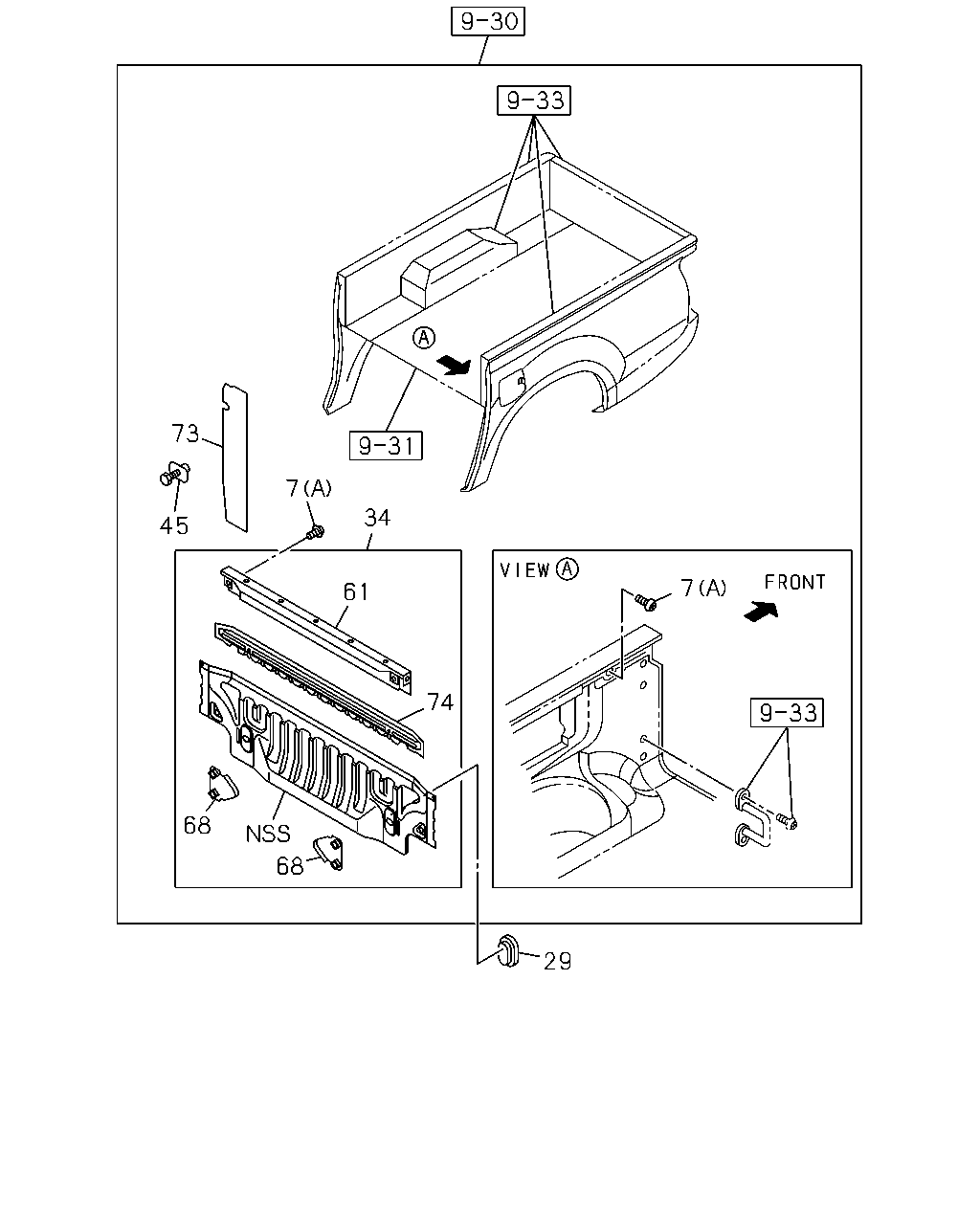

çizim 444284
73 45 7 61 74 68 68 29 7 34
BalonParca AdiParca NoAdetTipApplied Date A B
7 BOLT; GUARD FRAME STOPPER,RR BODY
(A) M8X20 		8-98294-857-0 02 1 1507- ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
(B) M6X45 		8-98056-129-0 02 1 1410- ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
(A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1410-1506 ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
(A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1507- ● ●
29 COVER; GUARD FRAME 8-97918-416-0 02 1 1410- ● ●
34 PANEL; FRT,RR BODY 8-98190-130-2 01 1 1410- ● ●
45 RIVET; DUST SHIELD COVER,RR BODY 8-94221-150-0 13 1 1410- ● ●
61 BAR ASM 8-98133-143-6 01 1 1410- ● ●
68 EXTENSION; FRONT,RR BODY 8-98180-183-0 02 1 1410- ● ●
73 PROTECTOR; TAPE 8-98188-226-0 01 1 1410- ● ●
73 PROTECTOR; TAPE 8-98188-227-0 01 1 1410- ● ●
74 REINFORCEMENT 8-98187-068-2 01 1 1410- ● ●
çizim 444302
7 3 5 10 37 7 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 FRAME; GUARD,RR BODY 8-98103-992-4 01 1 1410- ● ●
3 STOPPER; GUARD FRAME,RR BODY 8-97352-624-1 02 1 1410- ● ●
5 WASHER; PL,GUARD FRAME STOPPER 8-98056-308-0 02 1 1410- ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
(A) M8X20 		8-98294-857-0 02 1 1507- ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
(B) M6X45 		8-98056-129-0 02 1 1410- ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
(A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1410-1506 ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
(A) SCREW M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1507- ● ●
10 NUT; GUARD FRAME STOPPER
M6 		8-98056-127-0 02 1 1410- ● ●
37 BOLT; GUARD FRAME
M6X12 FLANGE 		0-28050-612-0 05 1 1410- ● ●
