Sayfa 9-31 - Isuzu EPC

9-31 — REAR BODY; FLOOR AND FENDER (#148056) — 20 parça

117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
117	BOLT; SILL M8X20	8-98294-857-0	08	1	1412-	●	●
117	BOLT; SILL M8X20.5 HEXALOBULAR SOCKET	8-98152-995-2	10	1	1410-1411	●	●
117	BOLT; SILL M8X20.5 HEXALOBULAR SOCKET	8-98152-995-2	02	1	1412-1506	●	●
117	BOLT; SILL M8X16.5 HEXALOBULAR SOCKET	8-98290-484-0	02	1	1507-1507	●	●
117	BOLT; SILL M8X16.5 HEXALOBULAR SOCKET	8-98290-484-0	10	1	1410-1506	●	●
117	BOLT; SILL M8X16.5 HEXALOBULAR SOCKET	8-98290-484-0	12	1	1507-	●	●

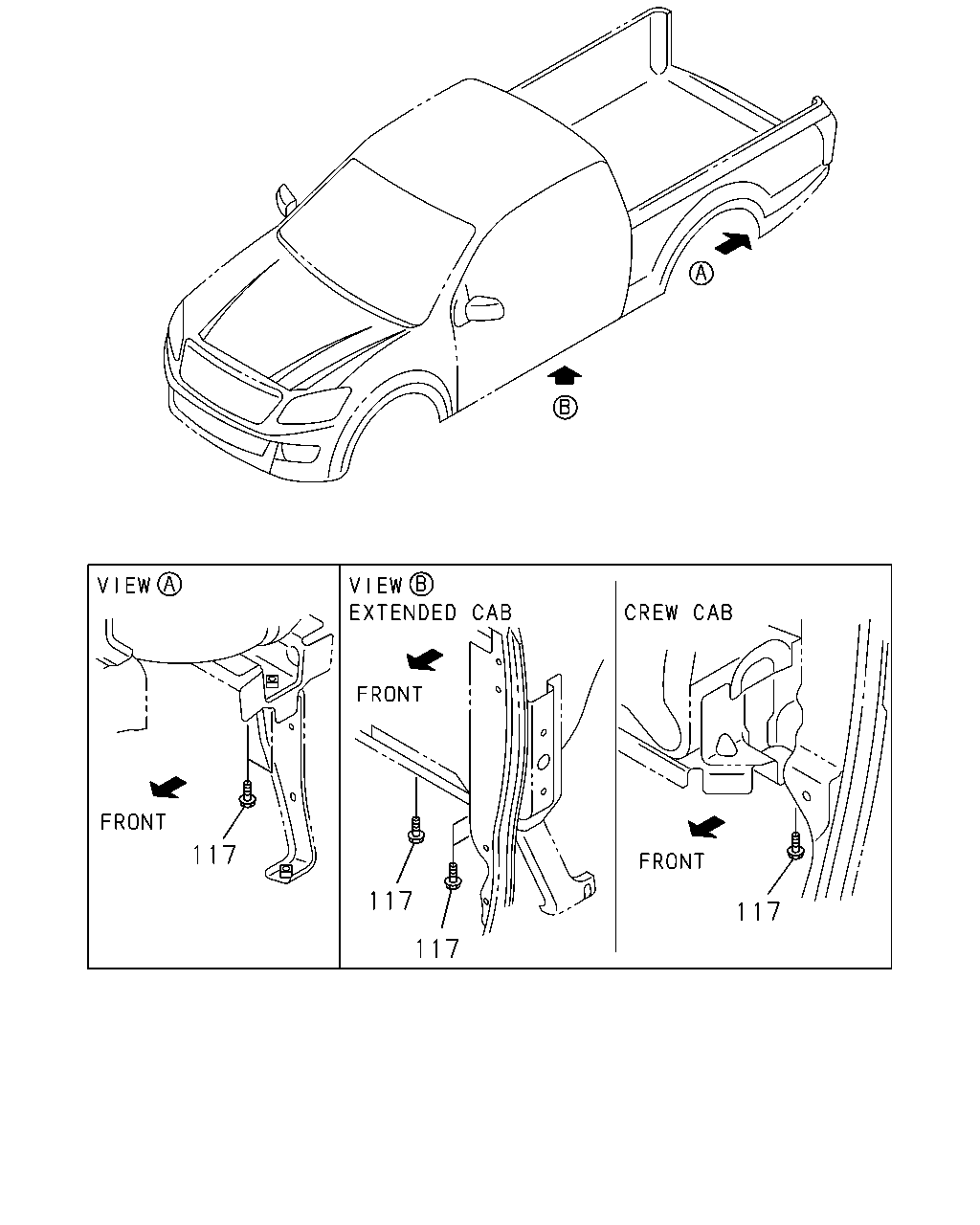

117 117 117 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
117	BOLT; SILL M8X20	8-98294-857-0	08	1	1412-	●	●
117	BOLT; SILL M8X20.5 HEXALOBULAR SOCKET	8-98152-995-2	10	1	1410-1411	●	●
117	BOLT; SILL M8X20.5 HEXALOBULAR SOCKET	8-98152-995-2	02	1	1412-1506	●	●
117	BOLT; SILL M8X16.5 HEXALOBULAR SOCKET	8-98290-484-0	02	1	1507-1507	●	●
117	BOLT; SILL M8X16.5 HEXALOBULAR SOCKET	8-98290-484-0	10	1	1410-1506	●	●
117	BOLT; SILL M8X16.5 HEXALOBULAR SOCKET	8-98290-484-0	12	1	1507-	●	●

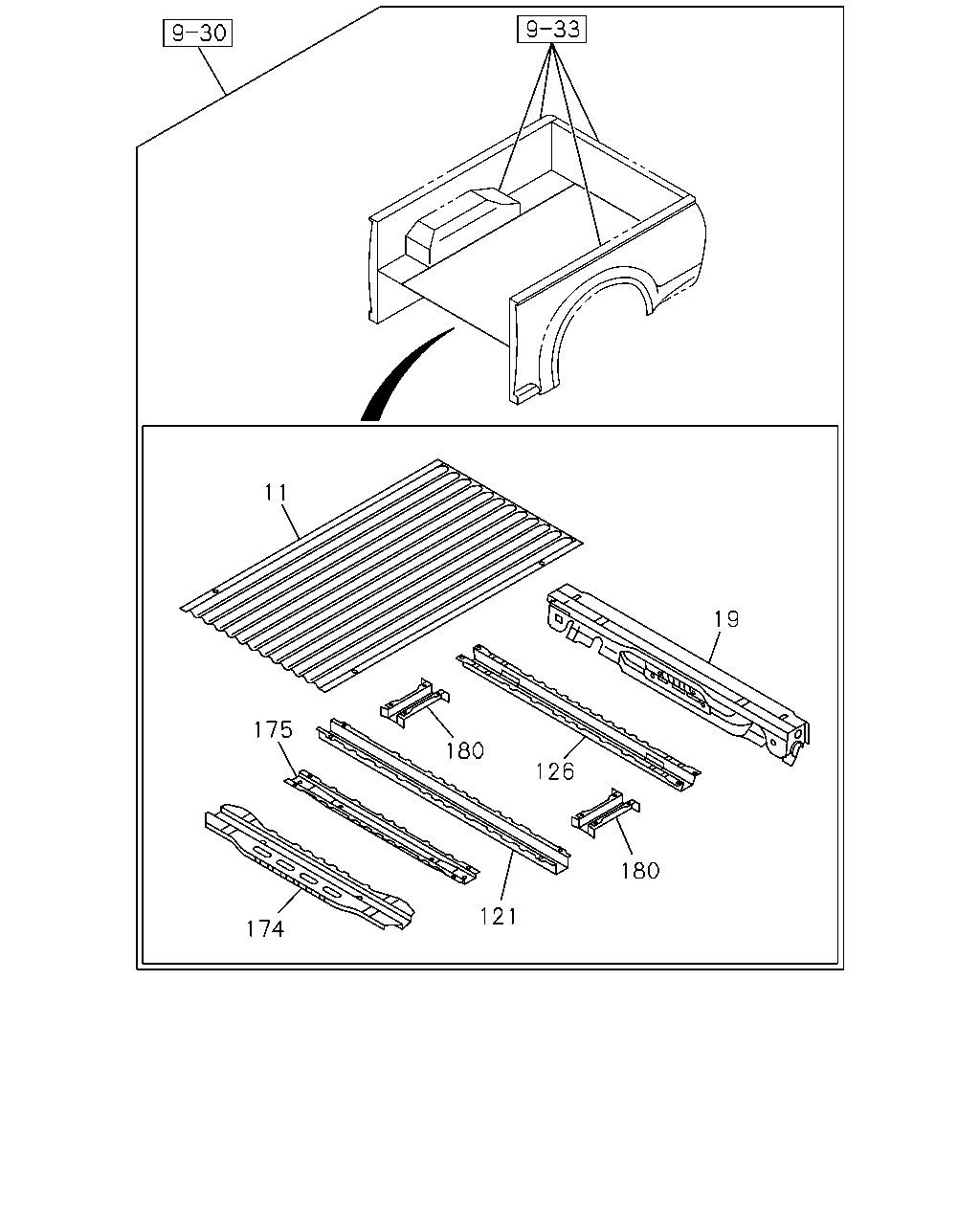

11 19 126 180 175 174 121 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	PANEL; FLOOR BOARD,RR BODY	8-98104-159-2	01	1	1410-	●	●
19	BOLSTER; RR END,RR BODY REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98210-518-0	01	1	1410-	●	●
19	BOLSTER; RR END,RR BODY EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98104-216-7	01	1	1410-	●	●
121	BOLSTER; RR BODY	8-98104-194-2	01	1	1410-	●	●
126	BOLSTER; FRT END,RR BODY	8-98104-201-2	01	1	1410-	●	●
174	SILL; RR BODY CROSS NO.1	8-98104-258-3	01	1	1410-	●	●
175	SILL; RR BODY CROSS NO.2	8-98104-191-2	01	1	1410-	●	●
180	REINFORCEMENT; SILL	8-98104-197-0	02	1	1410-	●	●
