9-30 — REAR BODY ASM AND MOUNTING (#148055) — 7 parça
çizim 443850
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 BODY ASM; REAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) HIGH RIDE SUSPENSION(7YC) 		8-98193-794-0 01 1 1410- ●
1 BODY ASM; REAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98193-792-0 01 1 1410- ●
1 BODY ASM; REAR
EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) 		8-98193-780-0 01 1 1410- ●

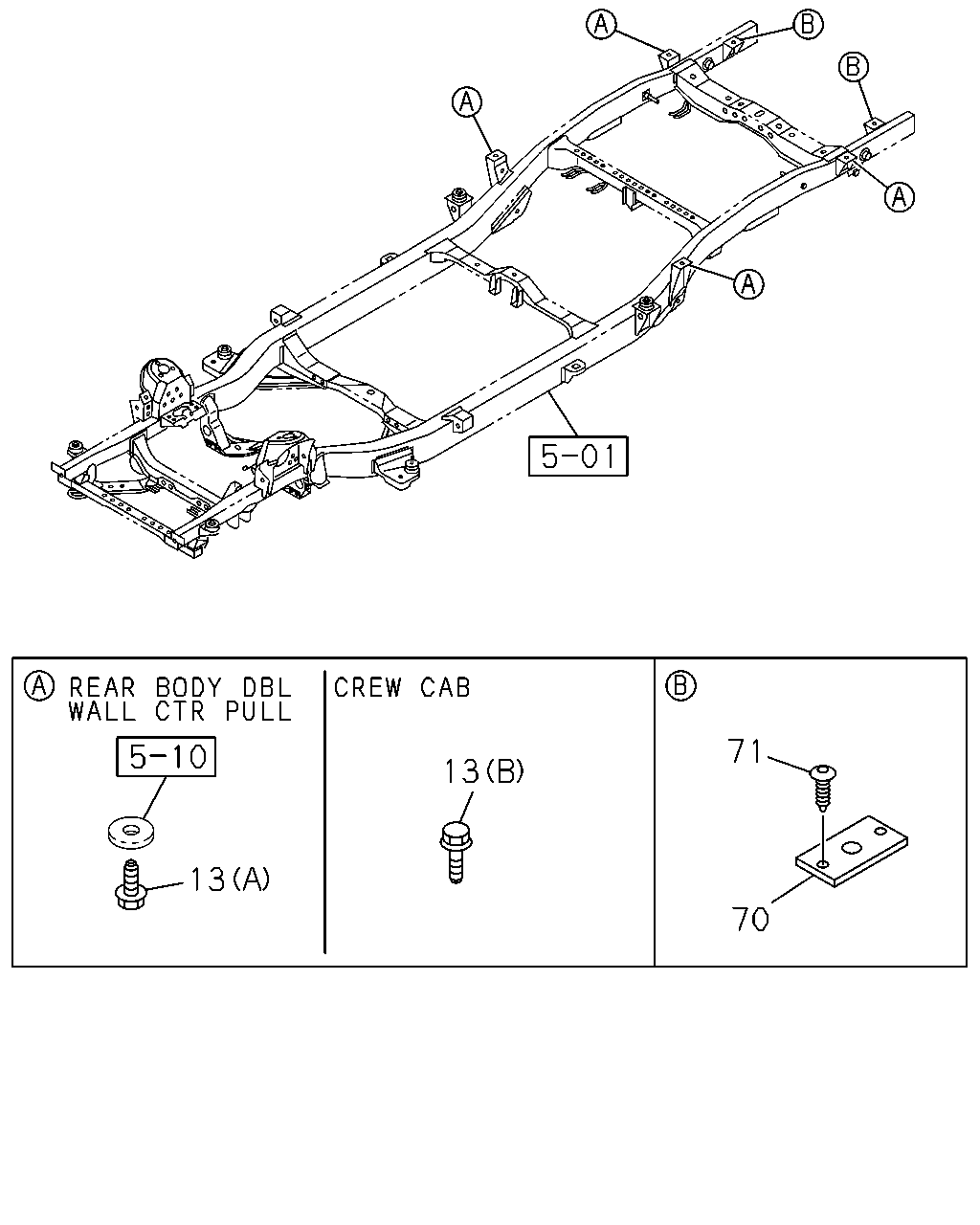

çizim 444498
13 13 71 70
BalonParca AdiParca NoAdetTipApplied Date A B
13 BOLT; RR BODY MTG
(A) M12X35 FLANGE 		0-28651-235-0 04 1 1410- ● ●
13 BOLT; RR BODY MTG
(B) M12X35 FLANGE 		8-98176-522-0 02 1 1410- ● ●
70 CUSHION; RR BODY MTG 8-98090-512-0 02 1 1410- ● ●
71 CLIP; CUSHION
ID=6 OD=16 L=18 		8-94178-705-0 04 1 1410- ● ●
