8-90 — RADIO AND TV (#148053) — 29 parça

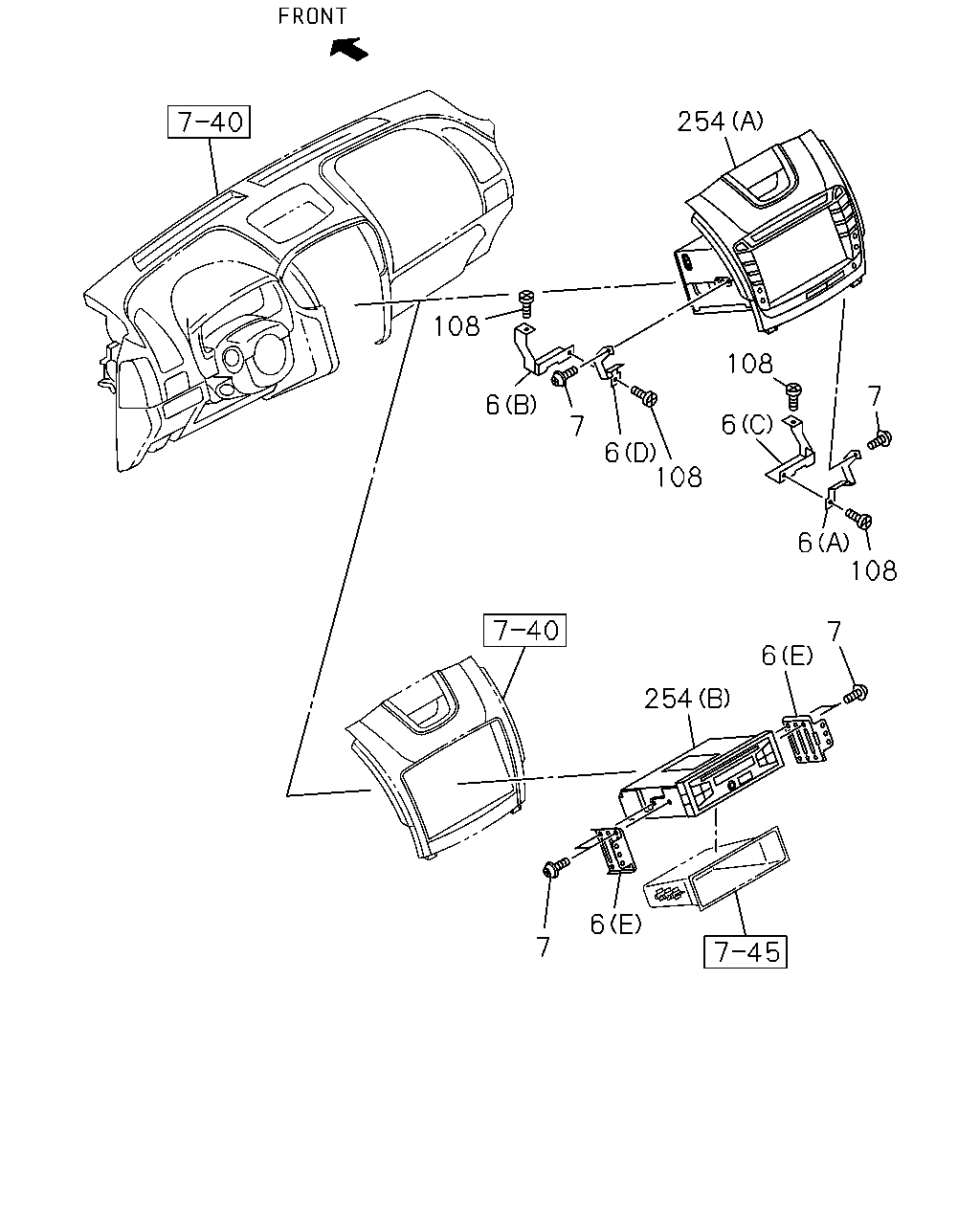

çizim 444390
7 254 108 6 6 108 108 6 7 6 108 254 7 6 6 7
BalonParca AdiParca NoAdetTipApplied Date A B
6 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (A) 		8-98102-186-2 01 1 1410- ● ●
6 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (B) 		8-98102-187-3 01 1 1410- ● ●
6 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (C) 		8-98106-390-3 01 1 1410- ● ●
6 BRACKET; RADIO TO PANEL
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (D) 		8-98109-822-2 01 1 1410- ● ●
6 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) (E) 		8-98102-188-2 02 1 1410- ● ●
7 SCREW; RADIO
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) M5X10 W/LK+PL WASHER 		0-36230-510-0 02 1 1410- ● ●
7 SCREW; RADIO
RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 1410- ● ●
108 SCREW; BRKT
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) M5X16 TAPPING 		8-98167-449-0 04 1 1410- ● ●
254 RADIO CONTROL ASM; STEREO,AM-FM
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (A) 		8-98222-317-3 01 1 1410- ● ●
254 RADIO CONTROL ASM; STEREO,AM-FM
RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) (B) 		8-98219-844-3 01 1 1410- ● ●

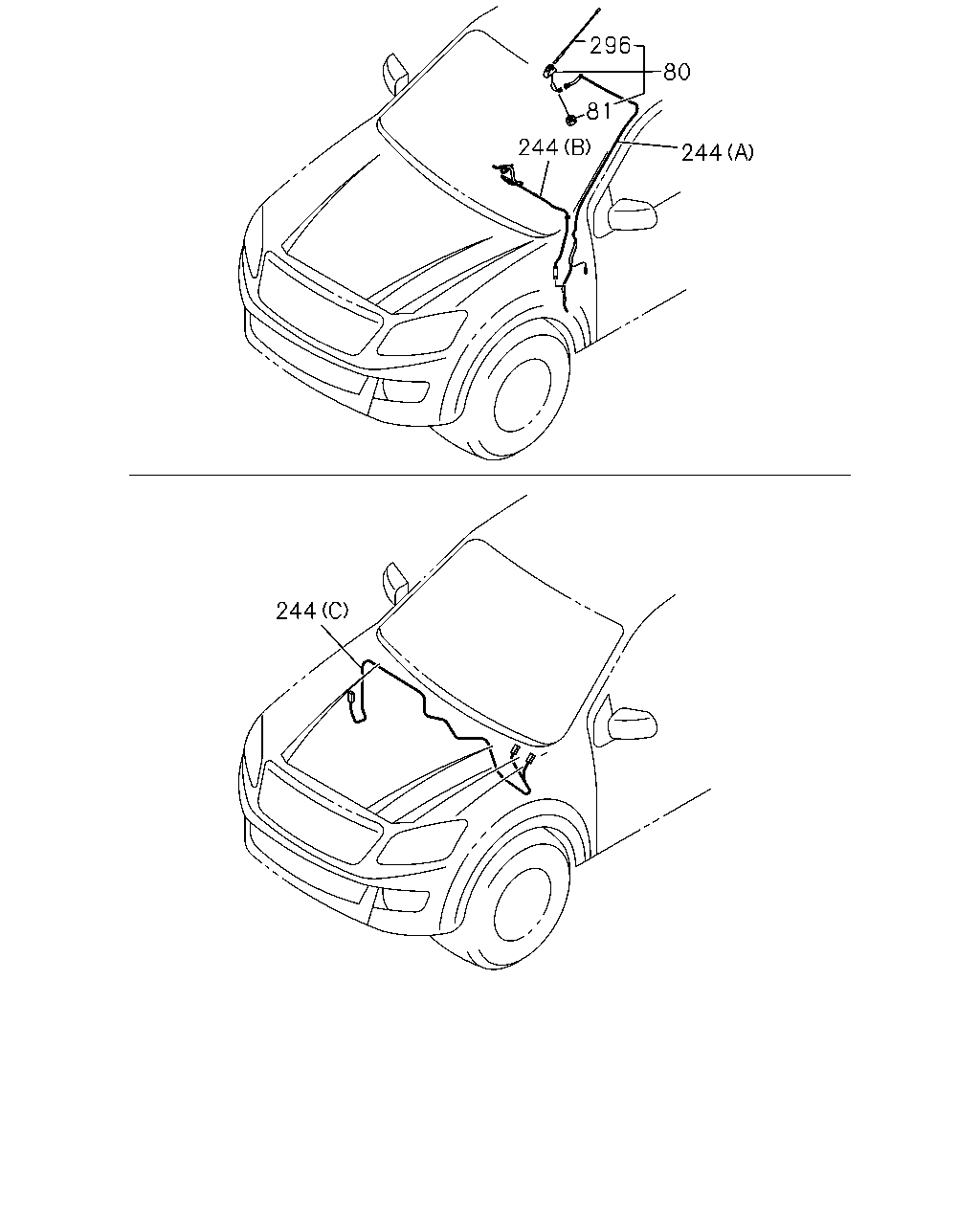

çizim 444424
296 81 244 244 244 80
BalonParca AdiParca NoAdetTipApplied Date A B
80 ANTENNA 8-98053-048-0 01 1 1410- ● ●
81 NUT; ANTENNA POLE 8-98165-971-0 01 1 1410- ● ●
244 CABLE; FEEDER
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (C) 		8-98227-542-0 01 1 1410- ● ●
244 CABLE; FEEDER
RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) (B) 		8-98053-051-1 01 1 1410- ● ●
244 CABLE; FEEDER
(A) 		8-98063-228-0 01 1 1410- ● ●
296 ROD; ANTENNA 8-98165-969-0 01 1 1410- ● ●

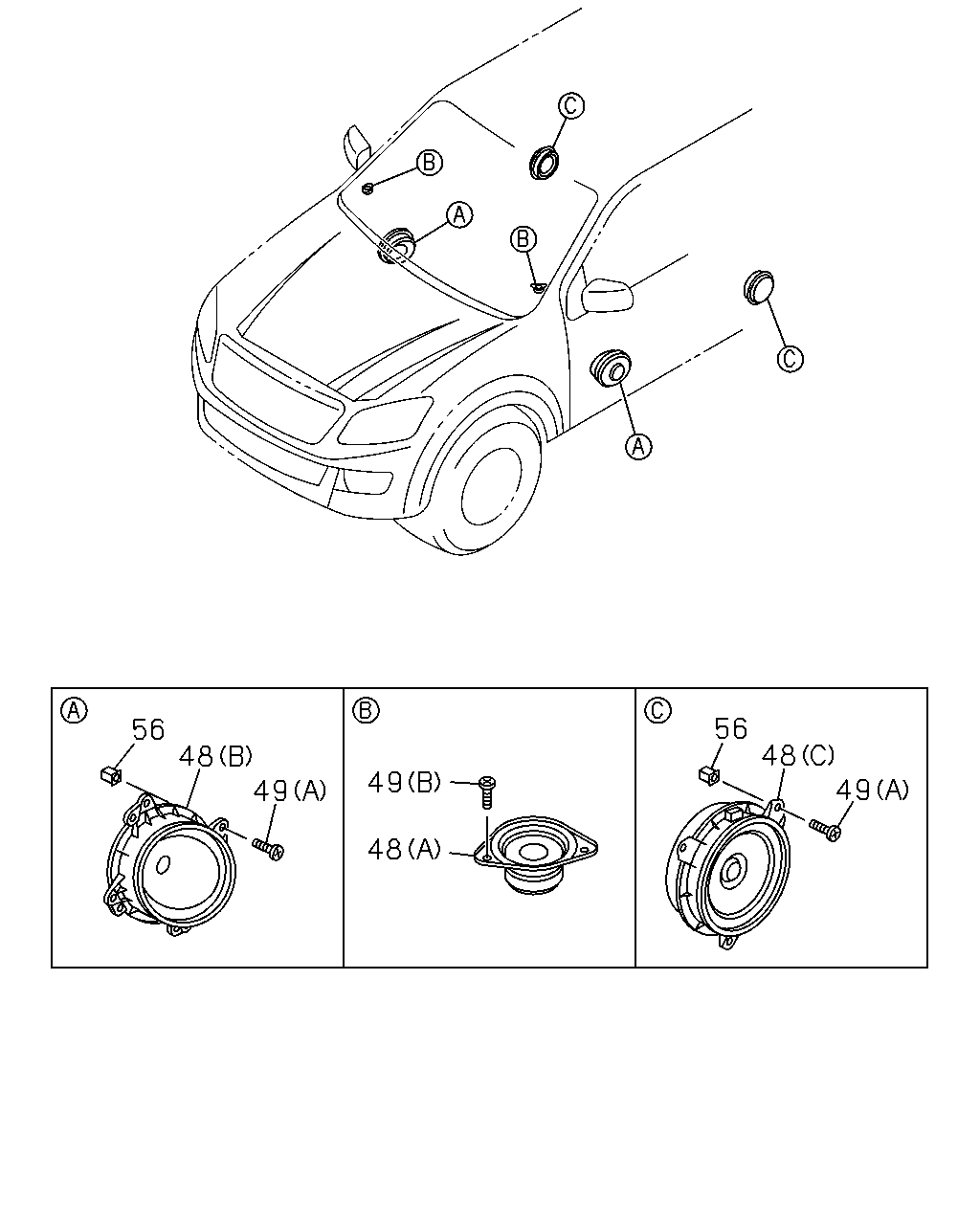

çizim 444441
56 48 49 48 49 56 48 49
BalonParca AdiParca NoAdetTipApplied Date A B
48 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> (B) 		8-98052-937-0 02 1 1410-1506 ● ●
48 SPEAKER; AUDIO
(B) 		8-98052-937-0 02 1 1507- ● ●
48 SPEAKER; AUDIO
4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> (A) 		8-98052-940-0 02 1 1410-1506 ● ●
48 SPEAKER; AUDIO
(A) 		8-98052-940-0 02 1 1507- ● ●
48 SPEAKER; AUDIO
6-SPEAKER SYSTEM BASE<UW5> (C) 		8-98052-941-0 02 1 1410- ● ●
49 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> (B) M5X16 TAPPING 		8-98167-449-0 04 1 1410-1506 ● ●
49 SCREW; SPEAKER
(B) M5X16 TAPPING 		8-98167-449-0 04 1 1507- ● ●
49 SCREW; SPEAKER
4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> (A) M5X14 TAPPING 		8-98184-363-0 08 1 1410-1506 ● ●
49 SCREW; SPEAKER
(A) M5X14 TAPPING 		8-98184-363-0 08 1 1507- ● ●
49 SCREW; SPEAKER
6-SPEAKER SYSTEM BASE<UW5> (A) M5X14 TAPPING 		8-98184-363-0 06 1 1410- ● ●
56 NUT; SPEAKER,RADIO OR STEREO
4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> 		8-98163-895-0 08 1 1410-1506 ● ●
56 NUT; SPEAKER,RADIO OR STEREO 8-98163-895-0 08 1 1507- ● ●
56 NUT; SPEAKER,RADIO OR STEREO
6-SPEAKER SYSTEM BASE<UW5> 		8-98163-895-0 06 1 1410- ● ●
