◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51576 - TFR/TFS JIANGXI ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#148051) — 12 parça

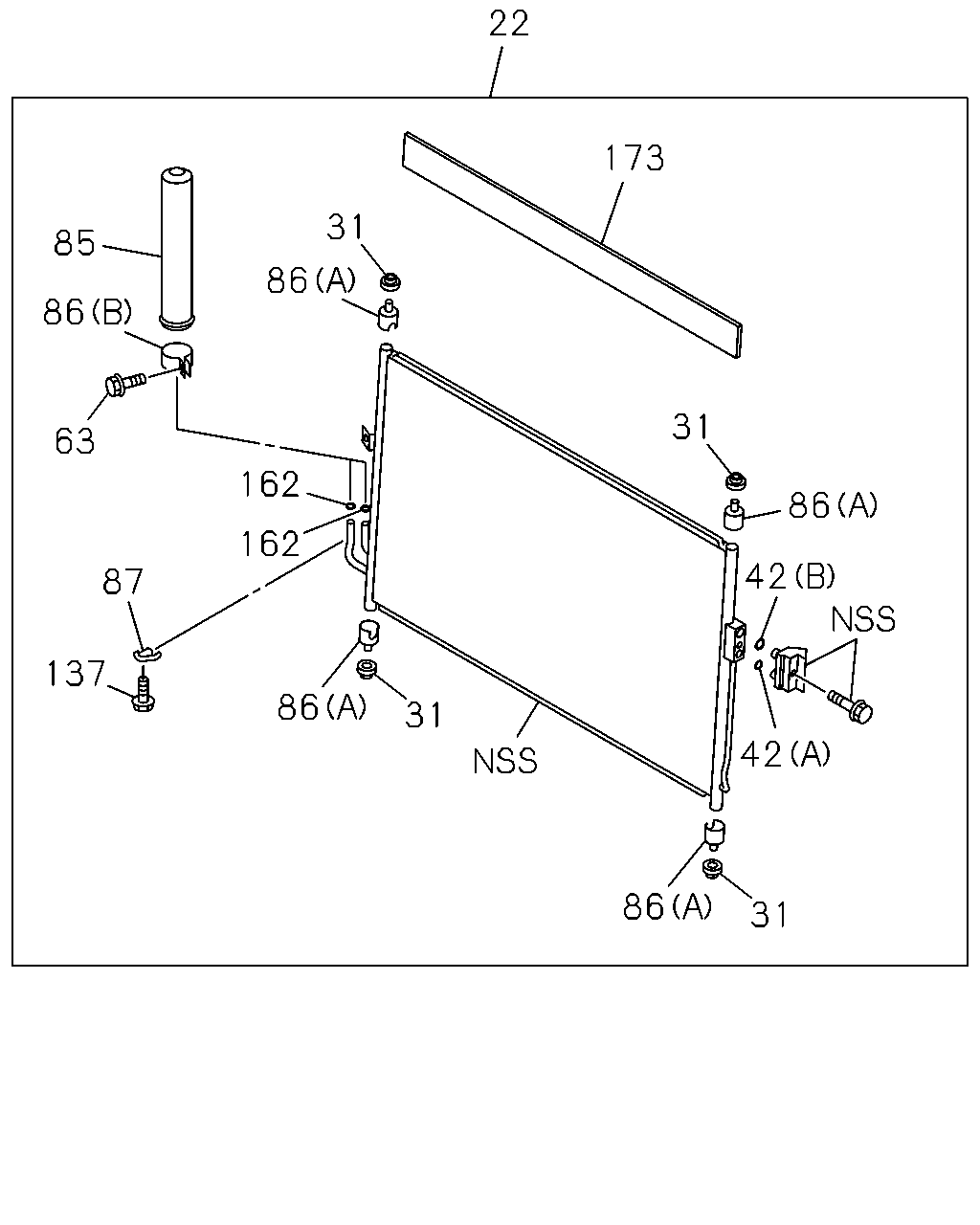

çizim 444513
31 86 42 42 86 31 173 22 31 86 162 162 31 86 87 137 63 86 85
BalonParca AdiParca NoAdetTipApplied Date A B
22 CONDENSER ASM; A/C 8-98052-634-3 01 1 1410- ● ●
31 RUBBER; MTG,CONDENSER 8-98193-616-0 04 1 1410- ● ●
42 GASKET; CONDENSER
(A) ID=8 		8-98193-614-0 01 1 1410- ● ●
42 GASKET; CONDENSER
(B) ID=12 		8-98193-615-0 01 1 1410- ● ●
63 BOLT; RECEIVER TANK
M5X16 		8-98193-604-0 01 1 1410- ● ●
85 DRYER; RECEIVER 8-98233-381-0 01 1 1410- ● ●
86 BRACKET; RECEIVER DRYER
(B) 		8-98193-599-0 01 1 1410- ● ●
86 BRACKET; RECEIVER DRYER
(A) 		8-98193-618-0 04 1 1410- ● ●
87 BRACKET; RECEIVER DRYER 8-98193-602-0 01 1 1410- ● ●
137 BOLT; BRKT,DRYER
M6X12 		8-98193-603-0 01 1 1410- ● ●
162 GASKET; PIPE TO DRYER
ID=8 		8-98193-614-0 02 1 1410- ● ●
173 INSULATOR; CONDENSER 8-98233-382-0 01 1 1410- ● ●
