3-78 — FIXING PARTS; AIR PIPING (#14805) — 73 parça

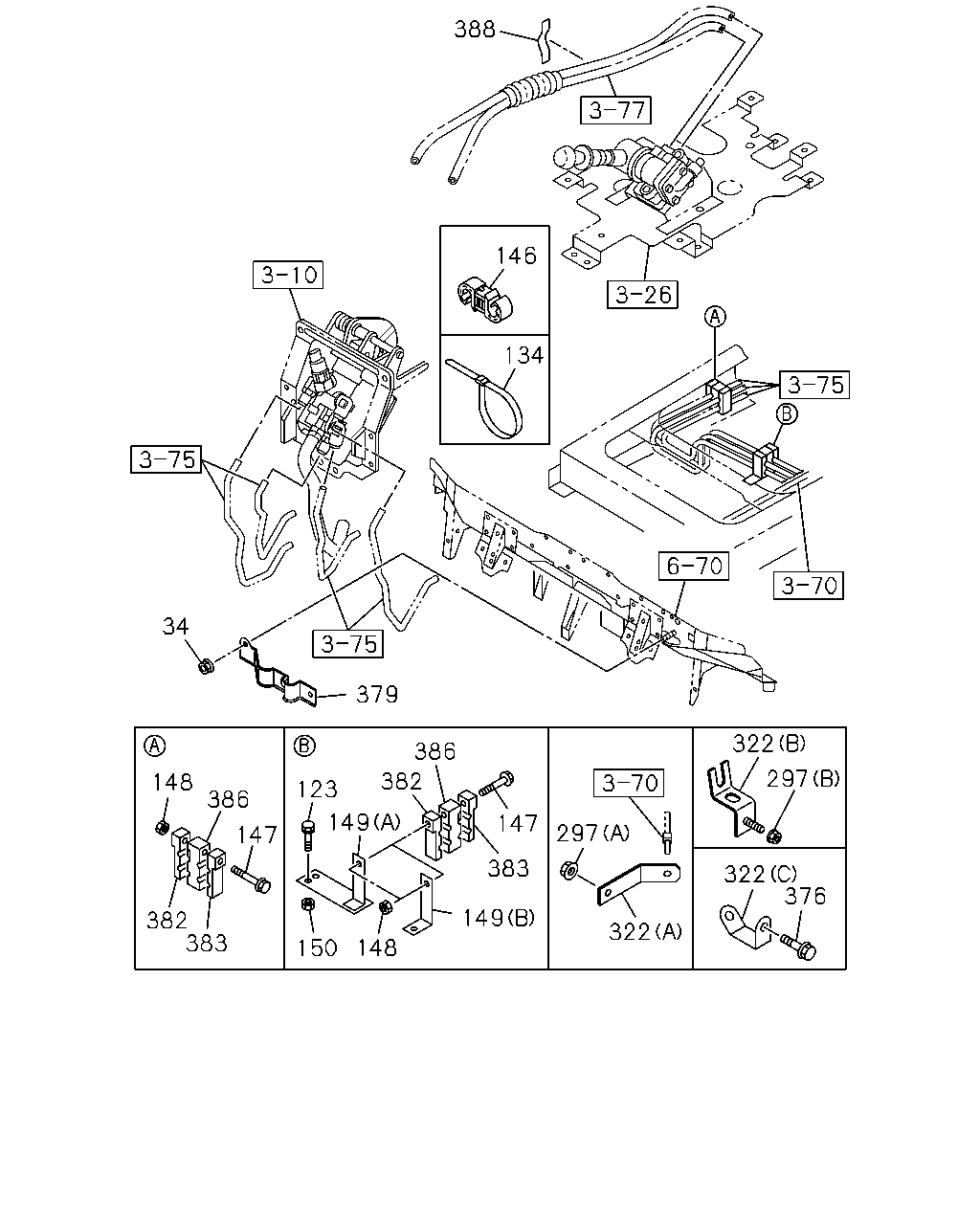

388 146 134 34 379 322 386 297 382 148 123 386 149 147 297 147 383 322 376 149 382 383 322 148 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	NUT; BRKT M6 FLANGE	0-91180-106-0	02	1	0803-
123	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	03	1	0803-
134	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	0809-
146	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	02	1	0803-
146	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	03	1	0803-
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28050-870-0	04	1	0803-
148	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	0803-
149	BRACKET; PIPE CLIP (A)	8-98090-114-0	01	1	0803-
149	BRACKET; PIPE CLIP (B)	8-98116-193-0	01	1	0803-
150	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	03	1	0803-
297	NUT; BRKT WHEEL BASE 4600MM(46W) (B) M10 FLANGE	0-91180-210-0	01	1	0803-
297	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0803-
322	BRACKET; CLIP WHEEL BASE 3400MM(34W) ISRAEL COUNTRY(CV4) (C)	8-98117-686-0	01	1	0807-
322	BRACKET; CLIP WHEEL BASE 4600MM(46W) (B)	8-98096-272-0	01	1	0803-
322	BRACKET; CLIP (A)	1-47479-936-1	02	1	0803-
376	BOLT; BRKT WHEEL BASE 3400MM(34W) ISRAEL COUNTRY(CV4) M10X30 FLANGE	0-28651-030-0	01	1	0807-
379	BRACKET; NYLON TUBE	8-98112-515-1	01	1	0803-
382	CLIP; UPR ID=10 & 10	1-09709-241-0	04	1	0803-
383	CLIP; LWR ID=10 & 10	1-09709-241-0	04	1	0803-
386	CLIP; CENTER ID=10	1-09709-242-0	04	1	0803-
388	SEAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40	1-72498-022-1	03	1	0803-

265 63 235 331 268 4 236 267

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	02	1	0803-0901
4	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	03	1	0902-
4	CLIP; AIR PIPE (A) ID=12 & 12	1-09709-280-1	01	1	0803-0901
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0803-0803
4	CLIP; AIR PIPE MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0804-0901
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0902-
63	BOLT; CLIP WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0803-
63	BOLT; CLIP WHEEL BASE 4000MM(40W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	03	1	0803-
63	BOLT; CLIP WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	04	1	0803-0810
63	BOLT; CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	05	1	0811-
63	BOLT; CLIP WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	05	1	0803-0810
235	CLIP; AIR PIPE WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20	8-98033-780-0	02	1	0803-
235	CLIP; AIR PIPE WHEEL BASE 4000MM(40W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20	8-98033-780-0	03	1	0803-
235	CLIP; AIR PIPE WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20	8-98033-780-0	04	1	0803-0810
235	CLIP; AIR PIPE WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20	8-98033-780-0	05	1	0811-
235	CLIP; AIR PIPE WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20	8-98033-780-0	05	1	0803-0810
236	NUT; CLIP WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0803-
236	NUT; CLIP WHEEL BASE 4000MM(40W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	03	1	0803-
236	NUT; CLIP WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	04	1	0803-0810
236	NUT; CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	05	1	0811-
236	NUT; CLIP WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	05	1	0803-0810
265	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0803-
267	BOLT; CLIP BRKT WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISRAEL COUNTRY(CV4) M10X30 FLANGE	0-28651-030-0	01	1	0807-
268	NUT; CLIP BRKT WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	01	1	0803-
268	NUT; CLIP BRKT WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	02	1	0803-0806
268	NUT; CLIP BRKT WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ISRAEL COUNTRY(CV4) M10 FLANGE	0-91180-210-0	02	1	0807-
331	CLIP; NYLON TUBE WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	16	1	0803-1109

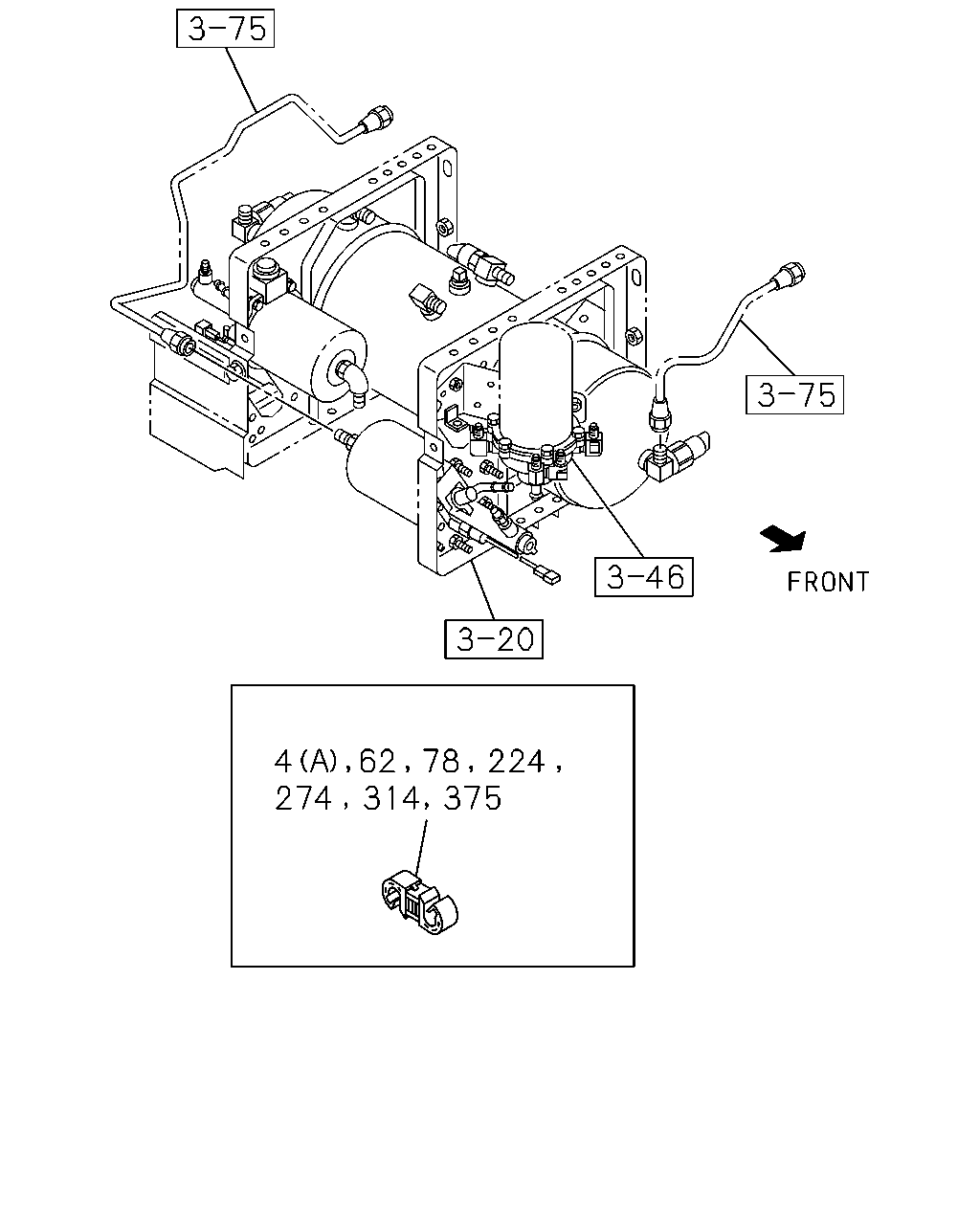

4 62 78 224 274 314 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	02	1	0803-0901
4	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	03	1	0902-
4	CLIP; AIR PIPE (A) ID=12 & 12	1-09709-280-1	01	1	0803-0901
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0803-0803
4	CLIP; AIR PIPE MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0804-0901
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0902-
62	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	01	1	0810-0901
62	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	02	1	0803-0809
62	CLIP; AIR PIPE H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	02	1	0810-0901
78	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	0803-0901
224	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10 & 10	1-09709-277-1	01	1	0803-0901
224	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10 & 10	1-09709-277-1	01	1	0902-
224	CLIP; AIR PIPE H.S.A SYSTEM<6EP> ID=10 & 10	1-09709-277-1	01	1	0902-
224	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	03	1	0803-0901
224	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=6.35 & 12	1-09709-275-1	01	1	0803-0901
224	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=6.35 & 10.0	1-09709-274-1	01	1	0902-
274	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	01	1	0803-
274	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0	1-09709-274-1	01	1	0803-0901
274	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0	1-09709-274-1	02	1	0902-
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0	1-09709-274-1	03	1	0803-
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	04	1	0803-0901
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	05	1	0902-
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=4.76 & 10.0	1-09709-305-0	01	1	0803-
314	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0	1-09709-274-1	01	1	0803-0901
375	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	02	1	0803-0901
