8-65 — CONTROL LEVER; HEATER AND AIR CON (#148048) — 15 parça

çizim 444356

23 103 69 69 103 105 94

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	23	BEZEL; CONT LEVER AIR CONDITIONER MANUAL CONT(C60) (B)	8-98120-140-4	01	1	1410-	●	●
	23	BEZEL; CONT LEVER AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-548-5	01	1	1410-	●	●
	69	SCREW; BEZEL BRKT M4X10 TAPPING	8-98164-986-0	04	1	1410-	●	●
	94	PANEL; BEZEL AIR CONDITIONER MANUAL CONT(C60) (B)	8-98164-669-0	01	1	1410-	●	●
	94	PANEL; BEZEL AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98141-789-0	01	1	1410-	●	●
	103	CLIP	8-98164-677-0	04	1	1410-	●	●
	105	SWITCH ASM; A/C AIR CONDITIONER AUTOMATIC CONT(C61)	8-98164-679-0	01	1	1410-	●	●

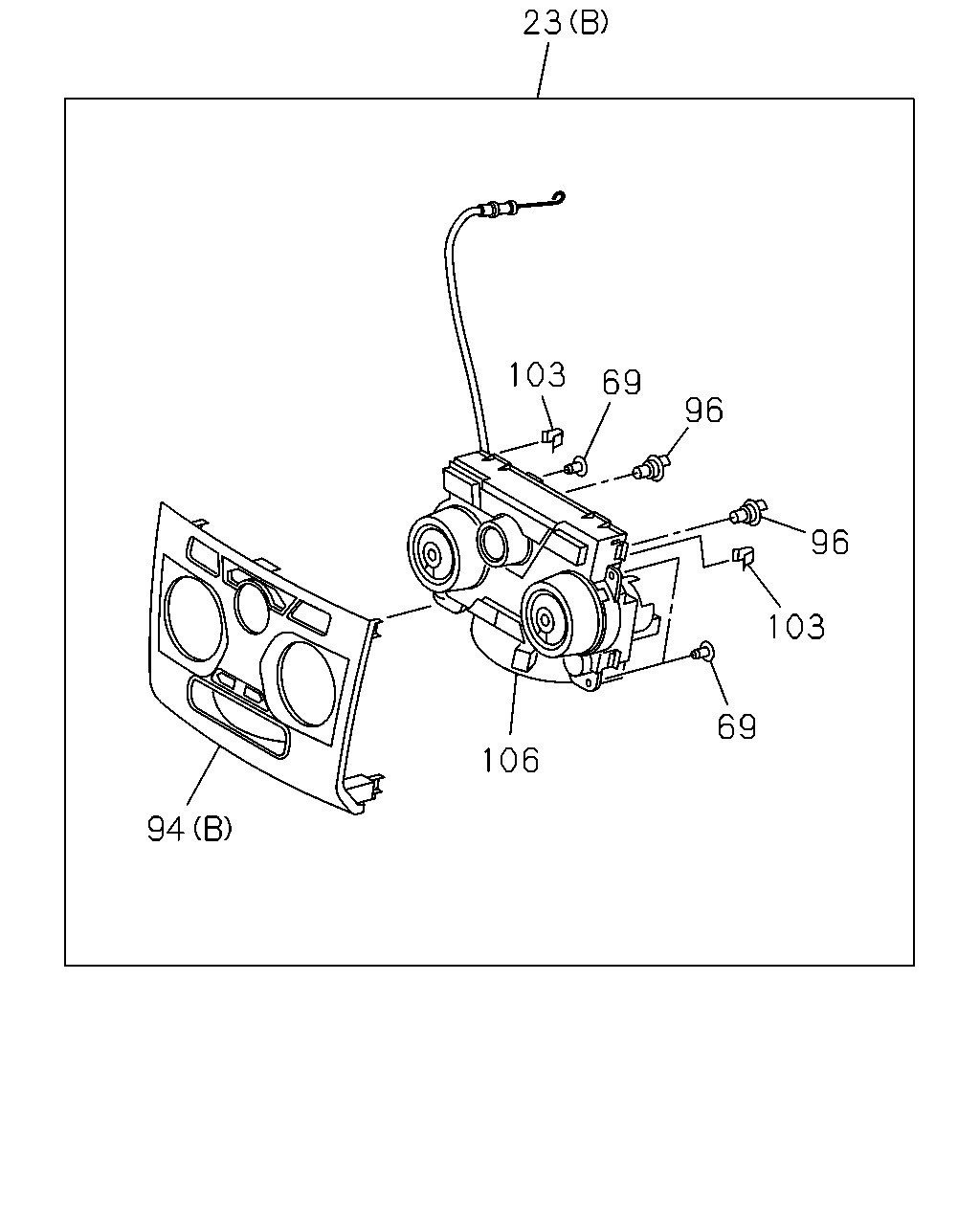

çizim 444374

23 103 69 96 96 103 69 106 94

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	23	BEZEL; CONT LEVER AIR CONDITIONER MANUAL CONT(C60) (B)	8-98120-140-4	01	1	1410-	●	●
	23	BEZEL; CONT LEVER AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98129-548-5	01	1	1410-	●	●
	69	SCREW; BEZEL BRKT M4X10 TAPPING	8-98164-986-0	04	1	1410-	●	●
	94	PANEL; BEZEL AIR CONDITIONER MANUAL CONT(C60) (B)	8-98164-669-0	01	1	1410-	●	●
	94	PANEL; BEZEL AIR CONDITIONER AUTOMATIC CONT(C61) (A)	8-98141-789-0	01	1	1410-	●	●
	96	BULB ASM; BEZEL AIR CONDITIONER MANUAL CONT(C60)	8-98156-188-0	02	1	1410-	●	●
	103	CLIP	8-98164-677-0	04	1	1410-	●	●
	106	CONTROL SUB ASM; HTR & A/C AIR CONDITIONER MANUAL CONT(C60)	8-98156-902-0	01	1	1410-	●	●
