◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51576 - TFR/TFS JIANGXI ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#148047) — 61 parça

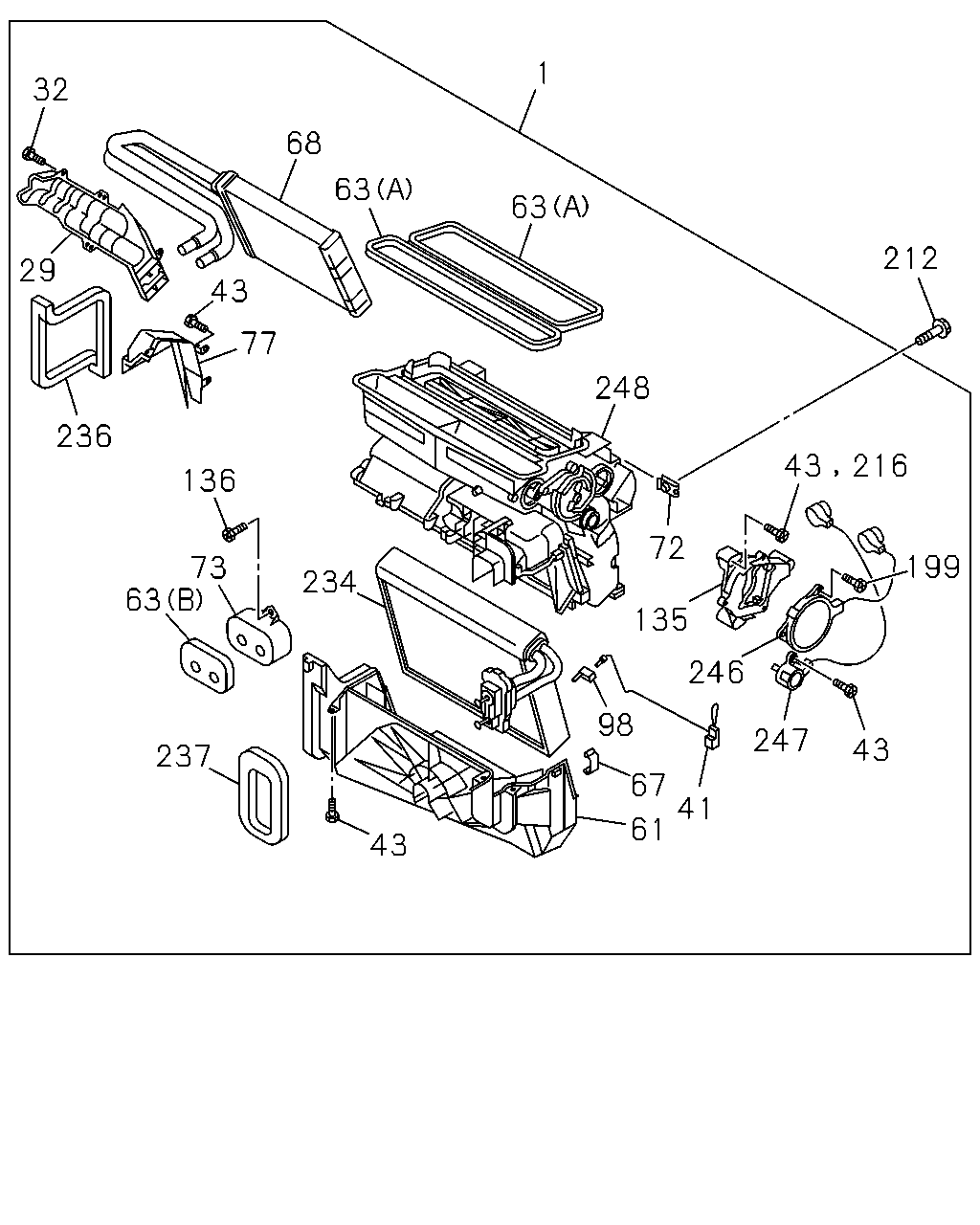

çizim 444280
212 1 68 32 29 43 236 77 63 63 248 216 43 199 72 135 246 247 43 98 67 41 61 43 234 136 63 237 73
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-015-1 01 1 1410- ● ●
1 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-016-1 01 1 1410- ● ●
29 COVER; HTR UNIT 8-98233-590-0 01 1 1410- ● ●
32 SCREW; HTR UNIT 8-98233-593-0 04 1 1410- ● ●
41 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98139-383-0 01 1 1410- ● ●
41 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-382-0 01 1 1410- ● ●
43 SCREW; CASE,HTR UNIT 8-98233-593-0 18 1 1410- ● ●
61 CASE; HTR UNIT 8-98233-581-0 01 1 1410- ● ●
63 LINING; HTR UNIT
(A) 		8-98139-358-1 02 1 1410- ● ●
63 LINING; HTR UNIT
(B) 		8-98139-361-1 01 1 1410- ● ●
67 CLIP; HTR UNIT 8-98157-123-0 01 1 1410- ● ●
68 CORE; HTR UNIT 8-98139-374-0 01 1 1410- ● ●
72 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1410- ● ●
73 PLATE; HTR UNIT 8-98233-591-0 01 1 1410- ● ●
77 COVER; HTR CASE 8-98233-589-0 01 1 1410- ● ●
98 CLIP; HTR UNIT 8-98157-122-0 01 1 1410- ● ●
135 COVER; HTR 8-98139-377-0 01 1 1410- ● ●
136 SCREW; PLATE 8-98233-593-0 02 1 1410- ● ●
199 SCREW; ACTUATOR
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-593-0 05 1 1410- ● ●
199 SCREW; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-593-0 04 1 1410- ● ●
212 BOLT; HTR UNIT
M6X20 FLANGE 		0-28650-620-0 05 1 1410- ● ●
216 SCREW; COVER,HEATER UNIT 8-98233-593-0 03 1 1410- ● ●
234 EVAPORATOR ASM; HEATER 8-98139-376-1 01 1 1410- ● ●
236 GASKET; HEATER 8-98139-357-1 01 1 1410- ● ●
237 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1410- ● ●
246 ACTUATOR; MODE
AIR CONDITIONER MANUAL CONT(C60) 		8-98157-124-2 01 1 1410- ● ●
247 ACTUATOR; TEMP
AIR CONDITIONER MANUAL CONT(C60) 		8-98139-398-1 01 1 1410- ● ●
248 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-576-0 01 1 1410- ● ●
248 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-577-0 01 1 1410- ● ●

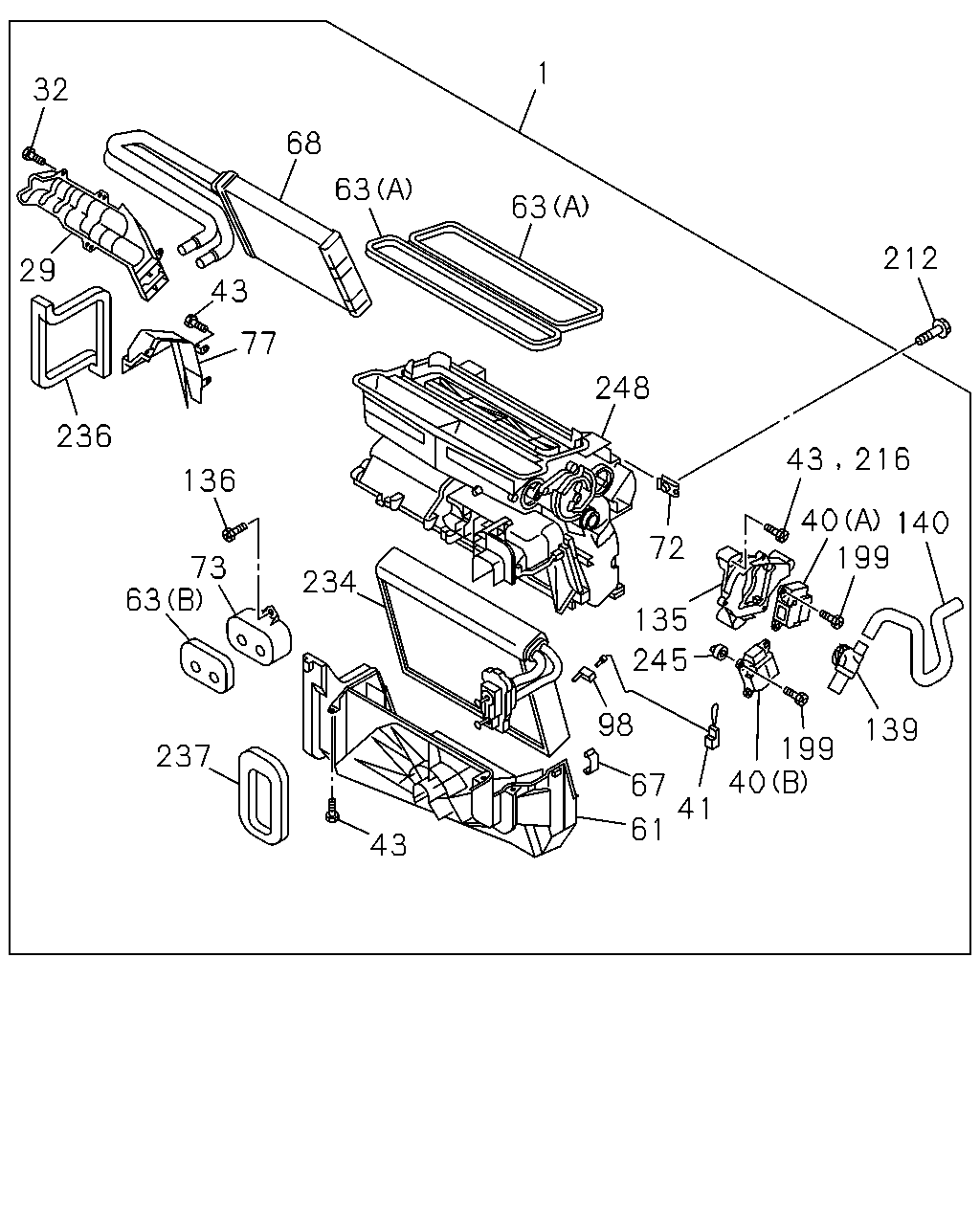

çizim 444479
1 68 63 212 248 43 216 40 140 199 139 199 72 135 245 98 41 67 40 61 43 237 63 136 234 236 77 43 63 73 32 29
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-015-1 01 1 1410- ● ●
1 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-016-1 01 1 1410- ● ●
29 COVER; HTR UNIT 8-98233-590-0 01 1 1410- ● ●
32 SCREW; HTR UNIT 8-98233-593-0 04 1 1410- ● ●
40 ACTUATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98139-385-0 01 1 1410- ● ●
40 ACTUATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) (B) 		8-98139-386-0 01 1 1410- ● ●
41 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98139-383-0 01 1 1410- ● ●
41 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-382-0 01 1 1410- ● ●
43 SCREW; CASE,HTR UNIT 8-98233-593-0 18 1 1410- ● ●
61 CASE; HTR UNIT 8-98233-581-0 01 1 1410- ● ●
63 LINING; HTR UNIT
(A) 		8-98139-358-1 02 1 1410- ● ●
63 LINING; HTR UNIT
(B) 		8-98139-361-1 01 1 1410- ● ●
67 CLIP; HTR UNIT 8-98157-123-0 01 1 1410- ● ●
68 CORE; HTR UNIT 8-98139-374-0 01 1 1410- ● ●
72 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1410- ● ●
73 PLATE; HTR UNIT 8-98233-591-0 01 1 1410- ● ●
77 COVER; HTR CASE 8-98233-589-0 01 1 1410- ● ●
98 CLIP; HTR UNIT 8-98157-122-0 01 1 1410- ● ●
135 COVER; HTR 8-98139-377-0 01 1 1410- ● ●
136 SCREW; PLATE 8-98233-593-0 02 1 1410- ● ●
139 ASPIRATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-392-1 01 1 1410- ● ●
140 HOSE; AIR
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98165-408-0 01 1 1410- ● ●
199 SCREW; ACTUATOR
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-593-0 05 1 1410- ● ●
199 SCREW; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-593-0 04 1 1410- ● ●
212 BOLT; HTR UNIT
M6X20 FLANGE 		0-28650-620-0 05 1 1410- ● ●
216 SCREW; COVER,HEATER UNIT 8-98233-593-0 03 1 1410- ● ●
234 EVAPORATOR ASM; HEATER 8-98139-376-1 01 1 1410- ● ●
236 GASKET; HEATER 8-98139-357-1 01 1 1410- ● ●
237 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1410- ● ●
245 ADAPTER; HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-390-0 01 1 1410- ● ●
248 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-576-0 01 1 1410- ● ●
248 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-577-0 01 1 1410- ● ●
