◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51576 - TFR/TFS JIANGXI ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-52 - PIPING; AIR CONDITIONING ▶
8-52 — PIPING; AIR CONDITIONING (#148046) — 17 parça
çizim 443896
53 66 66 123 122 146 202 123 146 67 147 67 67 67 147
BalonParca AdiParca NoAdetTipApplied Date A B
53 PIPE; RECEIVER TANK TO EVAP
HIGH PRESSURE 		8-98129-150-4 01 1 1410- ● ●
66 HOSE; FLEX,A/C
(B) HIGH PRESSURE 		8-98129-345-1 01 1 1410- ● ●
66 HOSE; FLEX,A/C
(A) LOW PRESSURE 		8-98209-993-0 01 1 1410- ● ●
67 GASKET; FLEX HOSE
(B) 		8-98164-687-0 01 1 1410- ● ●
67 GASKET; FLEX HOSE
(C) 		8-98164-688-0 01 1 1410- ● ●
67 GASKET; FLEX HOSE
(A) 		8-98193-624-0 02 1 1410- ● ●
122 GASKET 8-98164-690-0 01 1 1410- ● ●
123 GASKET; RECEIVER PIPE 8-98164-689-0 02 1 1410- ● ●
146 CLIP; RECEIVER PIPE 8-98193-622-0 02 1 1410- ● ●
147 CAP; FLEX HOSE
(A) 		8-98193-623-0 01 1 1410- ● ●
147 CAP; FLEX HOSE
(B) 		8-98193-625-0 01 1 1410- ● ●
202 SWITCH; PRESSURE 8-98164-691-0 01 1 1410- ● ●

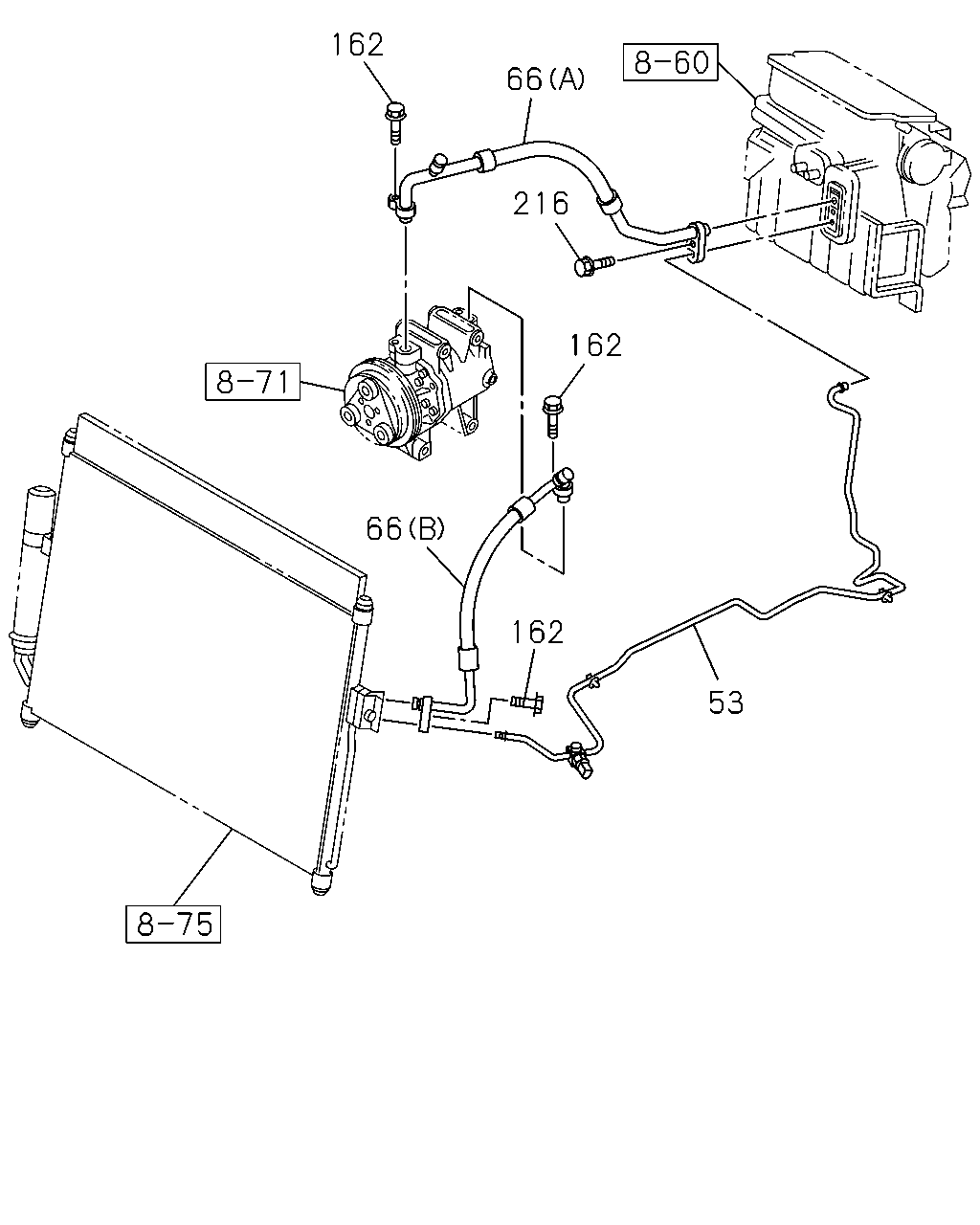

çizim 444401
162 66 216 162 66 162 53
BalonParca AdiParca NoAdetTipApplied Date A B
53 PIPE; RECEIVER TANK TO EVAP
HIGH PRESSURE 		8-98129-150-4 01 1 1410- ● ●
66 HOSE; FLEX,A/C
(B) HIGH PRESSURE 		8-98129-345-1 01 1 1410- ● ●
66 HOSE; FLEX,A/C
(A) LOW PRESSURE 		8-98209-993-0 01 1 1410- ● ●
162 BOLT; FLEX HOSE
M8X25 FLANGE CHI 		0-28650-825-0 03 1 1410- ● ●
216 BOLT; HOSE FIX
M6X20 FLANGE 		0-28650-620-0 01 1 1410- ● ●
