◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51576 - TFR/TFS JIANGXI ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-40 - HEATER SYSTEM ▶
8-40 — HEATER SYSTEM (#148043) — 13 parça

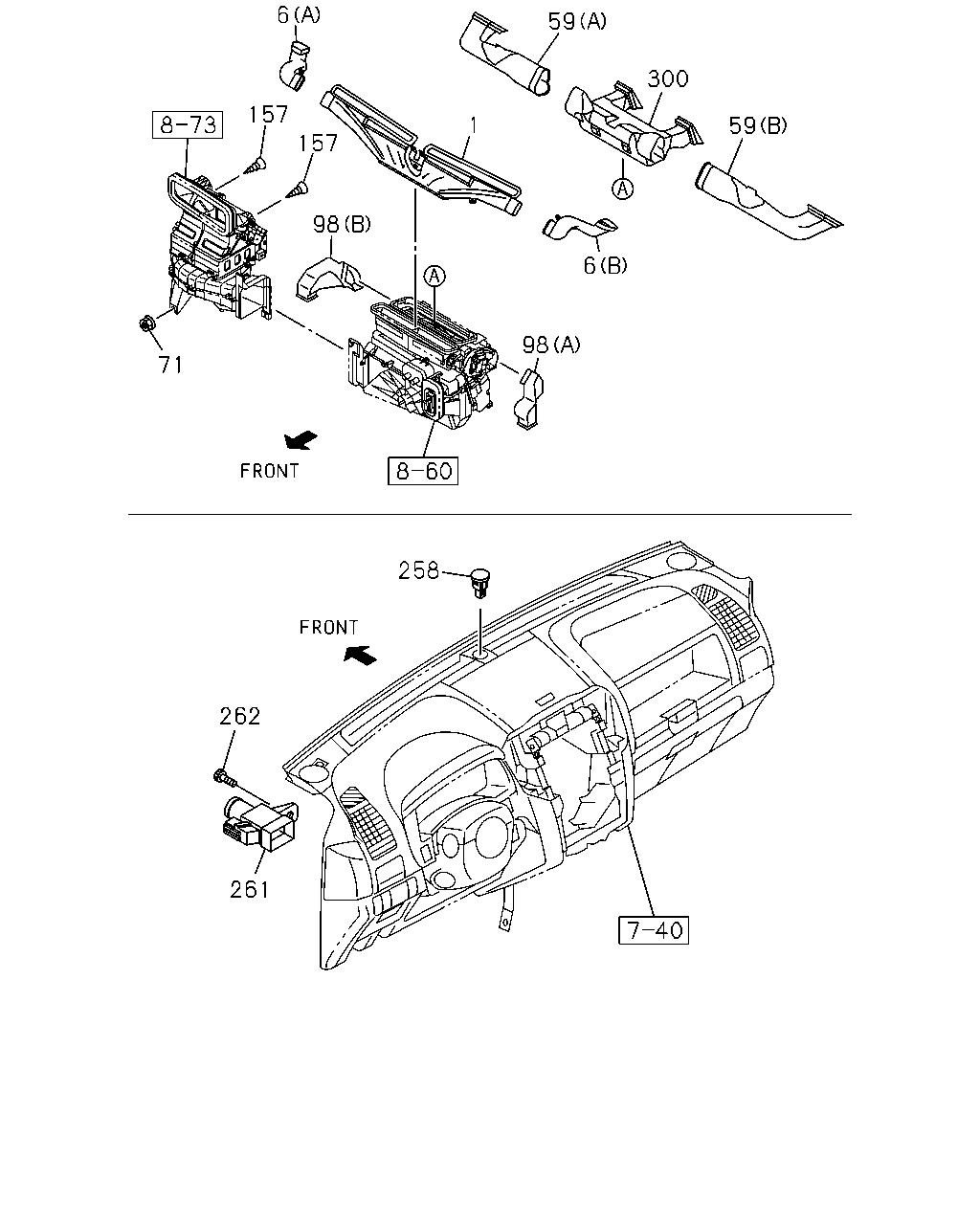

çizim 444511
6 59 300 59 6 157 157 98 71 98 258 262 261 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 NOZZLE; DEFROSTER,INST PNL 8-98187-101-2 01 1 1410- ● ●
6 DUCT; SIDE DEFROSTER
(A) 		8-98187-102-0 01 1 1410- ● ●
6 DUCT; SIDE DEFROSTER
(B) 		8-98187-103-0 01 1 1410- ● ●
59 DUCT; VENT,ASSIST SIDE
(A) 		8-98187-099-0 01 1 1410- ● ●
59 DUCT; VENT,ASSIST SIDE
(B) 		8-98187-100-0 01 1 1410- ● ●
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE 		8-94279-514-0 01 1 1410- ● ●
98 DUCT; BLOWER UNIT TO HTR UNIT
(B) 		8-98233-056-0 01 1 1410- ● ●
98 DUCT; BLOWER UNIT TO HTR UNIT
(A) 		8-98233-057-0 01 1 1410- ● ●
157 SCREW
M5X16 		8-98167-220-0 02 1 1410- ● ●
258 SENSOR; SUN
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98103-691-0 01 1 1410- ● ●
261 SENSOR; IN CAR
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98103-694-0 01 1 1410- ● ●
262 SCREW; IN CAR SENSOR
AIR CONDITIONER AUTOMATIC CONT(C61) M5X16 TAPPING 		8-98167-449-0 01 1 1410- ● ●
300 DUCT; VENT,CENTER 8-98187-098-0 01 1 1410- ● ●
