◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51576 - TFR/TFS JIANGXI ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#148042) — 14 parça

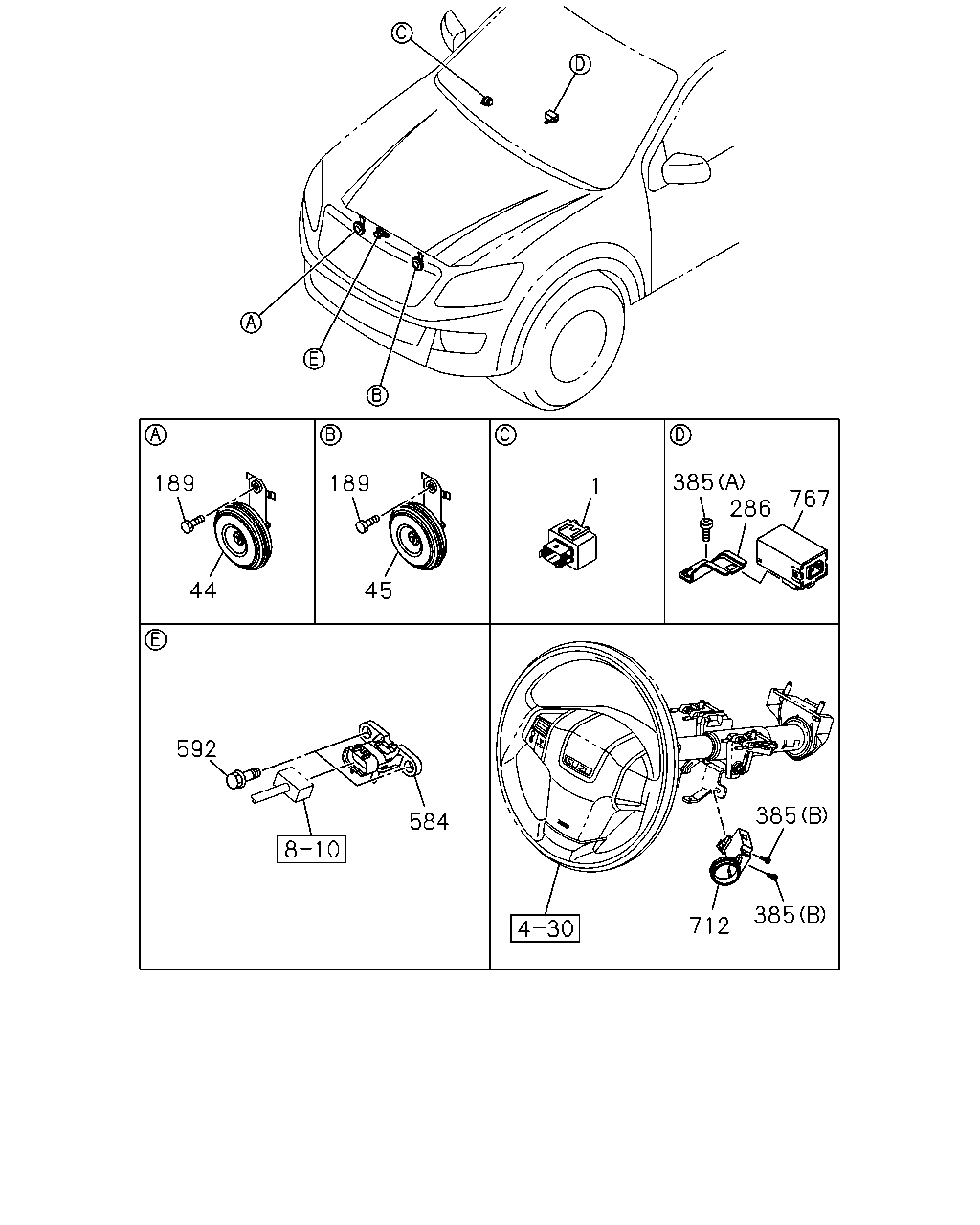

çizim 444477
189 44 189 45 1 385 286 767 592 584 712 385 385
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER 8-98080-978-0 01 1 1410- ● ●
44 HORN; HIGH NOTE 8-98084-022-1 01 1 1410- ● ●
45 HORN; LOW NOTE 8-98084-023-0 01 1 1410- ● ●
189 BOLT; HORN
M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 1410-1501 ● ●
189 BOLT; HORN
M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 1410-1501 ● ●
189 BOLT; HORN
M6X14 W/PL WASHER 		8-98164-836-0 01 1 1502- ● ●
189 BOLT; HORN
M6X14 W/PL WASHER 		8-98164-836-0 01 1 1502- ● ●
286 BRACKET 8-98102-503-0 01 1 1410- ● ●
385 BOLT; CONT UNIT
IMMOBILIZER SYSTEM<7KC> (B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1410- ● ●
385 BOLT; CONT UNIT
(A) SCREW M5X16 TAPPING 		8-98167-449-0 01 1 1410- ● ●
584 SENSOR; PRESSURE 8-98020-514-0 01 1 1410- ● ●
592 BOLT; SENSOR
M6X16 FLANGE 		0-28650-616-0 02 1 1410- ● ●
712 CONTROL UNIT; ANTI THEFT
IMMOBILIZER SYSTEM<7KC> 		8-98123-260-5 01 1 1410- ● ●
767 RECEIVER ASM; KEYLESS ENTRY 8-98076-338-1 01 1 1410- ● ●
