◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51576 - TFR/TFS JIANGXI ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#148040) — 23 parça

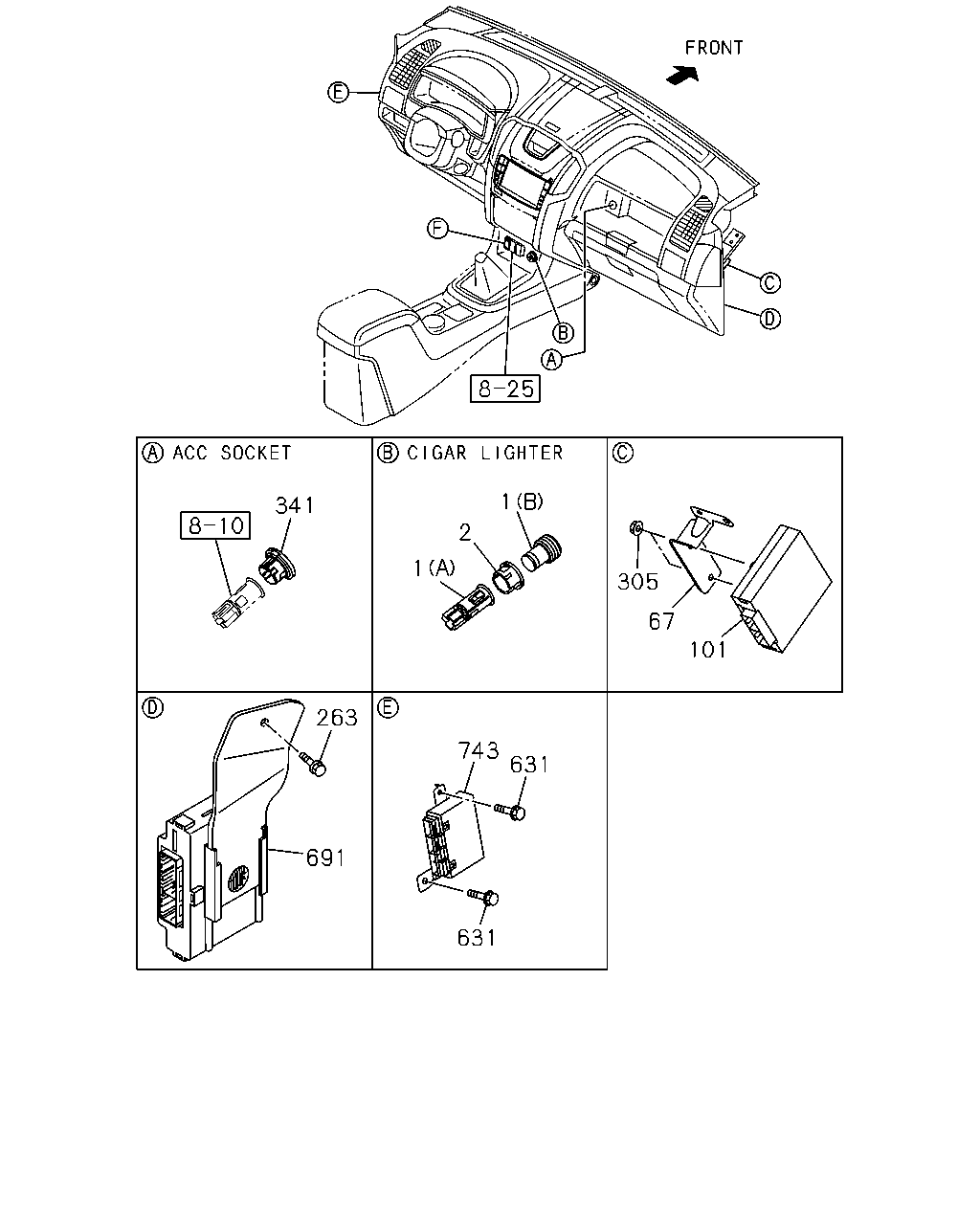

çizim 444410
341 1 2 1 305 67 101 743 631 631 691 263
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR
(A) 		8-98123-114-0 01 1 1410- ● ●
1 LIGHTER; CIGAR
(B) 		8-98123-117-0 01 1 1410- ● ●
2 BEZEL; CIGAR LIGHTER 8-98123-118-0 01 1 1410- ● ●
67 BRACKET; CONT UNIT
A/T 5 SPEED-AISIN(MA1) 		8-98117-178-0 01 1 1410- ●
101 CONTROL UNIT; ELEC,A/T
A/T 5 SPEED-AISIN(MA1) 		8-98239-943-0 01 1 1410- ●
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28650-616-0 01 1 1410- ●
305 NUT; CONT UNIT
A/T 5 SPEED-AISIN(MA1) M6 FLANGE 		0-91180-106-0 02 1 1410- ●
341 COVER ASM
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-98123-123-0 01 1 1410- ● ●
341 COVER ASM
EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-98142-409-1 01 1 1410- ● ●
631 BOLT; CONT UNIT
M6X16 FLANGE 		0-28450-616-0 02 1 1410- ● ●
691 CONTROLLER; TRANSFER 8-98186-110-0 01 1 1410- ●
743 CONTROL UNIT; BCM 8-98217-418-0 01 1 1410- ● ●

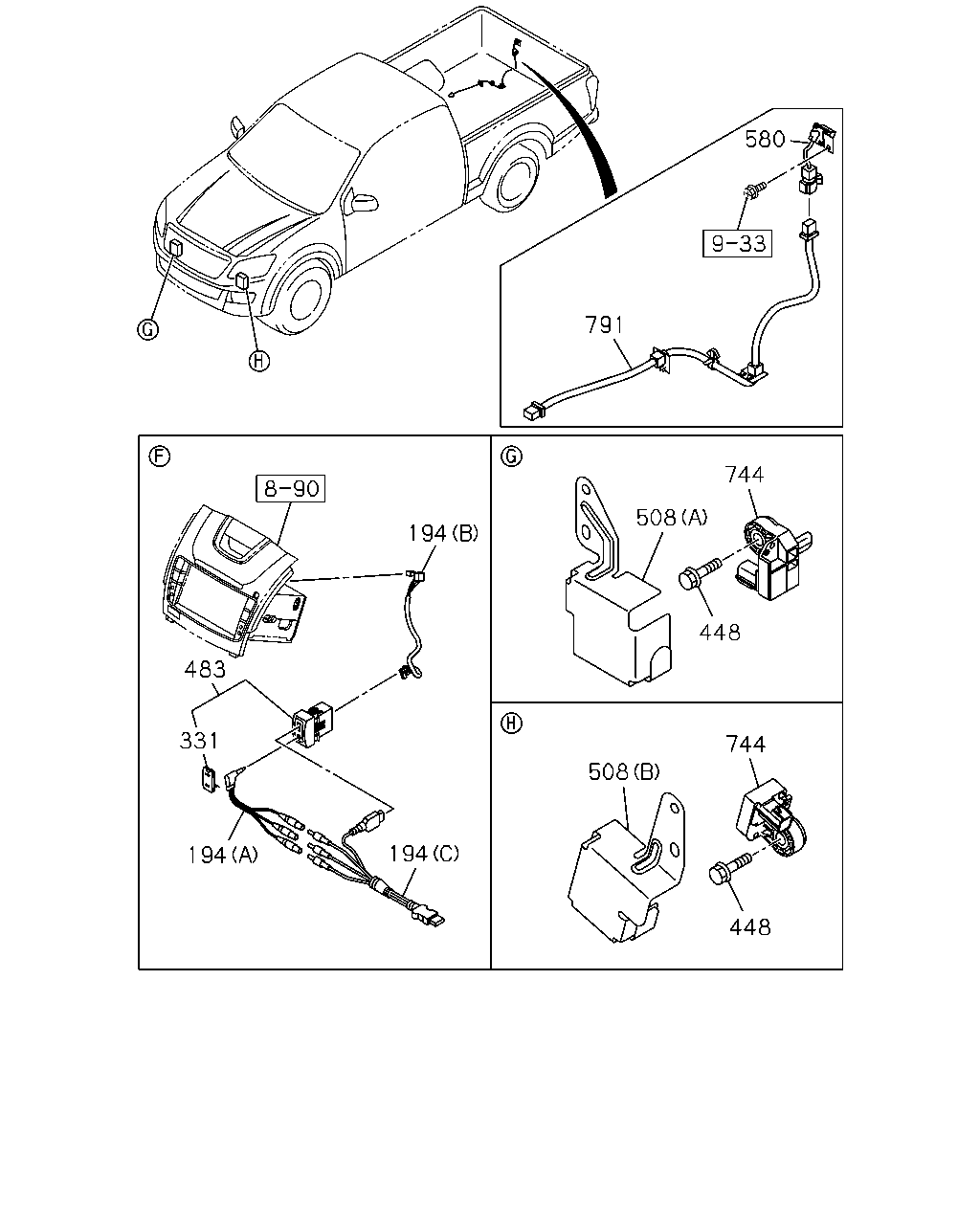

çizim 444431
580 791 744 508 448 744 448 508 194 194 331 483 194
BalonParca AdiParca NoAdetTipApplied Date A B
194 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (C) 		8-98235-372-0 01 1 1410- ● ●
194 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (B) 		8-98209-263-0 01 1 1410- ● ●
194 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (A) 		8-98209-351-0 01 1 1410- ● ●
331 COVER; SW
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) 		8-98217-463-0 01 1 1410- ● ●
448 BOLT; SENSOR
M6X25 FLANGE 		0-28650-625-0 02 1 1410- ● ●
483 SWITCH
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) 		8-98209-259-1 01 1 1410- ● ●
508 PROTECTOR
(A) 		8-98165-179-0 01 1 1410- ● ●
508 PROTECTOR
(B) 		8-98165-180-0 01 1 1410- ● ●
580 CAMERA; REAR
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) 		8-98182-423-0 01 1 1410- ● ●
744 SENSOR; AIR BAG 8-98059-533-2 02 1 1410- ● ●
791 CABLE; SAFETY
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) 		8-98182-428-0 01 1 1410- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
