◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11137 - FRR-LHD(EU)SPACE EU4 ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶
3-77 — BRAKE PIPING; AIR,REAR (#14804) — 92 parça

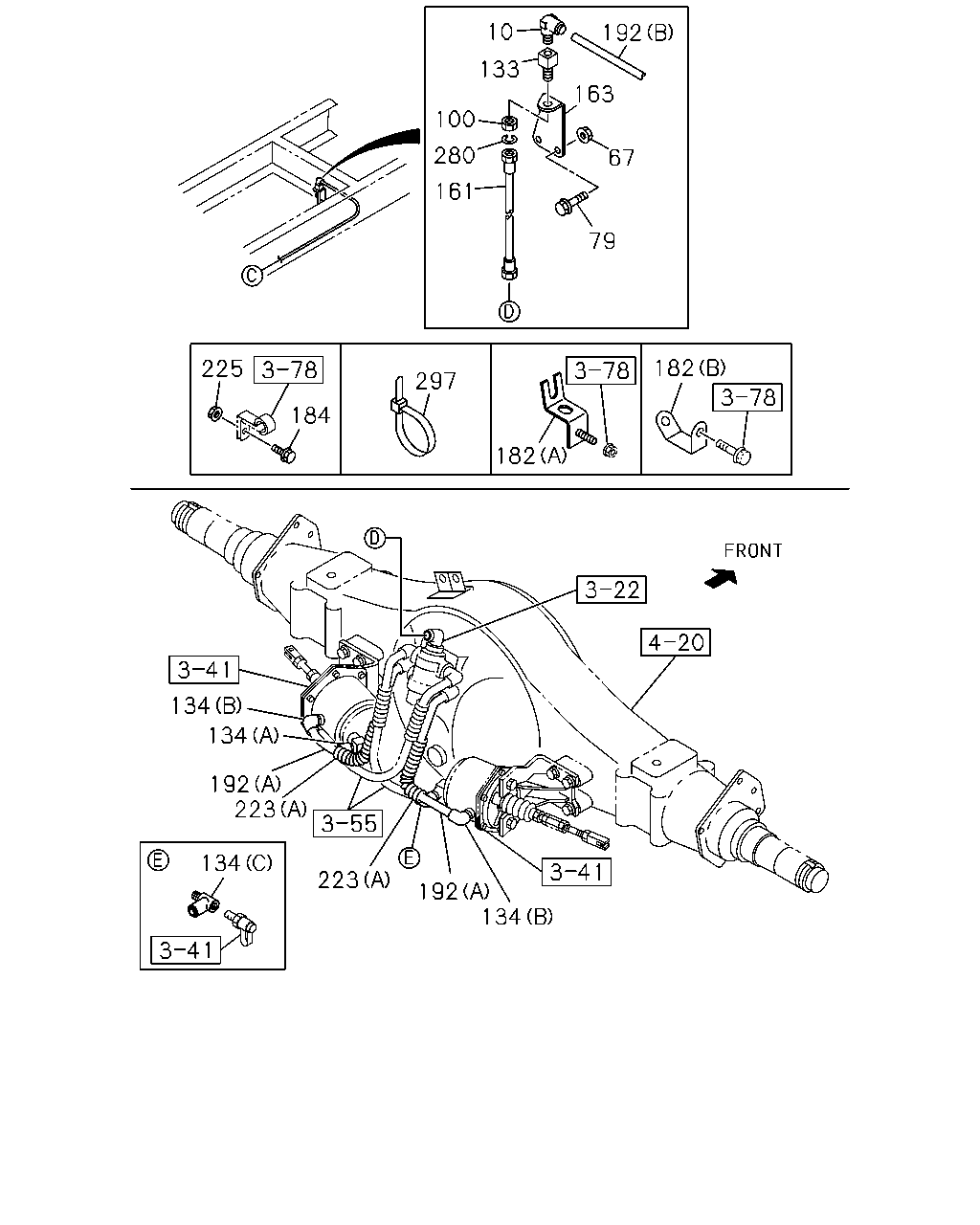

çizim 144649
10 133 100 280 161 192 163 67 79 225 184 297 182 182 134 134 192 223 223 134 192 134
BalonParca AdiParca NoAdetTipApplied Date
10 CONNECTOR; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0803-
67 NUT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 0803-
79 BOLT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0803-
100 NUT; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 		0-91111-516-0 01 1 0803-
133 UNION; NIPPLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09654-258-2 01 1 0803-1111
133 UNION; NIPPLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT3/8 & M16 STRAIGHT 		8-98202-001-0 01 1 1112-
134 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN12 & R3/8 & RC1/4 3WAY 		1-09660-845-0 01 1 0803-
134 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0803-
134 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN6 & R3/8 ELBOW 		1-09661-234-0 02 1 0803-
161 HOSE; FLEX,QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=460 		1-09363-963-0 01 1 0803-
163 BRACKET; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98044-842-0 01 1 0803-
182 BRACKET; TUBE CLIP
WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISRAEL COUNTRY(CV4) (B) 		8-98117-686-0 01 1 0807-
182 BRACKET; TUBE CLIP
WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98096-272-0 01 1 0803-
182 BRACKET; TUBE CLIP
WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98096-272-0 02 1 0803-0806
182 BRACKET; TUBE CLIP
WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ISRAEL COUNTRY(CV4) (A) 		8-98096-272-0 02 1 0807-
184 BOLT; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28650-820-0 01 1 0803-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0803-
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0803-
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0803-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0803-
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0803-
223 TUBE; CORRUGATE
(B) SERVICED BY L=4000 ID=15 		1-87411-026-0 AR 1 0803-
223 TUBE; CORRUGATE
(B) SERVICED BY L=6000 ID=15 		1-87411-037-0 AR 1 0803-
223 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0803-
225 NUT; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 01 1 0803-1107
280 WASHER; LK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16.2 		0-91510-816-0 01 1 0803-0808
297 CLIP; BAND
WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250 		1-09707-126-0 04 1 0803-1109
297 CLIP; BAND
WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 05 1 0803-1109
297 CLIP; BAND
WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 04 1 1110-
297 CLIP; BAND
WHEEL BASE 4000MM(40W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250 		1-09707-126-0 05 1 0803-1109
297 CLIP; BAND
WHEEL BASE 4000MM(40W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 08 1 0803-
297 CLIP; BAND
WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 09 1 0803-
297 CLIP; BAND
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250 		1-09707-126-0 10 1 0803-1109
297 CLIP; BAND
WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 11 1 0803-

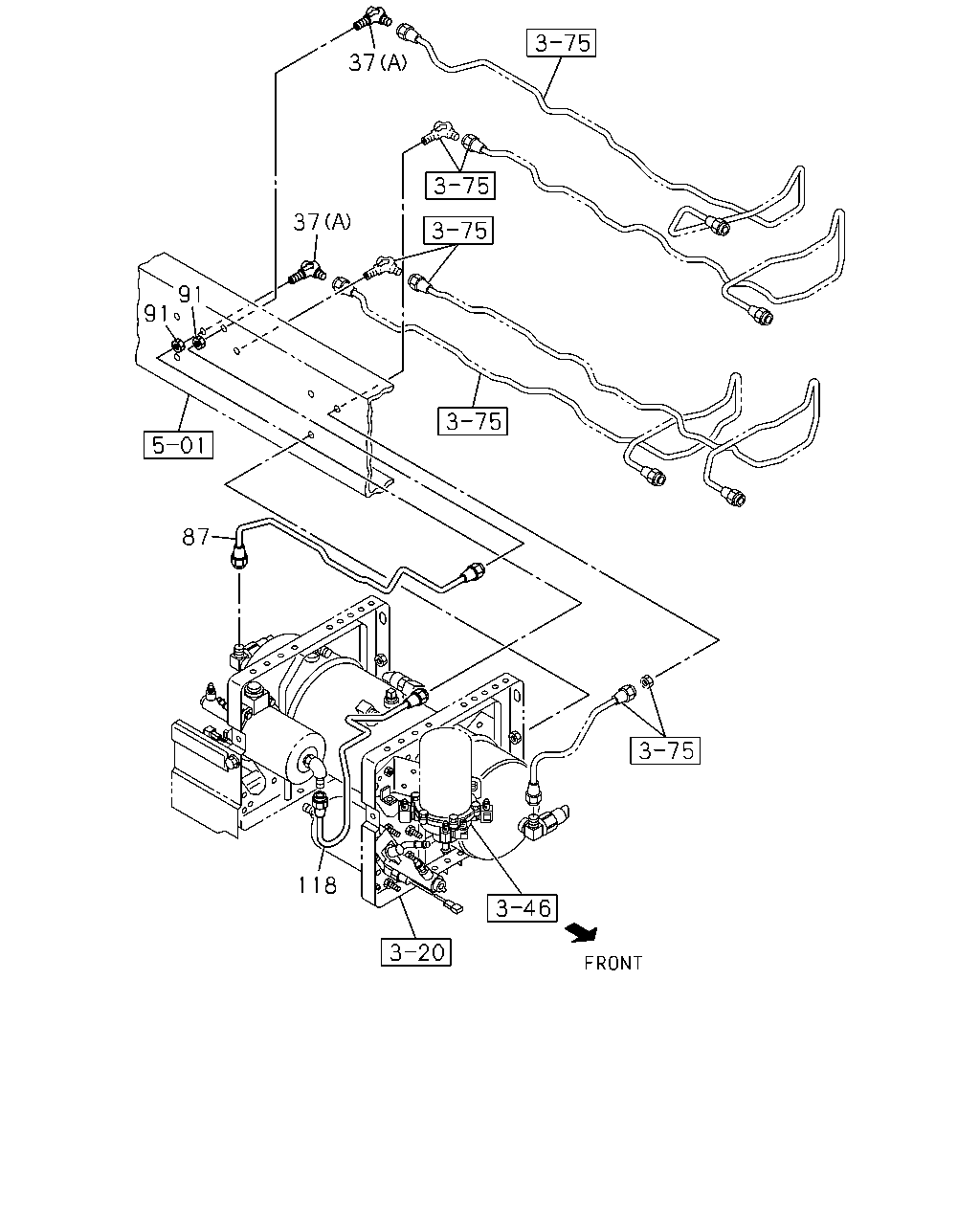

çizim 144652
37 37 91 91 87 118
BalonParca AdiParca NoAdetTipApplied Date
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 0803-
37 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74 		0-92123-310-0 01 1 0803-0803
37 UNION; AIR PIPE
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74 		0-92123-310-0 01 1 0804-
37 UNION; AIR PIPE
MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW 		0-92135-210-0 01 1 0807-
87 PIPE; AIR,AIR TANK TO UNION
L=700 SERVICED BY L=700 		1-47428-870-0 01 1 0803-
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 0803-
118 PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) L=692 SERVICED BY L=700 		1-47428-870-0 01 1 0803-

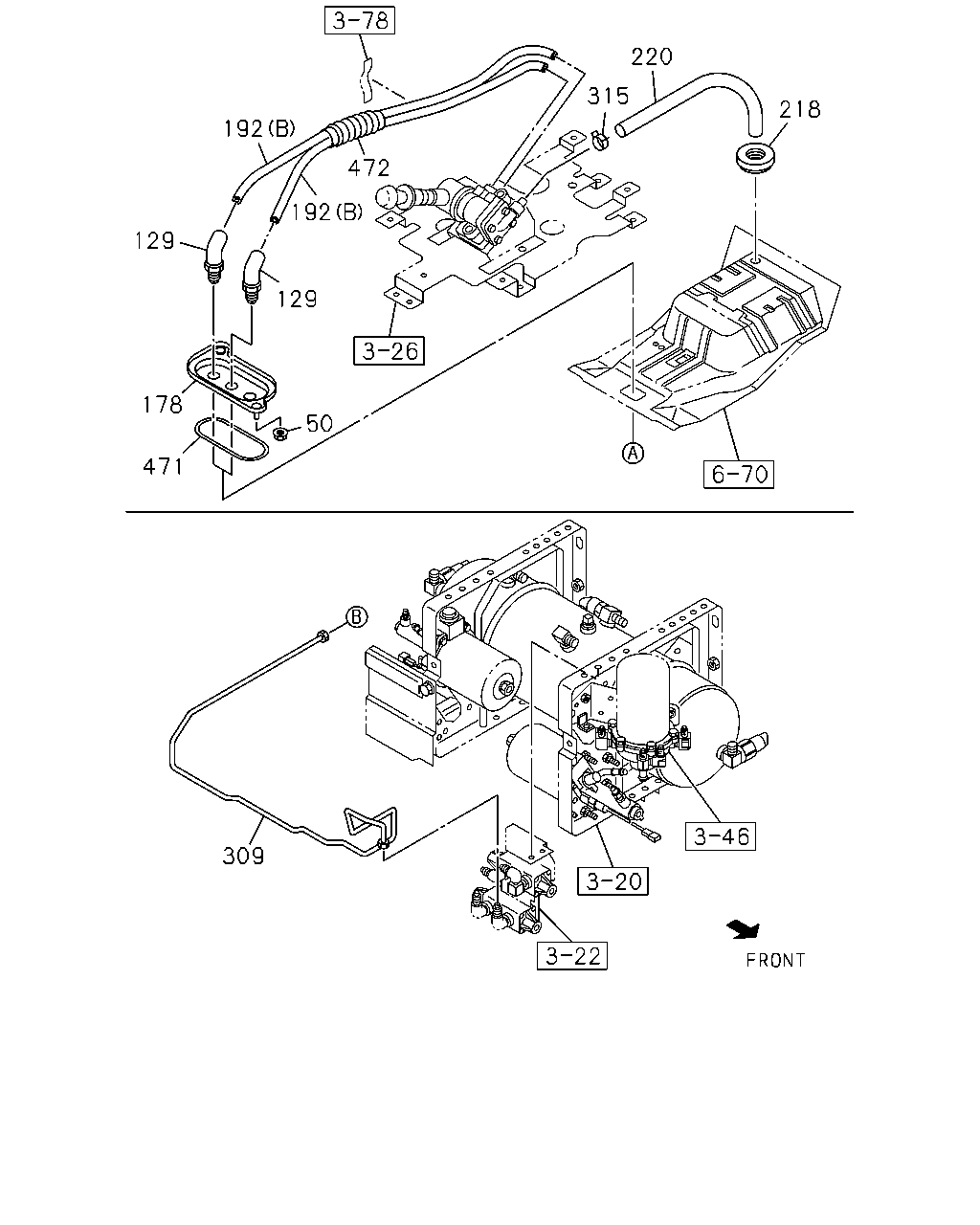

çizim 144653
315 220 218 472 192 129 129 178 471 50 309 192
BalonParca AdiParca NoAdetTipApplied Date
50 NUT; UNION BRKT
M8 FLANGE 		0-91180-108-0 02 1 0803-
129 CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN13 & M18 ELBOW 		8-97611-963-1 02 1 0803-
178 BRACKET; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98017-054-1 01 1 0803-
178 BRACKET; UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98017-052-1 01 1 0803-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0803-
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0803-
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0803-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0803-
218 GROMMET; VINYL HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24 		9-61166-007-0 01 1 0803-
220 HOSE; VINYL,EXH,PARKING BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0803-
309 PIPE; AIR,MPV TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1428 SERVICED BY L=1550 		1-47428-879-0 01 1 0803-0803
309 PIPE; AIR,MPV TO UNION
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1428 SERVICED BY L=1550 		1-47428-879-0 01 1 0804-
309 PIPE; AIR,MPV TO UNION
MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=626 SERVICED BY L=660 		1-47428-869-0 01 1 0807-
315 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14 		8-94238-572-0 01 1 0803-
471 SEAL; BRKT 1-79738-832-0 01 1 0803-
472 TUBE; SPUTTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98067-708-0 01 1 0803-
çizim 144654
223 192 144 37 98 37 97 318
BalonParca AdiParca NoAdetTipApplied Date
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 0803-
37 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74 		0-92123-310-0 01 1 0803-0803
37 UNION; AIR PIPE
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74 		0-92123-310-0 01 1 0804-
37 UNION; AIR PIPE
MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW 		0-92135-210-0 01 1 0807-
97 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 STRAIGHT L=42 		0-92123-010-0 01 1 0803-
98 NUT; PIPE UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 		0-91111-516-0 01 1 0803-
144 PIPE; AIR,UNION TO UNION
WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=850 SERVICED BY L=900 		1-47428-873-0 01 1 0803-0803
144 PIPE; AIR,UNION TO UNION
MZX6P M/T(RSW) WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=850 SERVICED BY L=900 		1-47428-873-0 01 1 0804-
144 PIPE; AIR,UNION TO UNION
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1204 SERVICED BY L=1250 		1-47428-876-0 01 1 0803-0803
144 PIPE; AIR,UNION TO UNION
MZX6P M/T(RSW) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1204 SERVICED BY L=1250 		1-47428-876-0 01 1 0804-
144 PIPE; AIR,UNION TO UNION
MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1060 SERVICED BY L=1100 		1-47428-875-0 01 1 0807-0901
144 PIPE; AIR,UNION TO UNION
MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1059 SERVICED BY L=1100 		1-47428-875-0 01 1 0902-
144 PIPE; AIR,UNION TO UNION
MLD6S M/T(X7W) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1454 SERVICED BY L=1550 		1-47428-879-0 01 1 0807-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0803-
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0803-
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0803-
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0803-
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0803-
223 TUBE; CORRUGATE
(B) SERVICED BY L=4000 ID=15 		1-87411-026-0 AR 1 0803-
223 TUBE; CORRUGATE
(B) SERVICED BY L=6000 ID=15 		1-87411-037-0 AR 1 0803-
223 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0803-
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=593 SERVICED BY L=600 		1-47428-868-0 01 1 0803-
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4000MM(40W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=858 SERVICED BY L=900 		1-47428-873-0 01 1 0803-
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1458 SERVICED BY L=1550 		1-47428-879-0 01 1 0803-
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1788 SERVICED BY L=1900 		1-47428-881-0 01 1 0803-

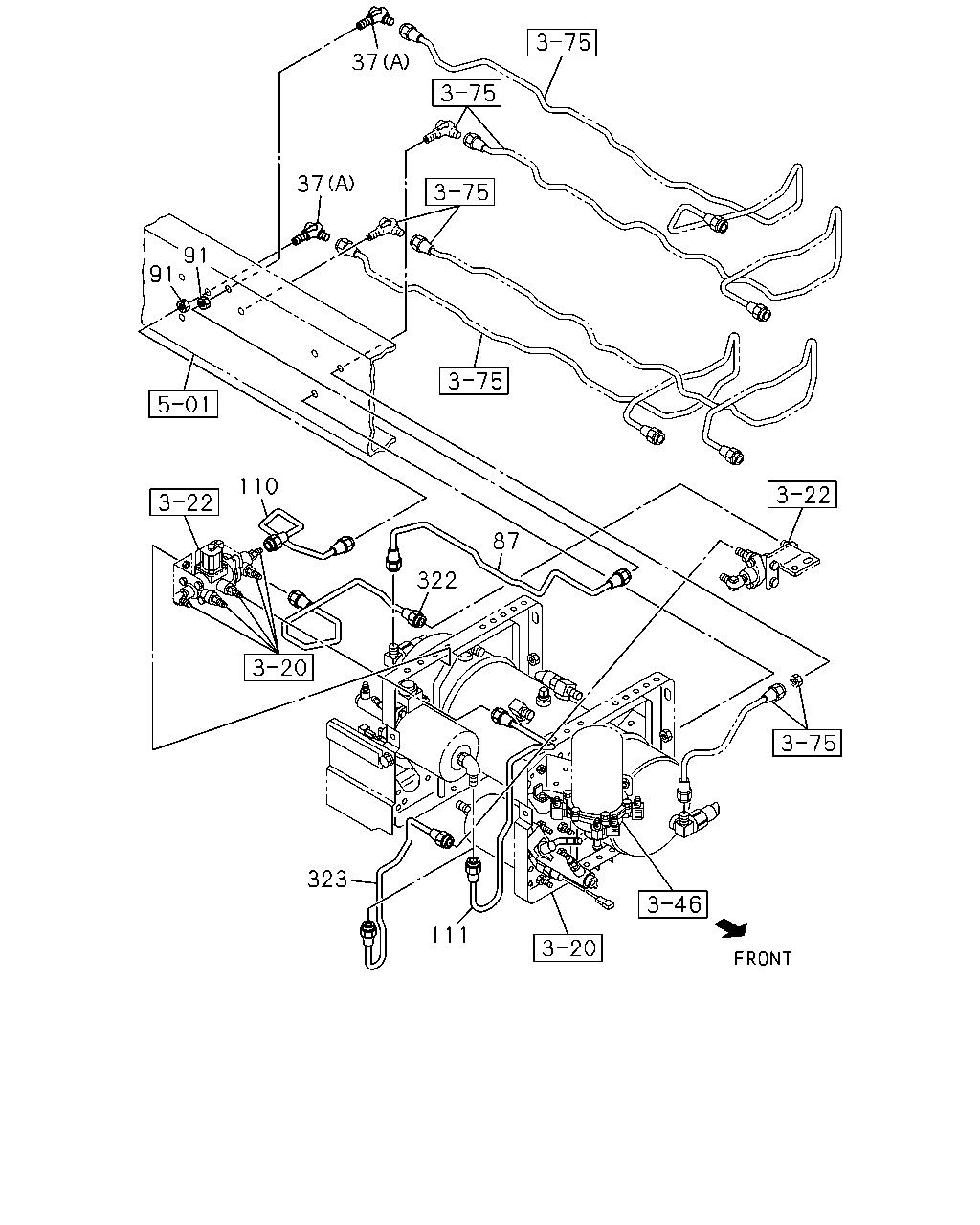

çizim 144656
37 37 91 91 110 87 322 323 111
BalonParca AdiParca NoAdetTipApplied Date
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 0803-
37 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74 		0-92123-310-0 01 1 0803-0803
37 UNION; AIR PIPE
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74 		0-92123-310-0 01 1 0804-
37 UNION; AIR PIPE
MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW 		0-92135-210-0 01 1 0807-
87 PIPE; AIR,AIR TANK TO UNION
L=700 SERVICED BY L=700 		1-47428-870-0 01 1 0803-
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 0803-
110 PIPE; AIR,UNION TO VLV
H.S.A SYSTEM<6EP> L=473 		8-98067-756-0 01 1 0803-
111 PIPE; AIR,VLV TO AIR MASTER
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) L=554 SERVICED BY L=600 		1-47428-868-0 01 1 0803-
322 PIPE; AIR,HSA VLV TO DBL CHK VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=673 SERVICED BY L=700 		1-47428-870-0 01 1 0803-
323 PIPE; AIR,DBL CHK VLV
THROTTLE CONTROL SYSTEM(6XH) L=574 SERVICED BY L=600 		1-47428-868-0 01 1 0803-
