◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51576 - TFR/TFS JIANGXI ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#148039) — 25 parça
çizim 443953
99
BalonParca AdiParca NoAdetTipApplied Date A B
99 RELAY; FOG LAMP
12V YAZAKI 		8-97309-293-0 01 1 1410-1506 ● ●
99 RELAY; FOG LAMP
FOG LAMP<T96> 12V YAZAKI 		8-97309-293-0 01 1 1507- ●
99 RELAY; FOG LAMP
12V YAZAKI 		8-97309-293-0 01 1 1507- ●

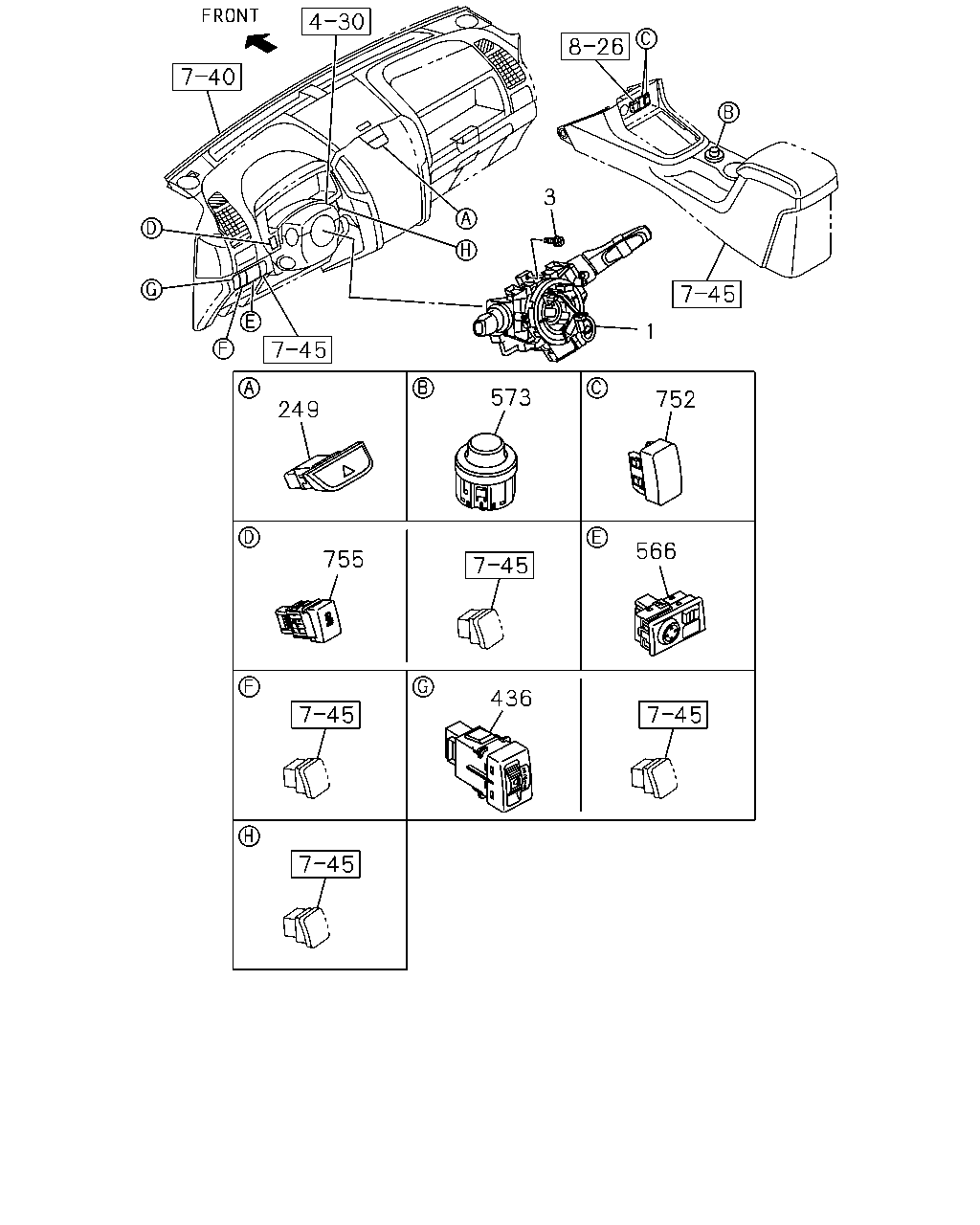

çizim 444312
3 249 755 573 752 1 566 436
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB 8-98194-147-1 01 1 1410-1506 ●
1 SWITCH; COMB
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98194-147-1 01 1 1410-1506 ●
1 SWITCH; COMB
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98194-147-1 01 1 1507- ● ●
1 SWITCH; COMB
ELECTRONIC TRACTION CONTROL<NW9> 		8-98194-149-1 01 1 1410- ●
3 SCREW; COMB SW
M5X20 W/LK&PL WASHER 		0-36230-520-0 01 1 1410- ● ●
249 SWITCH; HAZARD
BLACK 		8-97416-805-0 01 1 1410- ● ●
436 SWITCH; HEADLAMP LEVELING
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98187-211-1 01 1 1410- ● ●
566 SWITCH; MIRROR
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> 		8-98058-078-1 01 1 1410- ● ●
566 SWITCH; MIRROR
DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 		8-98106-392-1 01 1 1410- ● ●
573 SWITCH; 4WD
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> 		8-98065-836-2 01 1 1410- ●
752 COVER; SEAT HTR
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) 		8-98141-215-1 02 1 1410- ● ●
755 SWITCH; ESC OFF
ELECTRONIC TRACTION CONTROL<NW9> 		8-98058-081-1 01 1 1410- ●

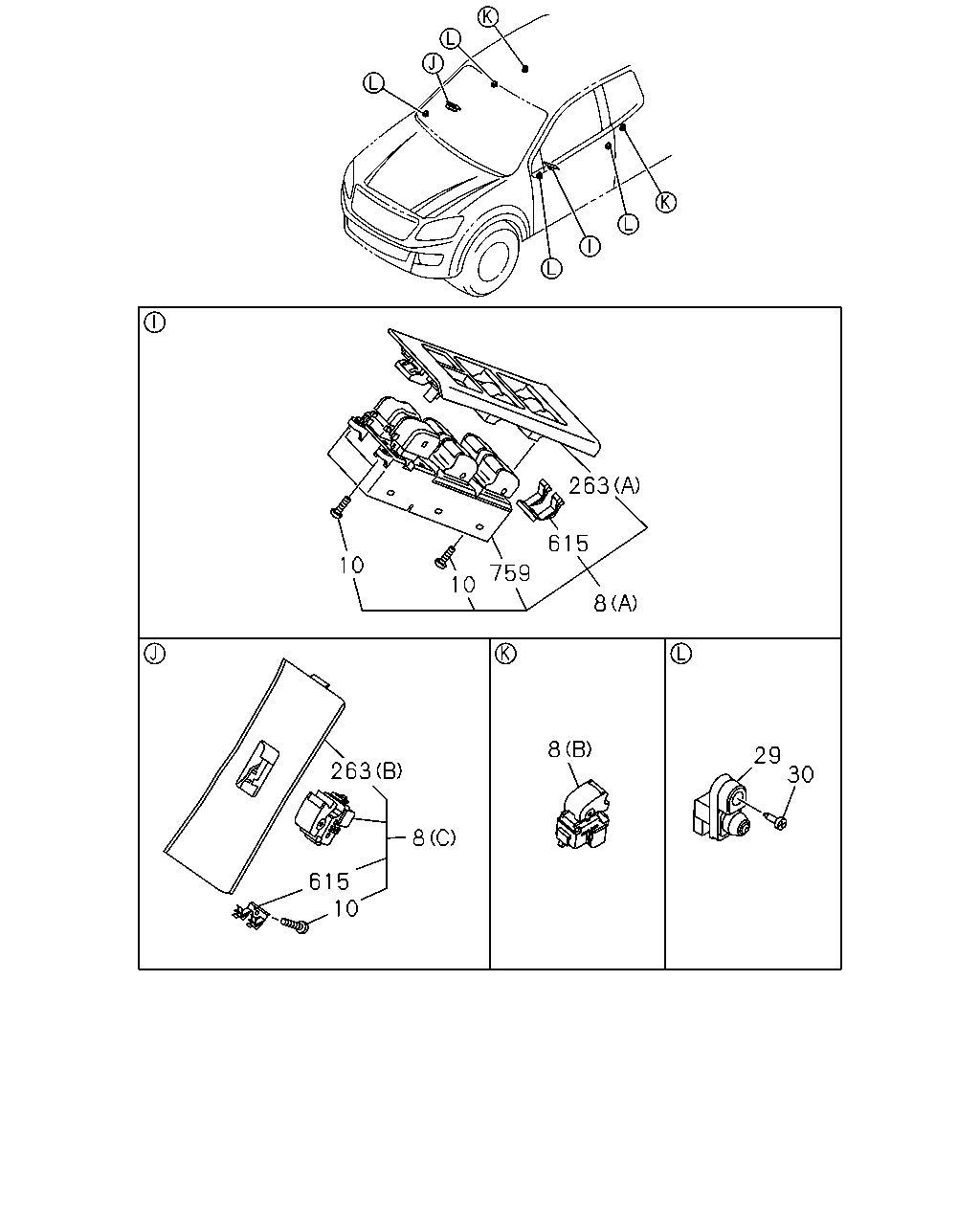

çizim 444333
10 10 263 615 759 8 29 30 8 263 8 615 10
BalonParca AdiParca NoAdetTipApplied Date A B
8 SWITCH; POWER WINDOW
(B) BLACK 		8-97417-004-0 02 1 1410- ● ●
8 SWITCH; POWER WINDOW
(A) BLACK 		8-97417-471-0 01 1 1410- ● ●
8 SWITCH; POWER WINDOW
(C) BLACK 		8-97417-531-0 01 1 1410- ● ●
10 SCREW; POWER WINDOW SW 8-98192-450-0 04 1 1410- ● ●
29 SWITCH; DOOR 8-97313-208-0 04 1 1410- ● ●
30 SCREW; DOOR SW
M5X14 		8-94120-095-0 04 1 1410- ● ●
263 COVER; SW
(A) 		8-98192-246-0 01 1 1410- ● ●
263 COVER; SW
(B) 		8-98192-248-0 01 1 1410- ● ●
615 SPRING; POWER WINDOW SW 8-98192-268-0 02 1 1410- ● ●
759 SWITCH ASM; WINDOW 8-98192-255-0 01 1 1410- ● ●
