8-21 — METER ASM (#148038) — 15 parça

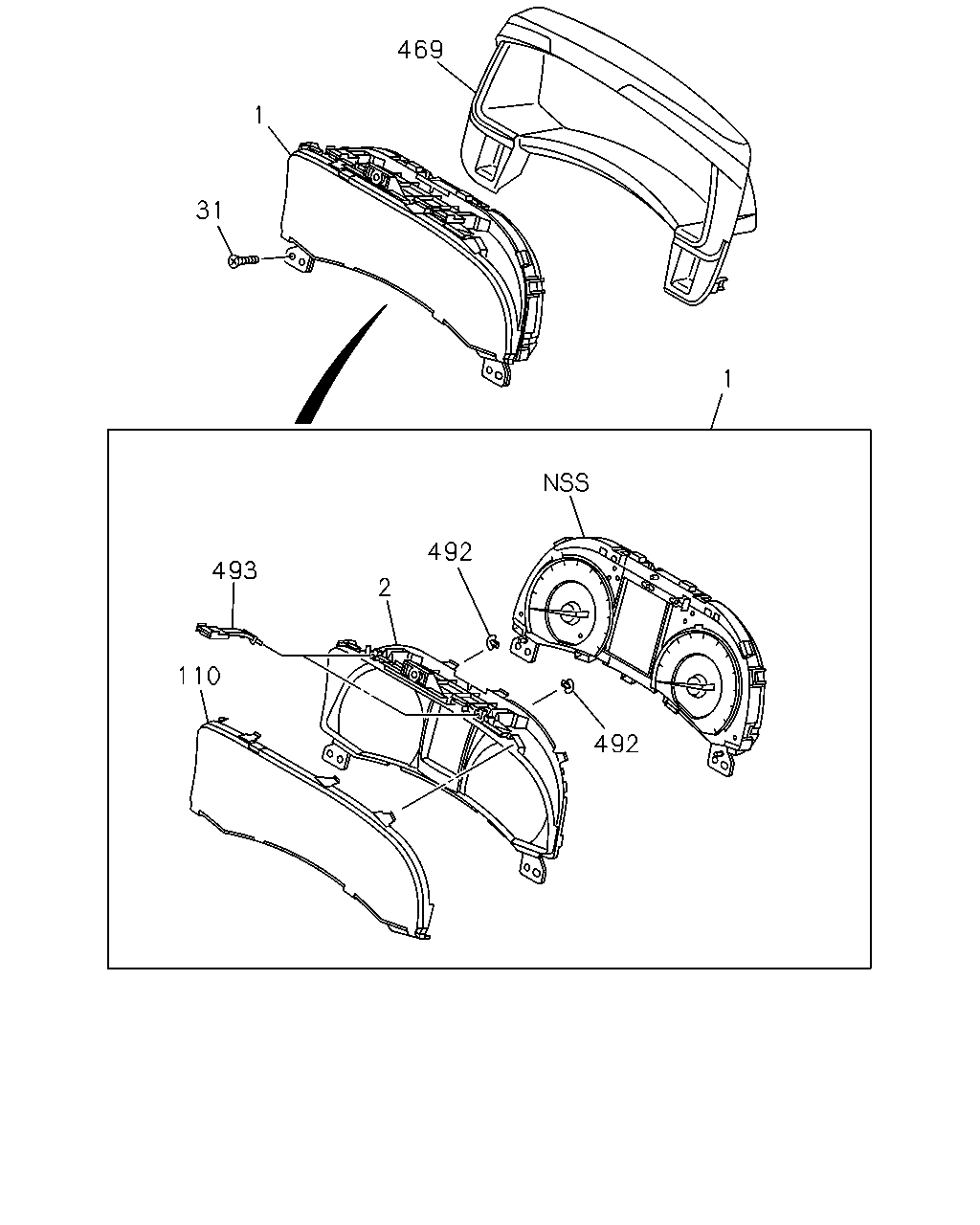

çizim 444291
1 469 31 1 492 492 2 493 110
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5H(MWQ) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98209-570-0 01 1 1410-1506 ● ●
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5H(MWQ) ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98209-570-0 01 1 1507- ● ●
1 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN(MA1) ELECTRONIC TRACTION CONTROL<NW9> 		8-98209-597-0 01 1 1410- ●
1 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN(MA1) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98209-567-0 01 1 1410- ●
1 METER COMPL; CLUSTER
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC TRACTION CONTROL<NW9> 		8-98209-600-0 01 1 1410- ●
2 PANEL; CLUSTER 8-98163-884-0 01 1 1410-1506 ● ●
2 PANEL; CLUSTER
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98163-884-0 01 1 1507- ● ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING 		8-98167-449-0 03 1 1410- ● ●
110 GLASS; CLUSTER METER 8-98163-882-0 01 1 1410-1506 ● ●
110 GLASS; CLUSTER METER
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98163-882-0 01 1 1507- ● ●
469 PLATE; INSTRUMENT PANEL
BLACK 		8-97416-628-1 01 1 1410- ● ●
492 PANEL; TURN LENS 8-98163-886-0 02 1 1410-1506 ● ●
492 PANEL; TURN LENS
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98163-886-0 02 1 1507- ● ●
493 PANEL; TOP LIGHT PRISM 8-98163-887-0 02 1 1410-1506 ● ●
493 PANEL; TOP LIGHT PRISM
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98163-887-0 02 1 1507- ● ●
