◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51576 - TFR/TFS JIANGXI ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#148036) — 176 parça

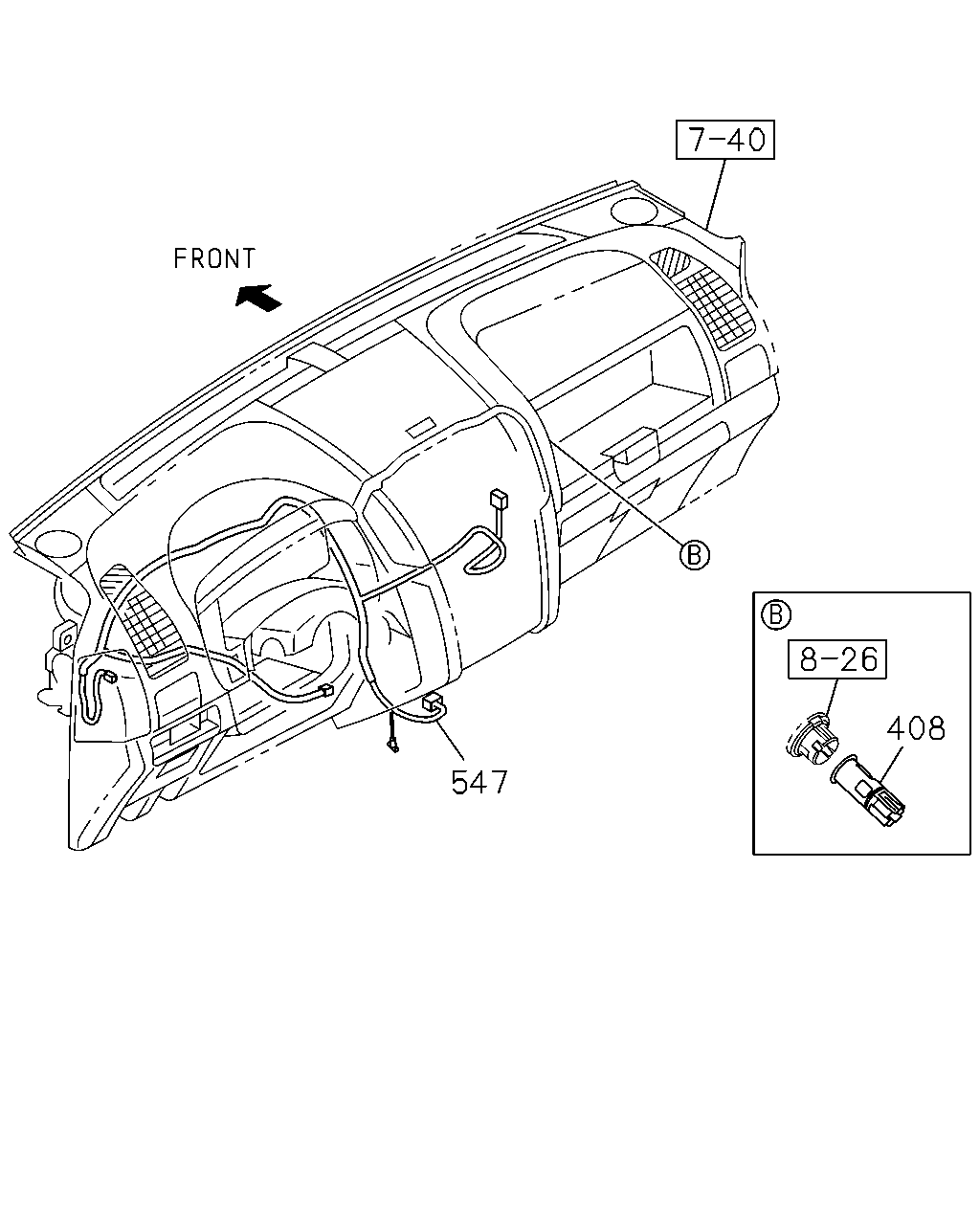

çizim 443604
547 408
BalonParca AdiParca NoAdetTipApplied Date A B
408 SOCKET ASM; ACCESSORY
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-98123-115-0 01 1 1410- ● ●
547 HARNESS; CABLE,SRS 8-98159-337-2 01 1 1410- ● ●

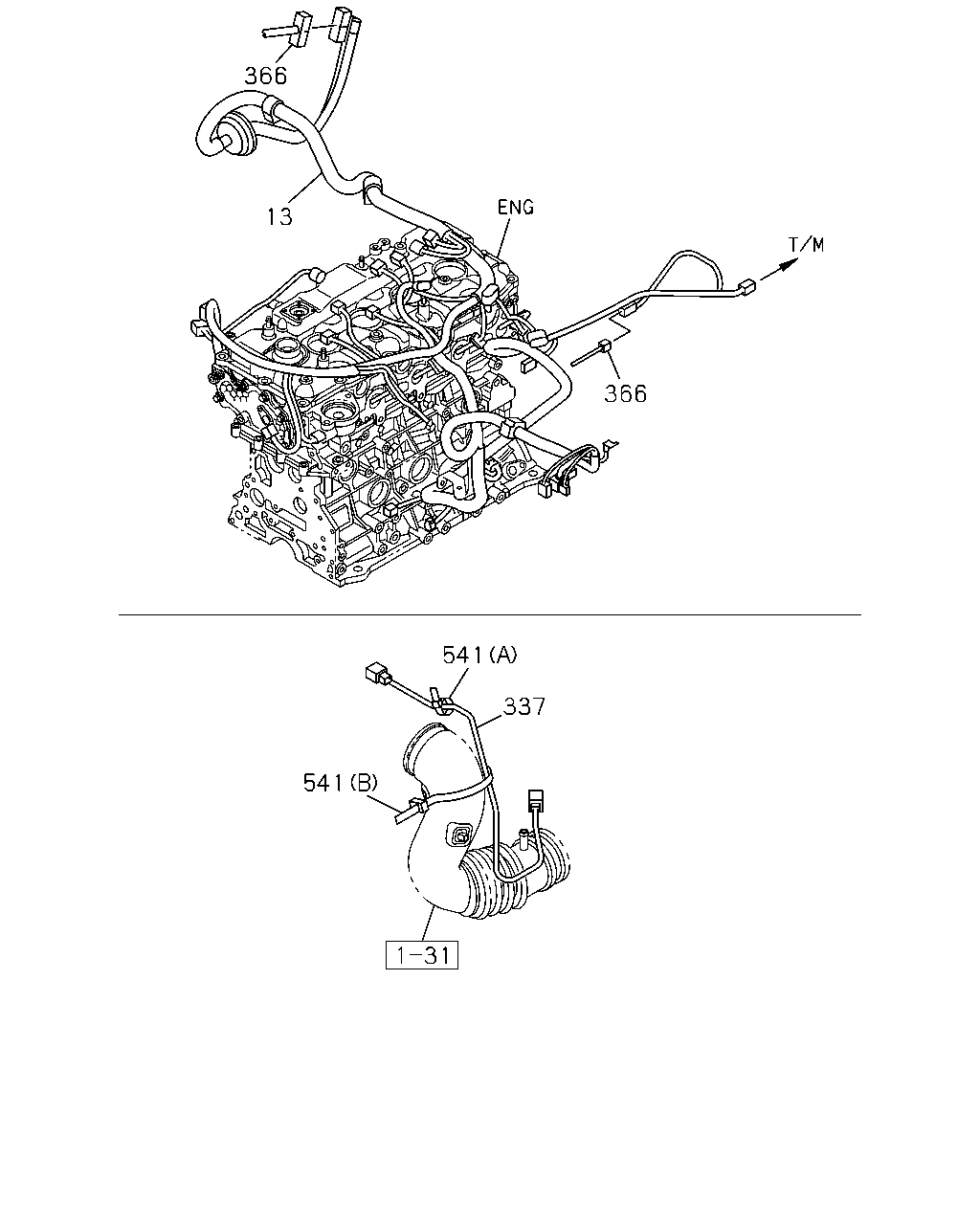

çizim 443840
366 13 366 541 337 541
BalonParca AdiParca NoAdetTipApplied Date A B
13 HARNESS; ENG
M/T MUA 5 SPEED 5H(MWQ) 		8-98259-822-2 01 1 1410- ●
13 HARNESS; ENG
M/T MUA 5 SPEED 5H(MWQ) 		8-98259-821-2 01 1 1410- ●
13 HARNESS; ENG
A/T 5 SPEED-AISIN(MA1) 		8-98259-826-2 01 1 1410- ●
337 HARNESS; EXT,HTR
M/T MUA 5 SPEED 5H(MWQ) CHI 		8-98295-794-1 01 1 1411-1506 ●
337 HARNESS; EXT,HTR
CHI 		8-98295-794-1 01 1 1411-1506 ●
337 HARNESS; EXT,HTR
CHI 		8-98295-794-1 01 1 1507- ● ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H(MWQ) AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) CHI 		8-98270-154-2 01 1 1410-1506 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) CHI 		8-98270-154-2 01 1 1507- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H(MWQ) RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) 		8-98270-135-1 01 1 1410-1410 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H(MWQ) RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) CHI 		8-98295-729-0 01 1 1411-1506 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) CHI 		8-98295-729-0 01 1 1507- ●
366 HARNESS; CABLE,ENG ROOM
ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) CHI 		8-98270-152-2 01 1 1410- ●
366 HARNESS; CABLE,ENG ROOM
ELECTRONIC TRACTION CONTROL<NW9> RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) 		8-98270-125-1 01 1 1410-1410 ●
366 HARNESS; CABLE,ENG ROOM
ELECTRONIC TRACTION CONTROL<NW9> RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) CHI 		8-98295-727-0 01 1 1411- ●
366 HARNESS; CABLE,ENG ROOM
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98270-153-2 01 1 1410- ●
366 HARNESS; CABLE,ENG ROOM
RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98270-128-1 01 1 1410-1410 ●
366 HARNESS; CABLE,ENG ROOM
RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) EXC. ELECTRONIC TRACTION CONTROL<NW9> CHI 		8-98295-728-0 01 1 1411- ●
541 CLIP
M/T MUA 5 SPEED 5H(MWQ) (A) L=140 CHI 		5-09707-031-1 01 1 1411-1506 ●
541 CLIP
(A) L=140 CHI 		5-09707-031-1 01 1 1411-1506 ●
541 CLIP
(A) L=140 CHI 		5-09707-031-1 01 1 1507- ● ●
541 CLIP
M/T MUA 5 SPEED 5H(MWQ) (B) L=500 CHI 		1-09707-082-1 01 1 1411-1506 ●
541 CLIP
(B) L=500 CHI 		1-09707-082-1 01 1 1411-1506 ●
541 CLIP
(B) L=500 CHI 		1-09707-082-1 01 1 1507- ● ●

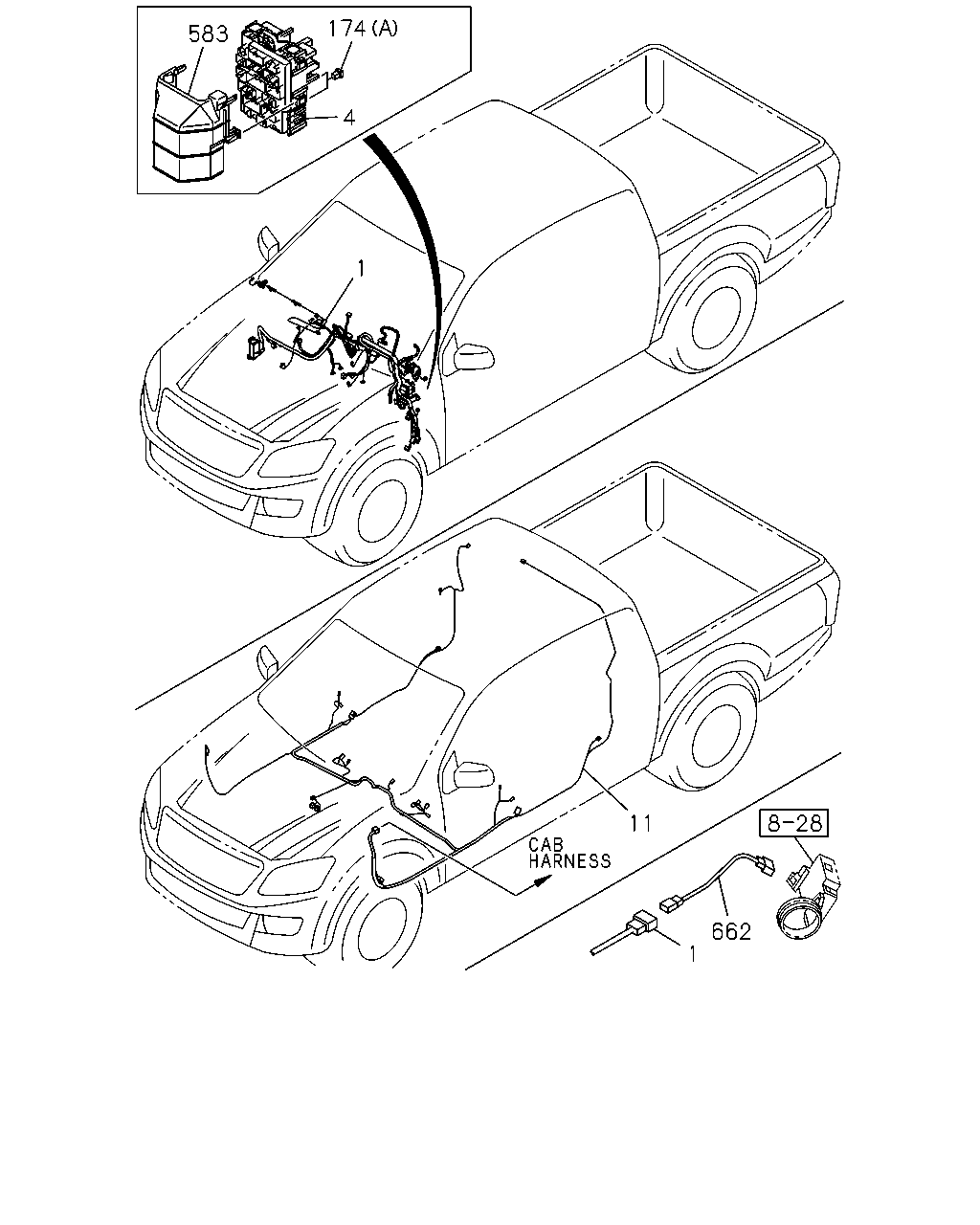

çizim 444330
583 174 4 1 11 662 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONT(C60) AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) 		8-98247-646-2 01 1 1410- ● ●
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONT(C60) RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) 		8-98160-474-7 01 1 1410- ● ●
1 HARNESS; CAB
AIR CONDITIONER AUTOMATIC CONT(C61) AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) CHI 		8-98247-644-2 01 1 1410- ● ●
1 HARNESS; CAB
AIR CONDITIONER AUTOMATIC CONT(C61) RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) 		8-98160-472-7 01 1 1410- ● ●
4 BOX ASM; FUSE,HARNESS 8-98166-752-0 01 1 1410- ● ●
11 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> 		8-98160-633-5 01 1 1410- ● ●
11 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> HIGH MOUNT STOP LAMP<TS6> 		8-98160-606-5 01 1 1410- ● ●
11 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. HIGH MOUNT STOP LAMP<TS6> 		8-98160-598-5 01 1 1410- ● ●
174 FUSE; SLOW BLOW
(B) 20A BLUE 		8-98079-189-0 AR 1 1410- ● ●
174 FUSE; SLOW BLOW
(B) 30A PINK CHI 		8-98079-191-0 AR 1 1410- ● ●
174 FUSE; SLOW BLOW
(C) 120A WHITE 		1-82516-028-1 AR 1 1410- ● ●
174 FUSE; SLOW BLOW
(A) 60A YELLOW 		8-97219-407-0 AR 1 1410- ● ●
174 FUSE; SLOW BLOW
(D) 60A YELLOW 		8-98197-288-0 AR 1 1410- ● ●
174 FUSE; SLOW BLOW
(B) 40A GREEN CHI 		8-98079-192-0 AR 1 1410- ● ●
174 FUSE; SLOW BLOW
(B) 50A RED CHI 		8-98079-193-0 AR 1 1410- ● ●
583 COVER; HARNESS
M/T MUA 5 SPEED 5H(MWQ) 		8-98179-407-0 01 1 1410- ● ●
662 HARNESS; IMMOBILIZER
IMMOBILIZER SYSTEM<7KC> 		8-98163-074-0 01 1 1410- ● ●

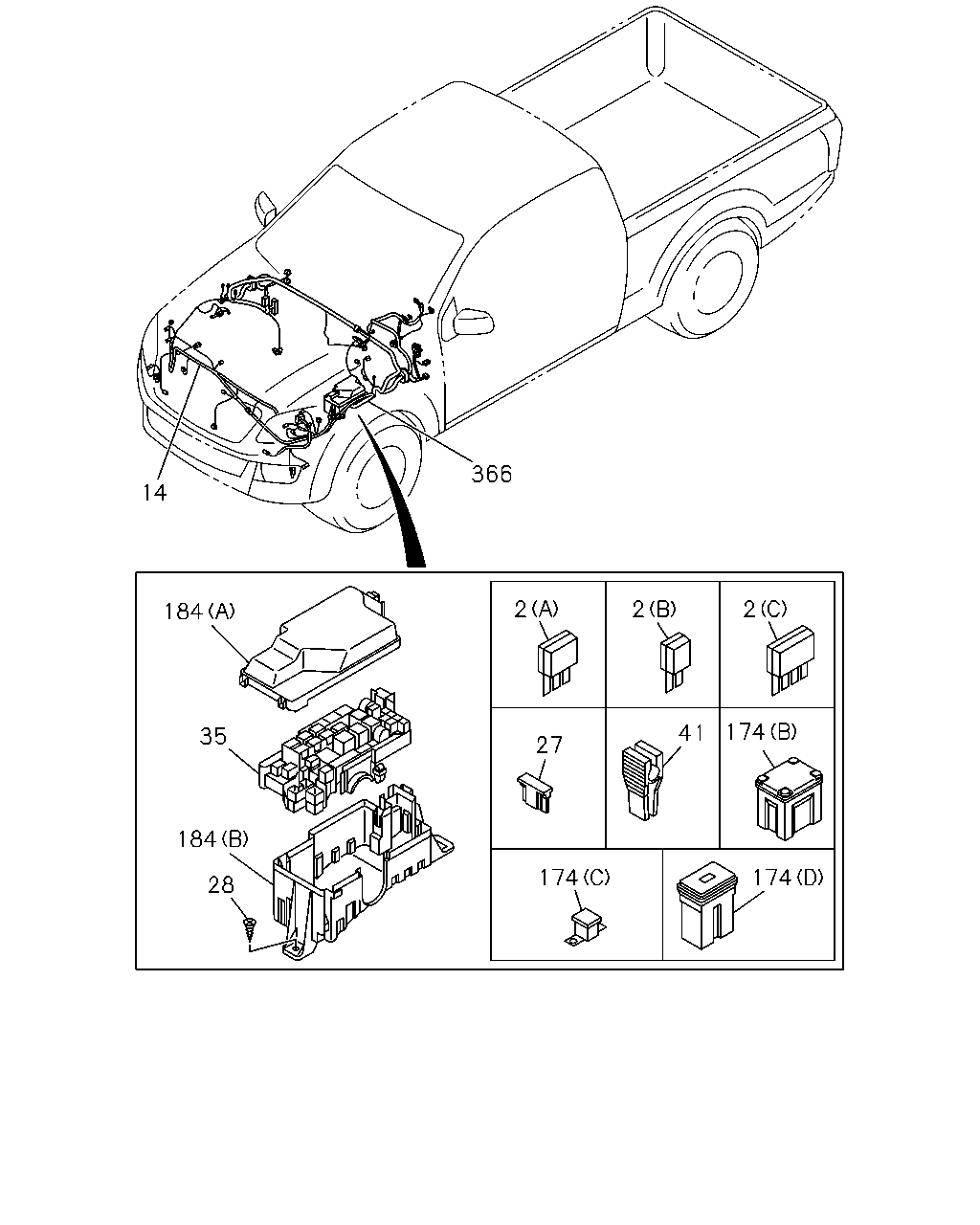

çizim 444365
366 14 184 35 184 28 2 2 2 174 41 27 174 174
BalonParca AdiParca NoAdetTipApplied Date A B
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A CHI 		8-94422-639-1 AR 1 1410- ● ●
2 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A CHI 		8-94422-640-1 AR 1 1410- ● ●
2 DIODE; CABLE HARNESS
(C) BLACK 4P-1.5A 		8-94381-730-0 AR 1 1410- ● ●
14 HARNESS; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98159-352-1 01 1 1410-1506 ● ●
14 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98159-352-1 01 1 1507- ● ●
14 HARNESS; HEADLAMP
EXC. HEAD LAMP LEVELING MANUAL<T92>,HEADLAMPS PROJECTOR BEAM<8LH> 		8-98159-340-1 01 1 1410-1506 ● ●
14 HARNESS; HEADLAMP
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. HEAD LAMP LEVELING MANUAL<T92>,HEADLAMPS PROJECTOR BEAM<8LH> 		8-98159-340-1 01 1 1507- ● ●
27 FUSE UNIT
10A RED CHI 		8-98054-257-0 AR 1 1410- ● ●
27 FUSE UNIT
15A BLUE CHI 		8-98054-258-0 AR 1 1410- ● ●
27 FUSE UNIT
20A YELLOW CHI 		8-98054-259-0 AR 1 1410- ● ●
28 SCREW; FUSE BOX
M/T MUA 5 SPEED 5H(MWQ) CHI 		8-97249-192-0 02 1 1410-1506 ●
28 SCREW; FUSE BOX
CHI 		8-97249-192-0 02 1 1410-1506 ●
28 SCREW; FUSE BOX
M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> CHI 		8-97249-192-0 02 1 1507- ●
28 SCREW; FUSE BOX
CHI 		8-97249-192-0 02 1 1507- ●
35 BOX; RELAY & FUSE
M/T MUA 5 SPEED 5H(MWQ) 		8-98113-097-0 01 1 1410-1506 ●
35 BOX; RELAY & FUSE 8-98113-097-0 01 1 1410-1506 ●
35 BOX; RELAY & FUSE
M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98113-097-0 01 1 1507- ●
35 BOX; RELAY & FUSE 8-98113-097-0 01 1 1507- ●
41 PULLER; FUSE
M/T MUA 5 SPEED 5H(MWQ) CHI 		8-98054-260-0 01 1 1410-1506 ●
41 PULLER; FUSE
CHI 		8-98054-260-0 01 1 1410-1506 ●
41 PULLER; FUSE
M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> CHI 		8-98054-260-0 01 1 1507- ●
41 PULLER; FUSE
CHI 		8-98054-260-0 01 1 1507- ●
174 FUSE; SLOW BLOW
(B) 20A BLUE 		8-98079-189-0 AR 1 1410- ● ●
174 FUSE; SLOW BLOW
(B) 30A PINK CHI 		8-98079-191-0 AR 1 1410- ● ●
174 FUSE; SLOW BLOW
(C) 120A WHITE 		1-82516-028-1 AR 1 1410- ● ●
174 FUSE; SLOW BLOW
(A) 60A YELLOW 		8-97219-407-0 AR 1 1410- ● ●
174 FUSE; SLOW BLOW
(D) 60A YELLOW 		8-98197-288-0 AR 1 1410- ● ●
174 FUSE; SLOW BLOW
(B) 40A GREEN CHI 		8-98079-192-0 AR 1 1410- ● ●
174 FUSE; SLOW BLOW
(B) 50A RED CHI 		8-98079-193-0 AR 1 1410- ● ●
184 COVER; RELAY & FUSE BOX
M/T MUA 5 SPEED 5H(MWQ) (A) 		8-98113-098-0 01 1 1410-1506 ●
184 COVER; RELAY & FUSE BOX
(A) 		8-98113-098-0 01 1 1410-1506 ●
184 COVER; RELAY & FUSE BOX
M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98113-098-0 01 1 1507- ●
184 COVER; RELAY & FUSE BOX
(A) 		8-98113-098-0 01 1 1507- ●
184 COVER; RELAY & FUSE BOX
M/T MUA 5 SPEED 5H(MWQ) (B) 		8-98113-099-0 01 1 1410-1506 ●
184 COVER; RELAY & FUSE BOX
(B) 		8-98113-099-0 01 1 1410-1506 ●
184 COVER; RELAY & FUSE BOX
M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98113-099-0 01 1 1507- ●
184 COVER; RELAY & FUSE BOX
(B) 		8-98113-099-0 01 1 1507- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H(MWQ) AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) CHI 		8-98270-154-2 01 1 1410-1506 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) CHI 		8-98270-154-2 01 1 1507- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H(MWQ) RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) 		8-98270-135-1 01 1 1410-1410 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H(MWQ) RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) CHI 		8-98295-729-0 01 1 1411-1506 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) CHI 		8-98295-729-0 01 1 1507- ●
366 HARNESS; CABLE,ENG ROOM
ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) CHI 		8-98270-152-2 01 1 1410- ●
366 HARNESS; CABLE,ENG ROOM
ELECTRONIC TRACTION CONTROL<NW9> RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) 		8-98270-125-1 01 1 1410-1410 ●
366 HARNESS; CABLE,ENG ROOM
ELECTRONIC TRACTION CONTROL<NW9> RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) CHI 		8-98295-727-0 01 1 1411- ●
366 HARNESS; CABLE,ENG ROOM
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98270-153-2 01 1 1410- ●
366 HARNESS; CABLE,ENG ROOM
RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98270-128-1 01 1 1410-1410 ●
366 HARNESS; CABLE,ENG ROOM
RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) EXC. ELECTRONIC TRACTION CONTROL<NW9> CHI 		8-98295-728-0 01 1 1411- ●

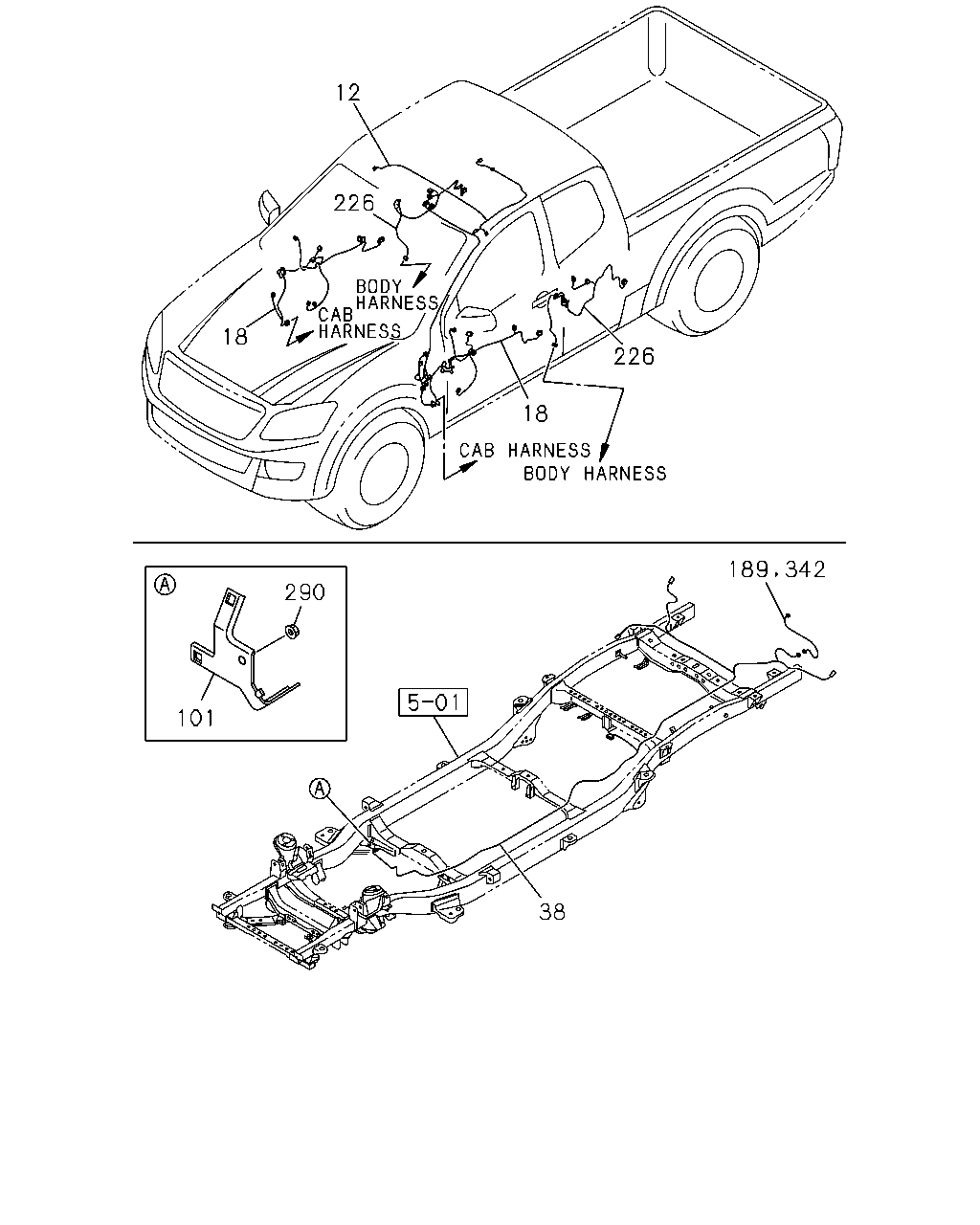

çizim 444397
12 226 18 226 18 189 342 290 38 101
BalonParca AdiParca NoAdetTipApplied Date A B
12 HARNESS; ROOF
MAP LAMP<C74> 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> EXC. HEADER CONSOLE<DK6> 		8-98159-476-2 01 1 1410- ● ●
12 HARNESS; ROOF
HEADER CONSOLE<DK6> 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> EXC. MAP LAMP<C74> 		8-98159-478-2 01 1 1410- ● ●
18 HARNESS; DOOR 8-98159-496-3 01 1 1410- ● ●
18 HARNESS; DOOR 8-98225-361-1 01 1 1410- ● ●
38 HARNESS; CHAS
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) CHI 		8-98247-639-0 01 1 1410-1506 ● ●
38 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) CHI 		8-98247-639-0 01 1 1507- ● ●
38 HARNESS; CHAS
RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) EXC. HIGH RIDE SUSPENSION(7YC) CHI 		8-98247-637-0 01 1 1410-1506 ●
38 HARNESS; CHAS
RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) HIGH RIDE SUSPENSION(7YC) CHI 		8-98247-637-0 01 1 1410-1506 ●
38 HARNESS; CHAS
RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) CHI 		8-98247-637-0 01 1 1410-1506 ●
38 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) EXC. HIGH RIDE SUSPENSION(7YC) CHI 		8-98247-637-0 01 1 1507- ●
38 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) HIGH RIDE SUSPENSION(7YC) CHI 		8-98247-637-0 01 1 1507- ●
38 HARNESS; CHAS
RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) CHI 		8-98247-637-0 01 1 1507- ●
38 HARNESS; CHAS
RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) CHI 		8-98247-638-0 01 1 1410-1506 ●
38 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC) CHI 		8-98247-638-0 01 1 1507- ●
101 BRACKET; HARNESS CONNECTOR 8-98102-999-0 01 1 1410- ● ●
189 HARNESS; EXT
HIGH RIDE SUSPENSION(7YC) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98140-863-0 01 1 1410- ●
189 HARNESS; EXT
EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98140-863-0 01 1 1410- ●
226 HARNESS; RR DOOR
4-SPEAKER SYSTEM BASE<UQ4> 		8-98159-525-3 01 1 1410- ● ●
226 HARNESS; RR DOOR
4-SPEAKER SYSTEM BASE<UQ4> 		8-98159-526-3 01 1 1410- ● ●
226 HARNESS; RR DOOR
6-SPEAKER SYSTEM BASE<UW5> 		8-98159-527-3 01 1 1410- ● ●
226 HARNESS; RR DOOR
6-SPEAKER SYSTEM BASE<UW5> 		8-98159-528-3 01 1 1410- ● ●
290 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1410- ● ●
342 HARNESS; EXT,LICENSE LAMP
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98137-579-2 01 1 1410- ● ●
çizim 444430
4 734 750 749
BalonParca AdiParca NoAdetTipApplied Date A B
4 BOX ASM; FUSE,HARNESS 8-98166-752-0 01 1 1410- ● ●
734 RELAY; ACC SOCKET
12V YAZAKI 		8-97309-293-0 01 1 1410- ● ●
749 RELAY; POWER WINDOW
12V YAZAKI 		8-97309-293-0 01 1 1410- ● ●
750 RELAY; RR DEFOGGER
12V YAZAKI 		8-97309-293-0 01 1 1410- ● ●
çizim 444460
366 736 738 739 741 743 742 744 746 737 745 747 748
BalonParca AdiParca NoAdetTipApplied Date A B
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H(MWQ) AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) CHI 		8-98270-154-2 01 1 1410-1506 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) CHI 		8-98270-154-2 01 1 1507- ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H(MWQ) RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) 		8-98270-135-1 01 1 1410-1410 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H(MWQ) RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) CHI 		8-98295-729-0 01 1 1411-1506 ●
366 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) CHI 		8-98295-729-0 01 1 1507- ●
366 HARNESS; CABLE,ENG ROOM
ELECTRONIC TRACTION CONTROL<NW9> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) CHI 		8-98270-152-2 01 1 1410- ●
366 HARNESS; CABLE,ENG ROOM
ELECTRONIC TRACTION CONTROL<NW9> RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) 		8-98270-125-1 01 1 1410-1410 ●
366 HARNESS; CABLE,ENG ROOM
ELECTRONIC TRACTION CONTROL<NW9> RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) CHI 		8-98295-727-0 01 1 1411- ●
366 HARNESS; CABLE,ENG ROOM
AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98270-153-2 01 1 1410- ●
366 HARNESS; CABLE,ENG ROOM
RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98270-128-1 01 1 1410-1410 ●
366 HARNESS; CABLE,ENG ROOM
RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) EXC. ELECTRONIC TRACTION CONTROL<NW9> CHI 		8-98295-728-0 01 1 1411- ●
736 RELAY; STARTER CUT
M/T MUA 5 SPEED 5H(MWQ) 12V YAZAKI 		8-97309-292-0 01 1 1410-1506 ●
736 RELAY; STARTER CUT
12V YAZAKI 		8-97309-292-0 01 1 1410-1506 ●
736 RELAY; STARTER CUT
M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> 12V YAZAKI 		8-97309-292-0 01 1 1507- ●
736 RELAY; STARTER CUT
12V YAZAKI 		8-97309-292-0 01 1 1507- ●
737 RELAY; DIMMER
M/T MUA 5 SPEED 5H(MWQ) 12V YAZAKI 		8-97309-292-0 01 1 1410-1506 ●
737 RELAY; DIMMER
12V YAZAKI 		8-97309-292-0 01 1 1410-1506 ●
737 RELAY; DIMMER
M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> 12V YAZAKI 		8-97309-292-0 01 1 1507- ●
737 RELAY; DIMMER
12V YAZAKI 		8-97309-292-0 01 1 1507- ●
738 RELAY; HEADLAMP
M/T MUA 5 SPEED 5H(MWQ) 12V YAZAKI 		8-97309-293-0 01 1 1410-1506 ●
738 RELAY; HEADLAMP
12V YAZAKI 		8-97309-293-0 01 1 1410-1506 ●
738 RELAY; HEADLAMP
M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> 12V YAZAKI 		8-97309-293-0 01 1 1507- ●
738 RELAY; HEADLAMP
12V YAZAKI 		8-97309-293-0 01 1 1507- ●
739 RELAY; TAIL LAMP
M/T MUA 5 SPEED 5H(MWQ) 12V YAZAKI 		8-97309-293-0 01 1 1410-1506 ●
739 RELAY; TAIL LAMP
12V YAZAKI 		8-97309-293-0 01 1 1410-1506 ●
739 RELAY; TAIL LAMP
M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> 12V YAZAKI 		8-97309-293-0 01 1 1507- ●
739 RELAY; TAIL LAMP
12V YAZAKI 		8-97309-293-0 01 1 1507- ●
741 RELAY; HORN
M/T MUA 5 SPEED 5H(MWQ) 12V YAZAKI 		8-97309-293-0 01 1 1410-1506 ●
741 RELAY; HORN
12V YAZAKI 		8-97309-293-0 01 1 1410-1506 ●
741 RELAY; HORN
M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> 12V YAZAKI 		8-97309-293-0 01 1 1507- ●
741 RELAY; HORN
12V YAZAKI 		8-97309-293-0 01 1 1507- ●
742 RELAY; THERMO
M/T MUA 5 SPEED 5H(MWQ) 12V YAZAKI 		8-97309-293-0 01 1 1410-1506 ●
742 RELAY; THERMO
12V YAZAKI 		8-97309-293-0 01 1 1410-1506 ●
742 RELAY; THERMO
M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> 12V YAZAKI 		8-97309-293-0 01 1 1507- ●
742 RELAY; THERMO
12V YAZAKI 		8-97309-293-0 01 1 1507- ●
743 RELAY; A/C COMPRESSOR
M/T MUA 5 SPEED 5H(MWQ) 12V YAZAKI 		8-97309-293-0 01 1 1410-1506 ●
743 RELAY; A/C COMPRESSOR
12V YAZAKI 		8-97309-293-0 01 1 1410-1506 ●
743 RELAY; A/C COMPRESSOR
M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> 12V YAZAKI 		8-97309-293-0 01 1 1507- ●
743 RELAY; A/C COMPRESSOR
12V YAZAKI 		8-97309-293-0 01 1 1507- ●
744 RELAY; RR FOG LAMP
M/T MUA 5 SPEED 5H(MWQ) 12V YAZAKI 		8-97309-293-0 01 1 1410-1506 ●
744 RELAY; RR FOG LAMP
12V YAZAKI 		8-97309-293-0 01 1 1410-1506 ●
744 RELAY; RR FOG LAMP
M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> 12V YAZAKI 		8-97309-293-0 01 1 1507- ●
744 RELAY; RR FOG LAMP
12V YAZAKI 		8-97309-293-0 01 1 1507- ●
745 RELAY; HEATER
M/T MUA 5 SPEED 5H(MWQ) 12V YAZAKI 		8-98146-834-0 01 1 1410-1506 ●
745 RELAY; HEATER
12V YAZAKI 		8-98146-834-0 01 1 1410-1506 ●
745 RELAY; HEATER
M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> 12V YAZAKI 		8-98146-834-0 01 1 1507- ●
745 RELAY; HEATER
12V YAZAKI 		8-98146-834-0 01 1 1507- ●
746 RELAY; ECM,MAIN
M/T MUA 5 SPEED 5H(MWQ) 12V YAZAKI 		8-98146-834-0 01 1 1410-1506 ●
746 RELAY; ECM,MAIN
12V YAZAKI 		8-98146-834-0 01 1 1410-1506 ●
746 RELAY; ECM,MAIN
M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> 12V YAZAKI 		8-98146-834-0 01 1 1507- ●
746 RELAY; ECM,MAIN
12V YAZAKI 		8-98146-834-0 01 1 1507- ●
747 RELAY; GLOW
M/T MUA 5 SPEED 5H(MWQ) 12V YAZAKI 		8-98146-837-0 01 1 1410-1506 ●
747 RELAY; GLOW
12V YAZAKI 		8-98146-837-0 01 1 1410-1506 ●
747 RELAY; GLOW
M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> 12V YAZAKI 		8-98146-837-0 01 1 1507- ●
747 RELAY; GLOW
12V YAZAKI 		8-98146-837-0 01 1 1507- ●
748 RELAY; STARTER
M/T MUA 5 SPEED 5H(MWQ) 12V YAZAKI 		8-98146-837-0 01 1 1410-1506 ●
748 RELAY; STARTER
12V YAZAKI 		8-98146-837-0 01 1 1410-1506 ●
748 RELAY; STARTER
M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> 12V YAZAKI 		8-98146-837-0 01 1 1507- ●
748 RELAY; STARTER
12V YAZAKI 		8-98146-837-0 01 1 1507- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
