Isuzu WW
▶
PICKUP
▶
TFR
▶
51576 - TFR/TFS JIANGXI
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-03 - LAMP; REAR AND REAR SIDE
▶
8-03 — LAMP; REAR AND REAR SIDE
(#148034) — 41 parça
Tümü
A - TFB6WF
B - TFS6WF
◀

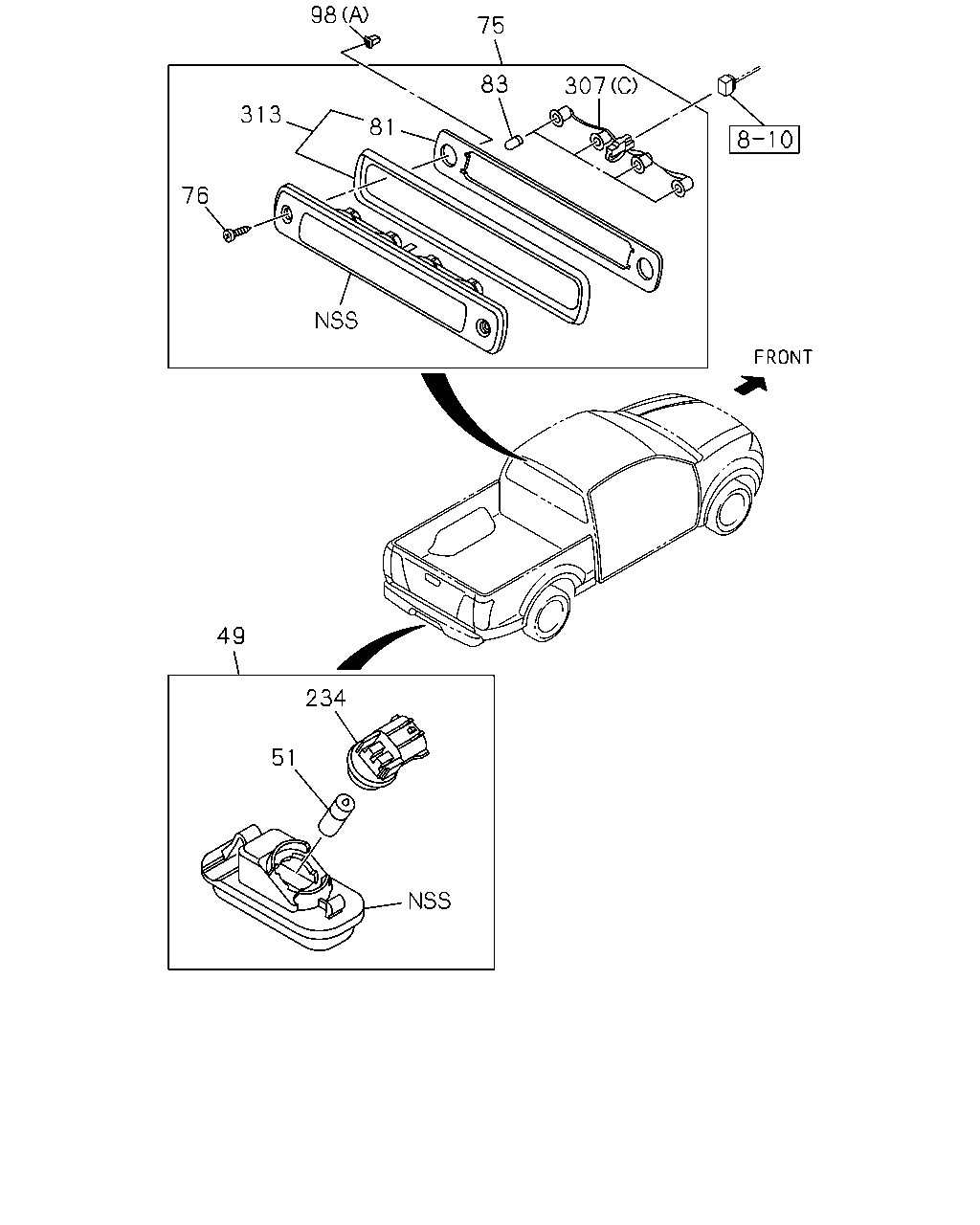

[803A] LICENSE PLATE LAMP,HIGHMOUNT STOP LAMP (15 parça)

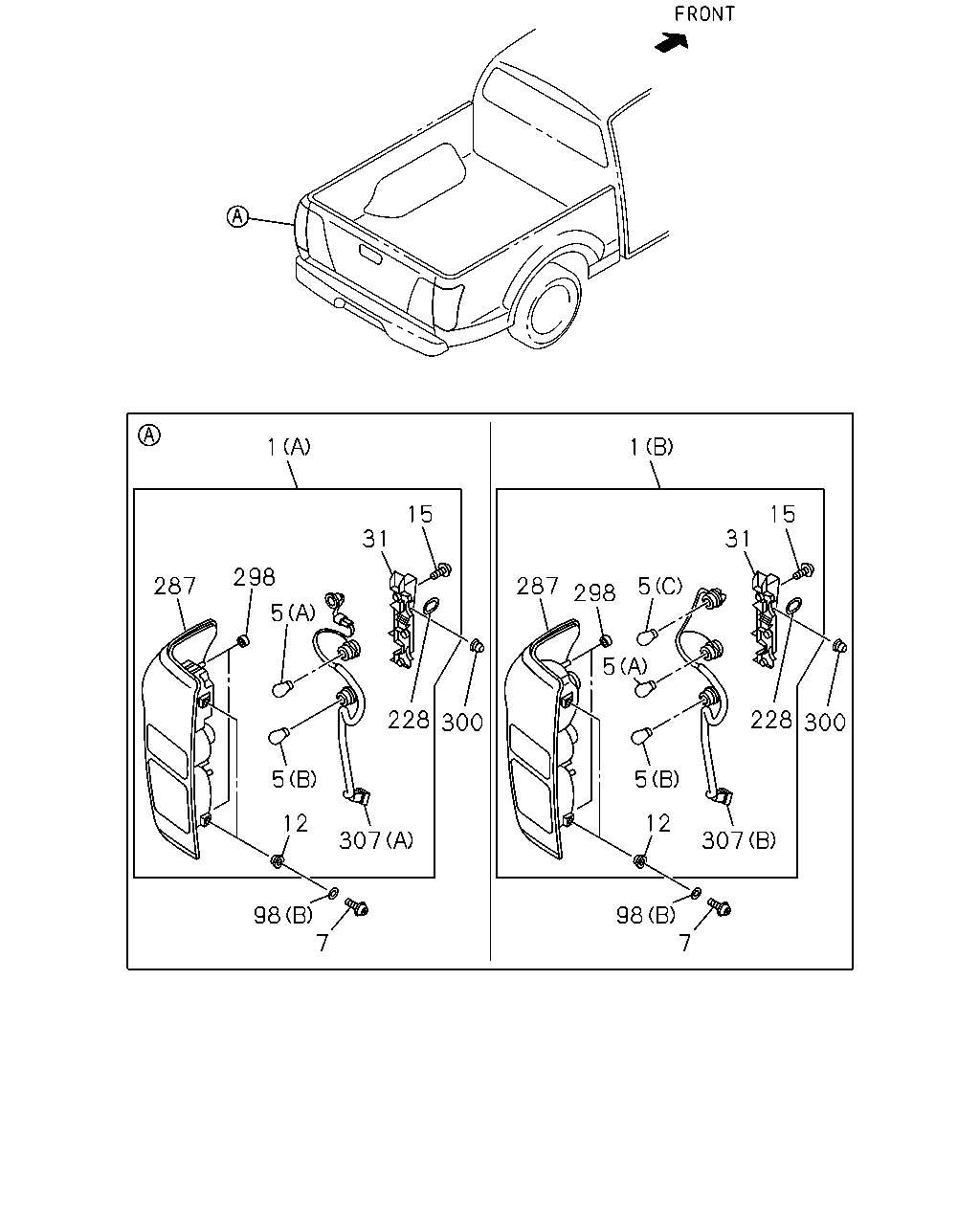

[803A] REAR COMBI LAMP (26 parça)
▶
98
75
83
307
81
313
76
49
234
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
49
LAMP; LICENSE PLATE
8-98224-482-0
02
1
1410-
●
●
51
BULB; LICENSE PLATE LAMP
12V 5W CHI
8-94124-595-0
02
1
1410-
●
●
75
LAMP ASM; STOP,HIGHMOUNTED
HIGH MOUNT STOP LAMP<TS6>
8-98255-655-2
01
1
1410-
●
●
76
SCREW; STOP LAMP,HIGHMOUNTED
HIGH MOUNT STOP LAMP<TS6>
8-98193-901-0
02
1
1410-
●
●
81
GASKET; STOP LAMP
HIGH MOUNT STOP LAMP<TS6>
8-98257-962-0
01
1
1410-
●
●
83
BULB; STOP LAMP,HIGHMOUNTED
HIGH MOUNT STOP LAMP<TS6> 12V 5W
8-98193-898-0
04
1
1410-
●
●
98
WASHER
HIGH MOUNT STOP LAMP<TS6> (A) D=7.8X7.8 L=18 NATURAL CHI
8-94279-043-0
02
1
1410-
●
●
98
WASHER
(B) D=16
8-94427-941-0
04
1
1410-
●
●
234
SOCKET ASM; LICENSE PLATE LAMP
1-82119-148-0
02
1
1410-
●
●
307
CORD ASM; LAMP
HIGH MOUNT STOP LAMP<TS6> (C)
8-98193-900-0
01
1
1410-
●
●
307
CORD ASM; LAMP
LAMPS TAIL AND STOP DELUXE<T81> (A)
8-98193-890-0
01
1
1410-
●
●
307
CORD ASM; LAMP
LAMPS TAIL AND STOP DELUXE<T81> (A)
8-98193-891-0
01
1
1410-
●
●
307
CORD ASM; LAMP
EXC. LAMPS TAIL AND STOP DELUXE<T81> (B)
8-98193-895-0
01
1
1410-
●
●
307
CORD ASM; LAMP
EXC. LAMPS TAIL AND STOP DELUXE<T81> (B)
8-98193-896-0
01
1
1410-
●
●
313
RUBBER & GASKET
HIGH MOUNT STOP LAMP<TS6>
8-98250-208-0
01
1
1410-
●
●
1
15
31
298
5
287
228
5
12
307
98
7
300
1
287
298
5
5
5
12
98
7
307
228
300
31
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LAMP ASM; RR COMB
LAMPS TAIL AND STOP DELUXE<T81> (A)
8-98125-398-3
01
1
1410-
●
●
1
LAMP ASM; RR COMB
LAMPS TAIL AND STOP DELUXE<T81> (A)
8-98125-401-3
01
1
1410-
●
●
1
LAMP ASM; RR COMB
EXC. LAMPS TAIL AND STOP DELUXE<T81> (B)
8-98125-402-3
01
1
1410-
●
●
1
LAMP ASM; RR COMB
EXC. LAMPS TAIL AND STOP DELUXE<T81> (B)
8-98125-405-3
01
1
1410-
●
●
5
BULB; RR COMB LAMP
(B) BACK-UP AND RR FOG 12V 21W
8-94124-074-0
02
1
1410-
●
●
5
BULB; RR COMB LAMP
(A) TURN SIGNAL 12V 21W
8-97179-967-0
02
1
1410-
●
●
5
BULB; RR COMB LAMP
EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) STOP 12V 21/5W CHI
8-94125-959-0
02
1
1410-
●
●
7
SCREW; RR COMB LAMP
M5X14 TAPPING W/PL WASHER
0-74160-514-0
04
1
1410-
●
●
12
GROMMET; RR COMB LAMP
8-97349-413-0
04
1
1410-
●
●
15
SCREW; RR COMB LAMP
M4X12 TAPPING
8-97376-768-0
06
1
1410-
●
●
31
BRACKET; RR COMB LAMP
8-98193-892-0
01
1
1410-
●
●
31
BRACKET; RR COMB LAMP
8-98193-893-0
01
1
1410-
●
●
98
WASHER
HIGH MOUNT STOP LAMP<TS6> (A) D=7.8X7.8 L=18 NATURAL CHI
8-94279-043-0
02
1
1410-
●
●
98
WASHER
(B) D=16
8-94427-941-0
04
1
1410-
●
●
228
CLIP; COVER,RR COMB LAMP
8-97376-769-0
02
1
1410-
●
●
287
LAMP UNIT; RR COMB
LAMPS TAIL AND STOP DELUXE<T81>
8-98131-709-0
01
1
1410-
●
●
287
LAMP UNIT; RR COMB
LAMPS TAIL AND STOP DELUXE<T81>
8-98131-710-0
01
1
1410-
●
●
287
LAMP UNIT; RR COMB
EXC. LAMPS TAIL AND STOP DELUXE<T81>
8-98131-705-0
01
1
1410-
●
●
287
LAMP UNIT; RR COMB
EXC. LAMPS TAIL AND STOP DELUXE<T81>
8-98131-706-0
01
1
1410-
●
●
298
CAP; BREATHER,RR COMB LAMP
8-97289-148-0
04
1
1410-
●
●
300
HOLDER; LAMP
8-97372-854-0
02
1
1410-
●
●
307
CORD ASM; LAMP
HIGH MOUNT STOP LAMP<TS6> (C)
8-98193-900-0
01
1
1410-
●
●
307
CORD ASM; LAMP
LAMPS TAIL AND STOP DELUXE<T81> (A)
8-98193-890-0
01
1
1410-
●
●
307
CORD ASM; LAMP
LAMPS TAIL AND STOP DELUXE<T81> (A)
8-98193-891-0
01
1
1410-
●
●
307
CORD ASM; LAMP
EXC. LAMPS TAIL AND STOP DELUXE<T81> (B)
8-98193-895-0
01
1
1410-
●
●
307
CORD ASM; LAMP
EXC. LAMPS TAIL AND STOP DELUXE<T81> (B)
8-98193-896-0
01
1
1410-
●
●
