8-01 — LAMP; FRONT AND FRONT SIDE (#148033) — 44 parça

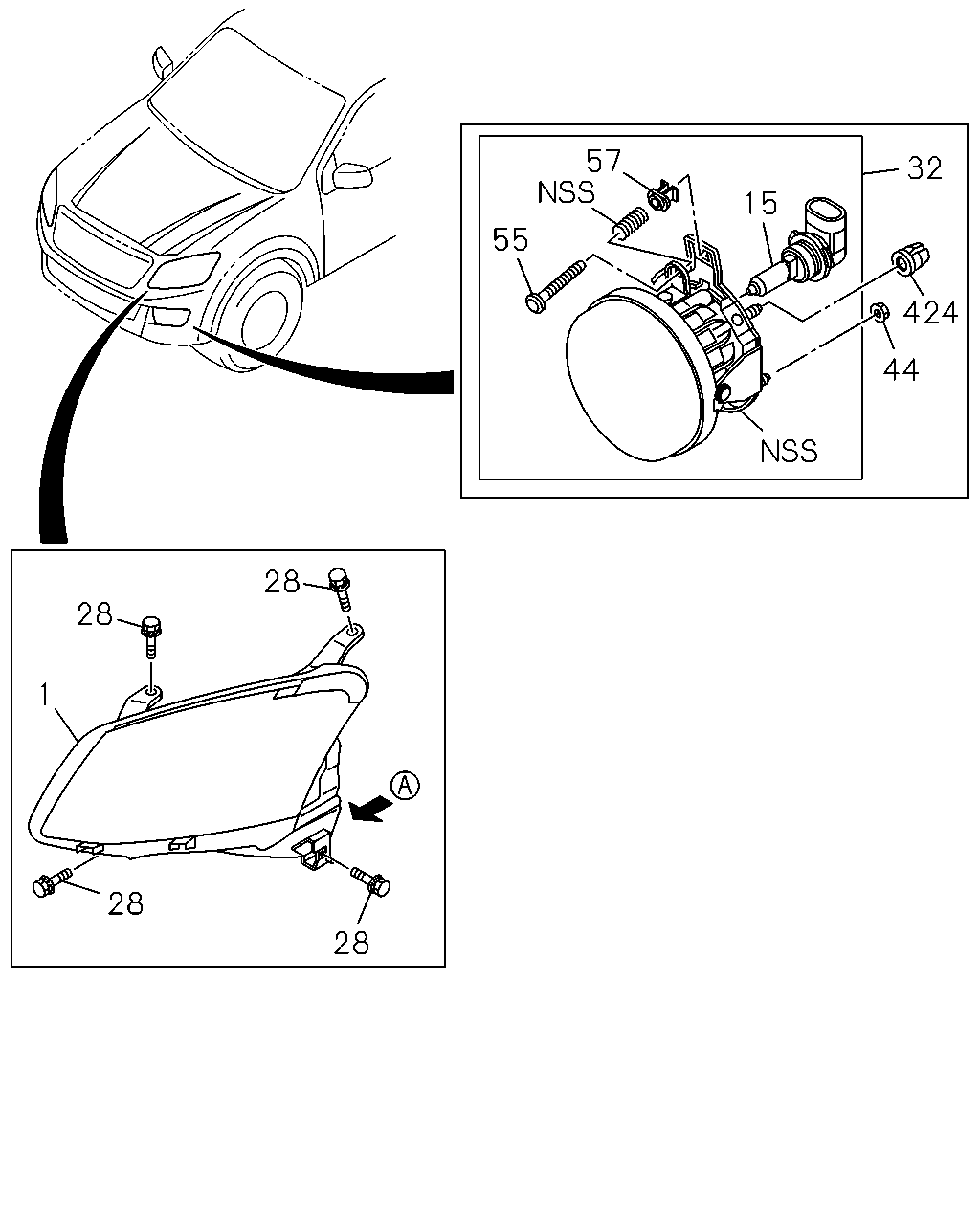

çizim 444396
28 28 28 28 1 57 55 15 32 424 44
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-384-7 01 1 1410- ● ●
1 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-385-7 01 1 1410- ● ●
1 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92>,HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-389-7 01 1 1410- ● ●
1 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92>,HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-390-7 01 1 1410- ● ●
15 BULB; FOG LAMP
12V 51W 		8-97286-998-0 02 1 1410-1506 ● ●
15 BULB; FOG LAMP
FOG LAMP<T96> 12V 51W 		8-97286-998-0 02 1 1507- ●
15 BULB; FOG LAMP
12V 51W 		8-97286-998-0 02 1 1507- ●
28 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER 		8-98062-140-0 08 1 1410-1506 ● ●
28 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER 		8-98062-140-0 08 1 1507- ● ●
32 LAMP ASM; FOG 8-98169-680-0 02 1 1410-1506 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98169-680-0 02 1 1507- ●
32 LAMP ASM; FOG 8-98169-680-0 02 1 1507- ●
44 NUT; FOG LAMP
M6 FLANGE 		8-98055-704-0 04 1 1410- ● ●
55 SCREW; ADJ,FOG LAMP 8-98017-834-0 02 1 1410-1506 ● ●
55 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> 		8-98017-834-0 02 1 1507- ●
55 SCREW; ADJ,FOG LAMP 8-98017-834-0 02 1 1507- ●
57 NUT; UNIT TO SCREW,FOG LAMP 8-98017-835-0 02 1 1410-1506 ● ●
57 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> 		8-98017-835-0 02 1 1507- ●
57 NUT; UNIT TO SCREW,FOG LAMP 8-98017-835-0 02 1 1507- ●
424 RETAINER; FOG LAMP 8-97372-854-0 02 1 1410- ● ●

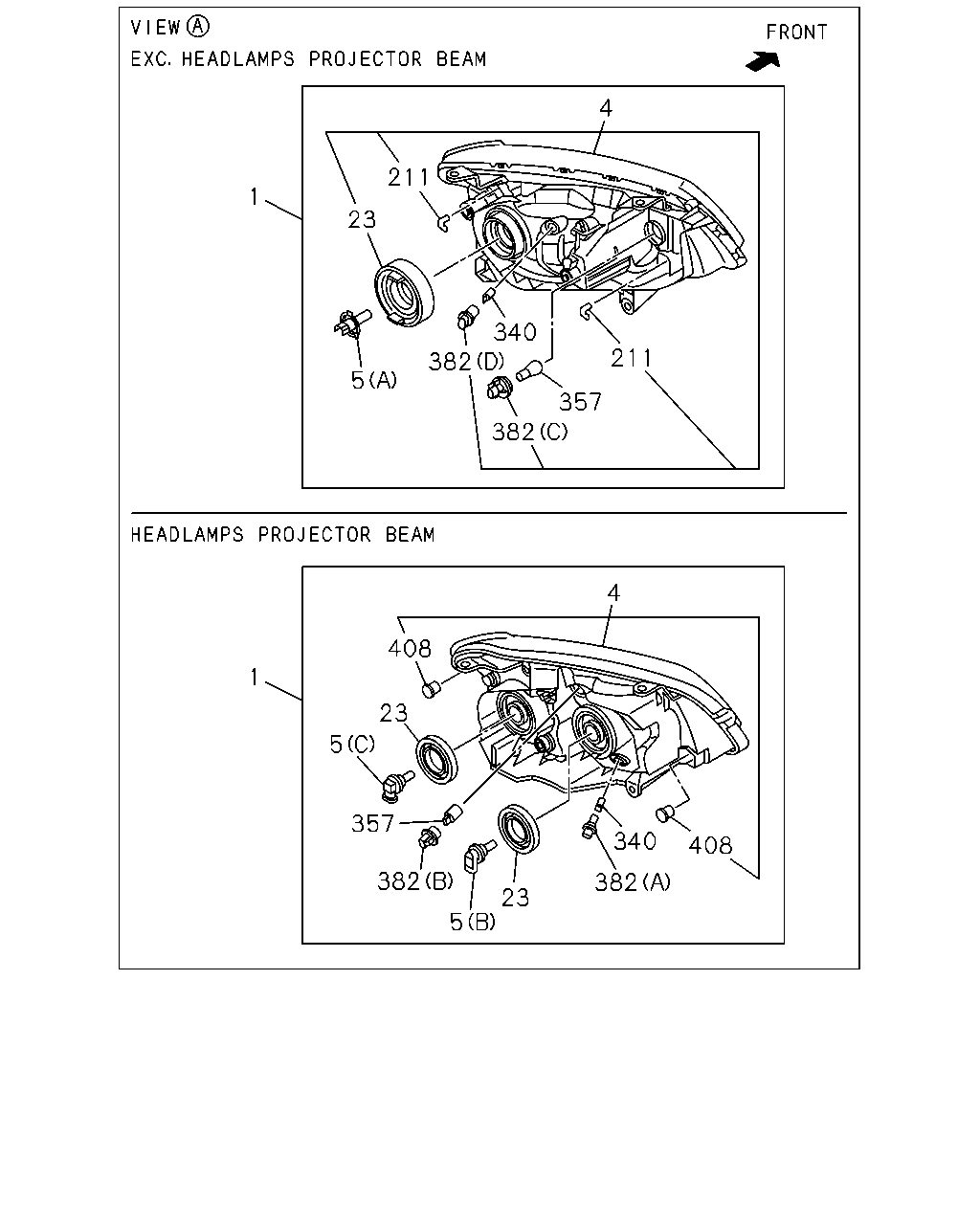

çizim 444426
1 211 23 340 382 5 382 357 211 4 1 408 4 23 5 357 382 5 23 408 340 382
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-384-7 01 1 1410- ● ●
1 LAMP ASM; HEAD
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-385-7 01 1 1410- ● ●
1 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92>,HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-389-7 01 1 1410- ● ●
1 LAMP ASM; HEAD
EXC. HEAD LAMP LEVELING MANUAL<T92>,HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-390-7 01 1 1410- ● ●
4 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98186-203-2 01 1 1410- ● ●
4 HEADLAMP UNIT
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98186-204-2 01 1 1410- ● ●
4 HEADLAMP UNIT
EXC. HEAD LAMP LEVELING MANUAL<T92>,HEADLAMPS PROJECTOR BEAM<8LH> 		8-98186-213-0 01 1 1410- ● ●
4 HEADLAMP UNIT
EXC. HEAD LAMP LEVELING MANUAL<T92>,HEADLAMPS PROJECTOR BEAM<8LH> 		8-98186-214-0 01 1 1410- ● ●
5 BULB; HEADLAMP
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> (B) 12V 60W 		8-97289-997-0 02 1 1410- ● ●
5 BULB; HEADLAMP
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> (C) 12V 55W 		8-98160-205-0 02 1 1410- ● ●
5 BULB; HEADLAMP
EXC. HEAD LAMP LEVELING MANUAL<T92>,HEADLAMPS PROJECTOR BEAM<8LH> (A) 12V 55/60W 		8-98186-377-0 02 1 1410- ● ●
23 COVER; BULB,HEADLAMP
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-97675-961-0 04 1 1410- ● ●
23 COVER; BULB,HEADLAMP
EXC. HEAD LAMP LEVELING MANUAL<T92>,HEADLAMPS PROJECTOR BEAM<8LH> 		8-97332-448-0 02 1 1410- ● ●
211 TUBE; HEADLAMP
EXC. HEAD LAMP LEVELING MANUAL<T92>,HEADLAMPS PROJECTOR BEAM<8LH> 		8-97333-983-0 04 1 1410- ● ●
340 BULB; POSITION
EXC. HEAD LAMP LEVELING MANUAL<T92>,HEADLAMPS PROJECTOR BEAM<8LH> 12V 5W 		8-98257-815-0 02 1 1410- ● ●
340 BULB; POSITION
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 12V 5W CHI 		8-94124-595-0 02 1 1410- ● ●
357 BULB; TURN SIGNAL
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 12V 21W 		8-98160-206-0 02 1 1410- ● ●
357 BULB; TURN SIGNAL
EXC. HEAD LAMP LEVELING MANUAL<T92>,HEADLAMPS PROJECTOR BEAM<8LH> 12V 21W 		8-97179-967-0 02 1 1410- ● ●
382 PLUG; SOCKET,HEADLAMP
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-98012-788-0 02 1 1410- ● ●
382 PLUG; SOCKET,HEADLAMP
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-98160-270-1 02 1 1410- ● ●
382 PLUG; SOCKET,HEADLAMP
EXC. HEAD LAMP LEVELING MANUAL<T92>,HEADLAMPS PROJECTOR BEAM<8LH> (D) 		8-97332-447-0 02 1 1410- ● ●
382 PLUG; SOCKET,HEADLAMP
EXC. HEAD LAMP LEVELING MANUAL<T92>,HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-98206-114-0 02 1 1410- ● ●
408 CAP; BREATHER,HEADLAMP
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98186-375-0 04 1 1410-1411 ● ●
408 CAP; BREATHER,HEADLAMP
HEAD LAMP LEVELING MANUAL<T92> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98300-478-0 04 1 1412- ● ●
