◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51576 - TFR/TFS JIANGXI ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#148032) — 13 parça

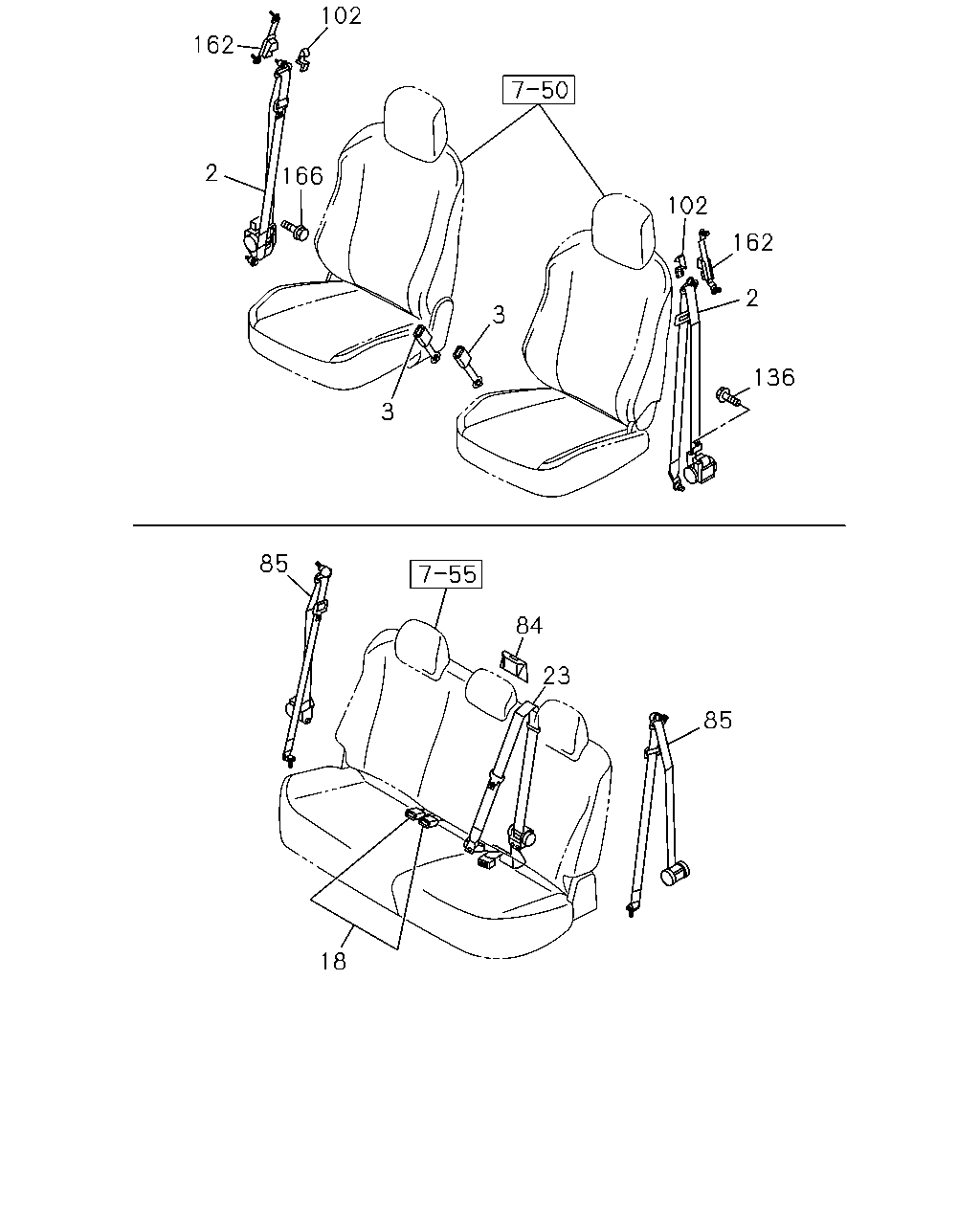

çizim 444363
85 23 84 18 85 3 3 102 2 162 136 2 166 102 162
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE
BLACK 		8-97423-663-0 01 1 1410- ● ●
2 BELT; SEAT,TONGUE SIDE
BLACK 		8-97423-666-0 01 1 1410- ● ●
3 BELT; SEAT,BUCKLE SIDE
FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> BLACK 		8-97426-632-0 01 1 1410- ● ●
3 BELT; SEAT,BUCKLE SIDE
SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) BLACK 		8-97426-632-0 01 1 1410- ● ●
3 BELT; SEAT,BUCKLE SIDE
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) BLACK 		8-97416-839-0 01 1 1410- ● ●
18 BELT; SEAT,RR
BLACK 		8-97416-937-1 01 1 1410- ● ●
23 BELT; SEAT,CENTER
BLACK 		8-97417-405-3 01 1 1410- ● ●
84 COVER; RETRACTOR,RR SEAT BELT
BLACK 		8-97417-409-1 01 1 1410- ● ●
85 BELT; SEAT,RR OUTER
BLACK 		8-97423-669-0 02 1 1410- ● ●
102 COVER; SHOULDER ANCHOR
BLACK 		8-97416-646-2 02 1 1410- ● ●
136 BOLT; SEAT BELT
M6X16 FLANGE 		0-28650-616-0 01 1 1410- ● ●
162 ADJUSTER; SEAT BELT
BLACK 		8-97416-645-1 02 1 1410- ● ●
166 BOLT; SEAT BELT ANCHOR
M6X16 FLANGE 		0-28650-616-0 01 1 1410- ● ●
