7-55 — REAR SEAT (#148031) — 64 parça

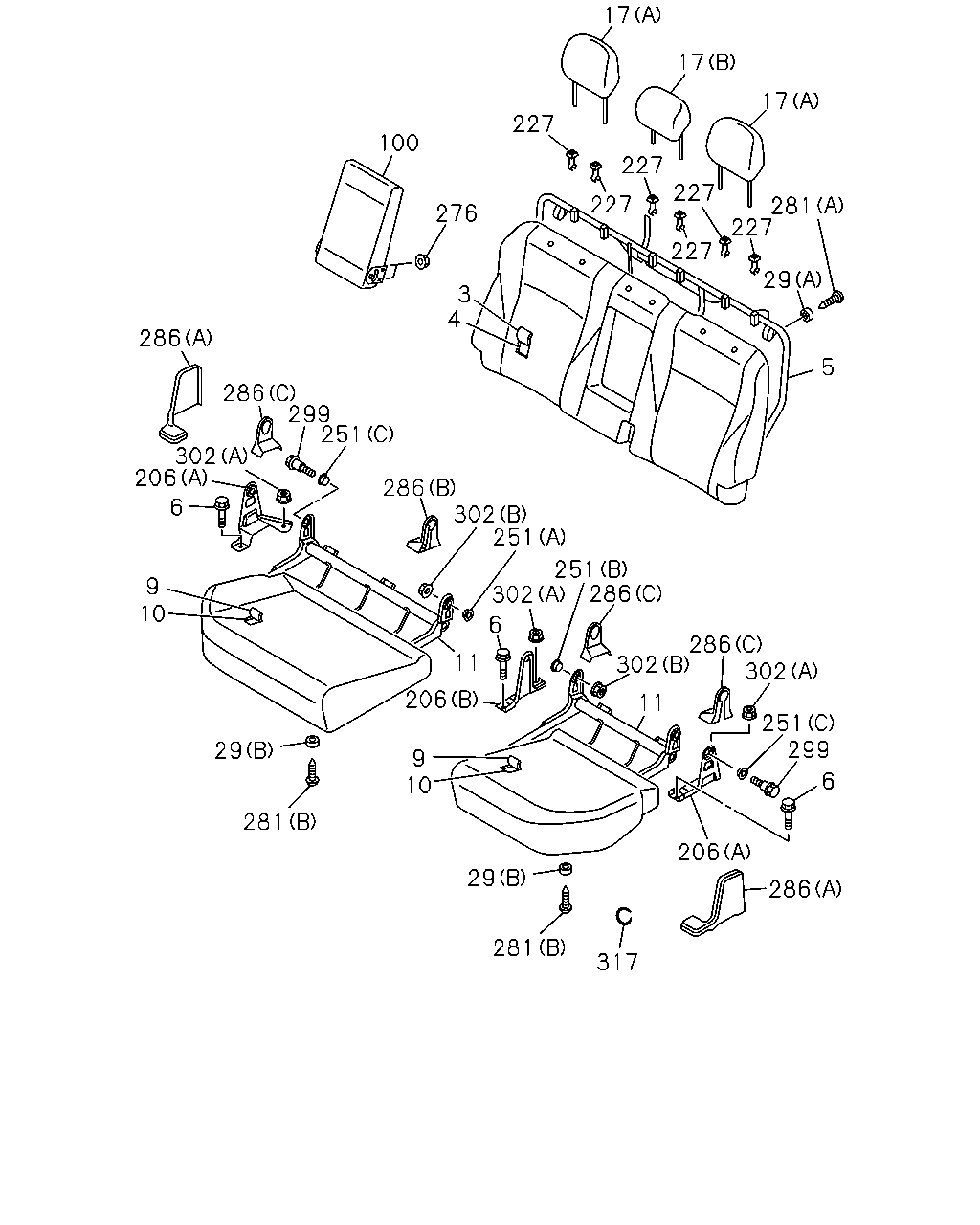

çizim 443880
17 17 281 17 227 227 29 227 227 227 5 100 276 3 4 286 286 302 299 286 251 206 302 6 9 10 29 281 9 10 206 6 11 251 302 286 251 286 302 251 299 6 11 302 29 281 317 227 206 286
BalonParca AdiParca NoAdetTipApplied Date A B
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB> BLACK 		8-97427-569-0 01 1 1410-1501 ● ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB> BLACK 		8-97465-101-0 01 1 1502-1507 ● ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB> BLACK 		8-97460-334-0 01 1 1508- ● ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97423-390-0 01 1 1410-1507 ● ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97460-327-0 01 1 1508- ● ●
4 PAD; RR,SEAT BACK
SEAT TRIM LEATHER<6TB> 		8-98200-491-0 01 1 1410-1507 ● ●
4 PAD; RR,SEAT BACK
SEAT TRIM LEATHER<6TB> 		8-98300-434-0 01 1 1508- ● ●
4 PAD; RR,SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98196-183-0 01 1 1410-1507 ● ●
4 PAD; RR,SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98300-432-0 01 1 1508- ● ●
5 FRAME ASM; RR SEAT BACK
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97427-756-0 01 1 1410- ● ●
6 BOLT; RR SEAT
M12X27.5 W/PL WASHER 		8-98050-319-0 03 1 1410- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> BLACK 		8-97427-571-0 01 1 1410-1501 ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> BLACK 		8-97465-118-0 01 1 1502-1507 ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> BLACK 		8-97460-336-0 01 1 1508- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> BLACK 		8-97427-573-0 01 1 1410-1501 ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> BLACK 		8-97465-128-0 01 1 1502-1507 ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> BLACK 		8-97460-338-0 01 1 1508- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97423-376-0 01 1 1410-1507 ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97460-295-0 01 1 1508- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97423-377-0 01 1 1410-1507 ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97460-299-0 01 1 1508- ● ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM LEATHER<6TB> 		8-98200-495-0 01 1 1410-1507 ● ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM LEATHER<6TB> 		8-98300-437-0 01 1 1508- ● ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM LEATHER<6TB> 		8-98200-499-0 01 1 1410-1507 ● ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM LEATHER<6TB> 		8-98300-441-0 01 1 1508- ● ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98196-198-0 01 1 1410-1507 ● ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98300-435-0 01 1 1508- ● ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98196-212-0 01 1 1410-1507 ● ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98300-439-0 01 1 1508- ● ●
11 FRAME ASM; CUSHION,RR SEAT
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97427-776-0 01 1 1410- ● ●
11 FRAME ASM; CUSHION,RR SEAT
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97427-779-0 01 1 1410- ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> (A) BLACK 		8-97426-726-0 02 1 1410-1501 ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> (A) BLACK 		8-97465-070-0 02 1 1502- ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> (B) BLACK 		8-97427-567-0 01 1 1410-1501 ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> (B) BLACK 		8-97465-074-0 01 1 1502- ● ●
17 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY 		8-97424-691-0 02 1 1410- ● ●
17 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> (B) LIGHT GRAY 		8-97424-692-0 01 1 1410- ● ●
29 RUBBER; RR SEAT
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) 		8-98224-609-0 02 1 1410- ● ●
29 RUBBER; RR SEAT
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) 		8-98224-621-0 04 1 1410- ● ●
100 REST; ARM,RR SEAT
SEAT TRIM LEATHER<6TB> BLACK 		8-97425-376-0 01 1 1410-1501 ● ●
100 REST; ARM,RR SEAT
SEAT TRIM LEATHER<6TB> BLACK 		8-97465-106-0 01 1 1502- ● ●
100 REST; ARM,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY 		8-97424-694-0 01 1 1410- ● ●
206 BRACKET ASM; LEG,RR SEAT
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) 		8-98224-625-0 01 1 1410- ● ●
206 BRACKET ASM; LEG,RR SEAT
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) 		8-98224-695-0 01 1 1410- ● ●
206 BRACKET ASM; LEG,RR SEAT
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) 		8-98224-697-0 01 1 1410- ● ●
227 HOLDER; GUIDE,RR HD REST
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> LOCK BLACK 		8-97424-499-0 03 1 1410- ● ●
227 HOLDER; GUIDE,RR HD REST
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FREE BLACK 		8-97424-500-0 03 1 1410- ● ●
251 BUSHING; HINGE PIN
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) 		8-98224-622-0 01 1 1410- ● ●
251 BUSHING; HINGE PIN
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) 		8-98224-623-0 01 1 1410- ● ●
251 BUSHING; HINGE PIN
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (C) 		8-98224-624-0 02 1 1410- ● ●
276 NUT; ARM REST
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> M6 FLANGE 		8-98224-604-0 04 1 1410- ● ●
281 SCREW
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (A) M4X14 		8-98224-611-0 02 1 1410- ● ●
281 SCREW
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) M5X18 		8-98233-169-0 04 1 1410- ● ●
286 COVER; HINGE
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) BLACK 		8-97424-699-1 01 1 1410- ● ●
286 COVER; HINGE
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (C) BLACK 		8-97424-700-0 03 1 1410- ● ●
286 COVER; HINGE
(A) BLACK 		8-97416-997-2 01 1 1410- ● ●
286 COVER; HINGE
(A) BLACK 		8-97416-999-2 01 1 1410- ● ●
299 BOLT; LEG
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> M8X26 		8-98224-698-0 02 1 1410- ● ●
302 NUT; RR SEAT
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (B) M6 FLANGE 		8-98225-096-0 02 1 1410- ● ●
302 NUT; RR SEAT
(A) M12 FLANGE CHI 		0-91180-212-0 03 1 1410- ● ●
317 RING; BACK,RR SEAT
SEAT TRIM LEATHER<6TB> 		8-98220-068-0 43 1 1410-1507 ● ●
317 RING; BACK,RR SEAT
SEAT TRIM LEATHER<6TB> 		8-98220-068-0 51 1 1508- ● ●
317 RING; BACK,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98220-068-0 38 1 1410-1507 ● ●
317 RING; BACK,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98220-068-0 48 1 1508- ● ●
