Sayfa 7-50 - Isuzu EPC

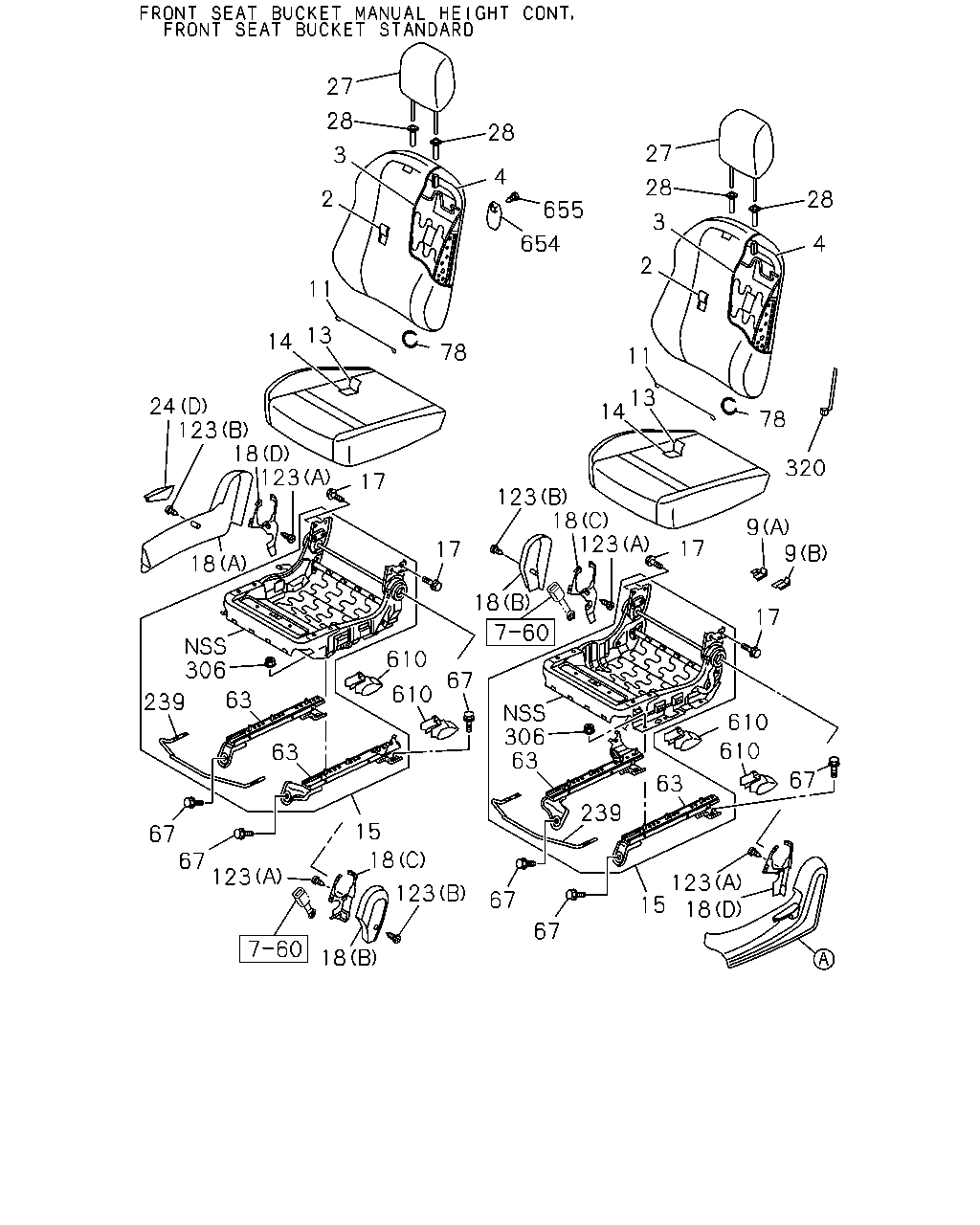

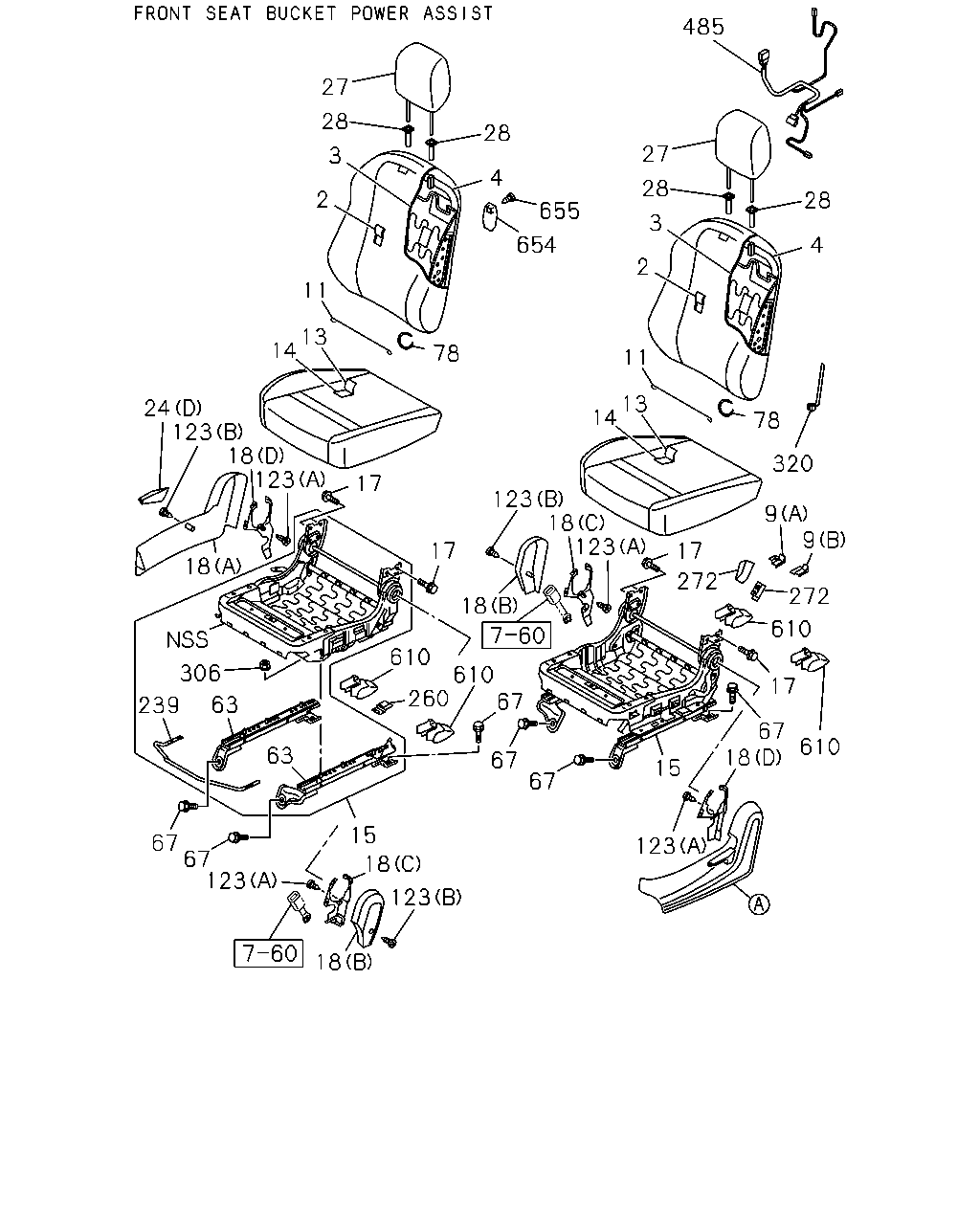

7-50 — FRONT SEAT (#148030) — 189 parça

485 28 27 4 28 3 2 11 13 78 14 320 9 272 610 17 17 272 610 67 18 15 123 67 67 67 610 18 123 123 18 17 610 260 15 18 123 18 123 67 67 63 63 306 239 18 123 18 17 123 24 14 13 11 2 3 78 654 655 4 28 28 27 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; TRIM,FRT SEAT,BACK FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> BLACK	8-97465-192-0	01	1	1410-	●	●
2	COVER; TRIM,FRT SEAT,BACK FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> BLACK	8-97465-214-0	01	1	1410-	●	●
2	COVER; TRIM,FRT SEAT,BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) BLACK	8-97423-180-0	01	1	1410-	●	●
2	COVER; TRIM,FRT SEAT,BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) BLACK	8-97423-181-0	01	1	1410-	●	●
3	PAD; FRT SEAT BACK FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98187-530-0	01	1	1410-	●	●
3	PAD; FRT SEAT BACK FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98187-527-0	01	1	1410-	●	●
3	PAD; FRT SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91)	8-98187-525-0	01	1	1410-	●	●
3	PAD; FRT SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91)	8-98187-526-0	01	1	1410-	●	●
4	FRAME ASM; FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98187-534-0	01	1	1410-	●	●
4	FRAME ASM; FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91)	8-98187-534-0	01	1	1410-	●	●
4	FRAME ASM; FRT SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91)	8-98187-533-0	01	1	1410-	●	●
9	COVER; SIDE FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B) OUTER	8-98273-209-0	01	1	1410-	●	●
9	COVER; SIDE FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) INNER	8-98273-213-0	01	1	1410-	●	●
9	COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (B) OUTER	8-98273-218-0	01	1	1410-	●	●
9	COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (A) INNER	8-98273-220-0	01	1	1410-	●	●
9	COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (A) INNER BLACK	8-97424-603-0	01	1	1410-1410	●	●
9	COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (B) OUTER BLACK	8-97424-606-0	01	1	1410-1410	●	●
11	WIRE; SEAT BACK	8-98220-094-0	01	1	1410-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> BLACK	8-97465-278-0	01	1	1410-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> BLACK	8-97465-262-0	01	1	1410-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) BLACK	8-97423-192-0	01	1	1410-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) BLACK	8-97426-580-0	01	1	1410-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) BLACK	8-97423-193-0	01	1	1410-	●	●
14	PAD; FRT SEAT CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98187-562-0	01	1	1410-	●	●
14	PAD; FRT SEAT CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98187-563-0	01	1	1410-	●	●
14	PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91)	8-98187-559-0	01	1	1410-	●	●
14	PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91)	8-98187-560-0	01	1	1410-	●	●
15	FRAME; CUSHION,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98231-282-0	01	1	1410-	●	●
15	FRAME; CUSHION,FRT SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91)	8-98187-567-2	01	1	1410-	●	●
15	FRAME; CUSHION,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91)	8-98231-281-1	01	1	1410-	●	●
15	FRAME; CUSHION,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91)	8-98187-568-2	01	1	1410-	●	●
17	BOLT; RECLINING	8-98220-045-0	04	1	1410-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B) BLACK	8-97424-517-0	01	1	1410-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (B) BLACK	8-97424-517-0	01	1	1410-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-098-0	01	1	1410-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (D) BLACK	8-97424-608-0	01	1	1410-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (C) BLACK	8-97424-610-0	01	1	1410-	●	●
18	COVER; RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (A) BLACK	8-97424-090-0	01	1	1410-	●	●
18	COVER; RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (B) BLACK	8-97424-579-0	01	1	1410-	●	●
18	COVER; RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (D) BLACK	8-97424-582-0	01	1	1410-	●	●
18	COVER; RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (C) BLACK	8-97424-585-0	01	1	1410-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (A) BLACK	8-97424-096-0	01	1	1410-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (D) BLACK	8-97424-515-0	01	1	1410-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (C) BLACK	8-97424-516-0	01	1	1410-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (A) BLACK	8-97424-092-0	01	1	1410-	●	●
24	KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-611-0	01	1	1410-	●	●
24	KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B) BLACK	8-97424-612-0	01	1	1410-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (D) BLACK	8-97424-591-0	01	1	1410-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (C) BLACK	8-97424-597-0	01	1	1410-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (D) BLACK	8-97424-518-0	01	1	1410-	●	●
27	REST; HD,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> BLACK	8-97465-142-0	01	1	1410-	●	●
27	REST; HD,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> BLACK	8-97465-142-0	01	1	1410-	●	●
27	REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) LIGHT GRAY	8-97424-645-0	01	1	1410-	●	●
27	REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) LIGHT GRAY	8-97424-645-0	01	1	1410-	●	●
28	HOLDER; GUIDE,HD REST LOCK BLACK	8-97424-499-0	01	1	1410-	●	●
28	HOLDER; GUIDE,HD REST FREE BLACK	8-97424-500-0	01	1	1410-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) OUTER	8-98224-186-1	01	1	1410-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) INNER	8-98224-187-1	01	1	1410-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) INNER	8-98231-283-1	01	1	1410-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) OUTER	8-98220-097-1	01	1	1410-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) INNER	8-98220-096-1	01	1	1410-	●	●
67	BOLT; FRT SEAT TO BODY M12X27.5 W/PL WASHER	8-98050-319-0	08	1	1410-	●	●
78	RING; SNAP	8-98220-068-0	17	1	1410-	●	●
123	SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1410-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (B) M4X10	8-98220-086-0	05	1	1410-	●	●
123	SCREW; COVER,RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B) M4X10	8-98220-086-0	05	1	1410-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (B) M4X10	8-98220-086-0	03	1	1410-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (B) M4X10	8-98220-086-0	03	1	1410-	●	●
239	HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91)	8-98220-104-0	01	1	1410-	●	●
239	HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91)	8-98220-104-0	01	1	1410-	●	●
260	CLIP; HARNESS FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98224-267-0	01	1	1410-	●	●
272	COVER; SEAT RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> OUTER	8-98273-215-0	01	1	1410-	●	●
272	COVER; SEAT RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> INNER	8-98273-216-0	01	1	1410-	●	●
306	NUT; SEAT ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) M8 FLANGE	8-98220-087-0	07	1	1410-	●	●
306	NUT; SEAT ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) M8 FLANGE	8-98220-087-0	07	1	1410-	●	●
320	CLIP; BAND,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98220-048-0	02	1	1410-	●	●
320	CLIP; BAND,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91)	8-98220-048-0	02	1	1410-	●	●
485	HARNESS; FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98231-308-0	01	1	1410-	●	●
610	COVER; LEG,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97416-785-4	04	1	1410-	●	●
654	HOOK; STOPPER FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> BLACK	8-97424-637-0	01	1	1410-	●	●
654	HOOK; STOPPER SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) BLACK	8-97424-637-0	01	1	1410-	●	●
655	BOLT; HOOK FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> M5X15	8-98224-171-0	01	1	1410-	●	●
655	BOLT; HOOK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) M5X15	8-98224-171-0	01	1	1410-	●	●

18 123 67 610 610 63 239 15 67 67 123 18 15 18 123 67 67 63 63 306 239 610 610 67 18 17 123 123 18 306 63 17 17 9 9 320 78 13 14 11 2 3 28 27 28 4 655 654 28 4 27 28 3 2 11 13 14 24 123 18 123 17 18 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; TRIM,FRT SEAT,BACK FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> BLACK	8-97465-192-0	01	1	1410-	●	●
2	COVER; TRIM,FRT SEAT,BACK FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> BLACK	8-97465-214-0	01	1	1410-	●	●
2	COVER; TRIM,FRT SEAT,BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) BLACK	8-97423-180-0	01	1	1410-	●	●
2	COVER; TRIM,FRT SEAT,BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) BLACK	8-97423-181-0	01	1	1410-	●	●
3	PAD; FRT SEAT BACK FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98187-530-0	01	1	1410-	●	●
3	PAD; FRT SEAT BACK FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98187-527-0	01	1	1410-	●	●
3	PAD; FRT SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91)	8-98187-525-0	01	1	1410-	●	●
3	PAD; FRT SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91)	8-98187-526-0	01	1	1410-	●	●
4	FRAME ASM; FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98187-534-0	01	1	1410-	●	●
4	FRAME ASM; FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91)	8-98187-534-0	01	1	1410-	●	●
4	FRAME ASM; FRT SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91)	8-98187-533-0	01	1	1410-	●	●
9	COVER; SIDE FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B) OUTER	8-98273-209-0	01	1	1410-	●	●
9	COVER; SIDE FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) INNER	8-98273-213-0	01	1	1410-	●	●
9	COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (B) OUTER	8-98273-218-0	01	1	1410-	●	●
9	COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (A) INNER	8-98273-220-0	01	1	1410-	●	●
9	COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (A) INNER BLACK	8-97424-603-0	01	1	1410-1410	●	●
9	COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (B) OUTER BLACK	8-97424-606-0	01	1	1410-1410	●	●
11	WIRE; SEAT BACK	8-98220-094-0	01	1	1410-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> BLACK	8-97465-278-0	01	1	1410-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> BLACK	8-97465-262-0	01	1	1410-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) BLACK	8-97423-192-0	01	1	1410-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) BLACK	8-97426-580-0	01	1	1410-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) BLACK	8-97423-193-0	01	1	1410-	●	●
14	PAD; FRT SEAT CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98187-562-0	01	1	1410-	●	●
14	PAD; FRT SEAT CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98187-563-0	01	1	1410-	●	●
14	PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91)	8-98187-559-0	01	1	1410-	●	●
14	PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91)	8-98187-560-0	01	1	1410-	●	●
15	FRAME; CUSHION,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98231-282-0	01	1	1410-	●	●
15	FRAME; CUSHION,FRT SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91)	8-98187-567-2	01	1	1410-	●	●
15	FRAME; CUSHION,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91)	8-98231-281-1	01	1	1410-	●	●
15	FRAME; CUSHION,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91)	8-98187-568-2	01	1	1410-	●	●
17	BOLT; RECLINING	8-98220-045-0	04	1	1410-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B) BLACK	8-97424-517-0	01	1	1410-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (B) BLACK	8-97424-517-0	01	1	1410-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-098-0	01	1	1410-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (D) BLACK	8-97424-608-0	01	1	1410-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (C) BLACK	8-97424-610-0	01	1	1410-	●	●
18	COVER; RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (A) BLACK	8-97424-090-0	01	1	1410-	●	●
18	COVER; RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (B) BLACK	8-97424-579-0	01	1	1410-	●	●
18	COVER; RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (D) BLACK	8-97424-582-0	01	1	1410-	●	●
18	COVER; RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (C) BLACK	8-97424-585-0	01	1	1410-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (A) BLACK	8-97424-096-0	01	1	1410-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (D) BLACK	8-97424-515-0	01	1	1410-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (C) BLACK	8-97424-516-0	01	1	1410-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (A) BLACK	8-97424-092-0	01	1	1410-	●	●
24	KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-611-0	01	1	1410-	●	●
24	KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B) BLACK	8-97424-612-0	01	1	1410-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (D) BLACK	8-97424-591-0	01	1	1410-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (C) BLACK	8-97424-597-0	01	1	1410-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (D) BLACK	8-97424-518-0	01	1	1410-	●	●
27	REST; HD,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> BLACK	8-97465-142-0	01	1	1410-	●	●
27	REST; HD,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> BLACK	8-97465-142-0	01	1	1410-	●	●
27	REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) LIGHT GRAY	8-97424-645-0	01	1	1410-	●	●
27	REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) LIGHT GRAY	8-97424-645-0	01	1	1410-	●	●
28	HOLDER; GUIDE,HD REST LOCK BLACK	8-97424-499-0	01	1	1410-	●	●
28	HOLDER; GUIDE,HD REST FREE BLACK	8-97424-500-0	01	1	1410-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) OUTER	8-98224-186-1	01	1	1410-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) INNER	8-98224-187-1	01	1	1410-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) INNER	8-98231-283-1	01	1	1410-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) OUTER	8-98220-097-1	01	1	1410-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) INNER	8-98220-096-1	01	1	1410-	●	●
67	BOLT; FRT SEAT TO BODY M12X27.5 W/PL WASHER	8-98050-319-0	08	1	1410-	●	●
78	RING; SNAP	8-98220-068-0	17	1	1410-	●	●
123	SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1410-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (B) M4X10	8-98220-086-0	05	1	1410-	●	●
123	SCREW; COVER,RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B) M4X10	8-98220-086-0	05	1	1410-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (B) M4X10	8-98220-086-0	03	1	1410-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (B) M4X10	8-98220-086-0	03	1	1410-	●	●
239	HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91)	8-98220-104-0	01	1	1410-	●	●
239	HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91)	8-98220-104-0	01	1	1410-	●	●
306	NUT; SEAT ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) M8 FLANGE	8-98220-087-0	07	1	1410-	●	●
306	NUT; SEAT ADJ SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) M8 FLANGE	8-98220-087-0	07	1	1410-	●	●
320	CLIP; BAND,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98220-048-0	02	1	1410-	●	●
320	CLIP; BAND,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91)	8-98220-048-0	02	1	1410-	●	●
610	COVER; LEG,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK	8-97416-785-4	04	1	1410-	●	●
654	HOOK; STOPPER FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> BLACK	8-97424-637-0	01	1	1410-	●	●
654	HOOK; STOPPER SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) BLACK	8-97424-637-0	01	1	1410-	●	●
655	BOLT; HOOK FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> M5X15	8-98224-171-0	01	1	1410-	●	●
655	BOLT; HOOK SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) M5X15	8-98224-171-0	01	1	1410-	●	●

486 601 18 24 24 123 228 24 18 24 228 20 228 18 24 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B) BLACK	8-97424-517-0	01	1	1410-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (B) BLACK	8-97424-517-0	01	1	1410-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-098-0	01	1	1410-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (D) BLACK	8-97424-608-0	01	1	1410-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (C) BLACK	8-97424-610-0	01	1	1410-	●	●
18	COVER; RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (A) BLACK	8-97424-090-0	01	1	1410-	●	●
18	COVER; RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (B) BLACK	8-97424-579-0	01	1	1410-	●	●
18	COVER; RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (D) BLACK	8-97424-582-0	01	1	1410-	●	●
18	COVER; RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (C) BLACK	8-97424-585-0	01	1	1410-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (A) BLACK	8-97424-096-0	01	1	1410-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (D) BLACK	8-97424-515-0	01	1	1410-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (C) BLACK	8-97424-516-0	01	1	1410-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (A) BLACK	8-97424-092-0	01	1	1410-	●	●
20	CAP; RECLINING ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) BLACK	8-97424-600-0	01	1	1410-	●	●
24	KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-611-0	01	1	1410-	●	●
24	KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B) BLACK	8-97424-612-0	01	1	1410-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (D) BLACK	8-97424-591-0	01	1	1410-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (C) BLACK	8-97424-597-0	01	1	1410-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (D) BLACK	8-97424-518-0	01	1	1410-	●	●
123	SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1410-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (B) M4X10	8-98220-086-0	05	1	1410-	●	●
123	SCREW; COVER,RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B) M4X10	8-98220-086-0	05	1	1410-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (B) M4X10	8-98220-086-0	03	1	1410-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT SEAT BACK POCKET(E91) (B) M4X10	8-98220-086-0	03	1	1410-	●	●
228	SCREW; KNOB SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) M5X10	8-98224-268-0	03	1	1410-	●	●
486	SWITCH; POWER SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98224-263-0	01	1	1410-	●	●
601	SCREW; SWITCH FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> M4X12	8-98224-269-0	02	1	1410-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
