◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51576 - TFR/TFS JIANGXI ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#148029) — 45 parça

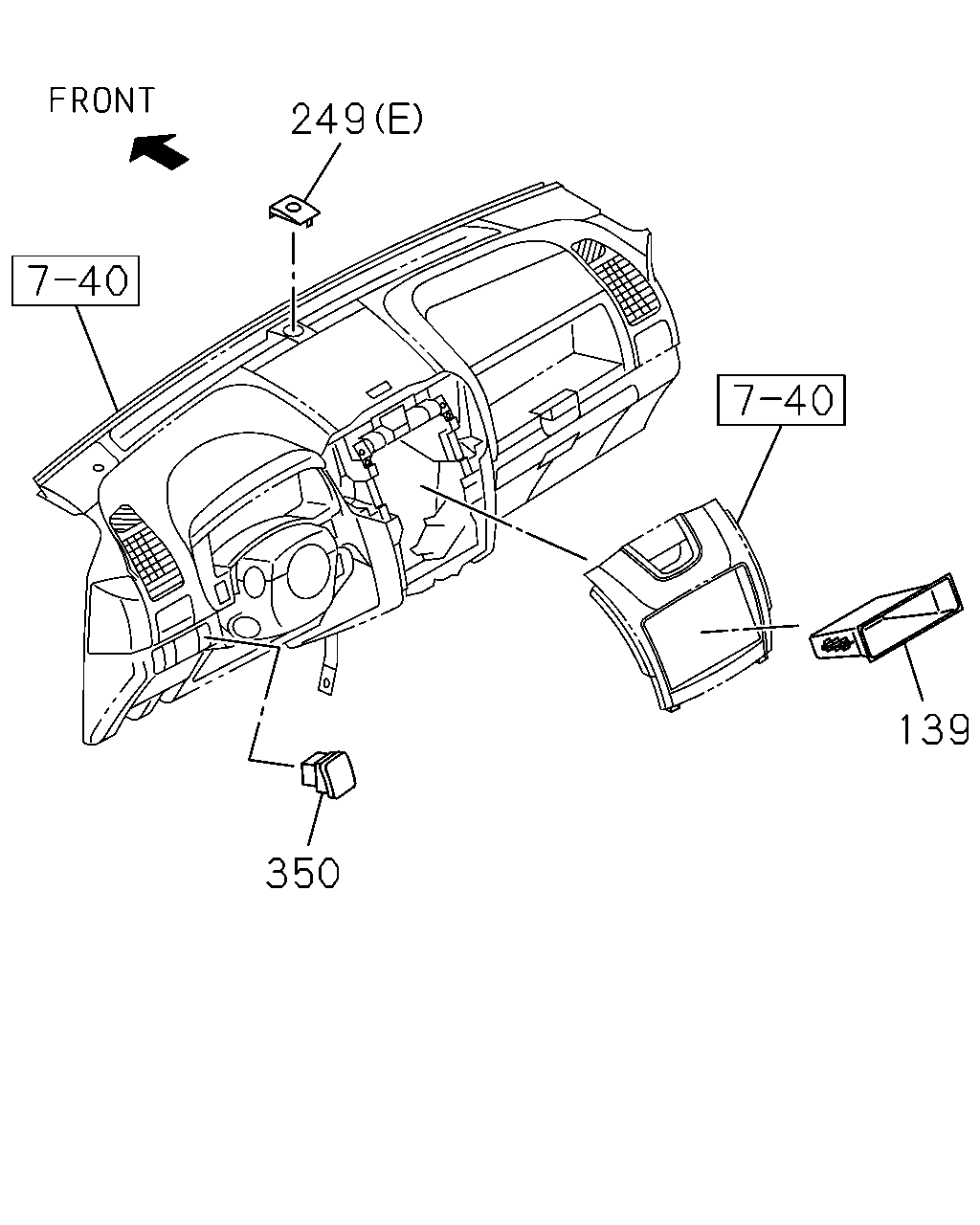

çizim 443648
249 350 139
BalonParca AdiParca NoAdetTipApplied Date A B
139 BOX; CONSOLE,UPR
RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) BLACK 		8-97416-619-0 01 1 1410- ● ●
249 COVER
AIR CONDITIONER MANUAL CONT(C60) (E) BLACK 		8-97416-613-2 01 1 1410- ● ●
249 COVER
AIR CONDITIONER AUTOMATIC CONT(C61) (E) BLACK 		8-97416-614-2 01 1 1410- ● ●
249 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) BLACK 		8-97416-660-1 01 1 1410- ●
249 COVER
M/T MUA 5 SPEED 5H(MWQ) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (A) BLACK 		8-97417-414-2 01 1 1410- ● ●
249 COVER
M/T MUA 5 SPEED 5H(MWQ) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) (A) BLACK 		8-97417-150-2 01 1 1410- ● ●
249 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (D) BLACK 		8-97416-659-2 01 1 1410- ●
249 COVER
A/T 5 SPEED-AISIN(MA1) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (B) BLACK 		8-97417-418-1 01 1 1410- ●
249 COVER
A/T 5 SPEED-AISIN(MA1) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) (B) BLACK 		8-97417-152-1 01 1 1410- ●
350 COVER; CONSOLE
EXC. HEAD LAMP LEVELING MANUAL<T92> 		8-98103-424-2 01 1 1410- ● ●
350 COVER; CONSOLE 8-98103-424-2 01 1 1410- ●
350 COVER; CONSOLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-424-2 01 1 1410- ●
350 COVER; CONSOLE 8-98103-424-2 03 1 1410- ● ●

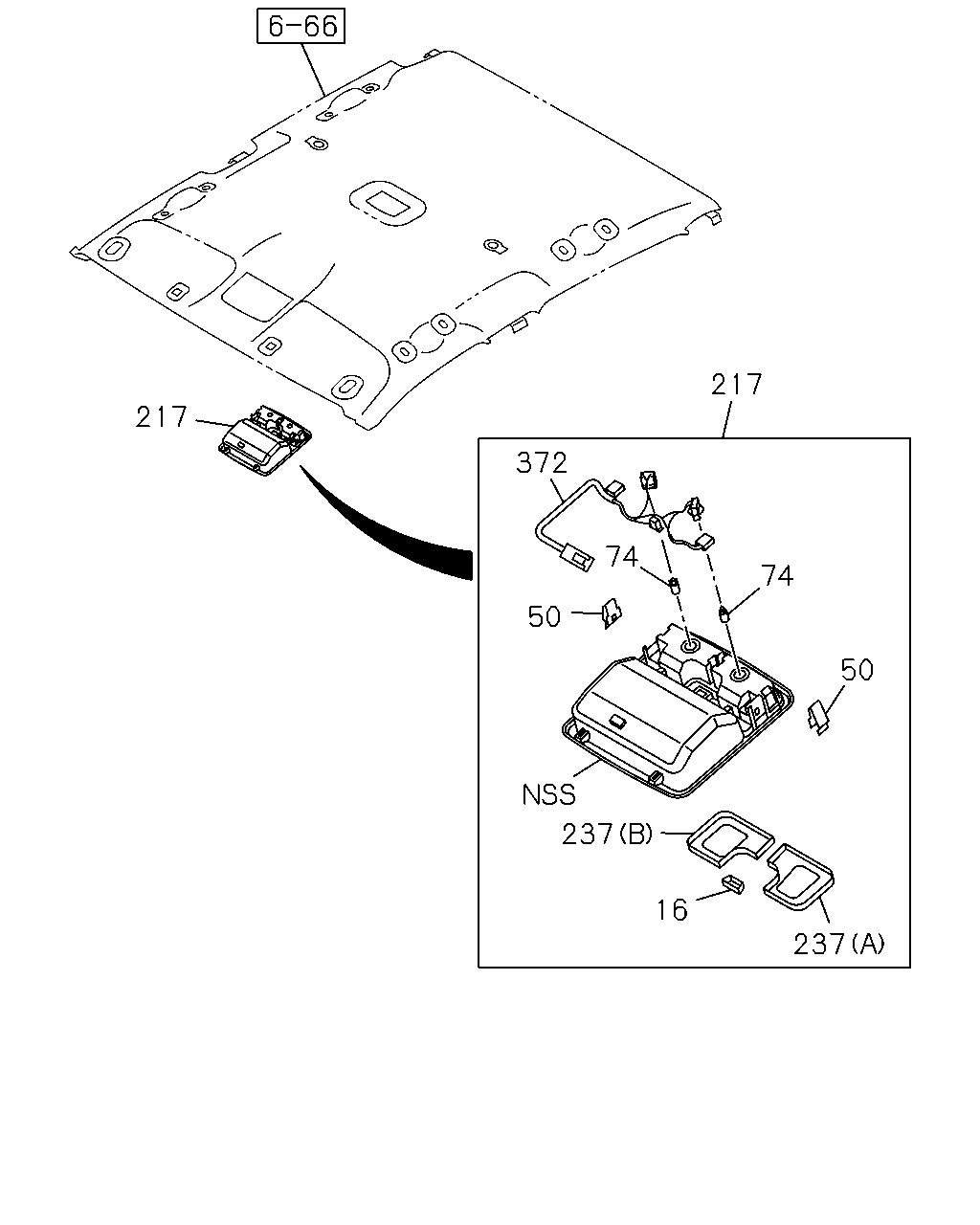

çizim 444256
217 217 372 50 74 74 50 237 16 237
BalonParca AdiParca NoAdetTipApplied Date A B
16 KNOB ASM
HEADER CONSOLE<DK6> GRAY 		8-97423-261-0 01 1 1410- ● ●
50 CLIP; CONSOLE
HEADER CONSOLE<DK6> 		8-98192-891-0 02 1 1410- ● ●
74 BULB; CONSOLE
HEADER CONSOLE<DK6> 12V 5W CHI 		8-94124-595-0 02 1 1410- ● ●
217 CONSOLE; HEADER
HEADER CONSOLE<DK6> GRAY 		8-97416-690-5 01 1 1410- ● ●
237 LENS; HEADER CONSOLE
HEADER CONSOLE<DK6> (A) 		8-98192-893-0 01 1 1410- ● ●
237 LENS; HEADER CONSOLE
HEADER CONSOLE<DK6> (B) 		8-98192-894-0 01 1 1410- ● ●
372 HARNESS ASM; SWITCH,HEADER CONSOLE
HEADER CONSOLE<DK6> 		8-98192-890-0 01 1 1410- ● ●

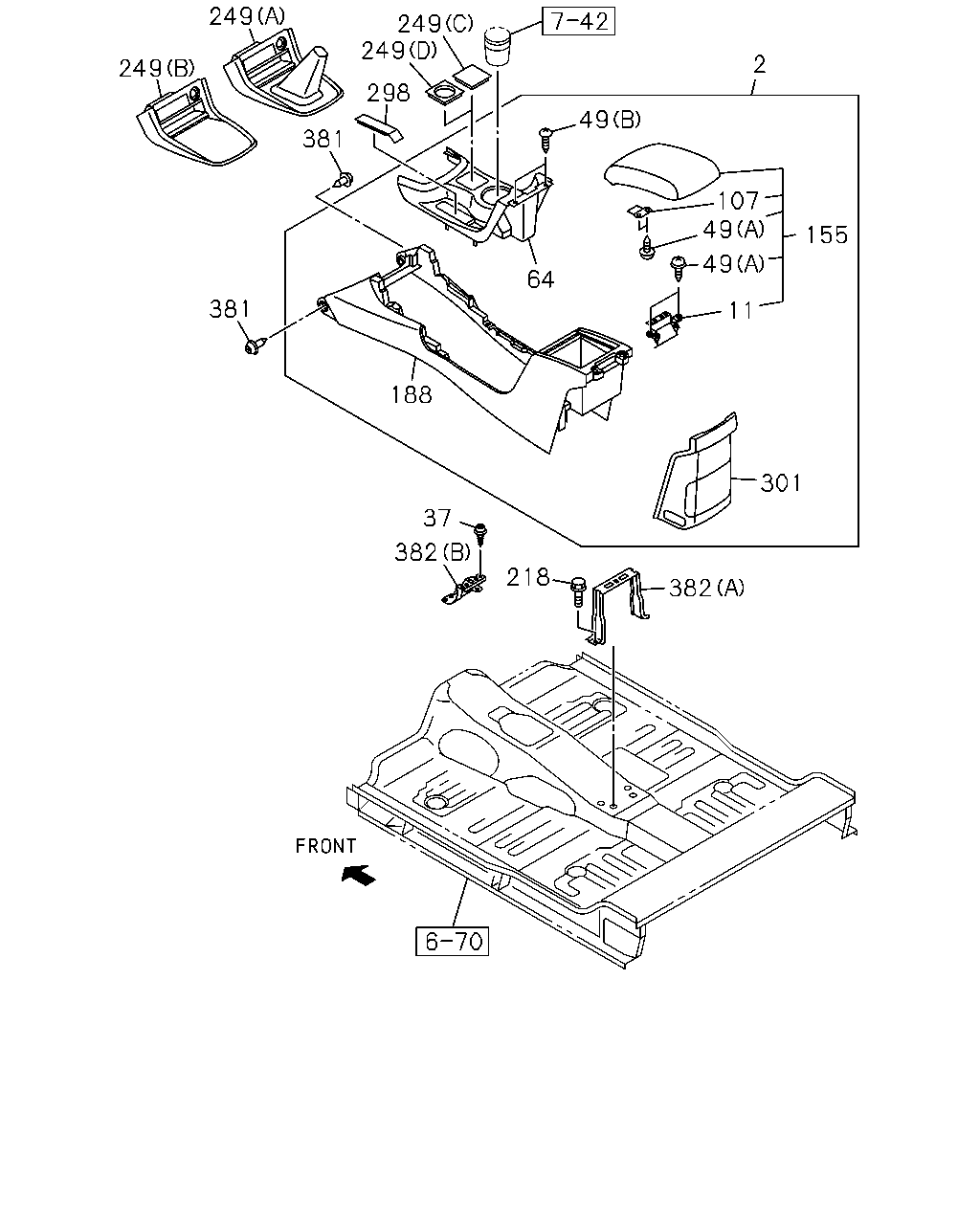

çizim 444503
249 249 381 381 298 249 249 2 49 107 49 155 49 11 301 188 64 37 382 218 382
BalonParca AdiParca NoAdetTipApplied Date A B
2 CONSOLE; CENTER
CUSTOM FRONT CONSOLE<D07> BLACK 		8-97427-533-0 01 1 1410- ● ●
2 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> BLACK 		8-97427-534-0 01 1 1410- ● ●
11 HINGE; CONSOLE LID
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97423-090-0 01 1 1410- ● ●
37 SCREW; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> M5X16 TAPPING W/PL WASHER 		0-74165-516-0 03 1 1410- ● ●
49 SCREW; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) M5X16 		8-98197-847-0 06 1 1410- ● ●
49 SCREW; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) M4X14 		8-98234-823-0 02 1 1410- ● ●
64 BEZEL; CENTER CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97423-093-3 01 1 1410- ● ●
107 LOCK; LID,RR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97423-089-0 01 1 1410- ● ●
155 LID; PARCEL BOX
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97423-094-1 01 1 1410- ● ●
188 CONSOLE; RR
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97423-086-3 01 1 1410- ● ●
218 BOLT; BRKT
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> M6X12.5 FLANGE 		8-98014-141-0 02 1 1410- ● ●
249 COVER
AIR CONDITIONER MANUAL CONT(C60) (E) BLACK 		8-97416-613-2 01 1 1410- ● ●
249 COVER
AIR CONDITIONER AUTOMATIC CONT(C61) (E) BLACK 		8-97416-614-2 01 1 1410- ● ●
249 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) BLACK 		8-97416-660-1 01 1 1410- ●
249 COVER
M/T MUA 5 SPEED 5H(MWQ) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (A) BLACK 		8-97417-414-2 01 1 1410- ● ●
249 COVER
M/T MUA 5 SPEED 5H(MWQ) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) (A) BLACK 		8-97417-150-2 01 1 1410- ● ●
249 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (D) BLACK 		8-97416-659-2 01 1 1410- ●
249 COVER
A/T 5 SPEED-AISIN(MA1) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY(UVA) (B) BLACK 		8-97417-418-1 01 1 1410- ●
249 COVER
A/T 5 SPEED-AISIN(MA1) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) (B) BLACK 		8-97417-152-1 01 1 1410- ●
298 BEZEL; HAND BRAKE,CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97416-651-2 01 1 1410- ● ●
301 BEZEL; CONSOLE
CUSTOM FRONT CONSOLE<D07> BLACK 		8-97423-091-2 01 1 1410- ● ●
301 BEZEL; CONSOLE
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-092-2 01 1 1410- ● ●
381 RETAINER; FLOOR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97360-070-0 02 1 1410- ● ●
382 BRACKET; FLOOR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98102-973-3 01 1 1410- ● ●
382 BRACKET; FLOOR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98112-864-4 01 1 1410- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
