◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51576 - TFR/TFS JIANGXI ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#148028) — 24 parça

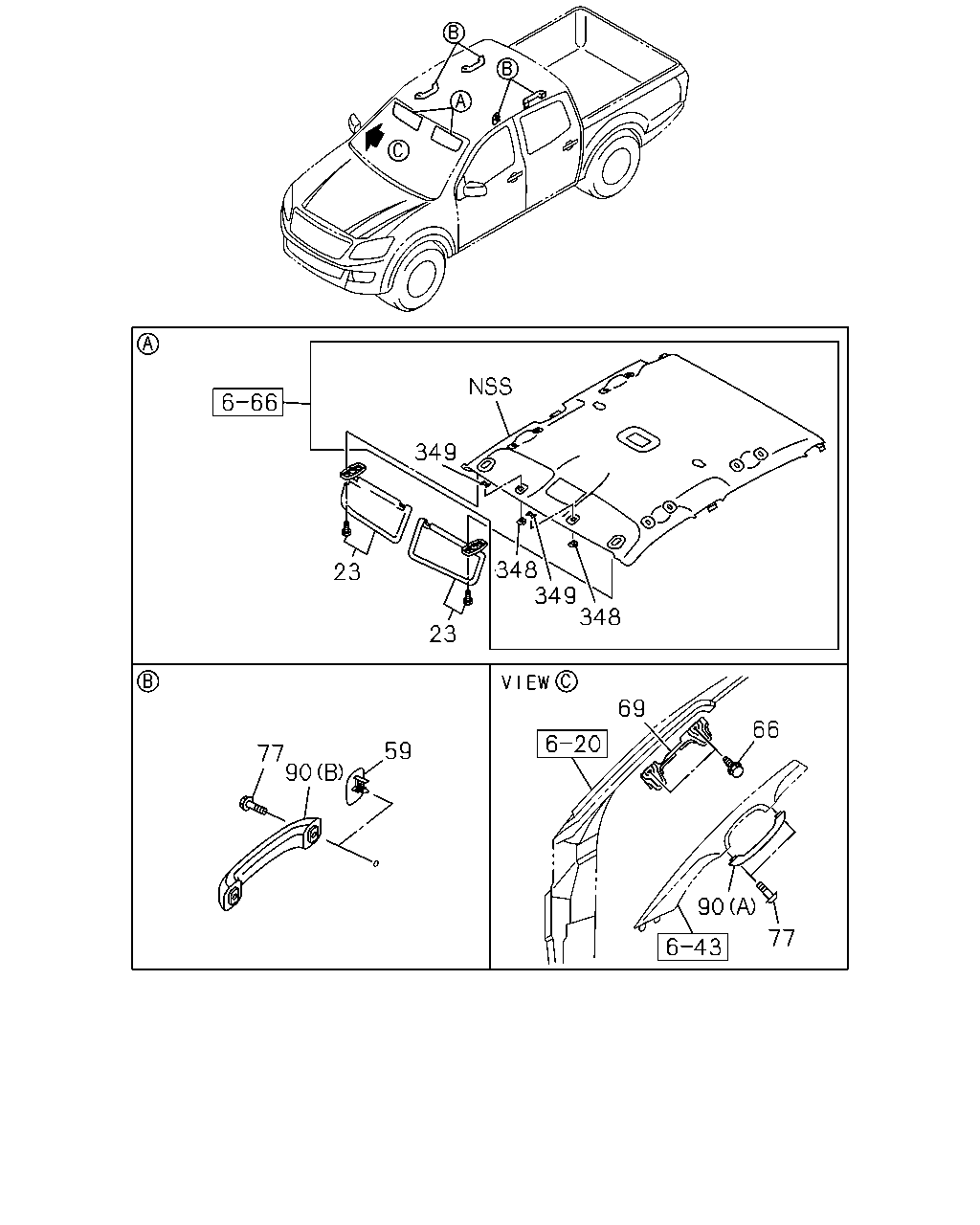

çizim 444084
23 23 349 348 349 348 69 66 77 59 90 90 77
BalonParca AdiParca NoAdetTipApplied Date A B
23 SUN VISOR
GRAY 		8-97417-449-2 01 1 1410- ●
23 SUN VISOR
GRAY 		8-97417-452-4 01 1 1410- ● ●
23 SUN VISOR
GRAY 		8-97417-453-2 01 1 1410- ●
59 COVER; ASSIST GRIP
GRAY 		8-97416-700-0 02 1 1410- ● ●
59 COVER; ASSIST GRIP
EXC. ASSIST HANDLE<E28> GRAY 		8-97416-700-0 02 1 1410- ● ●
66 BOLT; ASSIST GRIP BRKT
HIGH RIDE SUSPENSION(7YC) M6X16 FLANGE 		8-98050-320-0 04 1 1410- ●
66 BOLT; ASSIST GRIP BRKT
M6X16 FLANGE 		8-98050-320-0 04 1 1410- ●
69 BRACKET; ASSIST GRIP
HIGH RIDE SUSPENSION(7YC) 		8-98103-347-3 01 1 1410- ●
69 BRACKET; ASSIST GRIP 8-98103-347-3 01 1 1410- ●
69 BRACKET; ASSIST GRIP
HIGH RIDE SUSPENSION(7YC) 		8-98103-348-3 01 1 1410- ●
69 BRACKET; ASSIST GRIP 8-98103-348-3 01 1 1410- ●
77 SCREW; ASSIST GRIP
ASSIST HANDLE<E28> M6X25 		0-36230-625-0 02 1 1410- ● ●
77 SCREW; ASSIST GRIP
M6X25 		0-36230-625-0 04 1 1410- ● ●
77 SCREW; ASSIST GRIP
HIGH RIDE SUSPENSION(7YC) M6X25 		0-36230-625-0 04 1 1410- ●
77 SCREW; ASSIST GRIP
M6X25 		0-36230-625-0 04 1 1410- ●
90 GRIP; ASSIST,ROOF
ASSIST HANDLE<E28> (B) FRONT GRAY 		8-97416-698-4 01 1 1410- ● ●
90 GRIP; ASSIST,ROOF
HIGH RIDE SUSPENSION(7YC) (A) GRAY 		8-97416-698-4 02 1 1410- ●
90 GRIP; ASSIST,ROOF
(A) GRAY 		8-97416-698-4 02 1 1410- ●
90 GRIP; ASSIST,ROOF
(B) REAR GRAY 		8-97418-299-1 01 1 1410- ● ●
90 GRIP; ASSIST,ROOF
(B) REAR GRAY 		8-97418-300-1 01 1 1410- ● ●
348 RETAINER; SUNSHADE
HEADER CONSOLE<DK6> 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> EXC. MAP LAMP<C74> GRAY 		8-97403-990-0 02 1 1410- ● ●
348 RETAINER; SUNSHADE
MAP LAMP<C74> 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> EXC. HEADER CONSOLE<DK6> GRAY 		8-97403-990-0 02 1 1410- ● ●
349 CLIP; RETAINER SUNSHADE
HEADER CONSOLE<DK6> 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> EXC. MAP LAMP<C74> 		8-98039-903-0 02 1 1410- ● ●
349 CLIP; RETAINER SUNSHADE
MAP LAMP<C74> 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> EXC. HEADER CONSOLE<DK6> 		8-98039-903-0 02 1 1410- ● ●
