7-40 — INSTRUMENT PANEL AND BOX (#148026) — 64 parça

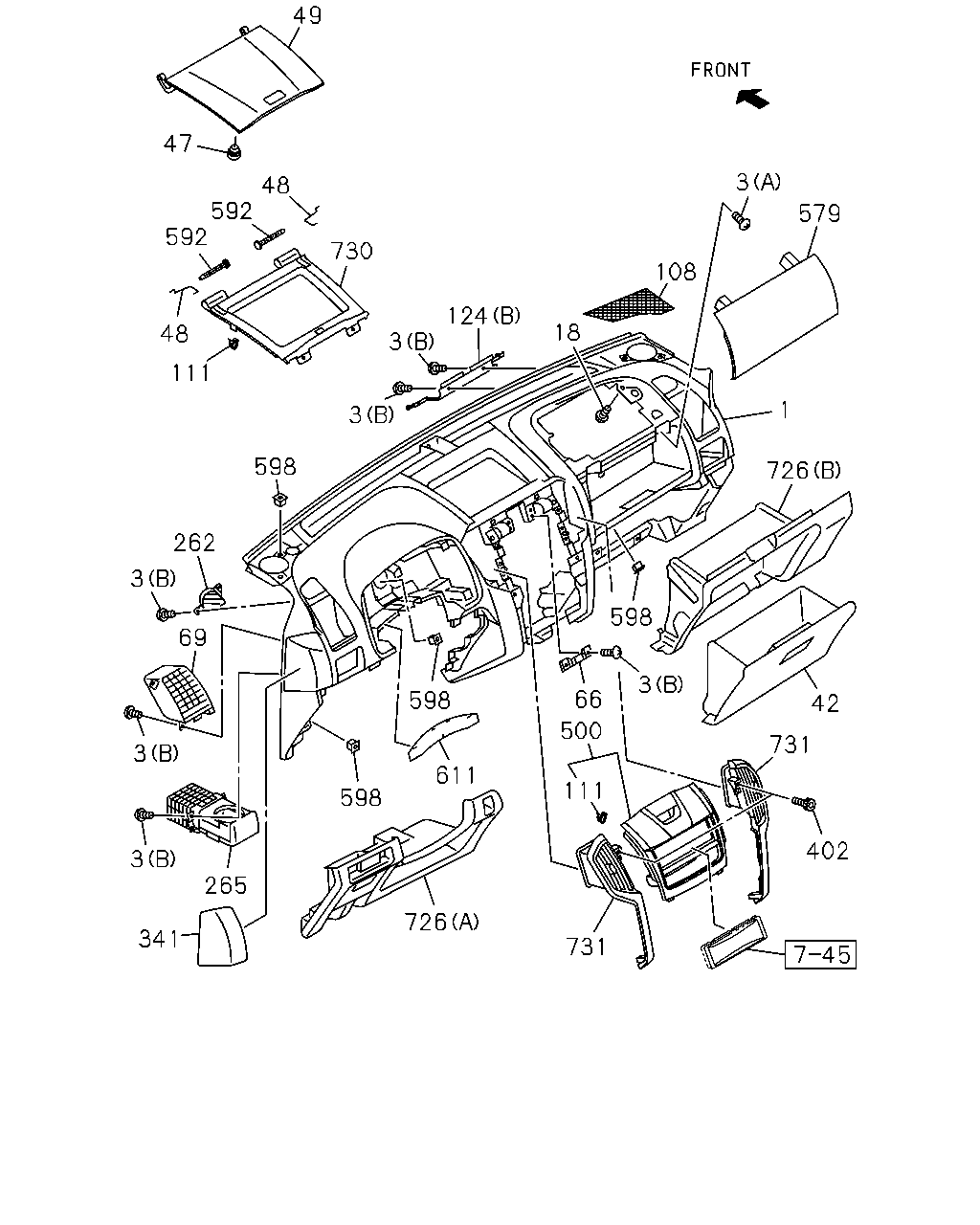

çizim 444073
49 47 48 592 592 48 111 730 3 124 3 598 262 3 69 3 3 265 341 726 598 611 598 500 66 3 111 731 402 731 42 726 1 579 3 108 18 598
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
BLACK 		8-97423-083-0 01 1 1410- ● ●
3 SCREW; BINDER HD
(A) M5X16 		8-98197-847-0 02 1 1410- ● ●
3 SCREW; BINDER HD
(B) M5X16 		8-98246-739-0 31 1 1410- ● ●
18 BOLT; BRKT
M8X40 FLANGE CHI 		0-28650-840-0 02 1 1410- ● ●
42 BOX; GLOVE,INST PNL
LOCK GLOVE BOX<A99> BLACK 		8-97416-629-2 01 1 1410- ● ●
42 BOX; GLOVE,INST PNL
EXC. LOCK GLOVE BOX<A99> BLACK 		8-97416-631-2 01 1 1410- ● ●
47 STOPPER; GLOVE BOX LID 8-98194-179-1 03 1 1410- ● ●
48 SPRING; GLOVE BOX LID 8-98194-177-1 01 1 1410-1411 ● ●
48 SPRING; GLOVE BOX LID 8-98298-678-0 01 1 1412- ● ●
48 SPRING; GLOVE BOX LID 8-98194-178-1 01 1 1410-1411 ● ●
48 SPRING; GLOVE BOX LID 8-98298-679-0 01 1 1412- ● ●
49 LID; GLOVE BOX
BLACK 		8-97423-320-1 01 1 1410- ● ●
66 REINFORCEMENT; INST PANEL 8-98187-112-0 01 1 1410- ● ●
69 GRILLE; SIDE,AIR OUTLET
BLACK 		8-97423-071-2 01 1 1410- ● ●
69 GRILLE; SIDE,AIR OUTLET
BLACK 		8-97423-072-2 01 1 1410- ● ●
108 GRILLE; INST PNL
BLACK 		8-97416-625-2 01 1 1410- ● ●
108 GRILLE; INST PNL
BLACK 		8-97416-626-2 01 1 1410- ● ●
111 CLIP; CLUSTER PANEL,GRILLE
RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) 		8-98164-677-0 04 1 1410- ● ●
111 CLIP; CLUSTER PANEL,GRILLE 8-98164-677-0 02 1 1410- ● ●
124 REINFORCEMENT; INST PNL,UPR
(A) 		8-98064-648-1 01 1 1410- ● ●
124 REINFORCEMENT; INST PNL,UPR
(B) 		8-98232-645-0 01 1 1410- ● ●
262 GRILLE; DEFROSTER
BLACK 		8-97423-076-0 01 1 1410- ● ●
262 GRILLE; DEFROSTER
BLACK 		8-97423-077-0 01 1 1410- ● ●
265 HOLDER; CUP
BLACK 		8-97423-073-0 01 1 1410- ● ●
265 HOLDER; CUP
BLACK 		8-97423-074-0 01 1 1410- ● ●
341 LID; FUSE BOX
BLACK 		8-97416-611-3 01 1 1410- ● ●
341 LID; FUSE BOX
BLACK 		8-97416-612-3 01 1 1410- ● ●
402 SCREW; VENT GRILLE,INST
M5X16 TAPPING 		8-98167-449-0 02 1 1410- ● ●
500 CLUSTER; INST CENTER
RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) BLACK 		8-97416-624-2 01 1 1410- ● ●
579 COVER; INST PNL
BLACK 		8-97423-084-3 01 1 1410- ● ●
592 HINGE; LID 8-98194-176-1 02 1 1410- ● ●
598 GROMMET; SCREW 8-98164-685-0 15 1 1410- ● ●
611 SHEET 8-98187-119-0 01 1 1410- ● ●
726 PANEL; INST LW
(A) BLACK 		8-97417-398-1 01 1 1410- ● ●
726 PANEL; INST LW
(B) BLACK 		8-97417-400-1 01 1 1410- ● ●
730 BEZEL; LID
BLACK 		8-97423-319-0 01 1 1410- ● ●
731 GRILLE; VENTILATOR
SILVER 		8-97416-637-4 01 1 1410- ● ●
731 GRILLE; VENTILATOR
SILVER 		8-97416-638-4 01 1 1410- ● ●

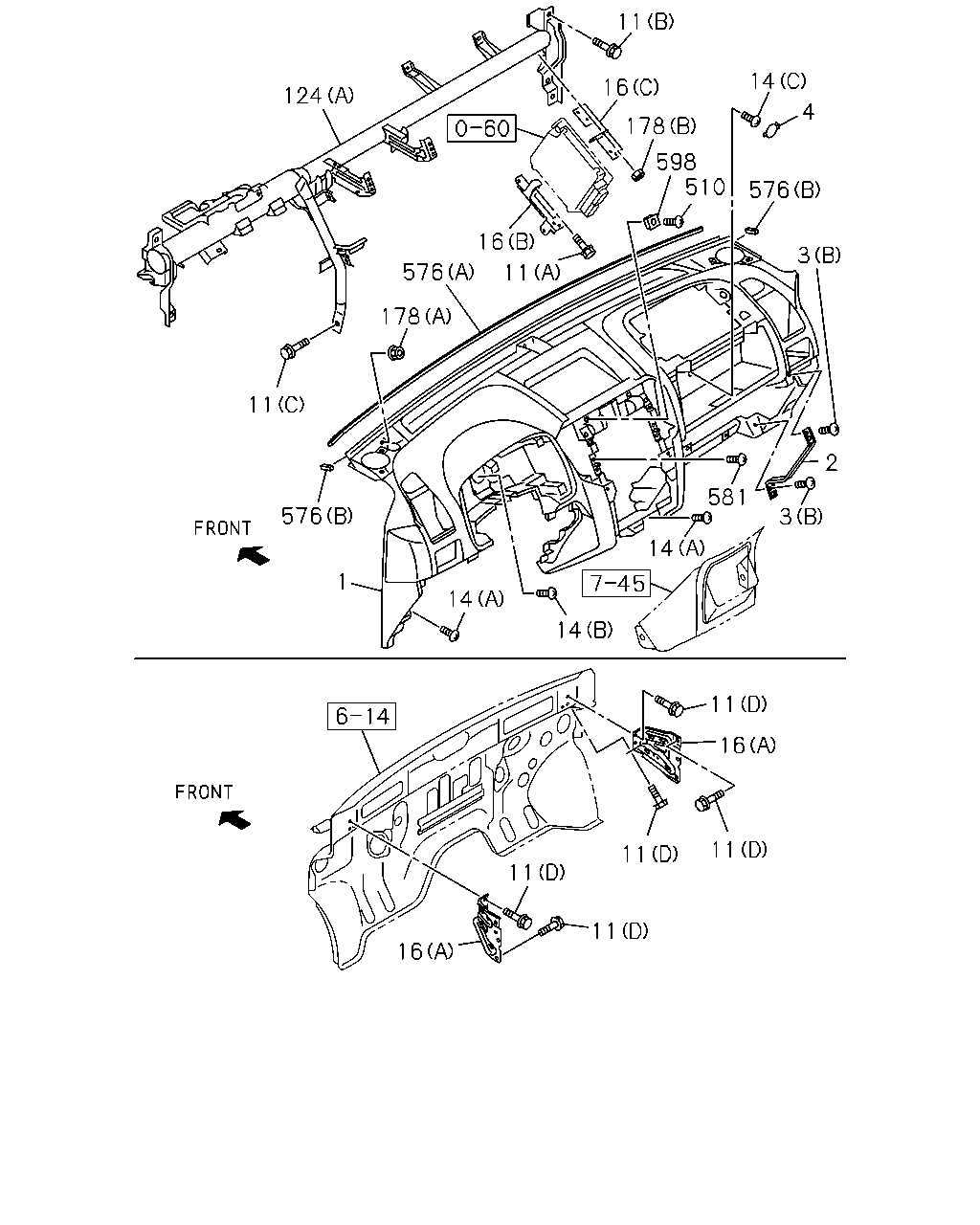

çizim 444139
124 16 11 14 178 598 510 576 3 2 3 581 14 14 14 1 576 11 178 576 16 11 11 16 11 11 11 11 16 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
BLACK 		8-97423-083-0 01 1 1410- ● ●
2 REINFORCEMENT; INST PNL,LWR 8-98232-644-1 01 1 1410- ● ●
3 SCREW; BINDER HD
(A) M5X16 		8-98197-847-0 02 1 1410- ● ●
3 SCREW; BINDER HD
(B) M5X16 		8-98246-739-0 31 1 1410- ● ●
4 COVER; INST PNL
BLACK 		8-97416-610-0 01 1 1410- ● ●
11 BOLT; INST PNL
(B) M8X25 FLANGE 		0-28450-825-0 04 1 1410- ● ●
11 BOLT; INST PNL
(A) M6X20 FLANGE 		0-28650-620-0 01 1 1410- ● ●
11 BOLT; INST PNL
(C) M6X30 W/LK&PL WASHER 		8-98057-965-0 01 1 1410- ● ●
11 BOLT; INST PNL
(D) M8X32.5 W/PL WASHER 		8-98136-077-0 12 1 1410- ● ●
14 SCREW; INST PNL
(A) M5X16 		8-98167-220-0 03 1 1410- ● ●
14 SCREW; INST PNL
(A) M5X16 		8-98167-220-0 04 1 1410- ● ●
14 SCREW; INST PNL
(B) M5X16 TAPPING 		8-98167-449-0 06 1 1410- ● ●
14 SCREW; INST PNL
(C) M5X14 TAPPING 		8-98184-363-0 01 1 1410- ● ●
16 BRACKET; INST PNL
(A) 		8-98104-144-3 01 1 1410- ● ●
16 BRACKET; INST PNL
(A) 		8-98108-670-2 01 1 1410- ● ●
16 BRACKET; INST PNL
(B) 		8-98222-758-1 01 1 1410- ● ●
16 BRACKET; INST PNL
(C) 		8-98229-118-1 01 1 1410- ● ●
124 REINFORCEMENT; INST PNL,UPR
(A) 		8-98064-648-1 01 1 1410- ● ●
124 REINFORCEMENT; INST PNL,UPR
(B) 		8-98232-645-0 01 1 1410- ● ●
178 NUT; INST PANEL
(B) M6 FLANGE 		0-91180-106-0 02 1 1410- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		8-98055-704-0 03 1 1410- ● ●
510 SCREW; CENTER CLUSTER
M5X16 TAPPING 		8-98167-449-0 02 1 1410- ● ●
576 CUSHION
(A) 		8-98232-668-0 01 1 1410- ● ●
576 CUSHION
(B) 		8-98232-669-0 02 1 1410- ● ●
581 SCREW
RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) M5X16 TAPPING 		8-98167-449-0 02 1 1410- ● ●
598 GROMMET; SCREW 8-98164-685-0 15 1 1410- ● ●
