Sayfa 7-30 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51576 - TFR/TFS JIANGXI ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶

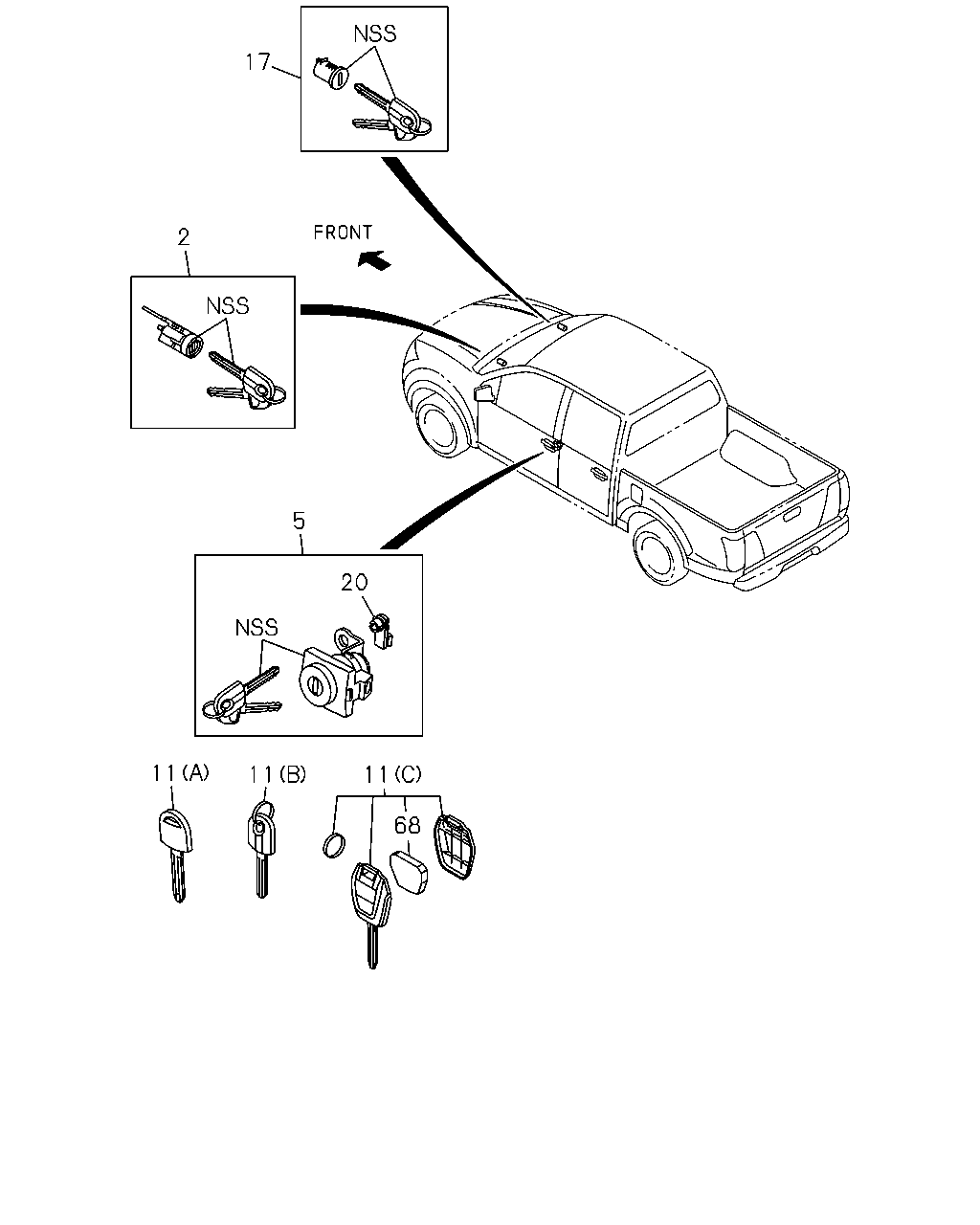

7-30 — LOCK CYLINDER SET (#148025) — 24 parça

17 2 5 20 11 11 11 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BARREL ASM; W/KEY,STRG LOCK IMMOBILIZER SYSTEM<7KC>	8-98274-647-0	01	1	1412-	●	●
2	BARREL ASM; W/KEY,STRG LOCK	8-98193-734-0	01	1	1410-1411	●	●
2	BARREL ASM; W/KEY,STRG LOCK EXC. IMMOBILIZER SYSTEM<7KC>	8-98193-734-0	01	1	1412-	●	●
5	CYLINDER ASM; DOOR LOCK IMMOBILIZER SYSTEM<7KC>	8-98274-650-0	01	1	1412-	●	●
5	CYLINDER ASM; DOOR LOCK	8-98193-737-0	01	1	1410-1411	●	●
5	CYLINDER ASM; DOOR LOCK EXC. IMMOBILIZER SYSTEM<7KC>	8-98193-737-0	01	1	1412-	●	●
11	KEY; BLANK IMMOBILIZER SYSTEM<7KC> (C) REMOTE CONT DOOR LOCK W/IMMOBILIZER	8-98274-338-0	AR	1	1412-	●	●
11	KEY; BLANK (C) REMOTE CONT DOOR LOCK W/IMMOBILIZER	8-98136-339-1	AR	1	1410-1411	●	●
11	KEY; BLANK EXC. IMMOBILIZER SYSTEM<7KC> (C) REMOTE CONT DOOR LOCK W/IMMOBILIZER	8-98136-339-1	AR	1	1412-	●	●
11	KEY; BLANK IMMOBILIZER SYSTEM<7KC> (B) IMMOBILIZER	8-98007-939-1	AR	1	1410-1411	●	●
11	KEY; BLANK IMMOBILIZER SYSTEM<7KC> (B) IMMOBILIZER	8-98274-332-0	AR	1	1412-	●	●
11	KEY; BLANK EXC. IMMOBILIZER SYSTEM<7KC> (A)	8-97350-352-0	AR	1	1410-	●	●
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC>	8-98274-648-0	01	1	1412-	●	●
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK LOCK GLOVE BOX<A99>	8-98193-735-0	01	1	1410-1411	●	●
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK LOCK GLOVE BOX<A99> EXC. IMMOBILIZER SYSTEM<7KC>	8-98193-735-0	01	1	1412-	●	●
20	SNAP; DOOR LOCK CYL YELLOW	8-97350-043-0	01	1	1410-	●	●
68	TRANSMITTER; DOOR LOCK	8-98102-844-1	01	1	1410-	●	●

1 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC>	8-98155-863-0	01	1	1410-1411	●	●
1	CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC>	8-98274-592-0	01	1	1412-	●	●
1	CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> EXC. IMMOBILIZER SYSTEM<7KC>	8-98103-055-0	01	1	1410-	●	●
1	CYLINDER SET; CAR LOCK IMMOBILIZER SYSTEM<7KC> EXC. LOCK GLOVE BOX<A99> CHI	8-98247-309-0	01	1	1410-1411	●	●
1	CYLINDER SET; CAR LOCK IMMOBILIZER SYSTEM<7KC> EXC. LOCK GLOVE BOX<A99> CHI	8-98274-642-0	01	1	1412-	●	●
1	CYLINDER SET; CAR LOCK EXC. LOCK GLOVE BOX<A99>,IMMOBILIZER SYSTEM<7KC>	8-98247-308-0	01	1	1410-	●	●
20	SNAP; DOOR LOCK CYL YELLOW	8-97350-043-0	01	1	1410-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
