◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51576 - TFR/TFS JIANGXI ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#148024) — 19 parça

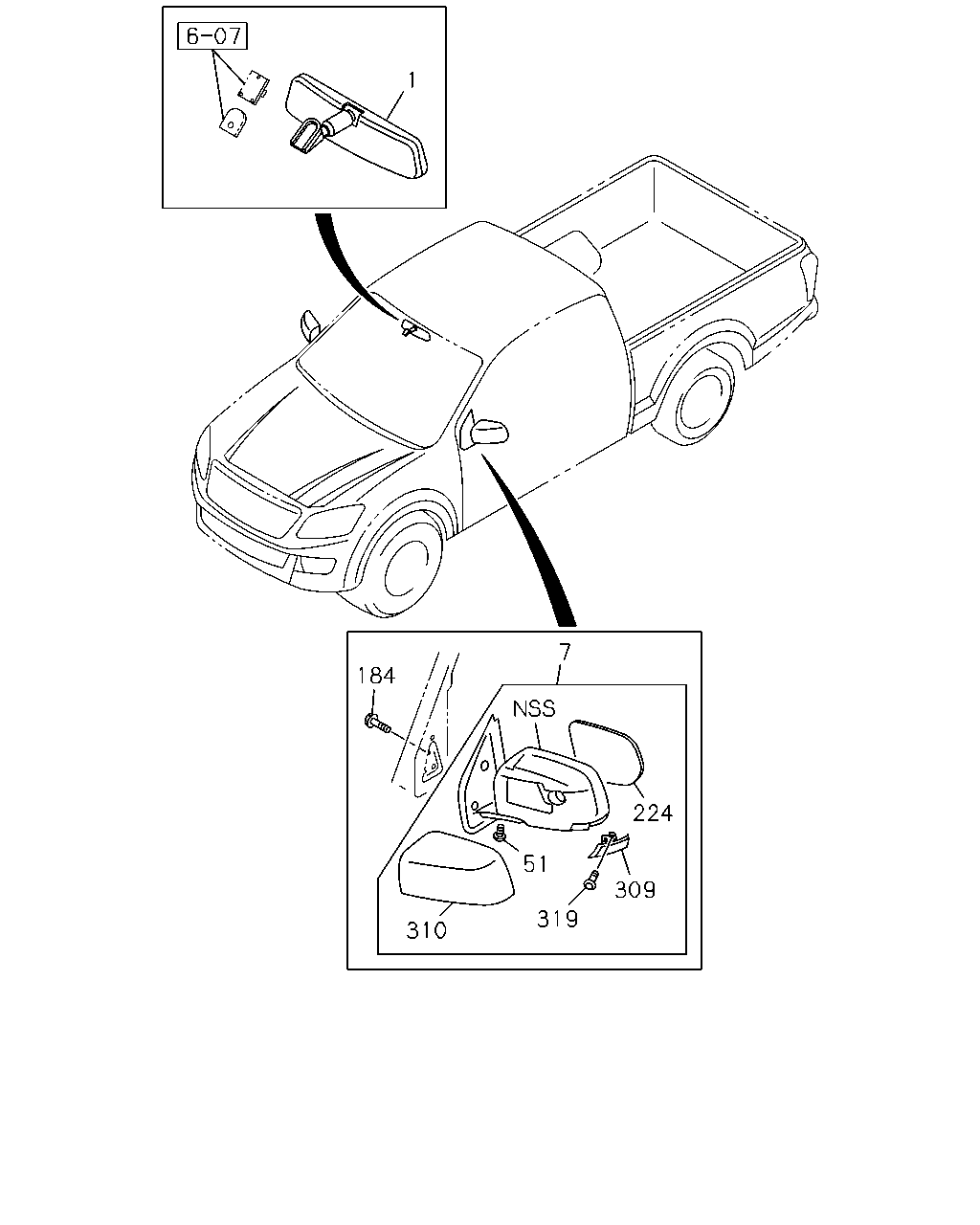

çizim 443730
1 184 7 224 309 319 51 310
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM 8-97237-560-0 01 1 1410- ● ●
7 MIRROR ASM; DOOR
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> 		8-98065-336-4 01 1 1410- ● ●
7 MIRROR ASM; DOOR
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> 		8-98065-337-4 01 1 1410- ● ●
7 MIRROR ASM; DOOR
DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98241-106-0 01 1 1410- ● ●
7 MIRROR ASM; DOOR
DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98241-107-0 01 1 1410- ● ●
7 MIRROR ASM; DOOR
DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> CHI 		8-98247-151-0 01 1 1410- ● ●
7 MIRROR ASM; DOOR
DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> CHI 		8-98247-153-0 01 1 1410- ● ●
51 SCREW; MIRROR 8-98193-685-0 02 1 1410- ● ●
184 BOLT; MIRROR
M6X14 FLANGE 		8-97247-698-0 06 1 1410-1506 ● ●
184 BOLT; MIRROR
M6X14 FLANGE 		8-97247-698-0 06 1 1507- ● ●
224 MIRROR; DOOR 8-98193-681-0 01 1 1410- ● ●
224 MIRROR; DOOR 8-98193-682-0 01 1 1410- ● ●
309 LAMP ASM; SIDE TURN,DOOR MIRROR 8-98193-683-0 01 1 1410- ● ●
309 LAMP ASM; SIDE TURN,DOOR MIRROR 8-98193-684-0 01 1 1410- ● ●
310 COVER; DOOR MIRROR
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 		8-98193-686-0 01 1 1410- ● ●
310 COVER; DOOR MIRROR
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3>, DOOR MIR ELEC DUAL FOLDING CHROME TURN SIGNAL<8JH> 		8-98193-687-0 01 1 1410- ● ●
310 COVER; DOOR MIRROR
DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98203-335-0 01 1 1410- ● ●
310 COVER; DOOR MIRROR
DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98203-336-0 01 1 1410- ● ●
319 SCREW; SIDE TURN LAMP 8-98193-685-0 02 1 1410- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
