◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51576 - TFR/TFS JIANGXI ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#148023) — 19 parça

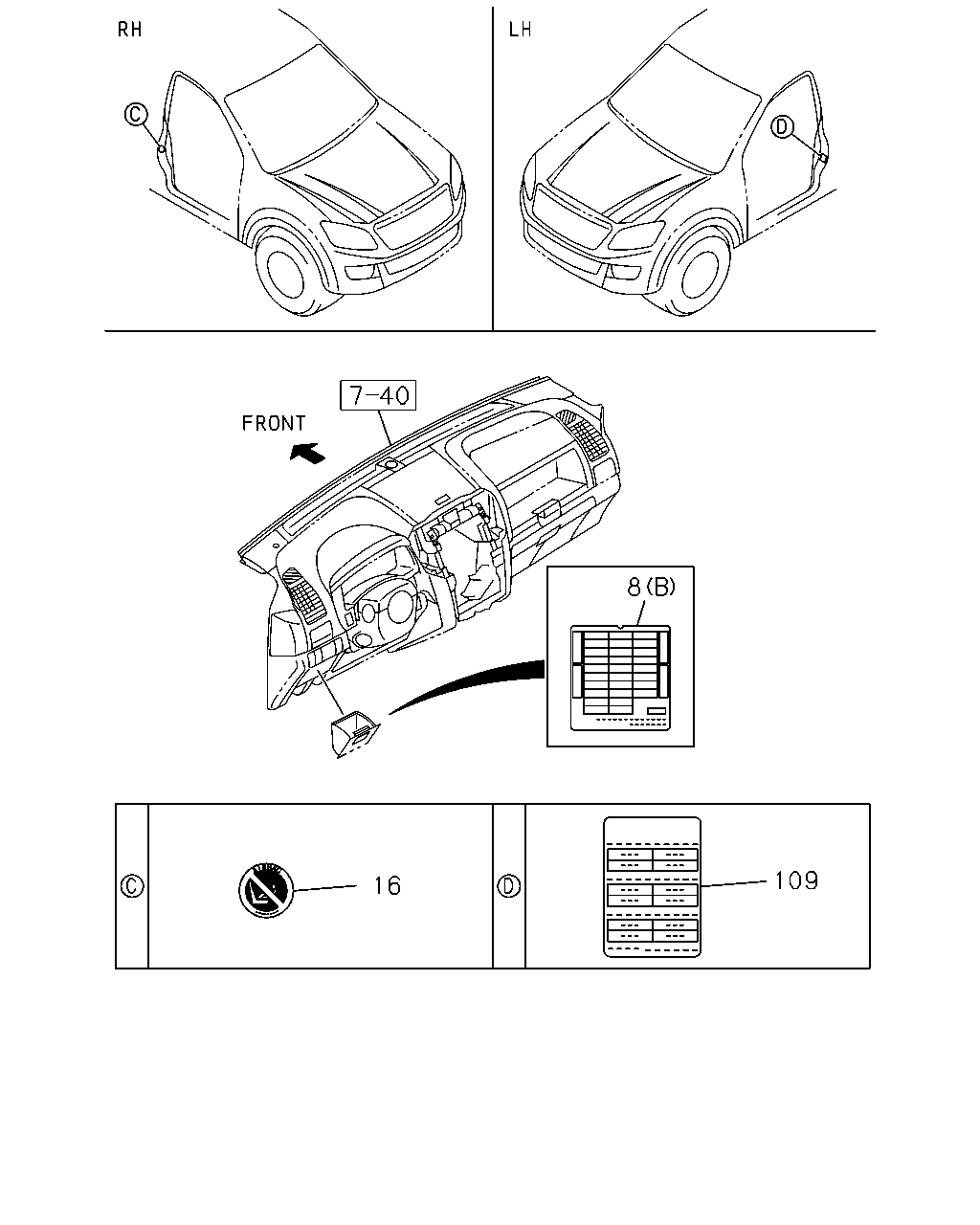

çizim 443708
8 16 109
BalonParca AdiParca NoAdetTipApplied Date A B
8 LABEL; FUSE
M/T MUA 5 SPEED 5H(MWQ) (A) 		8-98166-842-3 01 1 1410-1506 ●
8 LABEL; FUSE
(A) 		8-98166-842-3 01 1 1410-1506 ●
8 LABEL; FUSE
M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98166-842-3 01 1 1507- ●
8 LABEL; FUSE
(A) 		8-98166-842-3 01 1 1507- ●
8 LABEL; FUSE
(B) 		8-98213-358-0 01 1 1410- ● ●
16 PLATE; CAUTION,SIR 8-97378-569-0 01 1 1410- ● ●
109 PLATE; CAUTION,TIRE PLACARD
FRT&RR 215/70R15C DUNLOP TIRE(CWP) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98100-752-1 01 1 1410- ●
109 PLATE; CAUTION,TIRE PLACARD
FRT&RR 245/70R16(QCQ) HIGH RIDE SUSPENSION(7YC) 		8-98102-346-1 01 1 1410- ●
109 PLATE; CAUTION,TIRE PLACARD 8-98102-346-1 01 1 1410- ●

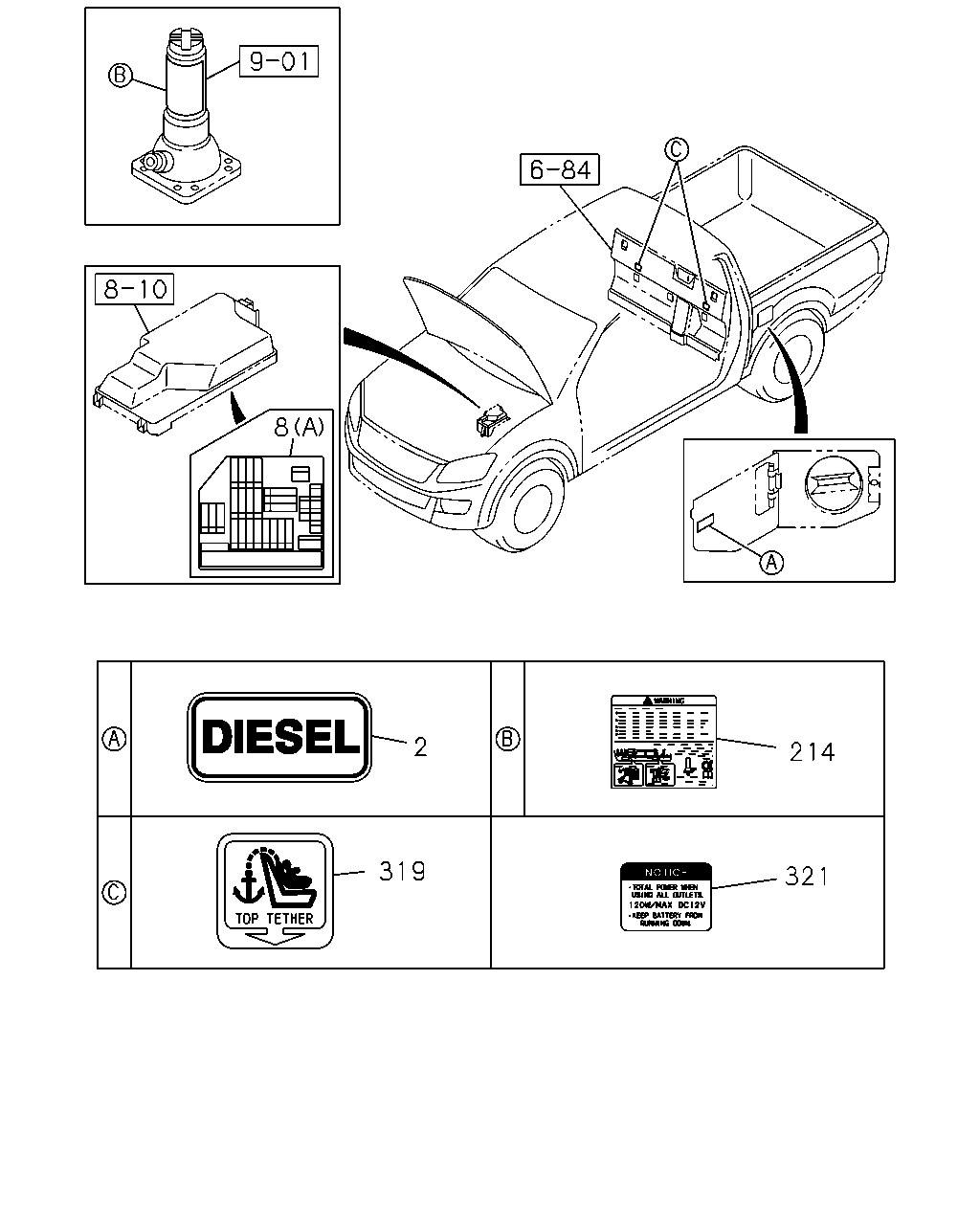

çizim 443999
2 319 321 214 8
BalonParca AdiParca NoAdetTipApplied Date A B
2 LABEL; FUEL CAUTION 8-98147-133-0 01 1 1410- ● ●
8 LABEL; FUSE
M/T MUA 5 SPEED 5H(MWQ) (A) 		8-98166-842-3 01 1 1410-1506 ●
8 LABEL; FUSE
(A) 		8-98166-842-3 01 1 1410-1506 ●
8 LABEL; FUSE
M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98166-842-3 01 1 1507- ●
8 LABEL; FUSE
(A) 		8-98166-842-3 01 1 1507- ●
8 LABEL; FUSE
(B) 		8-98213-358-0 01 1 1410- ● ●
214 LABEL; JACK 8-98245-069-0 01 1 1410-1501 ● ●
214 LABEL; JACK 8-98304-658-0 01 1 1502- ● ●
319 LABEL; TOP TETHER 8-98174-417-0 02 1 1410- ● ●
321 LABEL; WARNING,POWER
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-98183-494-1 01 1 1410- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
