3-70 — BRAKE PIPING; AIR,AIR MASTER (#14802) — 263 parça

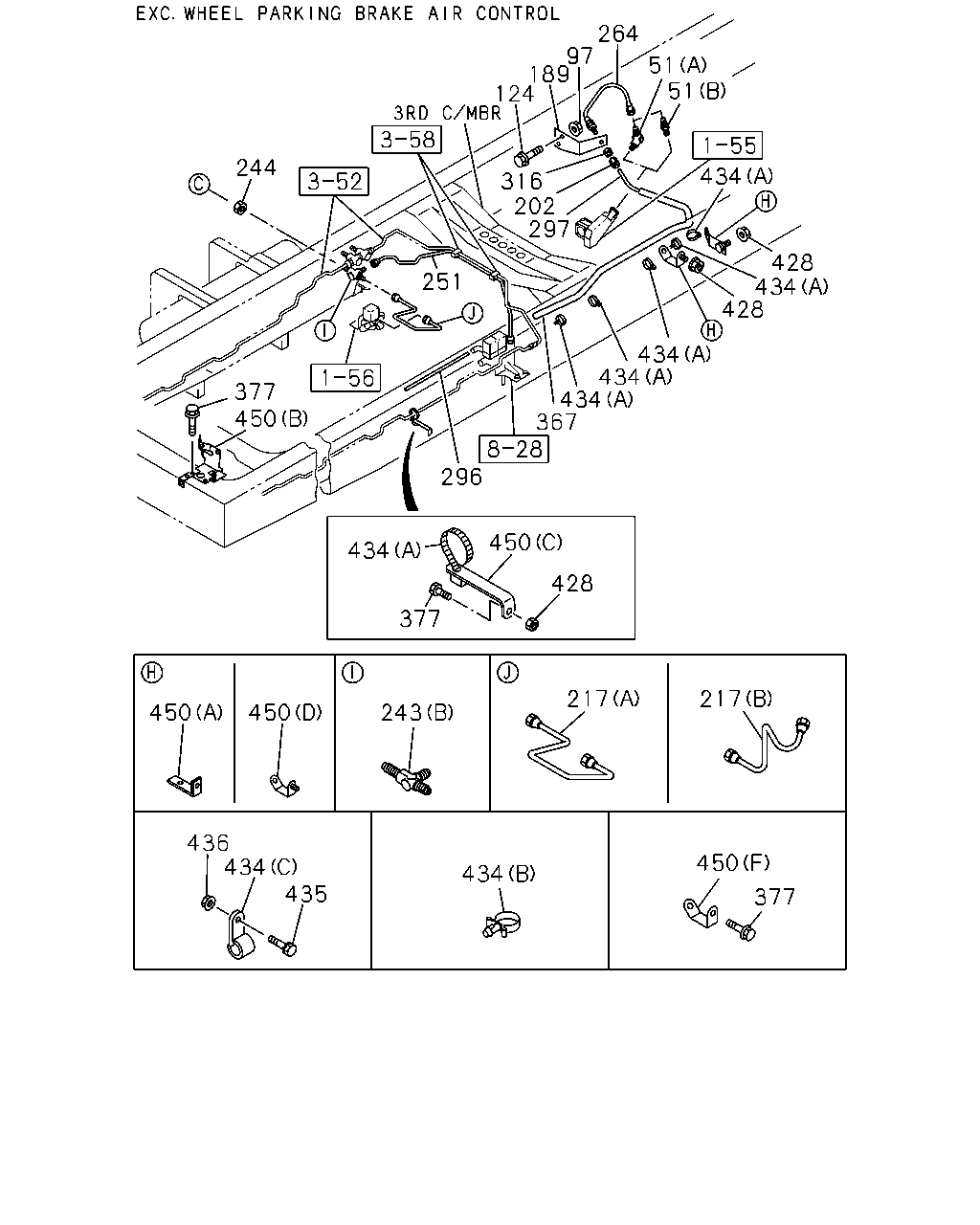

çizim 144643
264 97 189 124 51 51 244 434 316 202 297 428 434 428 251 434 434 434 367 296 377 450 450 434 428 377 217 217 450 450 243 436 434 435 450 434 377
BalonParca AdiParca NoAdetTipApplied Date
51 UNION
WHEEL BASE 3400MM(34W) (B) M12 ELBOW 		0-92125-006-0 01 1 0803-
51 UNION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0803-
97 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0803-
124 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0803-
189 BRACKET; FLEX HOSE 8-98054-640-0 01 1 0803-
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0803-
217 PIPE; VAC,UNION TO MAG VLV
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=265 		8-98067-433-0 01 1 0803-
217 PIPE; VAC,UNION TO MAG VLV
WHEEL BASE 3400MM(34W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=298 		8-98067-432-0 01 1 0803-0803
217 PIPE; VAC,UNION TO MAG VLV
MZX6P M/T(RSW) WHEEL BASE 3400MM(34W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=298 		8-98067-432-0 01 1 0804-
217 PIPE; VAC,UNION TO MAG VLV
MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=339 		8-98115-449-0 01 1 0807-
243 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M12 ELBOW 		0-92125-206-0 01 1 0803-
243 UNION; AIR PIPE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M12 3WAY 		0-92138-906-0 01 1 0803-
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0803-
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=931 SERVICED BY L=1000 		1-47428-814-0 01 1 0803-
251 PIPE; AIR,UNION TO MAG VLV
WHEEL BASE 3400MM(34W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=869 SERVICED BY L=900 		1-47428-813-0 01 1 0803-0803
251 PIPE; AIR,UNION TO MAG VLV
MZX6P M/T(RSW) WHEEL BASE 3400MM(34W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=869 SERVICED BY L=900 		1-47428-813-0 01 1 0804-
251 PIPE; AIR,UNION TO MAG VLV
MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=890 		8-98117-490-0 01 1 0807-
264 HOSE; FLEX
WHEEL BASE 3400MM(34W) L=270 		1-09363-687-0 01 1 0803-
264 HOSE; FLEX
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) L=220 		1-09363-627-0 01 1 0803-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0803-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0803-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0803-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0803-
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0803-
316 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 0803-
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=7 		1-87411-017-0 AR 1 0803-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0803-
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=10 		1-87411-020-0 AR 1 0803-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 0803-
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 02 1 0812-
377 BOLT; BRKT FIX
WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 01 1 0803-
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0803-
377 BOLT; BRKT FIX
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 02 1 0803-0803
377 BOLT; BRKT FIX
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 02 1 0804-0811
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 02 1 0804-0811
377 BOLT; BRKT FIX
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 03 1 0812-
377 BOLT; BRKT FIX
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 01 1 0803-0806
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 01 1 0803-0806
377 BOLT; BRKT FIX
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 01 1 0807-
377 BOLT; BRKT FIX
MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 01 1 0807-
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 01 1 0807-
428 NUT; BRKT
WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-210-0 01 1 0803-
428 NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 01 1 0803-
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0803-
428 NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-210-0 02 1 0803-0803
428 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0803-0803
428 NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-210-0 02 1 0804-0811
428 NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-210-0 03 1 0812-
434 CLIP
MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) (A) L=350 		1-09707-183-0 04 1 1110-1202
434 CLIP
MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) (A) L=350 		1-09707-183-0 04 1 1203-
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) L=350 		1-09707-183-0 04 1 1203-
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) L=350 		1-09707-183-0 05 1 1110-1202
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W) (A) L=350 		1-09707-183-0 05 1 1110-1202
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W) (A) L=350 		1-09707-183-0 05 1 1203-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) ID=10 & 15 		1-09709-279-1 01 1 0803-
434 CLIP
WHEEL BASE 3400MM(34W) (A) L=350 		1-09707-183-0 06 1 0803-
434 CLIP
WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=22 L=32 		1-09700-126-1 01 1 0803-0901
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 04 1 0803-0901
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 05 1 0902-1109
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W) (A) L=350 		1-09707-183-0 05 1 0902-1109
434 CLIP
MZX6P M/T(RSW) WHEEL BASE 3400MM(34W) (A) L=350 		1-09707-183-0 02 1 1110-
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W) (A) L=350 		1-09707-183-0 05 1 0803-0901
434 CLIP
WHEEL BASE 4600MM(46W) (A) L=350 		1-09707-183-0 07 1 0803-
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 0803-
434 CLIP
(D) ID=35 L=33 		1-09700-945-0 01 1 0803-
434 CLIP
(A) L=350 		1-09707-183-0 08 1 0803-
434 CLIP
(B) ID=18-24 L=14.5 		1-09709-298-0 02 1 0803-
434 CLIP
WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 0803-0806
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 0803-0806
434 CLIP
WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 0807-1109
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 0807-1109
434 CLIP
MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 0807-1109
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1110-
435 BOLT; CLIP
WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 01 1 0803-0808
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0809-0901
435 BOLT; CLIP
WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 01 1 0809-0901
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0902-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0803-0808
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0803-0901
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0902-
436 NUT; CLIP
WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-110-0 01 1 0803-0901
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0902-0902
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0902-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0902-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0803-0808
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0809-0901
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0809-0901
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0902-0902
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0803-0808
450 BRACKET; CLIP
WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98100-216-1 01 1 0803-
450 BRACKET; CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) 		1-47479-693-0 01 1 0803-
450 BRACKET; CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98100-216-1 02 1 0803-0811
450 BRACKET; CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98100-216-1 03 1 0812-
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 0803-1107
450 BRACKET; CLIP
(B) 		8-98180-947-0 01 1 1108-
450 BRACKET; CLIP
(D) 		8-98021-994-1 02 1 0803-0803
450 BRACKET; CLIP
(F) 		8-98117-686-0 02 1 0804-
450 BRACKET; CLIP
(C) L=60 H=30 		1-47477-716-1 01 1 0803-0806
450 BRACKET; CLIP
(C) 		1-47477-694-0 01 1 0807-
450 BRACKET; CLIP
MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) 		8-98116-680-0 01 1 0807-

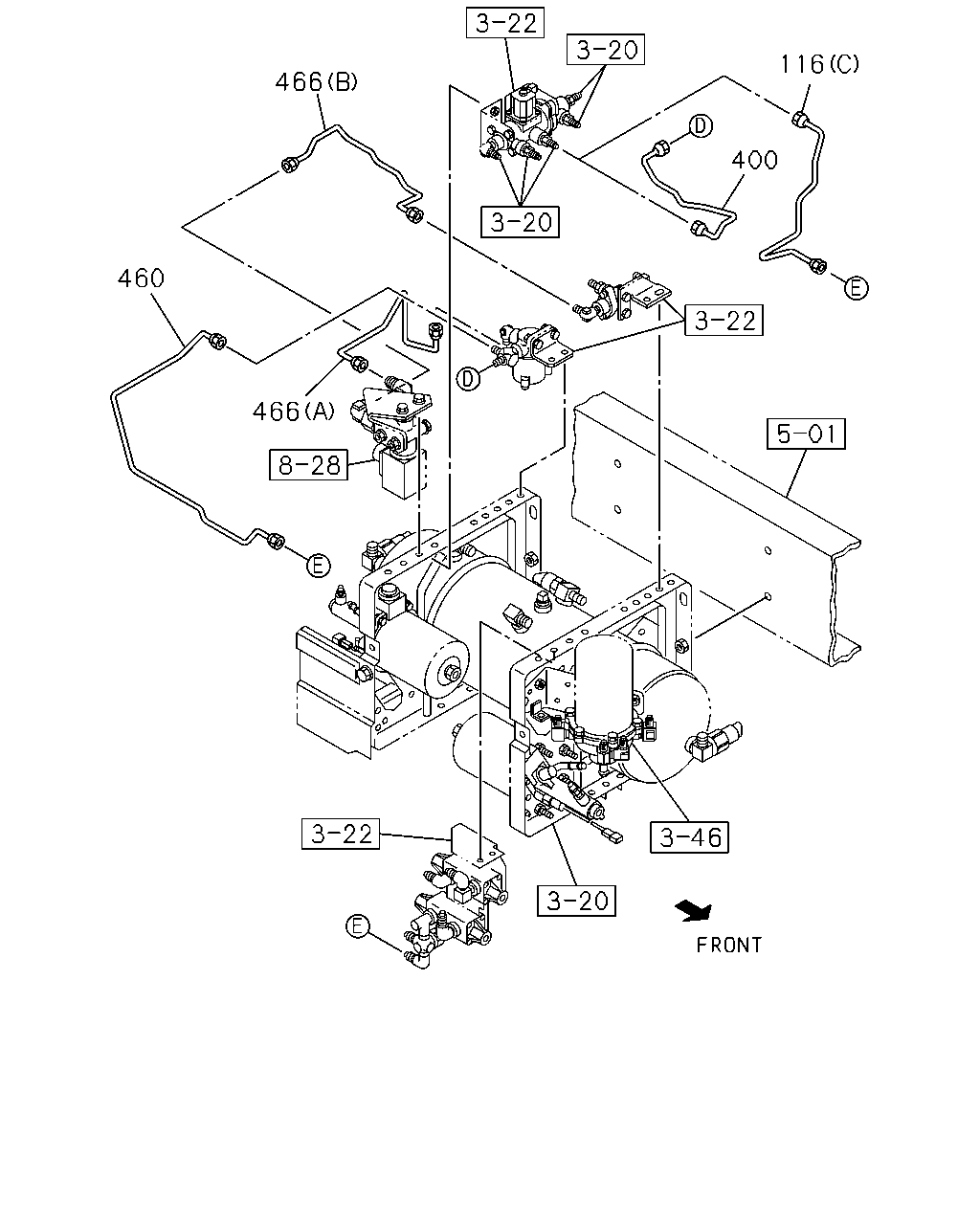

çizim 144646
116 466 400 460 466
BalonParca AdiParca NoAdetTipApplied Date
116 PIPE; AIR,PROTECTION VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=987 SERVICED BY L=1000 		1-47428-814-0 01 1 0803-
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550 		1-47428-808-0 01 1 0803-
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (C) L=601 SERVICED BY L=650 		1-47428-810-0 01 1 0803-
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 0803-
116 PIPE; AIR,PROTECTION VLV
(A) L=510 SERVICED BY L=550 		1-47428-867-0 01 1 0803-
116 PIPE; AIR,PROTECTION VLV
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1333 SERVICED BY L=1370 		1-47428-818-0 01 1 0803-
400 PIPE; AIR,HSA VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=467 		8-98066-848-0 01 1 0803-
460 PIPE; AIR,PROTECTION VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98066-846-0 01 1 0803-
460 PIPE; AIR,PROTECTION VALVE
THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98066-847-0 01 1 0803-
466 PIPE; AIR,ASR
THROTTLE CONTROL SYSTEM(6XH) (B) L=756 SERVICED BY L=800 		1-47428-872-0 01 1 0803-
466 PIPE; AIR,ASR
THROTTLE CONTROL SYSTEM(6XH) (A) L=492 		8-98077-879-0 01 1 0803-

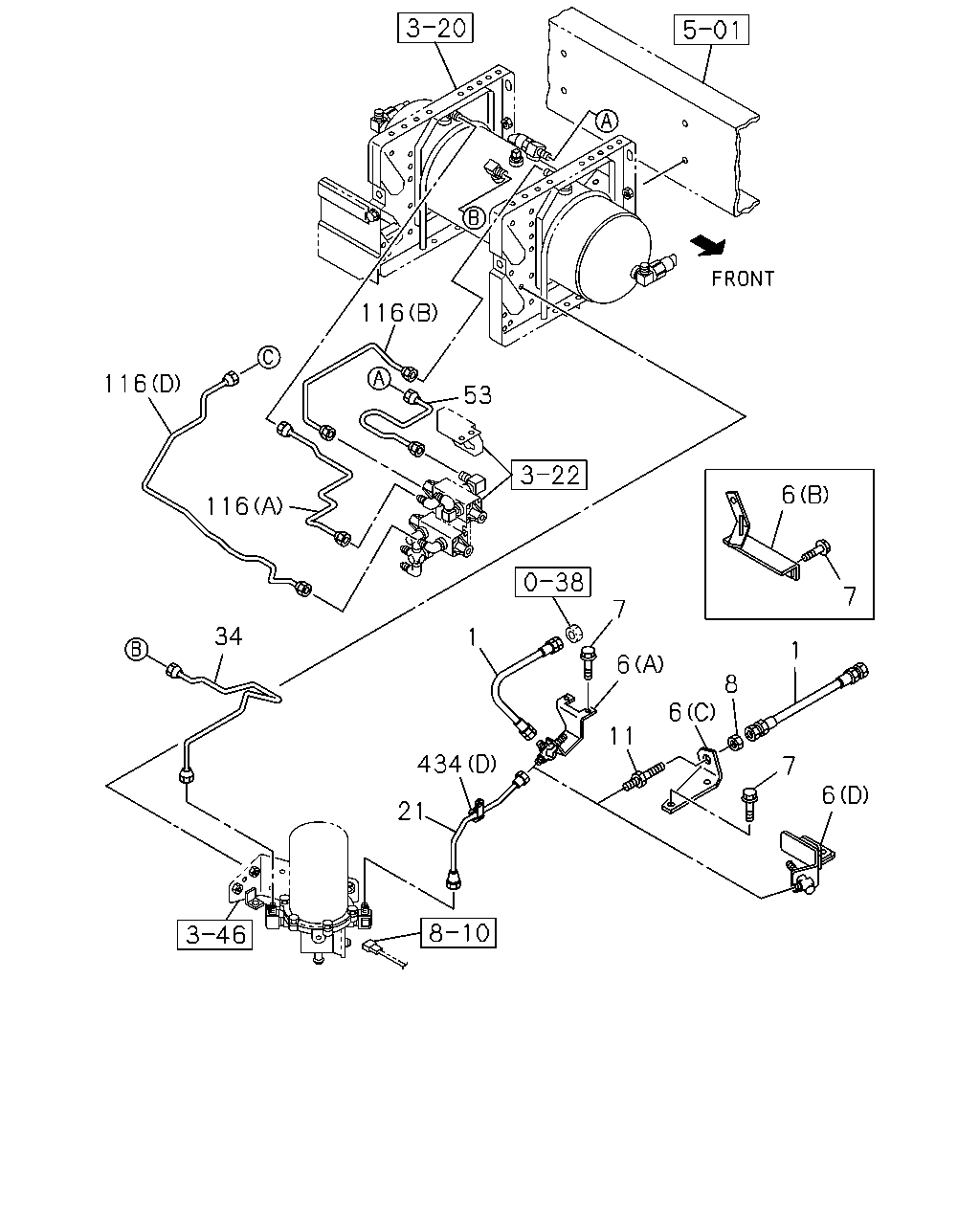

çizim 144647
116 116 53 6 116 7 7 34 1 1 6 8 6 11 434 7 6 21
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98079-973-0 01 1 0806-0808
1 HOSE; FLEX,AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98125-620-0 01 1 0806-0808
1 HOSE; FLEX,AIR TANK 8-98116-189-1 01 1 0803-0808
1 HOSE; FLEX,AIR TANK 8-98131-361-0 01 1 0809-0901
1 HOSE; FLEX,AIR TANK 8-98134-768-0 01 1 0902-
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		8-98066-733-1 01 1 0803-0808
6 BRACKET; FLEX HOSE,AIR TANK
(C) 		8-98131-504-0 01 1 0809-0901
6 BRACKET; FLEX HOSE,AIR TANK
(D) 		8-98134-700-0 01 1 0902-
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98116-145-0 01 1 0803-0808
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		8-98131-070-0 01 1 0809-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 0803-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 0803-
8 NUT; BRKT,FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 0809-0901
11 UNION; AIR PIPE
M22 L=77 STRAIGHT 		0-92123-115-0 01 1 0809-0901
21 PIPE; AIR,UNION TO AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=603 		8-98131-494-1 01 1 0809-0901
21 PIPE; AIR,UNION TO AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=739 		8-98134-697-0 01 1 0902-
21 PIPE; AIR,UNION TO AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=603 		8-98131-047-1 01 1 0809-0901
21 PIPE; AIR,UNION TO AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=763 		8-98134-696-0 01 1 0902-
21 PIPE; AIR,UNION TO AIR DRYER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=269 		8-98116-143-0 01 1 0803-0805
21 PIPE; AIR,UNION TO AIR DRYER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 		8-98116-144-0 01 1 0803-0805
34 PIPE; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 0803-
34 PIPE; AIR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=659 SERVICED BY L=660 		1-49115-480-0 01 1 0803-
53 PIPE; AIR,AIR TANK TO VALVE 8-98061-086-0 01 1 0803-
116 PIPE; AIR,PROTECTION VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=987 SERVICED BY L=1000 		1-47428-814-0 01 1 0803-
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550 		1-47428-808-0 01 1 0803-
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (C) L=601 SERVICED BY L=650 		1-47428-810-0 01 1 0803-
116 PIPE; AIR,PROTECTION VLV
(B) L=382 		8-98077-880-0 01 1 0803-
116 PIPE; AIR,PROTECTION VLV
(A) L=510 SERVICED BY L=550 		1-47428-867-0 01 1 0803-
116 PIPE; AIR,PROTECTION VLV
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1333 SERVICED BY L=1370 		1-47428-818-0 01 1 0803-
434 CLIP
MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) (A) L=350 		1-09707-183-0 04 1 1110-1202
434 CLIP
MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) (A) L=350 		1-09707-183-0 04 1 1203-
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) L=350 		1-09707-183-0 04 1 1203-
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) L=350 		1-09707-183-0 05 1 1110-1202
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W) (A) L=350 		1-09707-183-0 05 1 1110-1202
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W) (A) L=350 		1-09707-183-0 05 1 1203-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) ID=10 & 15 		1-09709-279-1 01 1 0803-
434 CLIP
WHEEL BASE 3400MM(34W) (A) L=350 		1-09707-183-0 06 1 0803-
434 CLIP
WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=22 L=32 		1-09700-126-1 01 1 0803-0901
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 04 1 0803-0901
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 05 1 0902-1109
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W) (A) L=350 		1-09707-183-0 05 1 0902-1109
434 CLIP
MZX6P M/T(RSW) WHEEL BASE 3400MM(34W) (A) L=350 		1-09707-183-0 02 1 1110-
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W) (A) L=350 		1-09707-183-0 05 1 0803-0901
434 CLIP
WHEEL BASE 4600MM(46W) (A) L=350 		1-09707-183-0 07 1 0803-
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 0803-
434 CLIP
(D) ID=35 L=33 		1-09700-945-0 01 1 0803-
434 CLIP
(A) L=350 		1-09707-183-0 08 1 0803-
434 CLIP
(B) ID=18-24 L=14.5 		1-09709-298-0 02 1 0803-
434 CLIP
WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 0803-0806
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 0803-0806
434 CLIP
WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 0807-1109
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 0807-1109
434 CLIP
MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 0807-1109
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1110-

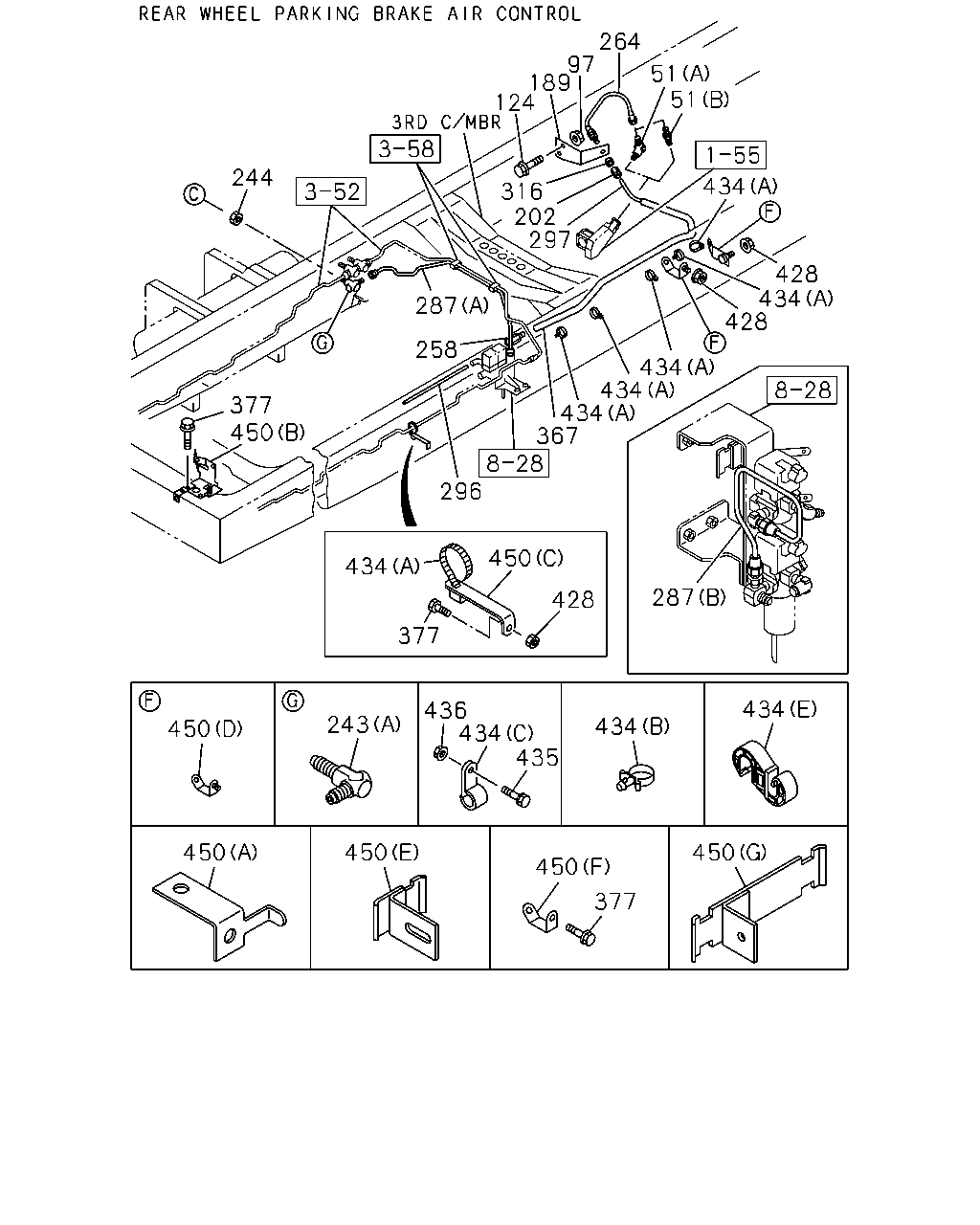

çizim 144657
264 97 189 124 51 51 244 434 316 202 297 428 434 428 287 258 434 434 434 367 296 377 450 450 434 287 428 377 434 436 434 435 243 434 450 450 450 450 450 377
BalonParca AdiParca NoAdetTipApplied Date
51 UNION
WHEEL BASE 3400MM(34W) (B) M12 ELBOW 		0-92125-006-0 01 1 0803-
51 UNION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0803-
97 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0803-
124 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0803-
189 BRACKET; FLEX HOSE 8-98054-640-0 01 1 0803-
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0803-
243 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M12 ELBOW 		0-92125-206-0 01 1 0803-
243 UNION; AIR PIPE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M12 3WAY 		0-92138-906-0 01 1 0803-
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0803-
258 CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0803-
264 HOSE; FLEX
WHEEL BASE 3400MM(34W) L=270 		1-09363-687-0 01 1 0803-
264 HOSE; FLEX
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) L=220 		1-09363-627-0 01 1 0803-
287 PIPE; AIR,MAG VLV
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=816 SERVICED BY L=900 		1-47428-813-0 01 1 0803-
287 PIPE; AIR,MAG VLV
WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=749 SERVICED BY L=800 		1-47428-812-0 01 1 0803-0803
287 PIPE; AIR,MAG VLV
MZX6P M/T(RSW) WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=749 SERVICED BY L=800 		1-47428-812-0 01 1 0804-
287 PIPE; AIR,MAG VLV
MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=773 SERVICED BY L=800 		1-47428-812-0 01 1 0807-
287 PIPE; AIR,MAG VLV
MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) PTO CONTROL<SV6> (B) L=367 		8-98117-489-0 01 1 0807-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0803-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0803-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0803-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0803-
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0803-
316 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 0803-
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=7 		1-87411-017-0 AR 1 0803-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0803-
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=10 		1-87411-020-0 AR 1 0803-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 0803-
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 02 1 0812-
377 BOLT; BRKT FIX
WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 01 1 0803-
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0803-
377 BOLT; BRKT FIX
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 02 1 0803-0803
377 BOLT; BRKT FIX
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 02 1 0804-0811
377 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 02 1 0804-0811
377 BOLT; BRKT FIX
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 03 1 0812-
377 BOLT; BRKT FIX
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 01 1 0803-0806
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 01 1 0803-0806
377 BOLT; BRKT FIX
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 01 1 0807-
377 BOLT; BRKT FIX
MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 01 1 0807-
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 01 1 0807-
428 NUT; BRKT
WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-210-0 01 1 0803-
428 NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 01 1 0803-
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0803-
428 NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-210-0 02 1 0803-0803
428 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0803-0803
428 NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-210-0 02 1 0804-0811
428 NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-210-0 03 1 0812-
434 CLIP
MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) (A) L=350 		1-09707-183-0 04 1 1110-1202
434 CLIP
MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) (A) L=350 		1-09707-183-0 04 1 1203-
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) L=350 		1-09707-183-0 04 1 1203-
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) L=350 		1-09707-183-0 05 1 1110-1202
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W) (A) L=350 		1-09707-183-0 05 1 1110-1202
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W) (A) L=350 		1-09707-183-0 05 1 1203-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) ID=10 & 15 		1-09709-279-1 01 1 0803-
434 CLIP
WHEEL BASE 3400MM(34W) (A) L=350 		1-09707-183-0 06 1 0803-
434 CLIP
WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=22 L=32 		1-09700-126-1 01 1 0803-0901
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 04 1 0803-0901
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 05 1 0902-1109
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W) (A) L=350 		1-09707-183-0 05 1 0902-1109
434 CLIP
MZX6P M/T(RSW) WHEEL BASE 3400MM(34W) (A) L=350 		1-09707-183-0 02 1 1110-
434 CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W) (A) L=350 		1-09707-183-0 05 1 0803-0901
434 CLIP
WHEEL BASE 4600MM(46W) (A) L=350 		1-09707-183-0 07 1 0803-
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 0803-
434 CLIP
(D) ID=35 L=33 		1-09700-945-0 01 1 0803-
434 CLIP
(A) L=350 		1-09707-183-0 08 1 0803-
434 CLIP
(B) ID=18-24 L=14.5 		1-09709-298-0 02 1 0803-
434 CLIP
WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 0803-0806
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 0803-0806
434 CLIP
WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 0807-1109
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 0807-1109
434 CLIP
MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 0807-1109
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1110-
435 BOLT; CLIP
WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 01 1 0803-0808
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0809-0901
435 BOLT; CLIP
WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 01 1 0809-0901
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0902-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0803-0808
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0803-0901
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0902-
436 NUT; CLIP
WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-110-0 01 1 0803-0901
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0902-0902
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0902-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0902-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0803-0808
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0809-0901
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0809-0901
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0902-0902
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0803-0808
450 BRACKET; CLIP
WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98100-216-1 01 1 0803-
450 BRACKET; CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) 		1-47479-693-0 01 1 0803-
450 BRACKET; CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98100-216-1 02 1 0803-0811
450 BRACKET; CLIP
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98100-216-1 03 1 0812-
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 0803-1107
450 BRACKET; CLIP
(B) 		8-98180-947-0 01 1 1108-
450 BRACKET; CLIP
(D) 		8-98021-994-1 02 1 0803-0803
450 BRACKET; CLIP
(F) 		8-98117-686-0 02 1 0804-
450 BRACKET; CLIP
(C) L=60 H=30 		1-47477-716-1 01 1 0803-0806
450 BRACKET; CLIP
(C) 		1-47477-694-0 01 1 0807-
450 BRACKET; CLIP
MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) 		8-98116-680-0 01 1 0807-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
