◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51576 - TFR/TFS JIANGXI ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#148015) — 8 parça

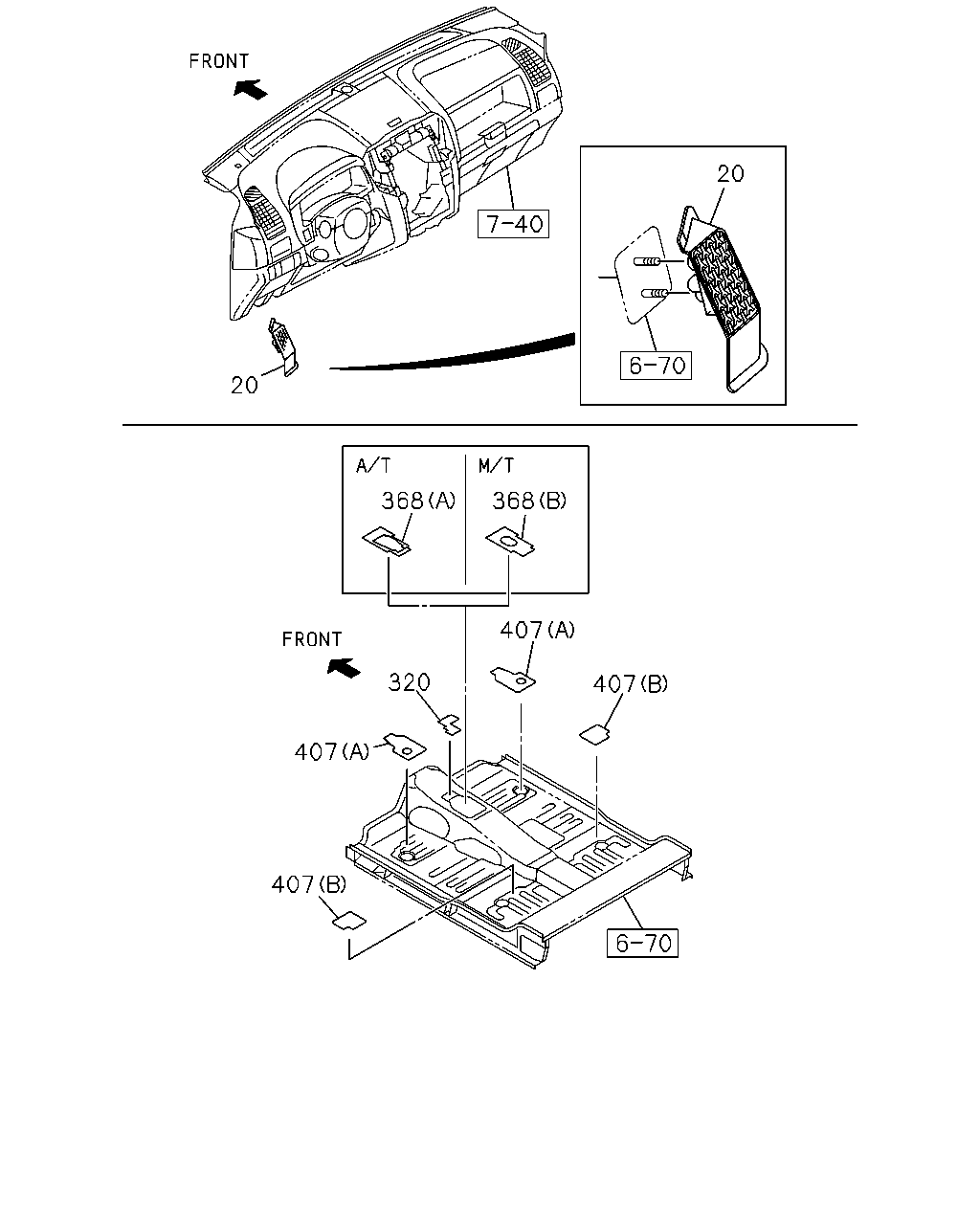

çizim 444238
20 20 320 407 368 368 407 407 407
BalonParca AdiParca NoAdetTipApplied Date A B
20 REST; FOOT 8-98102-836-2 01 1 1410- ● ●
320 INSULATOR; FLOOR,FRT 8-98166-704-0 01 1 1410- ● ●
368 INSULATOR; FLOOR,RR
M/T MUA 5 SPEED 5H(MWQ) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98166-706-0 01 1 1410- ● ●
368 INSULATOR; FLOOR,RR
A/T 5 SPEED-AISIN(MA1) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98166-707-0 01 1 1410- ●
407 DEADENER; FLOOR PANEL
(A) 		8-98103-655-1 02 1 1410-1506 ● ●
407 DEADENER; FLOOR PANEL
(A) 		8-98103-655-1 02 1 1507- ● ●
407 DEADENER; FLOOR PANEL
(B) 		8-98155-918-0 02 1 1410-1506 ● ●
407 DEADENER; FLOOR PANEL
(B) 		8-98155-918-0 02 1 1507- ● ●
