6-70 — FLOOR PANEL (#148013) — 21 parça

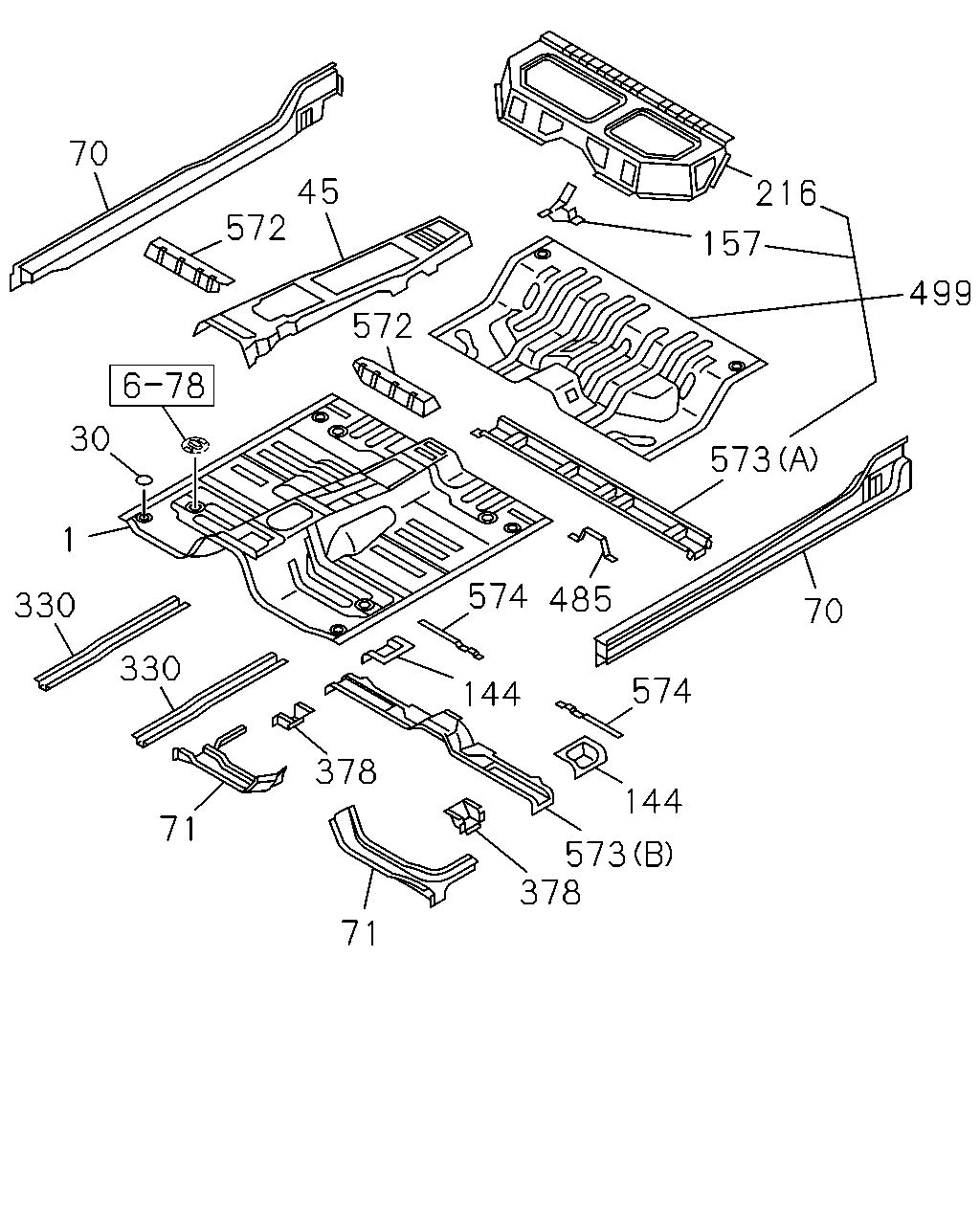

çizim 444235
70 572 45 572 30 1 330 330 71 71 378 378 144 574 70 499 157 216 144 574 485 573
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR 8-98199-516-0 01 1 1410- ● ●
30 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 06 1 1410-1506 ● ●
30 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 06 1 1507- ● ●
45 REINFORCEMENT; TUNNEL,FRT 8-98101-017-6 01 1 1410- ● ●
70 PANEL; ROCKER INNER 8-98103-894-3 01 1 1410- ● ●
70 PANEL; ROCKER INNER 8-98103-912-3 01 1 1410- ● ●
71 BRACKET; CAB MTG,CENTER 8-98101-984-5 01 1 1410- ● ●
71 BRACKET; CAB MTG,CENTER 8-98101-985-8 01 1 1410- ● ●
144 BRACKET; MTG,RR 8-98100-940-3 02 1 1410- ● ●
157 BRACKET; TOOL BOX LID 8-98115-430-5 01 1 1410- ● ●
216 PANEL; SEAT RISER 8-98116-648-4 01 1 1410- ● ●
330 REINFORCEMENT; FLOOR 8-98100-938-0 02 1 1410- ● ●
378 GASSET; LWR 8-98101-037-0 02 1 1410- ● ●
485 SEAL; TAPE TYPE 8-94336-915-0 01 1 1410- ● ●
499 PANEL; FLOOR,RR 8-98116-646-9 01 1 1410-1506 ● ●
499 PANEL; FLOOR,RR 8-98322-482-0 01 1 1507- ● ●
572 SILL; FLOOR,FRT 8-98101-019-3 01 1 1410- ● ●
572 SILL; FLOOR,FRT 8-98101-020-3 01 1 1410- ● ●
573 SILL; FLOOR,RR
(A) 		8-98104-056-3 01 1 1410- ● ●
573 SILL; FLOOR,RR
(B) 		8-98151-571-2 01 1 1410- ● ●
574 TAPE; ADHESIVE 8-98178-885-0 02 1 1410- ● ●
