◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51576 - TFR/TFS JIANGXI ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#148011) — 19 parça

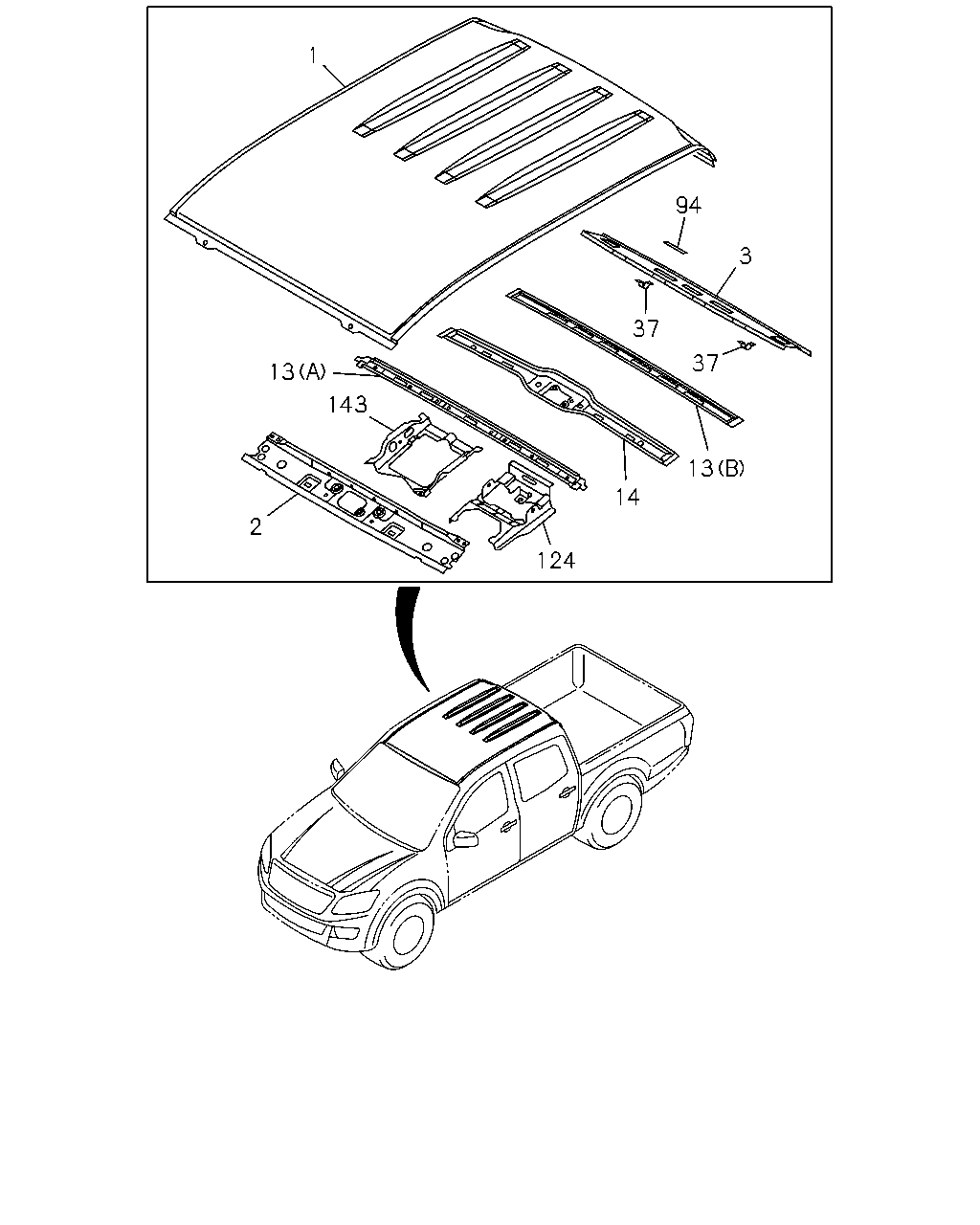

çizim 444250
94 3 37 37 13 14 124 143 13 1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; ROOF
HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> EXC. MAP LAMP<C74> 		8-98103-960-3 01 1 1410- ● ●
1 PANEL; ROOF
MAP LAMP<C74> HIGH MOUNT STOP LAMP<TS6> EXC. HEADER CONSOLE<DK6> 		8-98103-960-3 01 1 1410- ● ●
1 PANEL; ROOF
MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,HIGH MOUNT STOP LAMP<TS6> CHI 		8-98246-741-0 01 1 1410- ● ●
2 PANEL; ROOF,CENTER
HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> EXC. MAP LAMP<C74> 		8-98103-964-5 01 1 1410- ● ●
2 PANEL; ROOF,CENTER
MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> 		8-98103-964-5 01 1 1410- ● ●
3 PANEL; ROOF,RR
HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> EXC. MAP LAMP<C74> 		8-98103-999-3 01 1 1410- ● ●
3 PANEL; ROOF,RR
MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> 		8-98103-999-3 01 1 1410- ● ●
13 PANEL; ROOF SUPPORT
HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> EXC. MAP LAMP<C74> (A) 		8-98103-963-1 01 1 1410- ● ●
13 PANEL; ROOF SUPPORT
MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> (A) 		8-98103-963-1 01 1 1410- ● ●
13 PANEL; ROOF SUPPORT
HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> EXC. MAP LAMP<C74> (B) 		8-98103-982-0 01 1 1410- ● ●
13 PANEL; ROOF SUPPORT
MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> (B) 		8-98103-982-0 01 1 1410- ● ●
14 SUPPORT; ROOF
HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> EXC. MAP LAMP<C74> 		8-98163-387-1 01 1 1410- ● ●
14 SUPPORT; ROOF
MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> 		8-98163-387-1 01 1 1410- ● ●
37 BRACKET; TRIM,ROOF BACK
HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> EXC. MAP LAMP<C74> 		8-98103-996-0 02 1 1410- ● ●
37 BRACKET; TRIM,ROOF BACK
MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> 		8-98103-996-0 02 1 1410- ● ●
94 SEAL; REINFORCEMENT
HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> EXC. MAP LAMP<C74> 		8-98201-900-0 01 1 1410- ● ●
94 SEAL; REINFORCEMENT
MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> 		8-98201-900-0 01 1 1410- ● ●
124 BRACKET; ROOM LAMP
MAP LAMP<C74> EXC. HEADER CONSOLE<DK6> 		8-98103-968-0 01 1 1410- ● ●
143 BRACKET; CONSOLE
HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> EXC. MAP LAMP<C74> 		8-98103-962-1 01 1 1410- ● ●
