6-52 — REAR DOOR LOCK AND HANDLE (#148009) — 33 parça

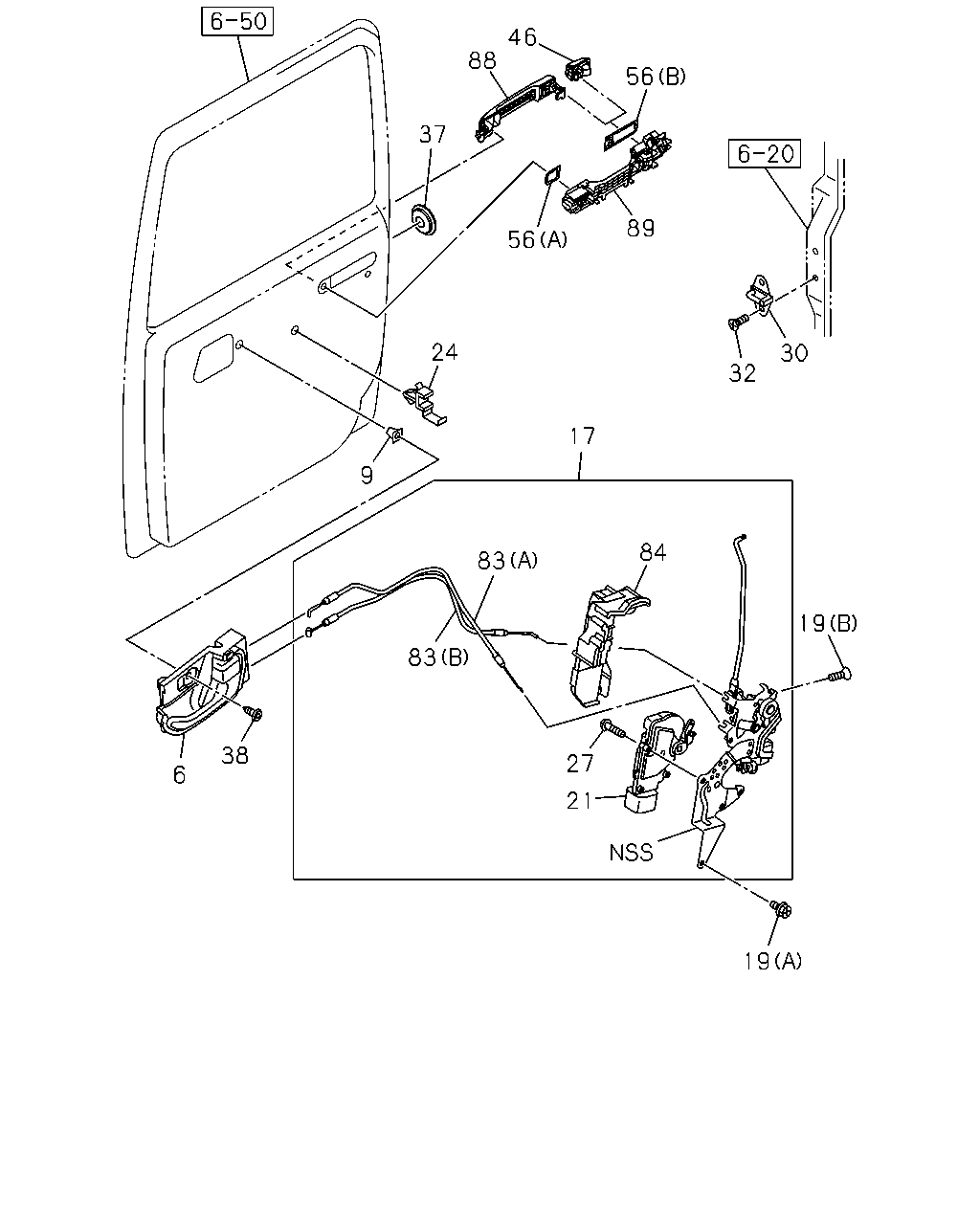

çizim 444138
88 46 56 37 56 89 30 32 24 17 9 38 6 83 83 84 19 27 21 19
BalonParca AdiParca NoAdetTipApplied Date A B
6 BEZEL; INSIDE HANDLE,DOOR LOCK
BLACK 		8-97416-730-3 01 1 1410- ● ●
6 BEZEL; INSIDE HANDLE,DOOR LOCK
BLACK 		8-97416-732-3 01 1 1410- ● ●
9 GROMMET; SCREW,INSIDE HANDLE 8-94152-494-0 02 1 1410- ● ●
17 LOCK; DOOR,RR DOOR 8-98231-776-1 01 1 1410- ● ●
17 LOCK; DOOR,RR DOOR 8-98231-777-1 01 1 1410- ● ●
19 BOLT; RR DOOR LOCK
(B) SCREW M6X14.5 		8-98004-342-0 06 1 1410- ● ●
19 BOLT; RR DOOR LOCK
(A) M6X8 FLANGE 		8-98048-996-0 02 1 1410- ● ●
21 ACTUATOR; RR DOOR LOCK 8-97351-081-0 01 1 1410-1502 ● ●
21 ACTUATOR; RR DOOR LOCK 8-98292-018-0 01 1 1503- ● ●
21 ACTUATOR; RR DOOR LOCK 8-97351-082-0 01 1 1410-1502 ● ●
21 ACTUATOR; RR DOOR LOCK 8-98292-017-0 01 1 1503- ● ●
24 ANTIRATTLER; DOOR INSIDE HANDLE 8-97251-932-0 02 1 1410- ● ●
27 SCREW; RR DOOR LOCK 8-97349-997-0 04 1 1410- ● ●
30 STRIKER; RR DOOR 8-98012-203-0 02 1 1410- ● ●
32 SCREW; DOOR STRIKER
M8X35 		8-98049-360-0 04 1 1410- ● ●
37 GROMMET; RR DOOR
OD=26 		8-94141-484-0 02 1 1410-1506 ● ●
37 GROMMET; RR DOOR
OD=26 		8-94141-484-0 02 1 1507- ● ●
38 SCREW; INSIDE LEVER,RR DOOR LK
M5X14 TAPPING 		8-98184-363-0 02 1 1410- ● ●
46 COVER; OUTSIDE HANDLE
HANDLE O/S DOOR BODY COLOR<D75> KD-PAINT LESS SUPPLY<7TV> 		8-98201-401-0 02 1 1410- ● ●
46 COVER; OUTSIDE HANDLE
HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PAINT LESS SUPPLY<7TV> WHITE 		8-97422-463-1 02 1 1410- ● ●
46 COVER; OUTSIDE HANDLE
HANDLE O/S DOOR CHROME<E20> PLATED 		8-98176-465-1 02 1 1410- ● ●
56 GASKET; HANDLE,RR DOOR
(A) 		8-98176-466-0 02 1 1410- ● ●
56 GASKET; HANDLE,RR DOOR
(B) 		8-98176-467-2 02 1 1410- ● ●
83 CABLE ASM; LOCK CONTROL
(A) 		8-98193-715-0 01 1 1410- ● ●
83 CABLE ASM; LOCK CONTROL
(B) 		8-98193-716-0 02 1 1410- ● ●
83 CABLE ASM; LOCK CONTROL
(A) 		8-98193-717-0 01 1 1410- ● ●
84 COVER; DOOR LOCK 8-97351-079-0 01 1 1410- ● ●
84 COVER; DOOR LOCK 8-97351-080-0 01 1 1410- ● ●
88 GRIP; RR DOOR
HANDLE O/S DOOR BODY COLOR<D75> KD-PAINT LESS SUPPLY<7TV> 		8-98201-399-0 02 1 1410- ● ●
88 GRIP; RR DOOR
HANDLE O/S DOOR BODY COLOR<D75> EXC. KD-PAINT LESS SUPPLY<7TV> WHITE 		8-97422-436-0 02 1 1410- ● ●
88 GRIP; RR DOOR
HANDLE O/S DOOR CHROME<E20> PLATED 		8-98176-458-0 02 1 1410- ● ●
89 BRACKET; GRIP,DOOR 8-98176-472-4 01 1 1410- ● ●
89 BRACKET; GRIP,DOOR 8-98176-473-4 01 1 1410- ● ●
