3-55 — BRAKE PIPING; OIL,REAR (#14800) — 60 parça
çizim 144636
33 75 33 46 75 46 138 138 138
BalonParca AdiParca NoAdetTipApplied Date
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3400MM(34W) (B) RH LINE L=954 		8-98071-239-0 01 1 0803-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3400MM(34W) (A) LH LINE 		8-98091-613-0 01 1 0803-0901
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3400MM(34W) (A) LH LINE L=1111 		8-98138-758-0 01 1 0902-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (A) LH LINE L=1672 		8-98071-242-0 01 1 0803-1107
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (A) LH LINE L=1665 		8-98183-296-0 01 1 1108-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (B) RH LINE L=1608 		8-98071-243-0 01 1 0803-1107
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (B) RH LINE L=1605 		8-98183-297-0 01 1 1108-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (A) LH LINE L=2270 		8-98071-246-0 01 1 0803-1107
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (A) LH LINE L=2263 		8-98183-300-0 01 1 1108-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (B) RH LINE L=2206 		8-98071-247-0 01 1 0803-1107
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (B) RH LINE L=2203 		8-98183-301-0 01 1 1108-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) (A) LH LINE L=2600 		8-98071-248-0 01 1 0803-1107
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) (A) LH LINE L=2593 		8-98183-302-0 01 1 1108-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) (B) RH LINE L=2536 		8-98071-249-0 01 1 0803-1107
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) (B) RH LINE L=2533 		8-98183-303-0 01 1 1108-
46 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 0803-
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 0803-
138 PIPE; HYDRAULIC UNIT
(A) LH LINE L=657 		8-98012-129-0 01 1 0803-
138 PIPE; HYDRAULIC UNIT
(B) RH LINE L=703 		8-98012-146-0 01 1 0803-
138 PIPE; HYDRAULIC UNIT
(C) L=296 		8-98066-107-0 01 1 0803-

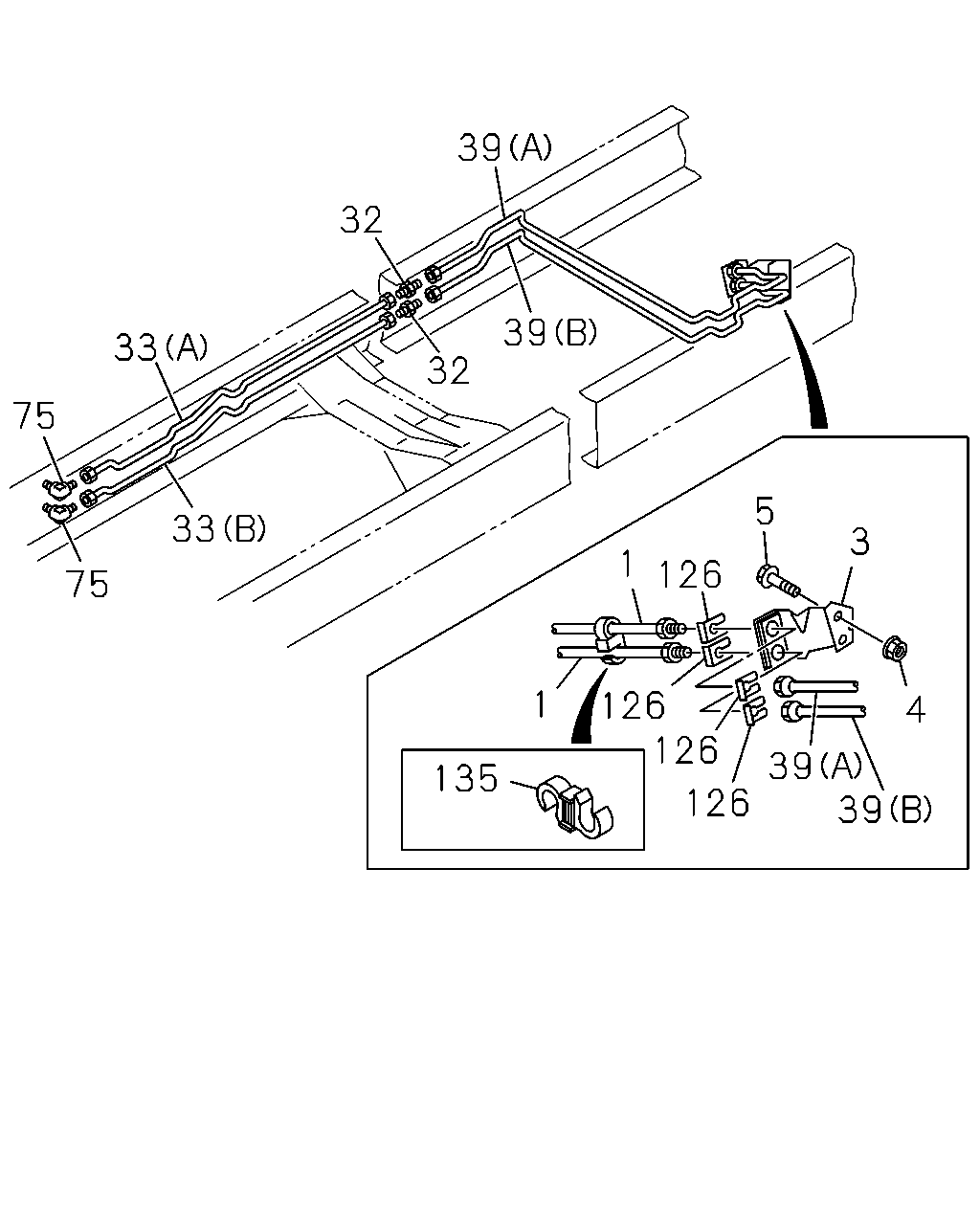

çizim 144641
39 32 39 33 32 75 5 33 3 1 126 75 126 126 4 39 39 135 126 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,RR BRK
WHEEL BASE 3400MM(34W) L=320 		8-98067-397-0 02 1 0803-
1 HOSE; FLEX,RR BRK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) L=350 		8-97138-885-0 02 1 0803-
3 BRACKET; FLEX HOSE,RR BRK 8-98065-999-2 01 1 0803-
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91180-108-0 02 1 0803-
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 02 1 0803-
32 UNION; OIL PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 0803-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3400MM(34W) (B) RH LINE L=954 		8-98071-239-0 01 1 0803-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3400MM(34W) (A) LH LINE 		8-98091-613-0 01 1 0803-0901
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3400MM(34W) (A) LH LINE L=1111 		8-98138-758-0 01 1 0902-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (A) LH LINE L=1672 		8-98071-242-0 01 1 0803-1107
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (A) LH LINE L=1665 		8-98183-296-0 01 1 1108-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (B) RH LINE L=1608 		8-98071-243-0 01 1 0803-1107
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (B) RH LINE L=1605 		8-98183-297-0 01 1 1108-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (A) LH LINE L=2270 		8-98071-246-0 01 1 0803-1107
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (A) LH LINE L=2263 		8-98183-300-0 01 1 1108-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (B) RH LINE L=2206 		8-98071-247-0 01 1 0803-1107
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (B) RH LINE L=2203 		8-98183-301-0 01 1 1108-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) (A) LH LINE L=2600 		8-98071-248-0 01 1 0803-1107
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) (A) LH LINE L=2593 		8-98183-302-0 01 1 1108-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) (B) RH LINE L=2536 		8-98071-249-0 01 1 0803-1107
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) (B) RH LINE L=2533 		8-98183-303-0 01 1 1108-
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1710 		8-98106-485-0 01 1 0803-
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH LINE L=1772 		8-98106-486-0 01 1 0803-
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 0803-
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 0803-
135 CLIP; FLEX HOSE
ID=10 & 10 		1-09709-277-1 01 1 0803-

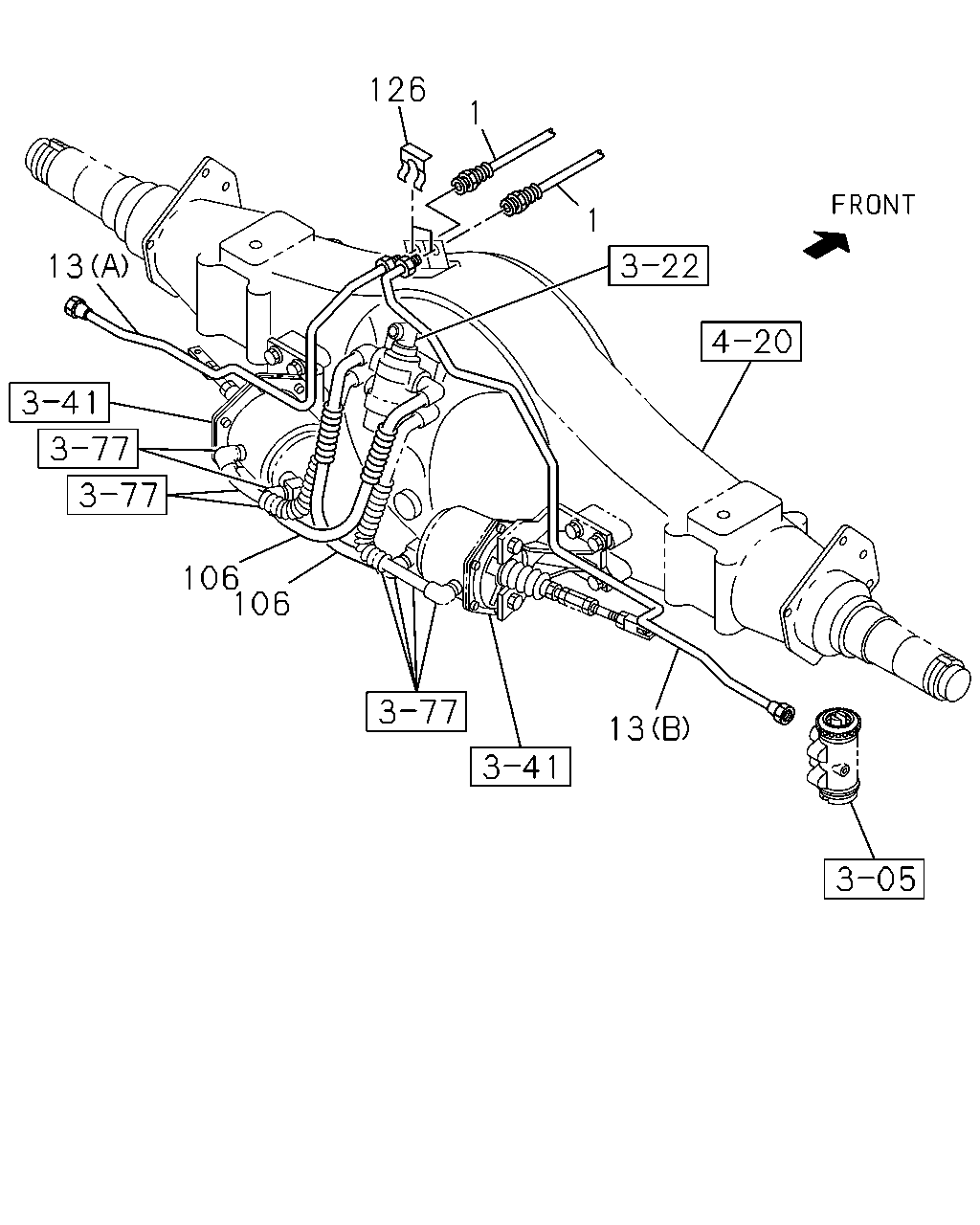

çizim 144644
13 126 1 106 106 13 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,RR BRK
WHEEL BASE 3400MM(34W) L=320 		8-98067-397-0 02 1 0803-
1 HOSE; FLEX,RR BRK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) L=350 		8-97138-885-0 02 1 0803-
13 PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE 		8-98073-530-0 01 1 1410-1410
13 PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE 		8-98073-531-0 01 1 1410-1410
13 PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE 		8-98059-741-0 01 1 0803-
13 PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE 		8-98059-742-0 01 1 0803-
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE 		8-98073-530-0 01 1 0803-0803
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE 		8-98107-928-0 01 1 0804-1409
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) RH LINE 		8-98281-557-0 01 1 1410-
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE 		8-98073-531-0 01 1 0803-0803
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE 		8-98107-929-0 01 1 0804-1409
13 PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LH LINE 		8-98281-558-0 01 1 1410-
106 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98061-971-0 02 1 0803-
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 0803-
